Summary of Contents for Samson Expedition Explor
- Page 1 Owner's Manual...
- Page 2 Hicksville, New York 11801 www.samsontech.com The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners.”...
- Page 3 Important Safety Information Read these instructions. 13. Unplug the apparatus during lightening storms or when unused for long periods Keep these instructions. of time. Heed all warnings. 14. Refer all servicing to qualified per- sonnel. Service is required when the Follow all instructions.
- Page 4 Important Safety Information FCC Notice 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

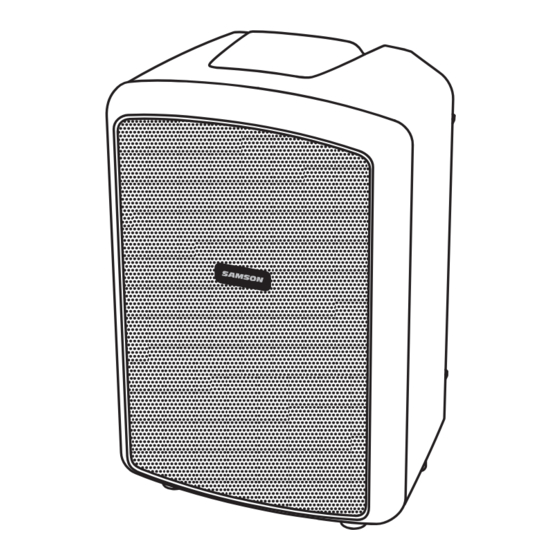

- Page 5 EXPLOR • Portable PA System...
-
Page 6: Table Of Contents
Table of Contents Introduction ......7 Control Panel Features ....8 Quick Start . -
Page 7: Introduction
Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Expedition Explor was purchased outside of the United States, contact your local distribu- tor for warranty details and service information. -
Page 8: Control Panel Features
POWER - Switches on the main power. AC INLET - Connect the supplied power cable here. * The USB connector is for the Samson XPD wireless receiver only. The connector is not designed to charge smartphones, tablets, or similar devices. -
Page 9: Quick Start
Quick Start Follow these steps below to quickly start using your Explor portable sound system. • Set the Explor's power switch to the OFF position, and fully turn all of the VOLUME controls counterclockwise. • If an outlet is available, connect the included power cable to the AC INLET of the speaker, and plug it into an AC socket (wall outlet). -
Page 10: Pairing With A Bluetooth® Device
Pairing with a Bluetooth device ® Bluetooth is a wireless communication technology that allows for connectivity between a wide range of devices. The Explor uses Bluetooth to stream high quality audio from your Bluetooth enabled device without the need to connect any cables. In order for your device to work with the Explor, it must first be paired. -
Page 11: Charging The Battery
If you find that the operation time of the Explor becomes noticeably decreased, even after fully charging, the battery should be replaced. Contact Samson customer service or your local distributor to order a replacement battery. NOTE: follow steps below to swap your battery. -
Page 12: Speaker Placement
Speaker Placement The Explor provides three different placement options for your specific situation. For maximum sound coverage the Explor can be used with a standard 1 ⁄ ” speaker stand. The speaker should be raised above the heads of the listening audience. -
Page 13: Quick Start - Xpd2 Wireless System
Quick Start - XPD2 Wireless System Plug the RXD2 USB receiver into the USB jack labeled XPD WIRELESS. There is a USB A female to USB A male extension cable included. This can be used to prevent damage to RXD2 receiver, if the Explor is knocked over or dropped. -
Page 14: Quick Start - Xpd2 Wireless System
Quick Start - XPD2 Wireless System If the transmitter and receiver have not been previously paired, please plug it into your Explor and press and hold the button on the RXD2 receiver for >5 seconds, until it begins to flash. Press and hold the Power button on the handheld transmitter for >5 seconds. -
Page 15: Hxd1 Handheld Transmitter Controls
RXD2 Receiver Controls USB Connector - Plugs into the XPD WIRELESS jack on the rear panel of the Expedition Explor. The receiver can also plug directly into a computer USB port and will be recognized as a USB audio device. The unit passes audio to the device and receives power from the device through this connector. -
Page 16: Pxd1 Beltpack Transmitter Controls
PXD1 Beltpack Transmitter Controls Input Connector - Connect the input device via the mini-XLR connector. The PXD1 is supplied with either a lavalier or headset microphone. Status Indicator - This LED displays the operation mode: Amber: Normal Operation Flashing Amber: Pairing / Low Battery Power/Pair Switch - Press for <5 seconds to turn the unit on or off. -
Page 17: Making Connections
Making Connections Microphone, Instrument*, Line Level Device Wireless System SIGNAL FLOW Instrument*, Keyboard, Drum Machine SIGNAL FLOW Paired Bluetooth Device MP3 Player, Portable Audio LINE OUT EXPLOR • Portable PA System... -
Page 18: Explor Specifications
Input Impedance (Combo Input) ..XLR Input (balanced) 3 kΩ Input Impedance (Combo Input) ..1/4" TRS Input (balanced/unbalanced) 16 kΩ Wireless Input ... . . USB 3.0 for Samson XPD Wireless Channel 2 Inputs Input Impedance (Combo Input) . -
Page 19: Xpd2 Wireless Specifications
XPD2 Specifications Simultaneous Systems ....2 Working Range ....100' line of sight Working Frequency . - Page 20 Having Trouble with your Expedition Explor? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samsontech @samson_technologies Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 www.samsontech.com...
