Samson ReSound Series Owner's Manual
Samson ReSound Series Owner's Manual

Samson ReSound Series Owner's Manual

2-way loudspeaker speaker systems

Advertisement

RS10
RS12
RS15
RS215
RS10M
RS12M
RS15M
2-way Loudspeaker Speaker Systems
A
U
D
I
O

Advertisement

loading

Summary of Contents for Samson ReSound Series

  • Page 1 RS10 RS12 RS15 RS215 RS10M RS12M RS15M 2-way Loudspeaker Speaker Systems...
  • Page 2: Table Of Contents

    Table of Contents ENGLISH ESPAÑOL Introduction Introducción Resound Features Características del Resound Resound Components Componentes del Resound Resound FRONT VIEW Conexión del sistema de altavoces Resound Resound REAR PANEL Colocación del Resound Connecting the Resound Speaker System Configuración de su Sistema dB500 Positioning the Resound Guía de cableado Microphone Positioning - How to Reduce Feedback...
  • Page 3: Introduction

    Congratulations on purchasing the Samson Resound Series loudspeaker system! The Resound speaker systems by Samson takes the concept of PA systems to a new level. Whether you are using the RS10, RS12, RS15 or RS215 front-firing PA speakers for main “front of house” PA, or the RS10M, RS12M or RS15M for wedge floor monitors, the Resound series will provide clear sound with a lot of output.
  • Page 4: Resound Features

    The Samson Resound series two-way loudspeaker systems offer several models to manage a variety of live sound appli- cations. With their high quality components, convenient sized trapezoidal and monitor wedge enclosures, ergonomic carry handles and stand mounts, the Resound series system will provide great sound with reliability. Here are some of their main features: •...
  • Page 5: Resound Components

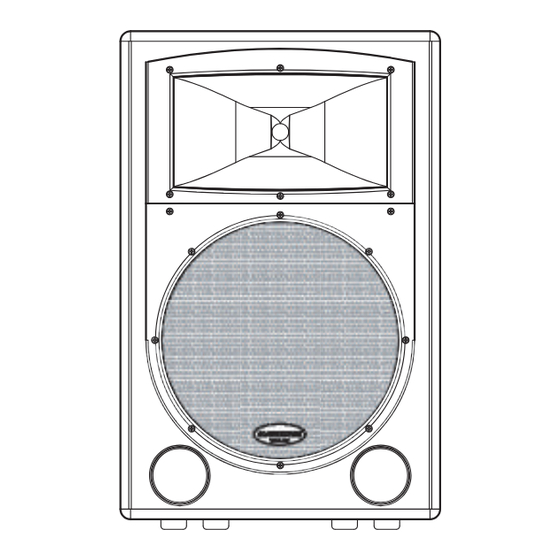

    Resound Components Resound FRONT VIEW Wide Dispersion Horn – 1 inch throat, 60 x 90 degree wide dispersion horn provides extensive coverage and linear, off axis response. Mylar Compression Driver – 1.75 inch (44mm), mylar diaphragm with 1 inch open- ing.
  • Page 6: Connecting The Resound Speaker System

    Connecting the Resound Speaker System Choosing the Correct cables The Resound series speakers connections are made via the rear panel 1/4-inch and/or Neutrik Speakon® connec- tors. Standard unshielded speaker wire, available at your local pro audio or music store, with either 1/4-inch phone or Speakon connectors and wire gauge of 12-14 is recommended.
  • Page 7 Quick Set-Up In the following pages of this manual you will find a detailed explanation of system set-ups, but if you just want to get started quickly, you can follow the diagram and steps below to set up a basic stereo PA system. NOTE: Before plugging in and turning on, it is important to remember the Golden Rule of audio …...
  • Page 8: Microphone Positioning - How To Reduce Feedback

    In many instances when using the Resound as STAGE MONITOR POSITION STAGE MONITOR POSITION a monitor system, you may choose to use an 25 DEGREES 30 DEGREES external equalizer like the Samson S Curve 131 to increase the volume and reduce the chance of feedback.
  • Page 9: Setting Up Your Resound System

    Setting Up Your Resound System...
  • Page 10: Specifications

    Specifications/Caractéristiques techniques/Technische Daten/Especificaciones técnicas/Specifiche RS215 Power Rating (@ 8Ω): 350 Watts RMS, 600 Watts Program Nominal Impedance: 4 Ohms Frequency Response: 35 Hz – 20 kHz ± 3 dB Sensitivity: 101 dB SPL @ 1W/1m MAX SPL: 128dB LF Driver: 2 x 15-inch heavy-duty driver HF Driver: 1-inch exit, 44mm Mylar diaphragm...
  • Page 11 Specifications/Caractéristiques techniques/Technische Daten/Especificaciones técnicas/Specifiche RS10 Power Rating (@ 8Ω): 125 Watts RMS, 220 Watts Program Nominal Impedance: 8 Ohms Frequency Response: 60 Hz – 20 kHz ± 3 dB Sensitivity: 95 dB SPL @ 1W/1m MAX SPL: 115dB LF Driver: 10-inch heavy-duty driver HF Driver: 1-inch exit, 44mm Mylar diaphragm...
