Summary of Contents for Zoom MAC
- Page 1 QUICK START REFERENCE GUIDE...
- Page 2 NOTICE This document contains proprietary information protected by copyright, and this Quick Start and Reference Guide and all the accompanying hardware are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form, except for the personal use of the owner.
-
Page 3: Table Of Contents
Contents Introduction ... 5 What You Need to Use Your Faxmodem ... 5 Documentation Conventions ... 6 Chapter 1 Installing the Faxmodem ... 8 Chapter 2 Using the Faxmodem ... 12 Using Other Voice, Fax, and Data Communications Software ... 12 Using Initialization Strings... -
Page 5: Introduction
Introduction Congratulations! You have purchased a powerful, flexible tool that will help you manage your communications, work more efficiently, and present a polished and professional image at home or the office. This product includes high-speed data and fax capability, digital answering machine, and multi-user voice mail. This manual is an installation, troubleshooting, and refer- ence guide. -
Page 6: Documentation Conventions
8 MB RAM Hard drive with at least 10 MB available An electrical outlet to connect the power adapter Mac-to-modem serial cable (may be included with the product) A telephone line connection (typically, a wall-mounted telephone jack or socket) where you normally would... - Page 7 line with or without spaces between commands as long as the command line does not exceed forty (40) characters. “0” in a command line indicates the numeral zero, not the letter O. Introduction...
-
Page 8: Chapter 1 Installing The Faxmodem

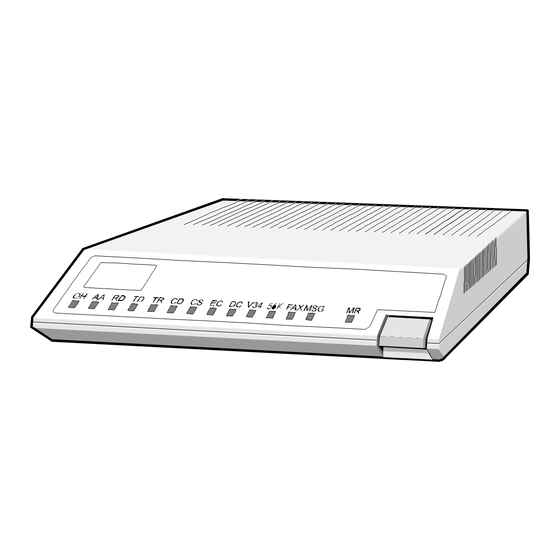

Chapter 1 Your computer should be located near a telephone jack. Before you start, touch a grounded metal surface other than your computer to discharge static electricity. Static electricity can damage computer and modem components. Locate your faxmodem’s serial number on the bot- tom of the case. - Page 9 POWER CONNECTION COMPUTER Turn the computer back on. Turn the faxmodem on by pushing in the power button on the front, as shown in the following dia- gram. The modem performs a brief self-test. Chapter 1 Installing the Faxmodem Not available on all models TELEPHONE LINE TELEPHONE...
-
Page 10: Summary Of The Indicator Lights
After the self-test, the front panel status lights or LEDs show the faxmodem’s current state. The MR light should be on, which shows the faxmodem is ready for use. Now you can install your fax and data communications software. Follow the instructions provided with the soft- ware. - Page 11 56K* MR (Modem Ready) * Not available on all models Chapter 1 Installing the Faxmodem Lights when communicating in V.90 or K56flex™ mode. Lights when fax connection has been made to a remote faxmodem. Lights when faxes are waiting if your software supports this feature.
-
Page 12: Chapter 2 Using The Faxmodem
Chapter 2 This chapter provides tips for setting up your communica- tions software and using the modem. It also describes ad- vanced telephony features. See the software instructions included with your soft- ware for information about how to install and use the programs included with this product. - Page 13 into the initialization string based on the device you select during installation. The commands remain in effect throughout the communications session, unless the soft- ware sends other commands to override them. The software uses other AT command strings for other purposes.
-
Page 14: Using At Commands
Set auto baud detect to OFF (or NO). Some programs ask “Send init if CD high?”, which you should set to YES. Otherwise the modem may not receive the proper initialization string. If your software suggests an initialization string for this modem, you should use it. -
Page 15: Returning To The Factory Settings
Using AT commands in terminal mode 1. Start your data communications program. 2. Change to terminal mode (also called command, local, direct, or dumb mode). 3. Type in the AT command you need and press Enter. When you finish, you can return to the data communica- tions program’s standard user interface. -
Page 16: Chapter 3 Solving Common Problems
Chapter 3 If your modem is not working, please read this chapter and the communications software documentation care- fully. For installation problems, see Chapter 1 Installation. This chapter covers four categories: General trouble- shooting, echo troubleshooting, dial troubleshooting, and connection troubleshooting. For help with this problem…... -
Page 17: General Troubleshooting
For help with this problem… The modem disconnects while communicating with a remote system. The modem does not make a data connection. You receive bursts of errors occasionally, but otherwise data quality is good. Random errors occur in transmitted data. Data is missing. - Page 18 Problem: You type an AT command line and press En- ter, but your modem fails to execute the command line. Solution: Be sure you type AT at the beginning of the command line. Make sure the communications software is configured for the same serial port as your mo- dem.
- Page 19 Problem: Modem does not auto-answer. Solution: Your modem may not be configured to auto- matically answer incoming calls. If you want your fax or data software to answer calls, be sure you have selected this option in your soft- ware. Problem: You encounter other communications prob- lems with your modem.
-
Page 20: Echo Troubleshooting
Type: AT &C0 &W &Y0 and press Enter. Also make sure that the faxmodem initializa- tion string does not include &C1. If your software requires that Data Carrier De- tect follow carrier, the above considerations apply in reverse. If you are having problems, include &C1 in the faxmodem initialization string. -
Page 21: Dial Troubleshooting
Dial Troubleshooting Problem: The modem does not automatically dial a call when you send a Dial command. Solution: Make sure the modem speaker is turned on in your software so that you can hear dialing sounds. Also make sure that the telephone line is plugged in. - Page 22 Note 1: The first two lines in the table are likely to be the most valuable. Note 2: In the command strings shown in the table that follows, the character after “N” is zero, not the letter “O.” Note 3: Some commands vary because of the processor used in the faxmodem.
- Page 23 Note 4: You may find it necessary or helpful to include W2 in your initialization string or dialing prefix. This enables responses that include the mo- dem-to-modem speed. Note 5: Some software allows these commands to be added to the list of dial prefixes or the initiali- zation string.
- Page 24 “Normal” operation (The faxmodem commu- nicates without any error correction or data compression, but retains speed buffering and auto-speed negotiation. It should not be confused with the “standard” configuration.) Auto-answer Problem: Your online service reports a connect speed that doesn’t match your modem’s speed. Solution: To get your online service software to report the actual connect speed, add W2 to the end of the initialization string, or to the dial prefix, just...
- Page 25 Problem: Your modem does not make a connection. Solution: If your modem places telephone calls but never makes a connection, make sure you are dialing the right number. The remote modem may be turned off. Problem: You receive bursts of errors occasionally, but otherwise data quality is good.
- Page 26 Problem: Your faxmodem is not communicating data as fast as you expect. Solution: For data communication above 14,400 bps, make sure that the modem at the other end of the telephone connection also supports V.34. Follow the recommendation provided under Tips for Selecting Setup Options in Chapter 2 for setting the port speed in the software.
-
Page 27: Appendix A: Product Summary
Appendix A: Product Summary This modem hardware supports the following standards, functions, and features: Data Speeds: 56,000/33,600/31,200/28,800/26,400/24,000/ 21,600/19,200/16,800/14,400/12,000/9600/7200/ 4800/2400/1200/300 bps Data throughput up to 230,400 bps Data Standards: V.90, K56flex, V.34, V.32bis, V.32, V.22bis, Bell 212A, Bell 103, V.21, V.22A/B, and V.23 protocols V.42 LAPM and MNP V.42bis and MNP 5 data compression Fax Speeds:... - Page 28 Digital and analog loop-back diagnostics. Automatic adaptive equalization. Nonvolatile RAM for storage of up to four 35-digit tele- phone numbers and alternate configurations Automatic gain control. Inactivity timer (when set, hangs up if no data in pro- grammable time from 1 to 42 minutes). Call progress tone decoding –...
-
Page 29: Appendix B: Product Specifications
Appendix B: Product Specifications External Configuration Jacks Size Electrical Specifications Typical Power Requirements Power Cube Provides Fuse Performance Specifications Transmit Signal Level (Nominal) Transmit Frequency Tolerance Receive Signal Level Receive Frequency Tolerance Appendix B: Product Specifications External faxmodem (2) RJ-11 telephone V.24/DB-25 female Speaker (certain mod- els only) -
Page 30: Appendix C: Regulatory Information
Appendix C: Regulatory Information FCC Part 68 Telecommunications Statement The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone net- work. This device is registered with the Federal Communications Com- mission (FCC) for direct connection to the telephone line using a stan- dardized RJ11C telephone jack. -
Page 31: Industry Canada Attachment
Industry Canada Attachment The Industry Canada label identifies certified equipment. This certifica- tion means that the equipment meets certain telecommunications net- work protective, operational, and safety requirements. The department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telephone company. -
Page 32: Important Information
Important Information In the event you need to contact technical support or customer service, you must provide the information below. We recommend that you take a few moments to fill in the following in- formation for your future reference. Faxmodem Model (located on the box) Serial Number (located on the bottom of an external modem...
