PASCO EM-8662 Instruction Sheet

Ring Launcher Accessory
Equipment

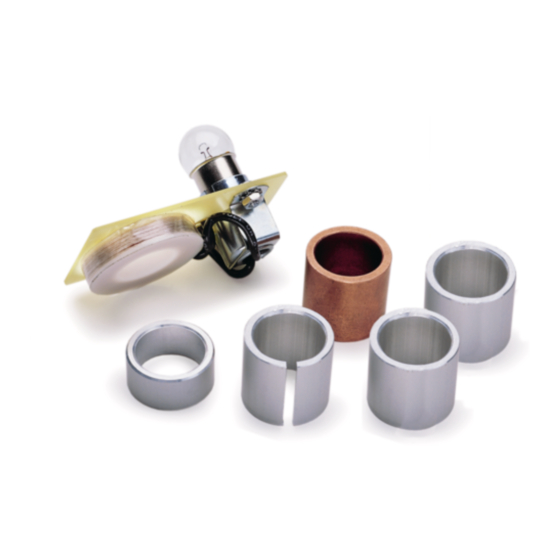

Ring Launcher Accessory Includes:
Copper Ring, 2.5 cm inside diameter, 2.5 cm long, 48.6 g
Split Aluminum RIng, 2.5 cm I.D., 2.4 cm long, 12.9 g
Small Aluminum Ring, 2.5 cm I.D., 1.2 cm long, 6.8 g
Induction Coil and Bulb: Tungsten filament light bulb in a
plastic holding base (6.5 by 4 cm) with a copper
induction coil
Recommended
Ring Launcher: EM-8661, includes the following:
• Ring Launcher
• Aluminum Rings (2): 2.5 cm inside diameter, 2.4 cm length,
12.9 g
Introduction
The EM-8662 Ring Launcher Accessory includes three non-mag-
netic metal rings, and an induction coil attached to a light bulb.
These accessories are designed to be used with the EM-8661
Ring Launcher for demonstrating electromagnetic induction and
magnetic force. The rings slide over the iron rod of the Ring
Launcher, and, when the launch switch on the Ring Launcher is
pushed down, the rings "jump" to different heights. The split alu-
minum ring is used to demonstrate what happens if there is not a
complete conductive path. When the coil of the induction coil
and bulb is placed around the iron rod, the bulb lights while the
launch switch on the Ring Launcher is held down momentarily.
800-772-8700

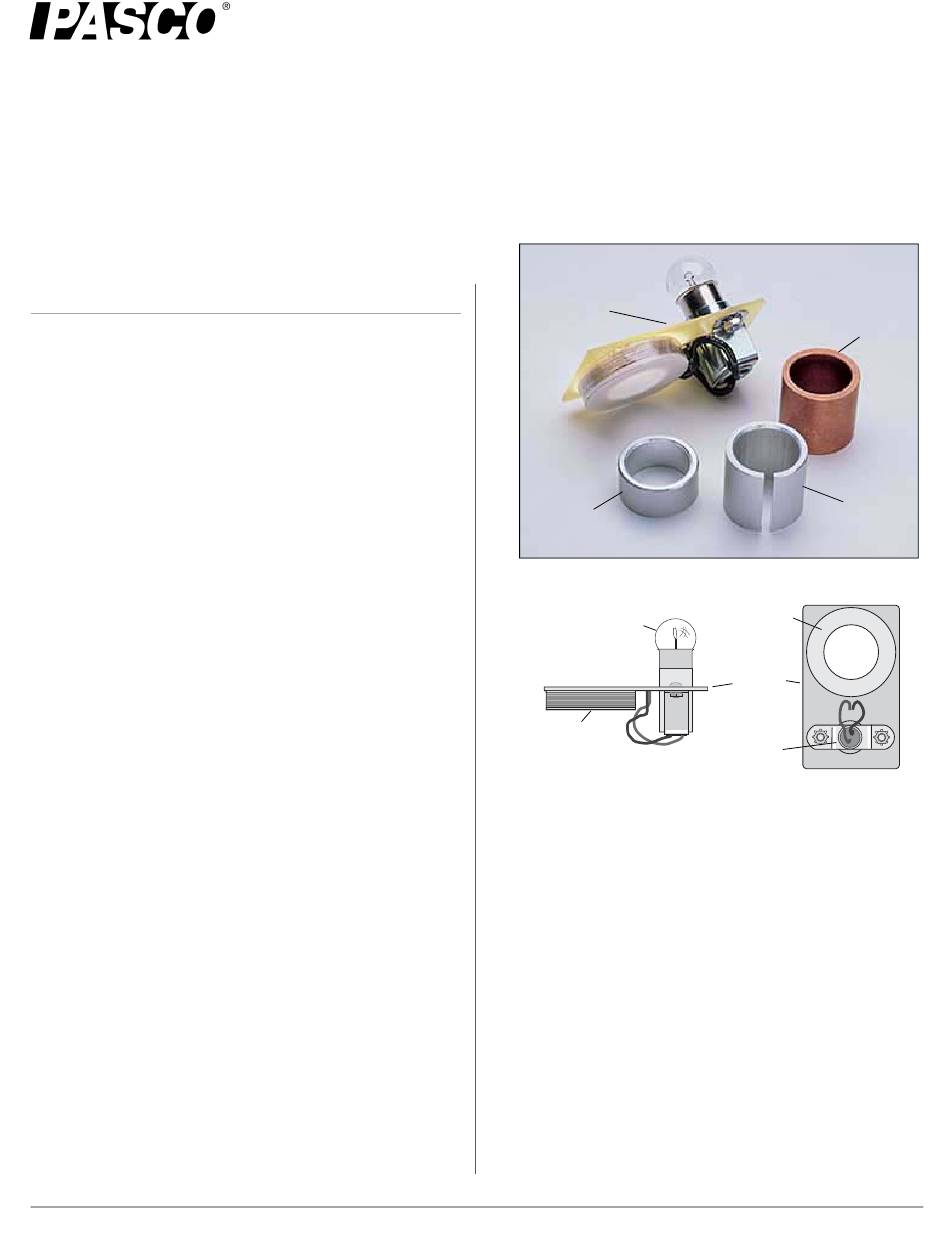

EM-8662
Induction
Coil and
Bulb
Small
Aluminum
Rings
Copper Coil
Side view
Setup
• Follow the instructions and safety reminders described in the
EM-8661 Ring Launcher Instruction Sheet.
WARNING: Do not immerse the rings or the induction coil and
bulb into water before using the Ring Launcher. Also, do not use
the rings or the induction coil and bulb around water or with wet
hands.
CAUTION: To prevent the rings from hitting other objects or
people, allow a one meter radius of space around the Ring
Launcher and a two meter distance above the Ring Launcher.
+1 916-786-3800
Instruction Sheet
Iron
Rod
EM-8662 Ring Launcher Accessory
Copper Coil
Bulb
Plastic
Base
Bulb
Socket
Induction Coil and Bulb
support@pasco.com
012-07563C
Copper
Rings
Split
Aluminum
Ring
Bottom view
