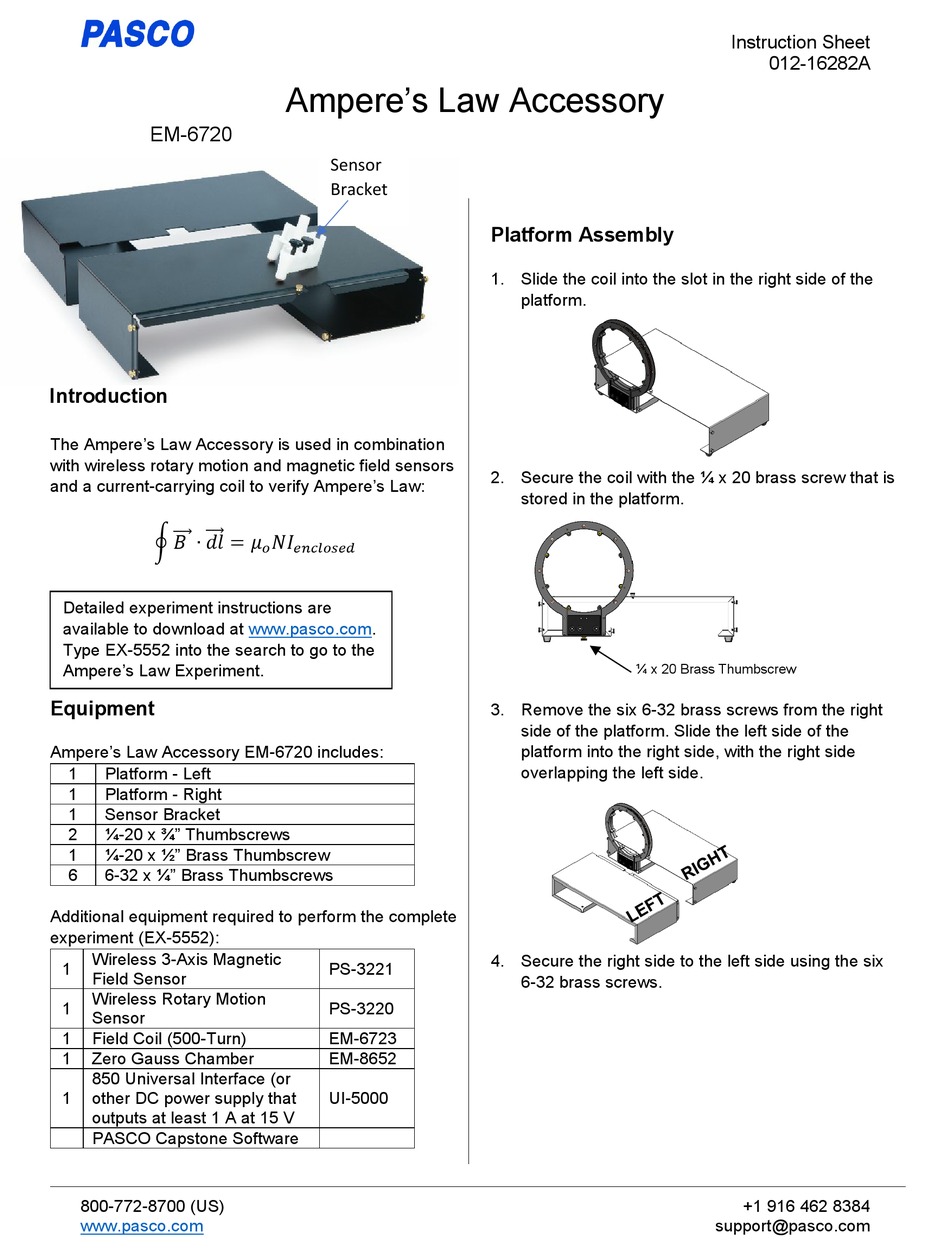

PASCO EM-6720 Instruction Sheet

EM-6720
Introduction
The Ampere's Law Accessory is used in combination
with wireless rotary motion and magnetic field sensors
and a current-carrying coil to verify Ampere's Law:
� ���� ���⃗ ∙ �������� ���⃗ = ����
Detailed experiment instructions are
available to download at www.pasco.com.
Type EX-5552 into the search to go to the
Ampere's Law Experiment.
Equipment
Ampere's Law Accessory EM-6720 includes:
1 Platform - Left
1 Platform - Right
1 Sensor Bracket
2 ¼-20 x ¾" Thumbscrews
1 ¼-20 x ½" Brass Thumbscrew
6 6-32 x ¼" Brass Thumbscrews
Additional equipment required to perform the complete
experiment (EX-5552):
Wireless 3-Axis Magnetic
1
Field Sensor
Wireless Rotary Motion
1
Sensor
1 Field Coil (500-Turn)
1 Zero Gauss Chamber
850 Universal Interface (or
1 other DC power supply that
outputs at least 1 A at 15 V
PASCO Capstone Software
800-772-8700 (US)
www.pasco.com

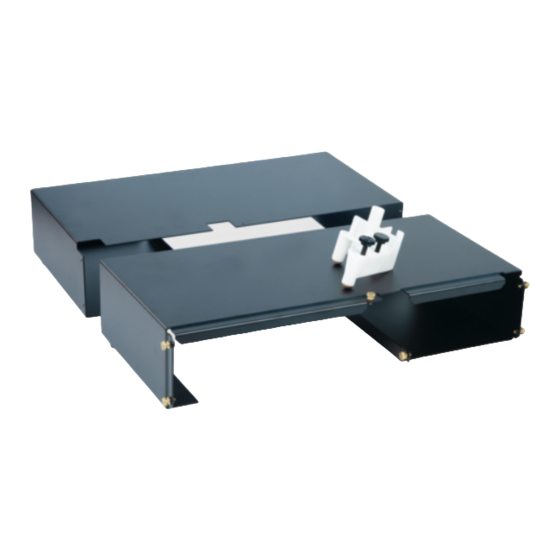

Ampere's Law Accessory
Sensor
Bracket
��������
���� ���� ������������ ���� ������������
PS-3221
PS-3220
EM-6723
EM-8652
UI-5000
Platform Assembly
1. Slide the coil into the slot in the right side of the
platform.
2. Secure the coil with the ¼ x 20 brass screw that is
stored in the platform.
¼ x 20 Brass Thumbscrew
3. Remove the six 6-32 brass screws from the right
side of the platform. Slide the left side of the
platform into the right side, with the right side
overlapping the left side.
4. Secure the right side to the left side using the six
6-32 brass screws.
Instruction Sheet
012-16282A
