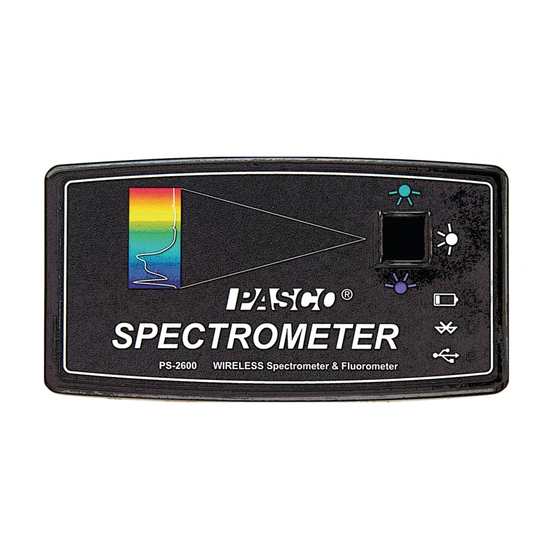

Wireless Spectrometer
Introduction
The Wireless Spectrometer is specifically designed for
introductory spectroscopy experiments. The Bluetooth and USB
connectivity enables its use with tablets and computers. With
this one apparatus, you can measure intensity, absorbance,
transmittance, and fluorescence, making this a powerful and
intuitive tool for your spectroscopy needs.
Features
Top view:
Left view:
Right view:
Bottom view:
Light path
The path that light takes to reach the cuvette.
Cuvette holder
Used to secure the cuvette containing the sample in place.
(PS-2600A)
Battery Status LED
Indicates the status of the Wireless Spectrometer's battery.
Battery LED
Red ON
Red blink
Green ON
Bluetooth Status LED
Blinks blue to indicate that the device is ready to connect.
Lights up blue when connected to Spectrometry via
Bluetooth.
USB Status LED
Lights up green to indicate that the device is connected to
Spectrometry via USB cable.
Reset button access
Insert a pin into this port to perform a full reset of the
sensor.
USB port
Use to connect the device to a USB port or powered USB
hub on a computer via the included USB cable.
ON/OFF button
Press to turn the device on. Press and briefly hold to turn
the device off.
Device ID number
Use this to identify the device when connecting to
Spectrometry via Bluetooth.
Drain ports
Allow the sample to drain out of the device if a spill occurs
during an experiment.
Equipment and requirements
Included equipment:
• Wireless Spectrometer (PS-2600A)
• Cuvette and lid (10 each)
• USB cable
Recommended equipment:
• Fiber Optic Probe (PS-2601)
Required software: Spectrometry
Software for Computer or Tablet
Available free for Mac and PC computers and iPad
and Android* tablets at the PASCO website:
www.pasco.com/downloads/spectrometry.
Download the software from the PASCO website (Mac and PC),
or from the iOS or Android app store or Google Play.
*Android tablet must be Bluetooth-compatible.
Product Guide | 012-17423A
Status
Low power
Charging
Fully charged
1
