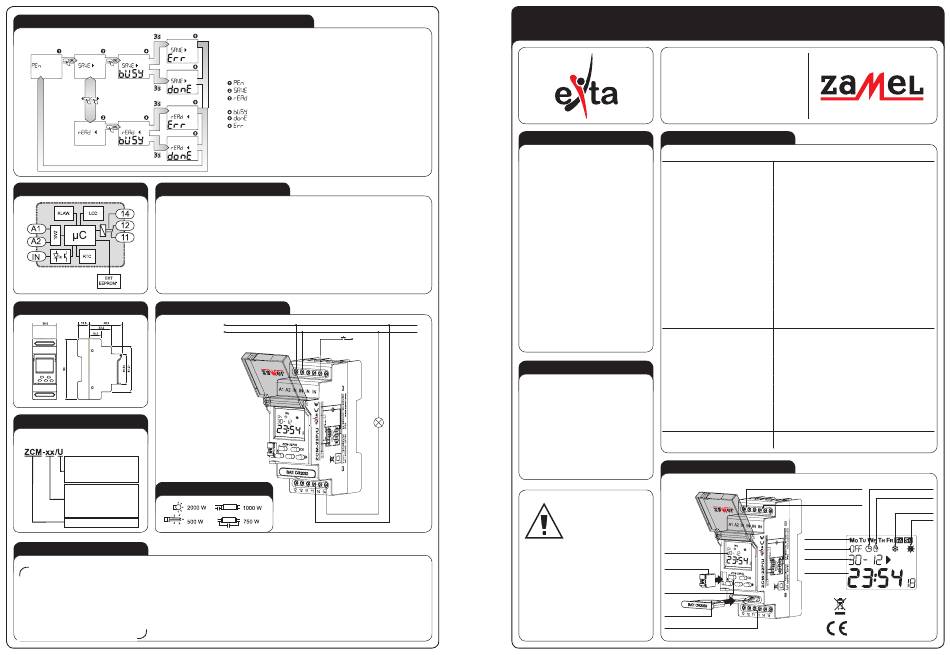

Zamel exta ZCM-22 Series Instruction Manual

EXTERNAL MEMORY OPERATION*
INNER DIAGRAM MOUNTING, OPERATION
1. Disconnect power supply by the phase fuse, the circuit-breaker or the switch- disconnector combined to the proper
circuit.
2. Check if there is no voltage on connection cables by means of a special measure equipment.
3. Install the ZCM-22 on the TH 35 DIN rail in the switchboard.
4. Connect the cables with the terminals in accordance with the installing diagram.
5. Switch on the power supply from the mains.
The contact will be ON at 00:00:00. The contact will be OFF the previously set day during an hour changing from
23:59:59 into 00:00:00 (the next day). If the contact is to be ON only one day, the same data should be set for ON and
OFF date, e.g. ON - 02.02, OFF - 02.02. The lower program no. the higher program priority. The ON state has higher
priority than the OFF state within the given program.
DIMENSIONS CONNECTION*
PRODUCT FAMILY
ZCM-22 Programmer belongs to ZCM
family of products.
Power supply:
ZCM-xx - 230 V AC
ZCM-xx/U - 24 ÷ 250 VAC
30 ÷ 300 V DC
RELAY CAPACITY
Programmer type:
11 - week (1 channel)
12 - week (2 channel)
22 - weekly - year
31 - astronomical
Device type
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL provides a two-year warranty for its products.
2. The ZAMEL warranty does not cover:
a) mechanical defects resulting from transport, loading / unloading or other circumstances
b) defects resulting from incorrect installation or operation of ZAMEL products;
c) defects resulting from any changes made by CUSTOMERS or third parties, to products sold or equipment necessary for the correct
operation of products sold;
d) defects resulting from force majeure or other aleatory events for which ZAMEL is not liable;
e) power supply (batteries) to be equipped with a device in the moment of sale (if they appear);
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. ZAMEL will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of ZAMEL.
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy be-
Salesman stamp and signature, date of sale tween the goods and the contract.
*apply to the product ZCM-22P/U
External memory allows for an easy record / reading of the adjusted programs into
the external memory, so they can be easily copied to other programmers. It is very
convenient in case if we want to program more ZCM programmers or archive the
adjusted programs.
– sub menu to the external memory operation
– programs recording
– programs reading from the external memory and storage in the program-
mer's memory
– the state of memory „busy" during a record / reading
– correct record / reading
– record /reading error
L(+)
N(-)
L(+) / N(-)
ZCM-22, ZCM-22P/U TIME PROGRAMMER
ANNUAL, SINGLE-CHANEL
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamel.com, e-mail: export@zamel.pl
DESCRIPTION TECHNICAL DATA
Digital control time switch ZCM-22 is used
to realise the time functions in automation
and control systems. The programmer re-
alises the output relay control operations
according to program adjustments (day,
month, hour, minute). All systems are
equipped with a control input function,
which is used to change the operating
mode of a system by means of an exter-
nal push-button. The design of the cas-
ing allows the system to be mounted on a
Change of season summer/ winter: automatic, manual
TH-35 rail and eventually to seal the de-
vice. The design of the system provides
a battery back-up system for all adjust-
ments in case of no voltage supply. Accuracy of time measurement: max. ±1 s / 24 h at temp. 25 °C
In order to protect the battery during
Time of programme maintenance: 10 years
storage, the ZCM series programmers
have a default setting, the so-called
Clamps of receiver power supply: 11, 12, 14
storage mode in which the battery
Parameters of transmitter contacts: 1NO/NC-16 A/250 V AC1 4000 VA
power consumption is limited to a mini-
Number of terminating clamps: 12
mum.
Intersection of terminating conductors: 0,2 ÷ 2,50 mm
FEATURES
● Control depending on current date,
hour and minute,
● double-module casing with a protec-
tion flap,
● additional control input IN,
● many programmes enabling various
applications,
● LCD display illumination,
● mounted on TH 35 rail,
● a possibility to copy and read pro-

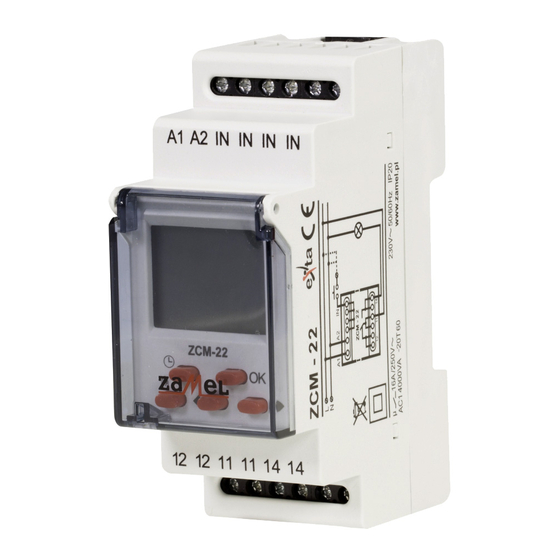

APPEARANCE*
grams from the external memory*.
The device should be connected
to a singlephase system ac-
cording to current standards.
The device connections will be
described in this manual. Only
qualified electricians are allowed
to mount, connect and adjust the
CAUTION
device. It is necessary to read
LCD display
this manual and know the unit functions before the
device mounting. Do not disassembly the device
External memory*
casing or you will lose any warranty rights and ex-
pose yourself to the electric shock hazard. Before
mounting operation make sure of disconnecting
the connection wires from the electric network.
Control buttons
Use a cross-head screwdriver of 3.5 mm diameter
to mount the device. The relay should be carried,
stored and used in an appropriate way. Do not
Replaceable battery
mount the device in case of any device parts lack,
damage or deformation. In case of malfunction
Relay output terminals
please notify the manufacturer.
(12, 12, 11, 11, 14, 14)
*apply to the product ZCM-22P/U
INSTRUCTION MANUAL
ZAMEL sp. z o.o.
ZCM-22, ZCM-22P/U
Power supply clamps: A1, A2
ZCM-22: 230 V AC~(-15 ÷ +10 %)
Rated voltage:
ZCM-22P/U: 24 ÷ 250 V AC, 30 ÷ 300 V DC
Rated frequency: 50 / 60 Hz
Rated power consumption: ZCM-22: 1,6 W /17 VA ZCM-22 P/U: 1,5 W /3 VA
Number of channels: 1
Program quantity: 400 (200 On/Off pairs)
Programme: weekly - annual
Mode of work: manual, automatic
Colour of LCD panel lighting: amber
Input: yes
Time of clock maintenance: 3 years
Clamps of release system: IN, IN, IN, IN
2
Temperature of work: -20 ÷ +60
o C
Position of work: any
Fixing of casing: TH 35 rail (PN-EN 60715)
Level of protection of casing: IP20 (PN-EN 60529)
Protectivity class: II
Overvoltage category: II
Level of pollution: 2
Measurements: two-module (35 mm) 90x35x66 mm
Weight: 0,14 kg
Compatibility with norms: PN-EN 60730-1; PN-EN 60730-2-7;
PN-EN 61000-4-2,3,4,5,6,11
Power terminals
(A1, A2)
Trigger terminals
(IN, IN, IN, IN)
Week's day
Relay state
Info field
Current time
(gg:mm:ss)
Do not dispose of this device with other
waste! In order to avoid harmful effects
on the environment and human health,
the used device should be stored in
designated areas. For this purpose, you
can dispose of household waste free of
charge and in any quantity to a collection
point set up, as well as to the shop when
you buy new equipment.
plik: zcm-22_pu_bateria_inst_ext_gb | modyfikacja: 28.10.2019
Automatic mode
Manual mode
Winter time
Summer time
