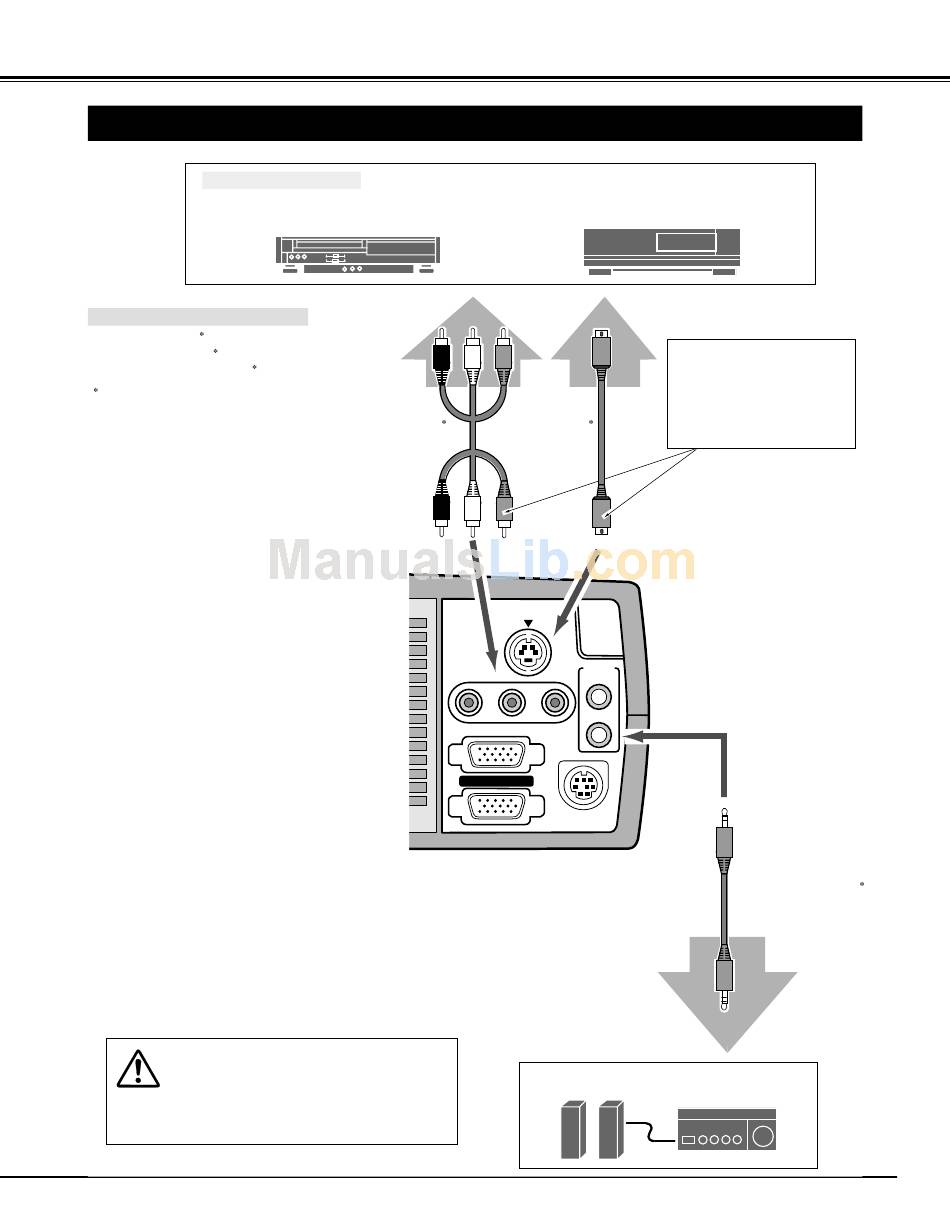

CONNECTING TO THE VIDEO EQUIPMENT

Video Source (example)
Used cables for connection
• VIDEO CABLE
• S-VIDEO CABLE
• AUDIO CABLE (stereo)
These cables are not supplied
with this projector.
NOTE :
When connecting the cable, the power cords of
both the projector and the external equipment
should be disconnected from AC outlet. Turn the
projector and peripheral equipment on before the
computer is switched on.
Video Cassette Recorder
Video / Audio Output
Video Audio Cable
R-AUDIO-L
CONNECTING THE PROJECTOR
Video Disc Player
S-VIDEO Output
S-VIDEO Cable
S-VIDEO
AUDIO
VIDEO
(MONO)
IN
OUT
COMPUTER IN
MONITOR OUT
CONTROL PORT
External Audio Equipment
Audio Speaker
(stereo)
Use either the VIDEO jack
or S-VIDEO jack. When
the
both
jacks
are
connected, the S-VIDEO
jack has priority over the
VIDEO jack.
Terminals
of the Projector
Audio Cable (Stereo)
Audio Input
Audio Amplifier
