One High Speed
Connection to a Single
Location
Alternatively, the B channels can be combined using Multilink PPP to form one
high-speed connection to a single location. Figure 7 shows a single high-speed
connection to a remote office LAN.
Jerry's PC
OfficeConnect
ISDN LAN Modem
Elaine's PC
Alert PWR ISDN
George's PC
*Without compression.
Cosmo's PC

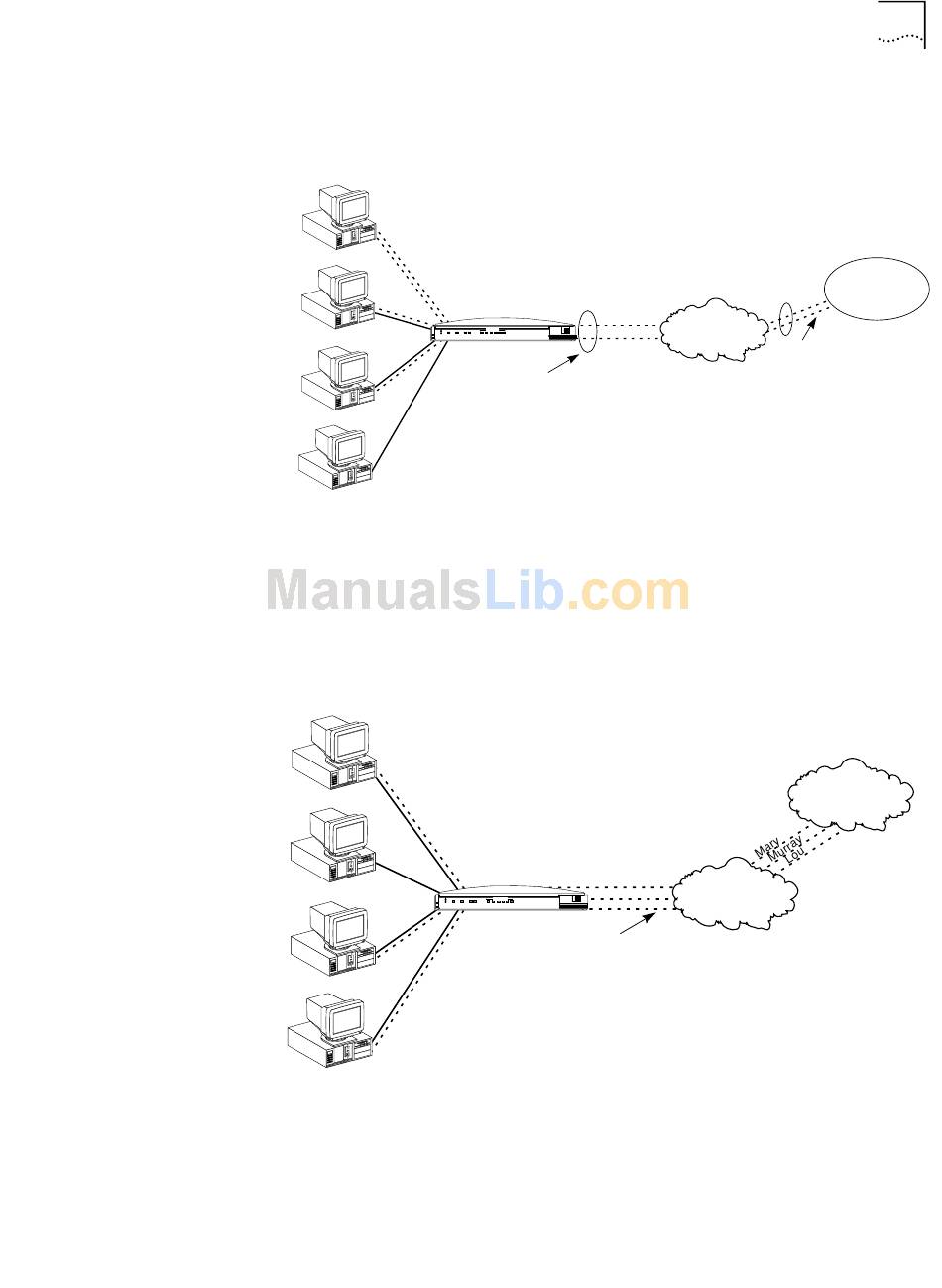

Figure 7 One High-Speed Connection to a Single Location
Up to 25 users can share a connection to the same location over the single
connection created by Multilink PPP. Figure 8 shows three users on the LAN
accessing the Internet through the same Internet provider and over the single
high-speed connection.
Mary's PC
Ted's PC
Alert PWR ISDN
Murray's PC
Lou's PC
Figure 8 Shared Connection to the Same Location
®
64 Kbps B1
LAN STATUS 64 Kbps B2
OfficeConnect™ 3 Com
Tx Coll 1 2 3 4 ISDN LAN Modem
B1 B2
Combining both
B channels with Multilink
provides a single 128 Kbps*
connection
®
OfficeConnect
ISDN LAN Modem
Mary
Murray
LAN STATUS
OfficeConnect™ 3 Com
Lou
B1 B2 Tx Coll 1 2 3 4 ISDN LAN Modem
ISDN BRI line
Connection Types
Remote office
Public telephone
network
128 Kbps B1 & B2
Internet/Intranet or
online service
Public telephone
network
