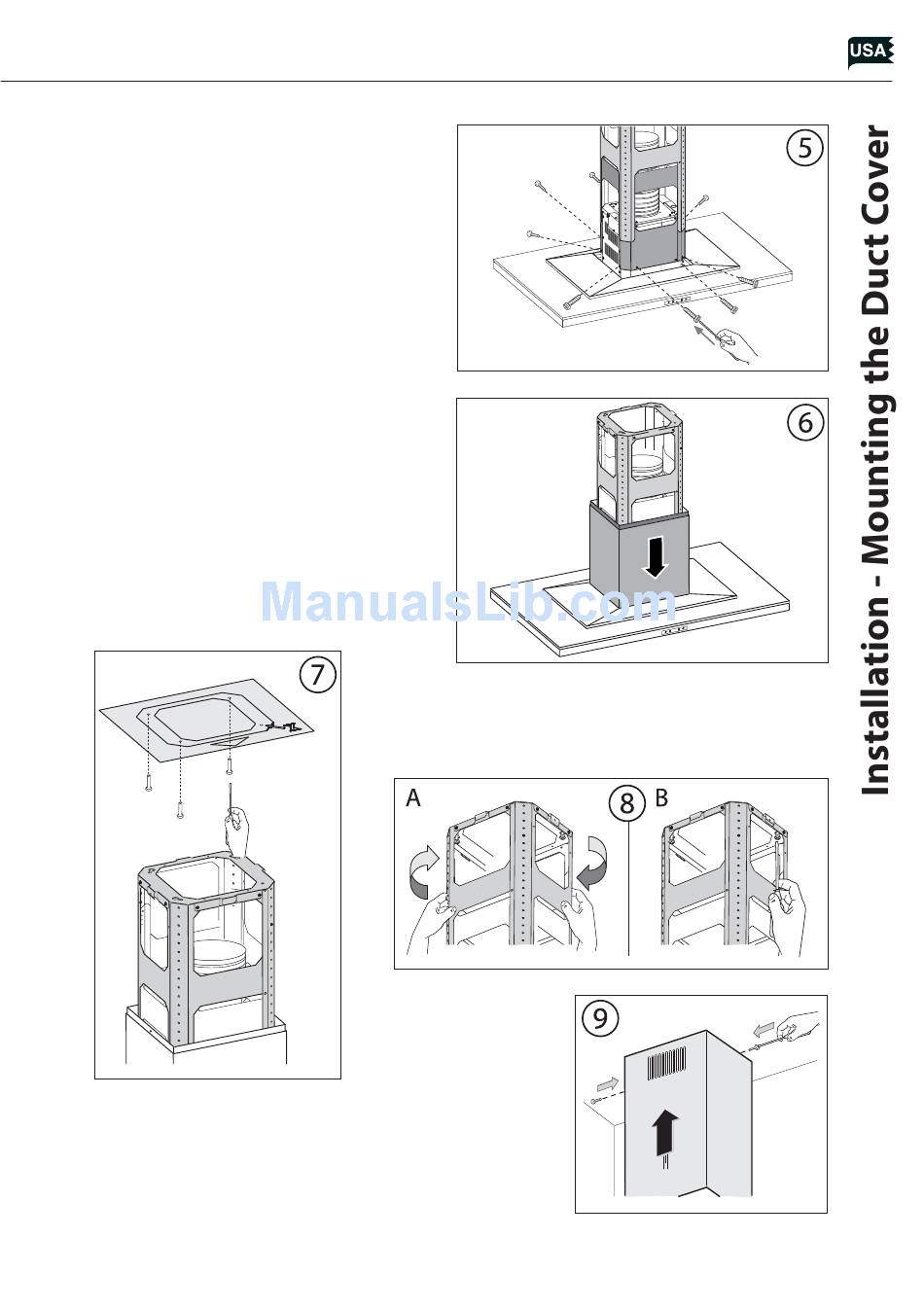

- Make 4, holes in the ceiling and drive in
(3) screws without completely tighte-
ning them. Pay attention not to insert
the screw into the hole marked with
an X on the hole template Fig.7
6. Lift the hood assembly to the cei-
ling and align the top support fra-
me with the (3) screws previously
installed in the ceiling.
- Rotate assembly slightly clockwise
to lock in place. Fig.8A. Drive in
the fourth screw and tighten the
remaining 3 screws to secure the
structure in place. Fig.8B
8. Verify that ducting from hood is connected to
ducting in the attic that will exhaust air out of
the home.
7. Extend the upper duct cover and secure it to the
top support frame by using (2) screws. Fig.9
- 5 -
