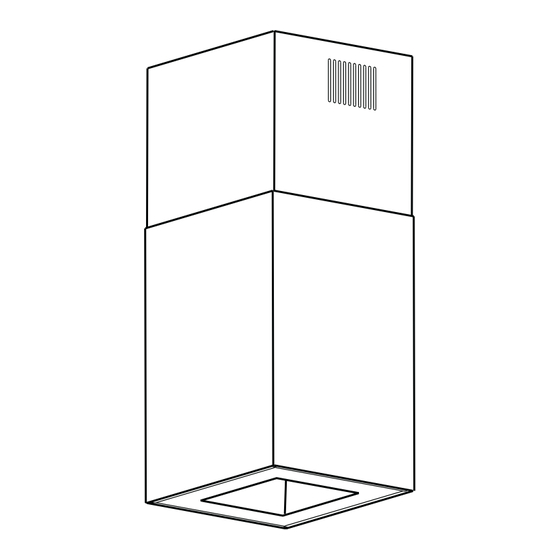

- Page 1 Duct Cover Extension Z1C-00SL For use with Surface Is. range hood Mounting the duct cover Fixation des cheminees Fijación de las chimeneas Fissaggio dei camini customer service 1.888.880.8368 Pag. 4 Pag. 6 Pag. 8 Pag. 10...
- Page 2 www.zephyronline.com DUCT COVER EXTENSION SPECIFICATION - 2 -...
- Page 3 MOUNTING THE DUCT COVER 1. Before installing the duct cover extension kit, take out the duct cover ceiling bra- cket fom the range hood packaging and remove the bracket by unscrewing the (4) screws. 2. Remove the duct cover from the hood assembly, according to the following steps: A - Take out the lower mantle by removing the (7) screws.
- Page 4 4. Remove the (2) screws to unlock the top support frame from the bottom support frame. Fig.4. 5. Secure the top support frame to the duct cover ceiling bracket by using the (4) screws. Fig. 5 6. Position hole template on the ceiling paying attention that the arrow is positioned on the same side as the range hood controls.
- Page 5 Adjust height by referring to the diagram in fi g.8. Secure the support frames together using (2) screws per extension arm (8 total). Fig.9 9. Insert the motor housing into the support frame assembly and secure it using (8) screws. Fig.10 10.
- Page 6 3FA0174...
