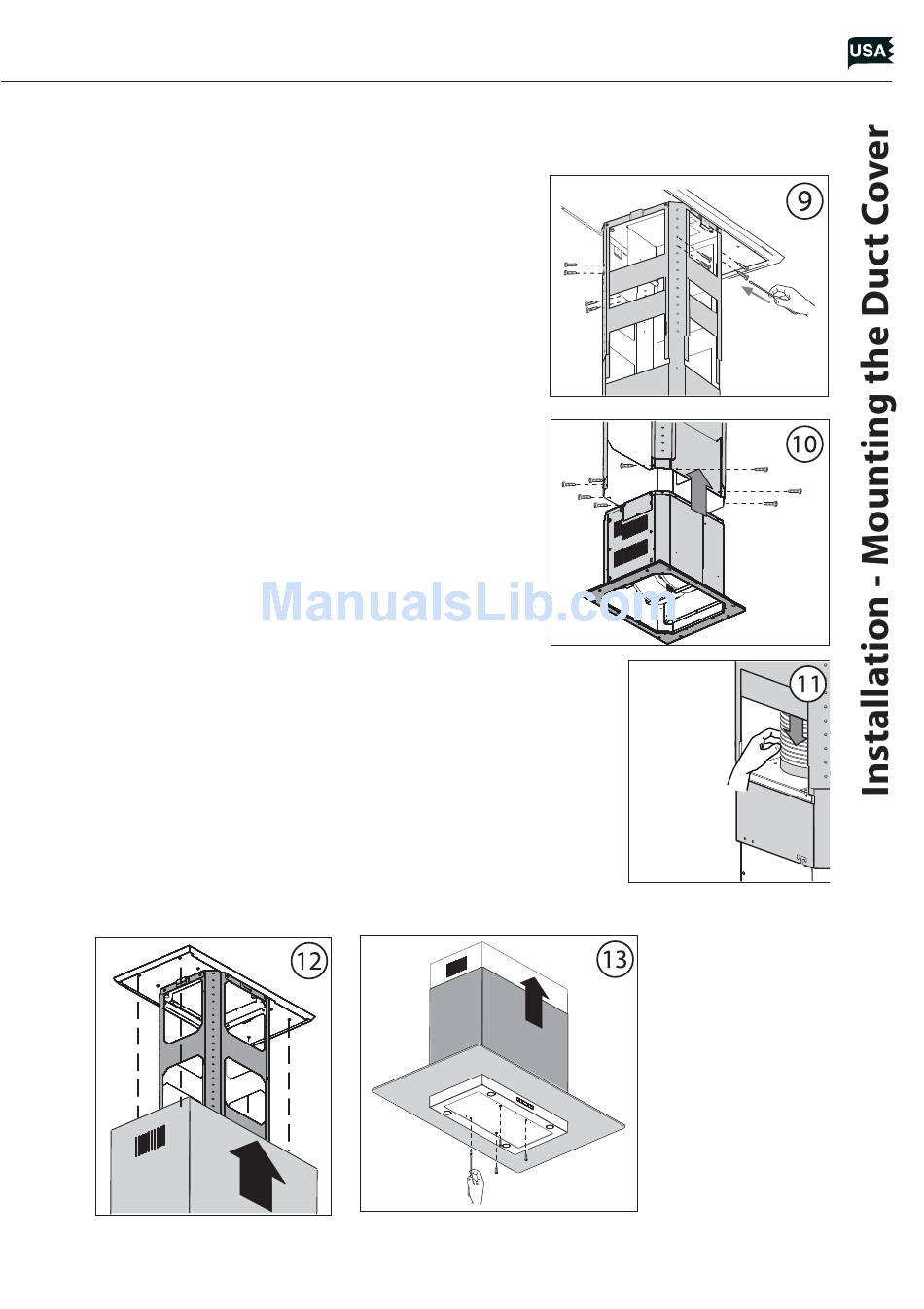

Adjust height by referring to the diagram in fi g.8.
Secure the support frames together using (2)
screws per extension arm (8 total). Fig.9
9. Insert the motor housing into the support frame
assembly and secure it using (8) screws. Fig.10
10. Connect the equipment to the power supply.
11. Secure the correct size ducting for your instal-
lation (not supplied) to the collar on top of the
housing. Fig.11
12. Extend upper duct cover to the ceiling and
secure it to the duct cover ceiling bracket using
the (4) screws previously removed when the as-
sembly was taken out of the packaging. Fig. 12
13. Lift the hood assembly into the top duct cover.
Secure hood assembly to bottom support frame by using
(4) screws. Fig. 13
14. Verify that ducting from hood is connected to ducting
in the attic that will exhaust air out of the home.
