MOUNTING THE DUCT COVER
1. Before installing the duct cover extension kit, take out the duct cover ceiling bra-
cket fom the range hood packaging and remove the bracket by unscrewing the (4)
screws.
2. Remove the duct cover from the hood assembly, according to the following steps:

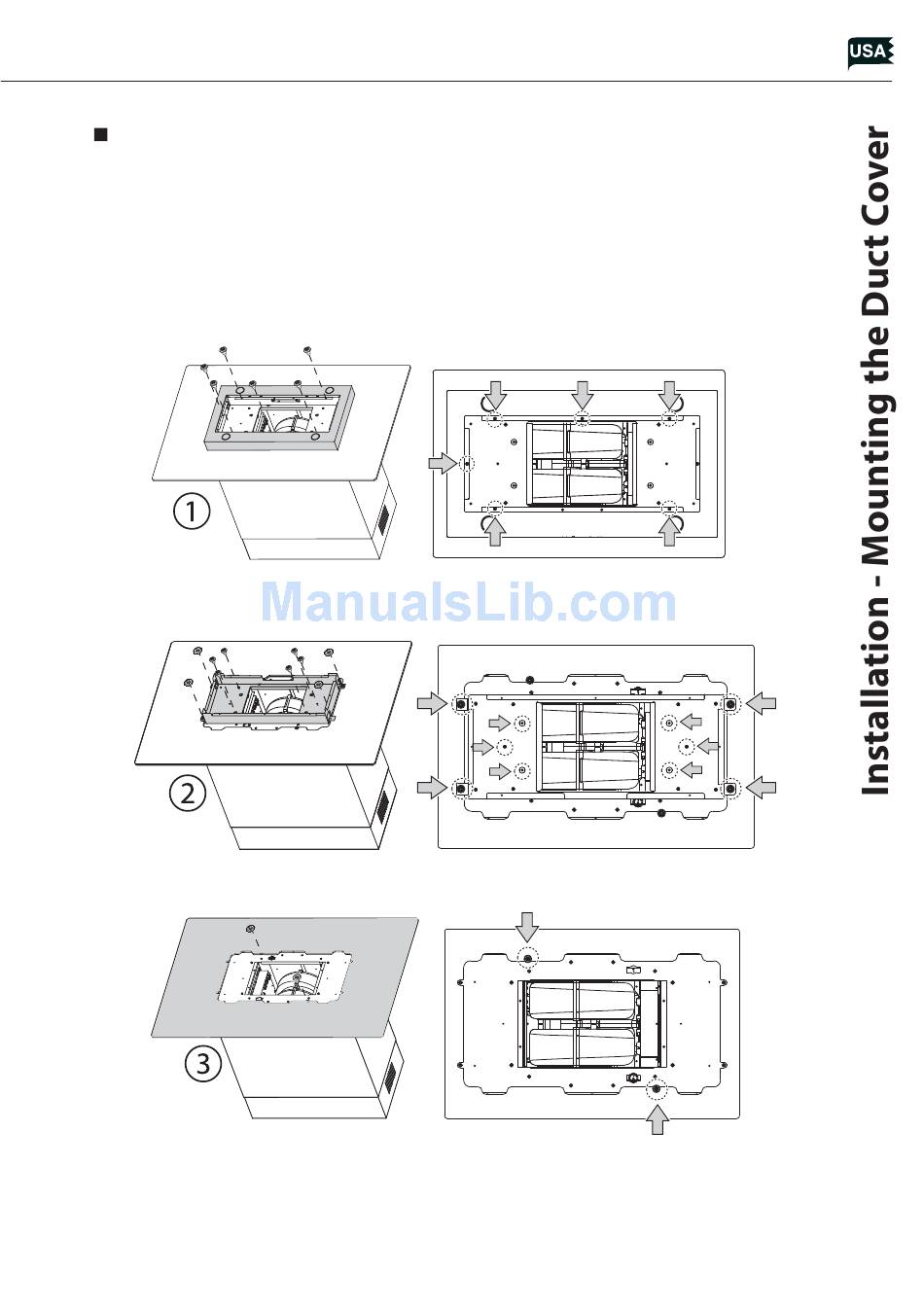

A - Take out the lower mantle by removing the (7) screws. Fig. 1
B - Take out the spacer, by removing the (6) plus (4) metric screws and the bushes.
Fig. 2
C - Take out the two additional bushes that secure the glass. Fig. 3
3. Take the lower duct cover from the duct cover extension kit and secure it to the
hood assembly by following the instructions from step 2 in reverse order.
- 3 -
