Quax HIP 05 05 32 Series Manual page 25

Diaper table with drawer

Table of Contents

Available languages

HIP

with drawer 05 05 32xx

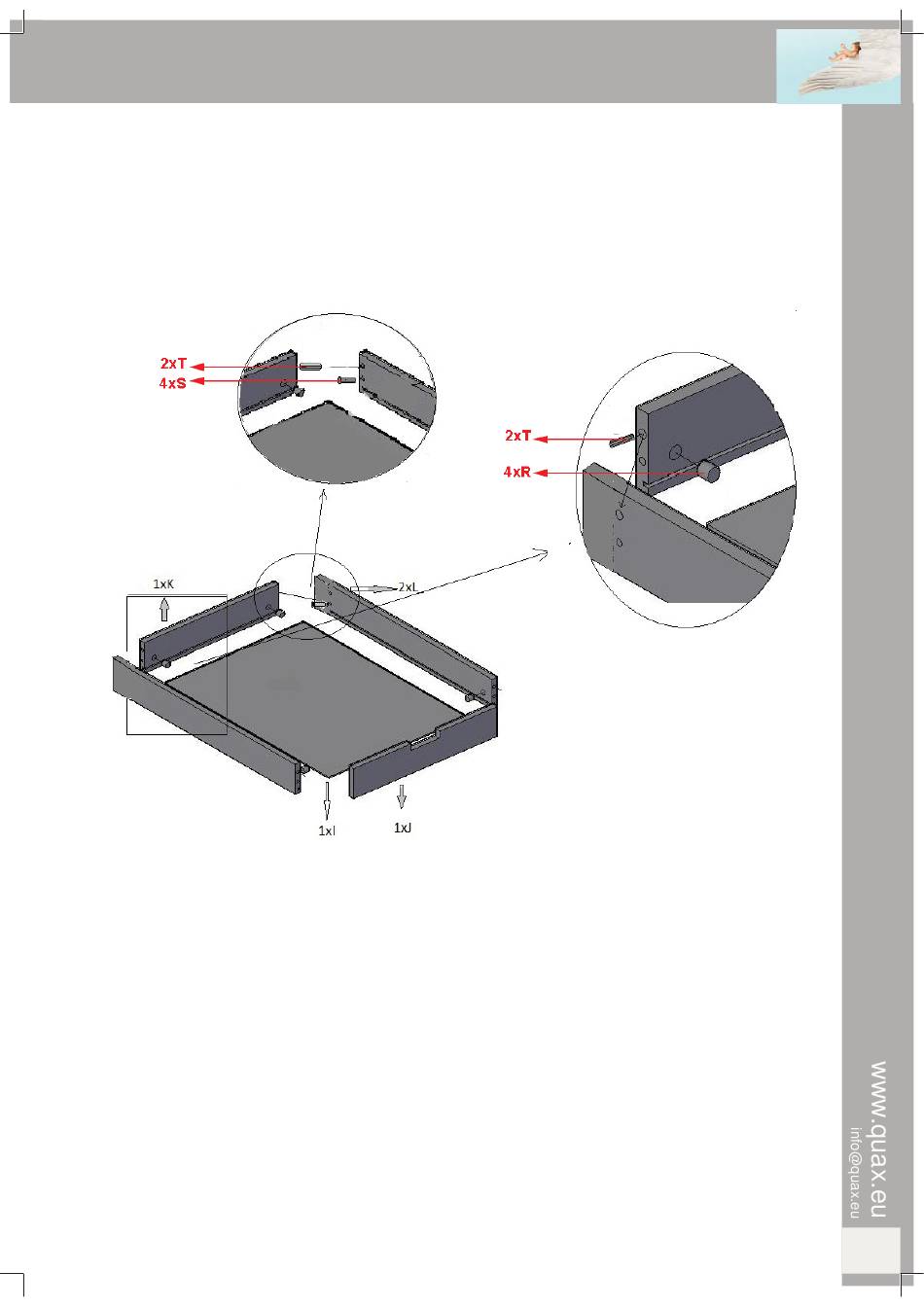

Step 3 : Use the mounted furniture, the drawer front J, the drawer back K, both drawer sides L, the drawer

bottom I, four wooden dowels T, four connectors

Push a wooden dowel (T) into the upper drilling at the ends of the drawer back (K). Push a wooden dowel

(T) into the upper drilling in front of the end of each drawer side (L). Tighten two connectors (S) in the bot-

tom drillings on the inside of the drawer front (J). Tighten a connector (S) into the bottom hole at the back

of the inside of each drawer side. Push two eccentrics (R) into the drillings on the inside of the back. Push

an eccentric (R) into the drilling in front of the inside of each drawer side. Push the drawer sides with their

connectors into the drillings and over the wooden dowels of the back. Tighten the eccentrics in the back.

Push the bottom (L) into the grooves of previous pieces. Push the drawer front with its connectors into the

drillings and over the wooden dowels of the drawer sides. Make sure that the bottom ﬁ ts nicely into the

grooves. Tighten the eccentrics.

Place the drawer in the drawer holder.

Luiertafel

Wickeltisch

and four eccentrics
