Installation; Power Pack Liner - Zephyr Adjustable Depth Liners AK088xAS Installation Manual

CAUTION:
Before installing, remove any protective film from all parts.
The custom hood liner must be installed before the power pack unit. For installation into shallow
cabinets (20- " to 21-
1/2 1/2
panel section. This must be done because the power pack flange must fit under the liner front
panel section when an overlap occurs.
Refer to power pack instructions for mounting height details.

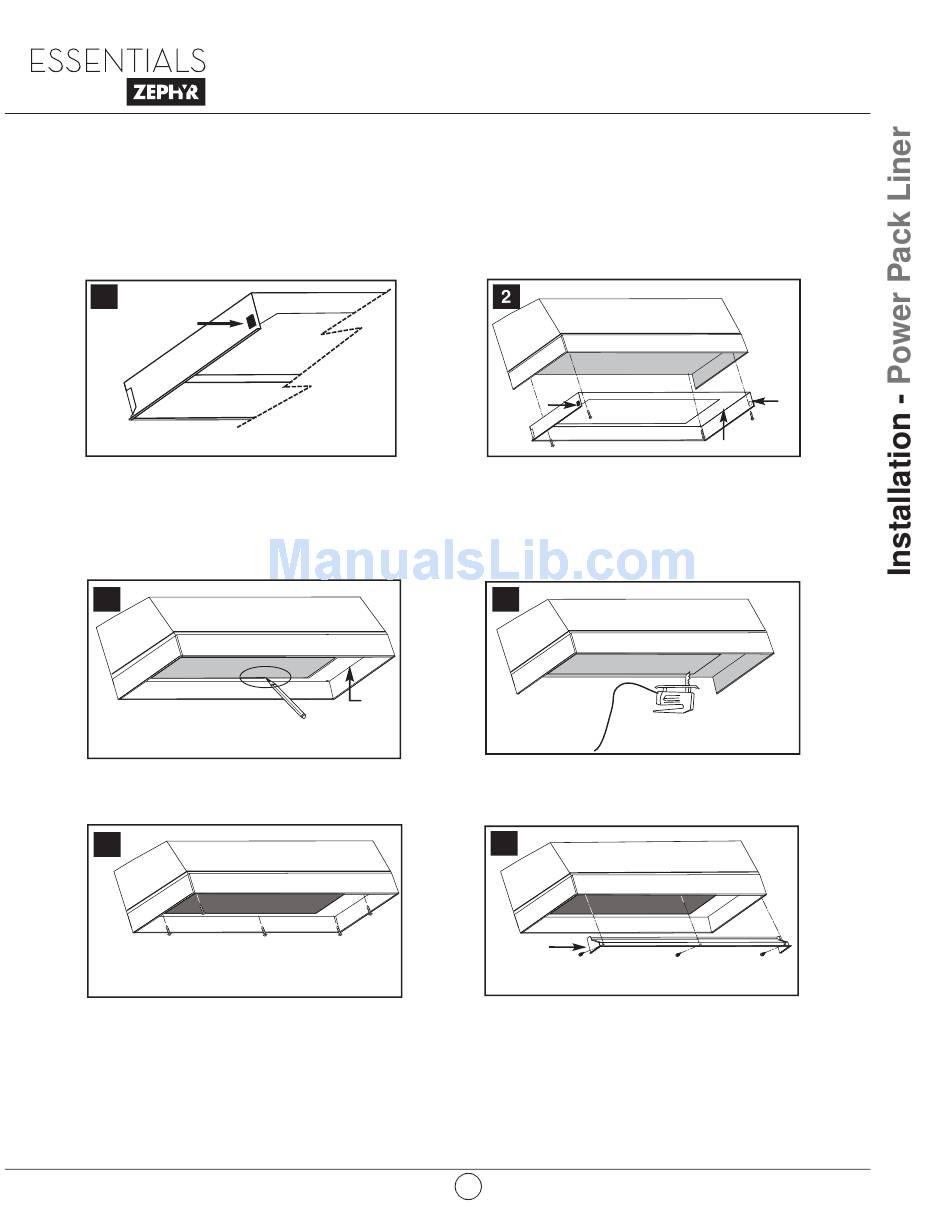

1
A
Install 1 small pad (A), included in the
hardware package, to each side of the main
liner plate. (See figures 1 and 2)
3
Using a pen, mark the outline of the future
opening for the power pack. Remove the
main liner plate (B) from the custom hood.
5
Reinstall the main liner plate to the base of
the custom hood and secure it with (5) 3/4"
screws.
Note: When installing the power pack it will need to be secured to a wood surface and not only to
the liner. See power pack installation manuals for more detailed mounting instructions.
" inside depth) the power pack must be installed before the liner front
B
AK08xxAS Adjustable Depth Liners
C
A
Temporarily install the main liner plate (B) to
the external base of the custom hood (C).
When inserting the main liner plate, push
slightly on the pads (A) to prevent damage.
Main liner plate should be positioned as far
back as possible.
4
Cut out an opening in the bottom of the
custom hood.
6
D
Slide the front panel section (D) into the nose
of the custom hood base. Take care not to
scratch the main liner plate when installing
the front panel section of the liner. Assemble
it to the cabinet using (3) 1/2" screws.
2
A
B
