Set Up - RedMax HE225F, HEZ2500F Owner's Manual

SE1
[HE225F]
[HEZ2500F]
SE2
SE3
(A)
SE4
18
(B)
English

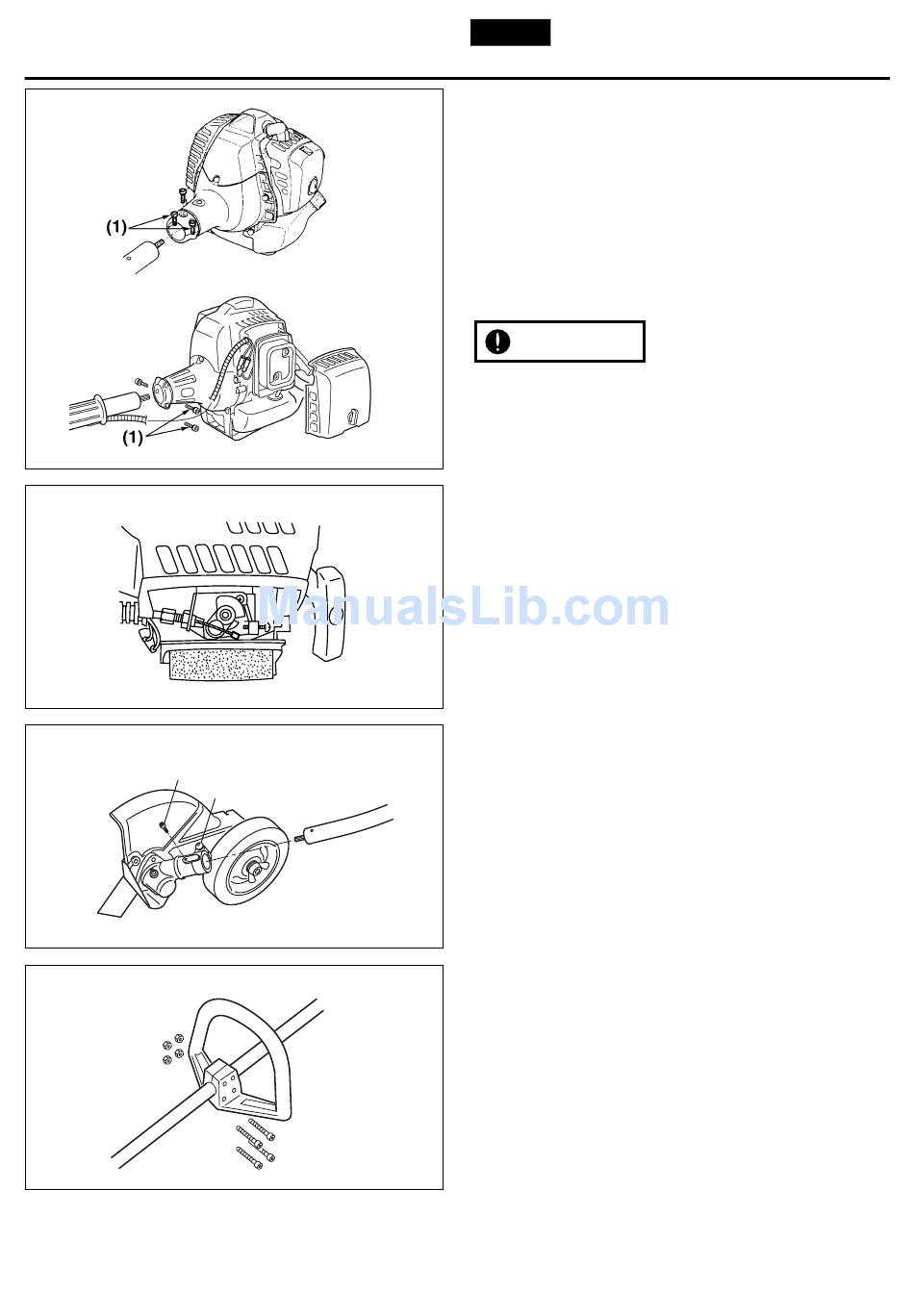

6. Set up

■ MOUNTING ENGINE (SE1)
1. Push the driveshaft housing toward the clutch
housing and rotate it by hand to check that the
driveshaft is engaged with the gears.
2. Insert the driveshaft housing into the clutch housing
until it bottoms, and align the positioning holes on
the clutch housing and the shaft tube and install the
screw. When difficult to engage, twist the engine
slightly.
3. Fasten the clamp securely with two screws.
IMPORTANT
Tighten the screws(1) gradually by turns.
Tightning Torque: 44~70in-lbs (5~8N.m.)
■ CONNECTING THROTTLE WIRE
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the joint on
the top of the carburetor. (SE2)
■ CONNECTING SWITCH WIRES
• Connect the switch wires between the engine and
the main unit. Pair the wires of the same color.
■ MOUNTING OTHER PARTS
1. Insert the driveshaft into the clutch drum, then attach
the gearbox to the shaft tube as aligning the
positioning holes and fasten the screw (A). Fasten
the clamp bolt (B) firmly. (SE3)
(A) Screw
(B) Clamp bolt
(B) Tightning Torque: 52~69in-lbs (6~8N.m.)
2. Install the handle to the shaft tube and clamp at a
position best for your job. (SE4)
