Torch Alignment - GYS CUTTER 85A TRI Manual

Auto torch consumables:
040021
Ref. (x1)
40/60/80A
Shield
039643
Ref. (x1)
110A
039636
Ref. (x1)
130A
Shield

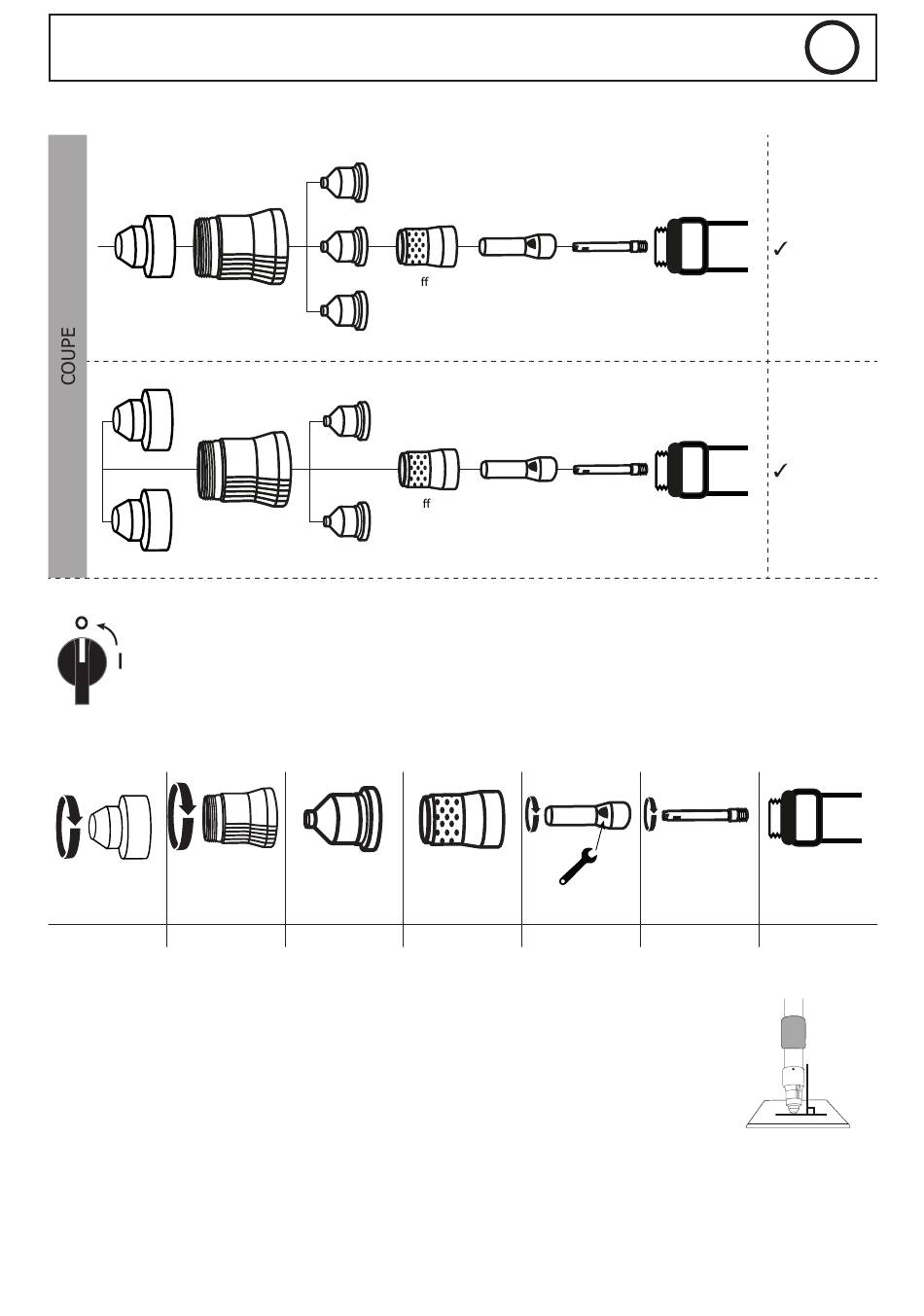

3 - INSTALLATION OF THE AUTOMATIC TORCH CONSUMABLES
Before changing the consumables, cut the power supply using the interrupor behind the machine .
To use the automatic torch, a complete set of consumables must be installed in the correct order: tube, electrode, diffuser, tailpipe, protection shroud
and shield.
Shield Protective shroud

4 - TORCH ALIGNMENT

Fix the auto torch perpendicularly to the part to get a vertical cut.
Use a square rule to align the torch at 90 ° to the metal sheet.
26
PLASMA CUTTER 85A / 125A
039759
Ref. (x5)
40A
040090
Ref. (x1)
039766
Ref. (x5)
60A
040038
Ref. (x5)
80A
Protective
shroud
Tailpipe
040090
Ref. (x1)
039667
Ref. (x5)
110A
039650
Ref. (x5)
130A
Protective
shroud
Tailpipe
Tailpipe
040083 040076
Ref. (x1) Ref. (x5)
40/60/80A
Di user Electrode
040083 039629
Ref. (x1) Ref. (x5)
110/130A
Di user Electrode
Diffuser Electrode
040069
Ref. (x1)
Tube
040014
Ref.
15.2m
040069
Ref. (x1)
Tube
040014
Ref.
15.2m
N°7
Tube
EN
85A TRI
125A TRI
Torch
90°
