Shield Protective shroud

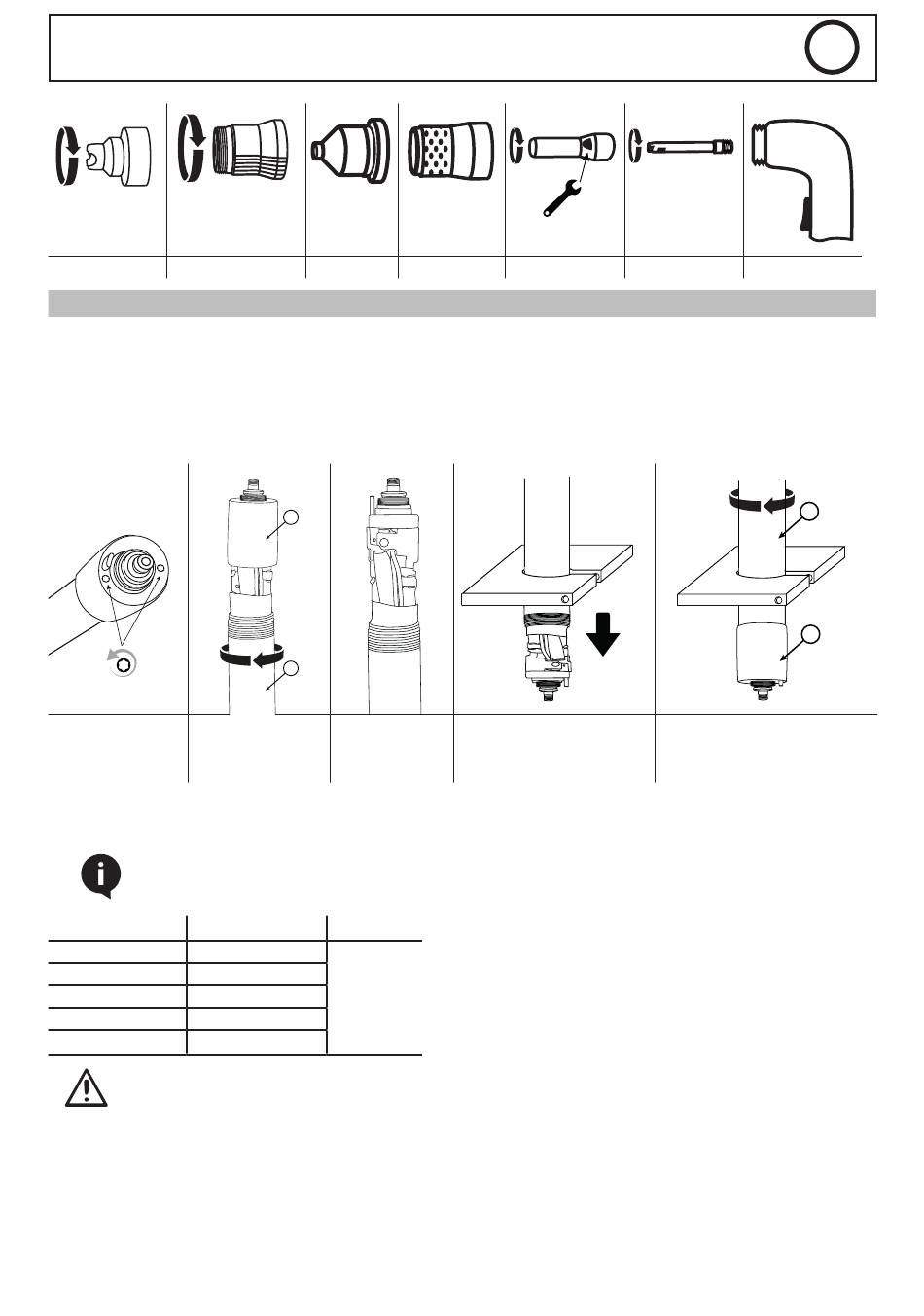

AUTOMATIC TORCH SETUP (REF. 040014)
1 - ASSEMBLY
Depending on the type of cutting table, it may be necessary to disassemble the torch to install it properly. If the rack of your cutting table is wide
enough for you to pass the torch through it without disassembling the torch, do so and then attach the torch to the height adjustment device accor-
ding to the manufacturer's instructions.
If you need to disassemble (and then assemble) the Z Auto torch, please follow these steps :
Firmly hold the
Unscrew the 2 Torx protective shroud (1)
®
screws. and unscrew the torch
2 - CHOICE OF CONSUMABLES
The Z auto torch uses «unprotected» consumables, a small distance distance (2 to 3 mm, between the torch and the metal).
5 tailpipe calibers available
To optimise the cut,it is important to choose the right tailpipe caliber according to the machine's settings.
Power Tailpipe
25-45A 40A
45-65A 60A
65-85A 80A
85-115A 110A
115-125A 130A
Gouging is impossible with an automatic torch.
PLASMA CUTTER 85A / 125A
Tailpipe
1
2
The shroud is
disconnected from
the body
(2).
Ref. Process
039759
039766
040038
Auto cut
039667
039650
N°7
Diffuser Electrode
Insert the torch's body in the
cutting table's conduct
A current that is too low leads to low cutting performance.
A current that is too high for the tailpipe leads to early dete-
rioration.
EN
Tube Torch
2
2
1 1
Firmly hold the protective shroud
(1) and screw the torch together(2).
Screw the 2 Torx screws.
®
