Instructions for Series 5 / 10
GB

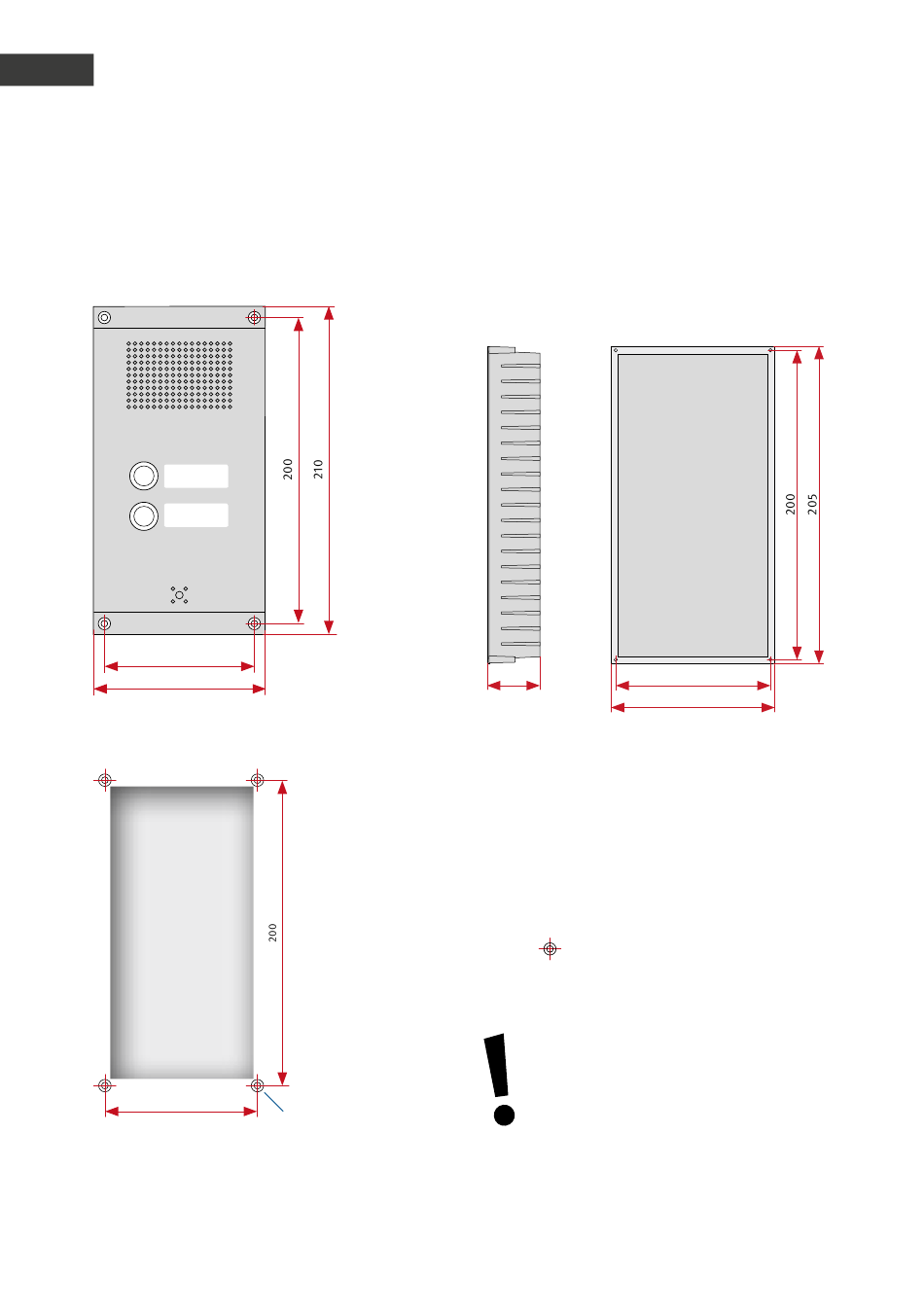

Dimensions

7.3. Flush and on-wall mounting Series 10

Front view
100
110
Mounting (without housing)
Necessary
hollow
Width 95 mm
Height 190 mm
100
64
▸
Hohlwandmontage z. B. in bauseitigen Säulen etc. Hier auf die ausreichende
Be- und Entlüftung des Baukörpers achten um einer Kondensatbildung
vorzubeugen.
▸
Depth with electronics: ca. 30 mm
▸
We suggest a cavity of 43-53 mm
deep (incl. space for wiring)
▸
Drilling with M3 screw thread=
M3
In-wall housing
Necessary cavity space for mounting a 106 mm x
205 mm housing
40
Dimensioning of series 10 Toscana and
Kayser available at:
www.behnke-online.de/bemassung
100
106
