Summary of Contents for Clarke Air CDF18HV-B
- Page 1 18” HIGH OUTPUT FAN 18” HIGH OUTPUT FAN MODEL No: CDF18HV-B Part No: 3231500 OPERATING & MAINTENANCE INSTRUCTIONS 0104...
- Page 2 Service@clarkeinternational.com Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machines data plate...

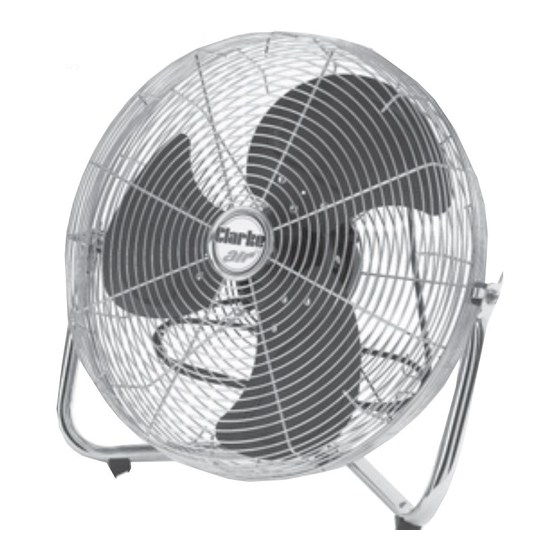

- Page 3 Specifications This lightweight portable 230v fan is ideal for effective air movement in a wide range of domestic and commercial applications. Constructed entirely from steel, it has a three speed control, strong tilt stand and easy to carry handle. Model: ..................CDF18HV-B Part No: ..................
- Page 4 Electrical Connections This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. WARNING ! THIS APPLIANCE MUST BE EARTHED This machine must be wired up in accordance with the following colour code: BLUE...
- Page 5 Parts Diag Parts List Item Part Number Description OT18001 Screw OT18002 Front Grill OT18003 Fan Blade OT18004 Screw OT18005 Screw OT18006 Motor OT18007 Rear Grill OT18008 OT18009 Screw OT18010 Foot OT18011 OT18012 Knob OT18013 Stand OT18014 Power Cord OT18015 Switch Box OT18016 Capacitor OT18017...
