Installation; Unpacking; Setting Up; Connect Foot Switch - Renfert BASIC eco Translation Of The Original Instructions For Use

4.

Installation

4.1

Unpacking

EN
⇒ Take the unit and all the accessories out of the package.
⇒ Check to ensure all delivery parts are complete (compare "Included in Delivery").
4.2

Setting up

⇒ Place the unit on a level and stable base.
4.3

Connect foot switch

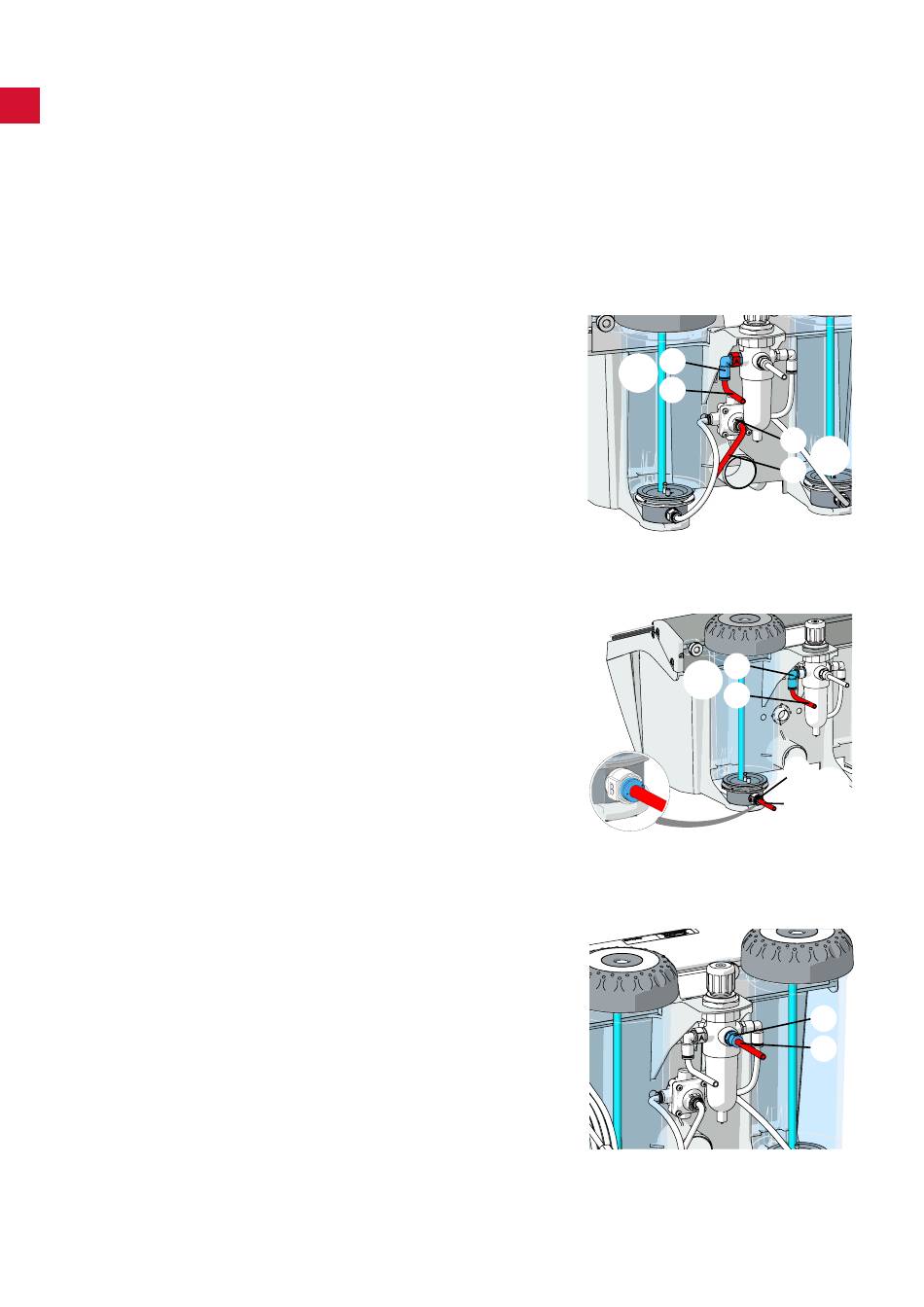

The following tubes (30, 31) are already connected to the foot switch.
4.3.1

2 Tank version:

⇒ Push the tube marked „A" (30) as far as it will go into the tube
connection point „A" (13).
⇒ Push the tube marked „B" (31) as far as it will go into the tube
connection point „B" (19).
When inserting the tubes you will notice a slight resistance which
must be overcome.
4.3.2 1 Tank version:
⇒ Push the tube marked „A" (30) as far as it will go into the tube
connection point „A" (13).
⇒ Push the tube marked „B" (31) as far as it will go into the tube
connection point „B" (22) (on sandblasting tank).
When inserting the tubes you will notice a slight resistance which
must be overcome.
4.4

Compressed air connection

⇒ Push the compressed air tube (11) onto the tube connection
point (14) as far as it will go. In doing so there will be a slight
resistance to overcome.
⇒ Select the relevant hose connection piece from the enclosed
attachment set and fit it onto the end of the tube.
⇒ Attach to the compressed air network.
- 8 -
13
A
30
19
31
13
A
30
22
31
B
Fig. 2
B
Fig. 3
14
11
Fig. 4
