3.3

Standard Delivery

1 Basic master
1 Foot switch
1 Connection set
1 Set of Operating Instructions, with attachment
1 Power cord
3.4

Accessories

Abrasives
Cobra aluminium oxide
1594-1105
1594-1205
EN
1594-2220
1584-1005
1583-1005
1583-1020
1587-1005
1587-1020
1585-1005
1585-1020
Rolloblast glass beads
1594-1305
1594-2312
1589-1005
Nozzles
Round nozzles
90002-1203
90003-3213
90002-1204
90003-3211
90003-3214
90002-1205
90002-1206
Slotted nozzles
90003-1739
4.

Commissioning

4.1

Installation

Choose a stable and non-slip surface to stand the unit on.
4.2

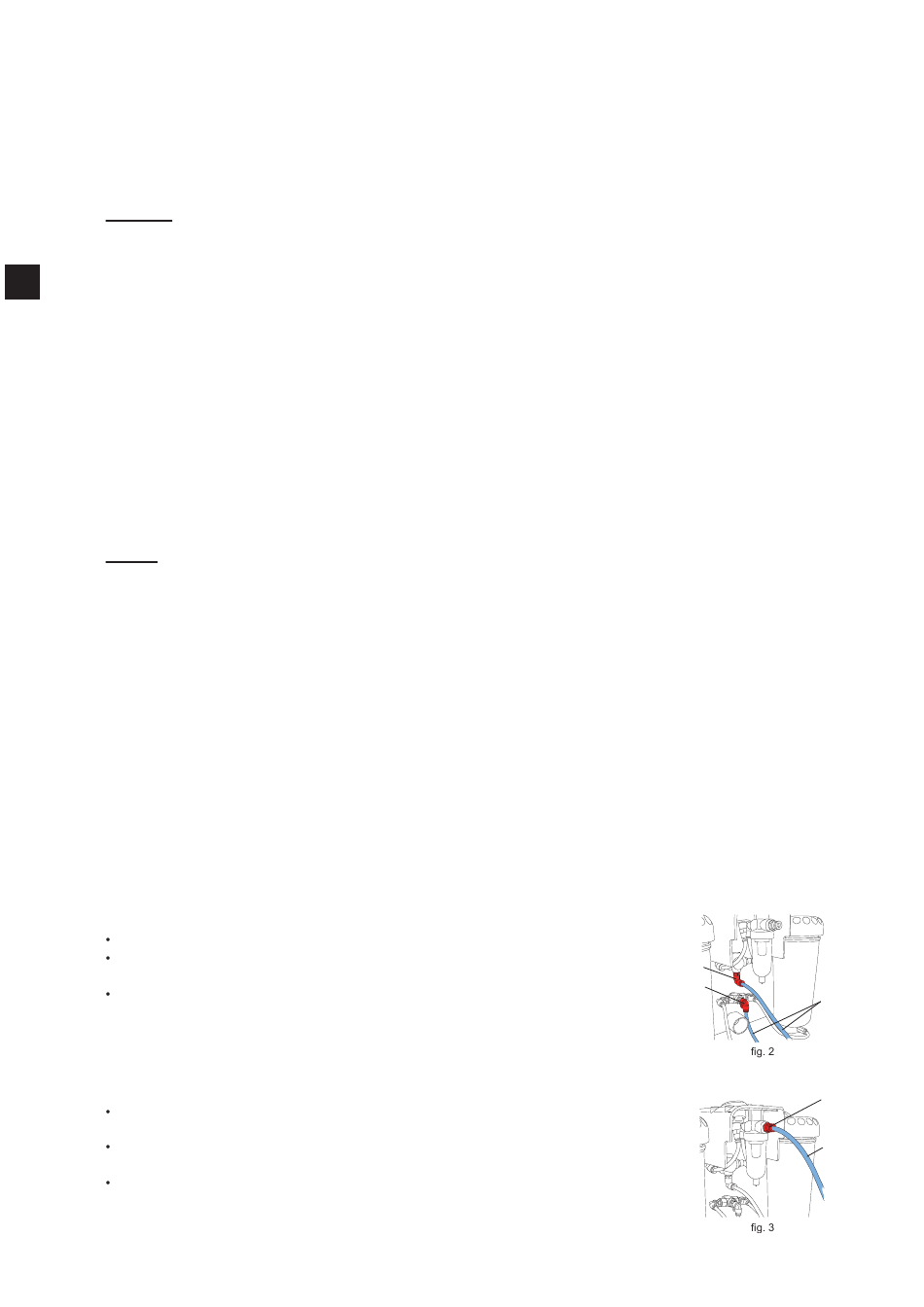

Foot switch connection

Remove the foot switch from its shipping location in the blasting chamber.
Insert the end of the tube marked with an „A" (13) as far as it will go into the tube connection
point also marked with an „A" (17) on the blasting unit.
Insert the end of the tube marked with an „B" (13) as far as it will go into the tube connection
point also marked with an „B" (18) on the blasting unit.
When inserting the tubes you will notice a slight resistance which must be overcome.
4.3

Compressed air connection

Push the compressed air tube (11) onto the tube connection point (15) as far as it will go. In
doing so there will be a slight resistance to overcome.
To connect to the compressed air system, select the relevant tube coupling from the sup-
plied set and attach this to the other end of the tube.
Attach to the compressed air network.
EN
25 μm [500 mesh], white 5 kg canister
50 μm [270 mesh], white 5 kg canister
50 μm [270 mesh], white 20 kg bucket
90 μm [170 mesh], white 5 kg canister
110 μm [150 mesh], white 5 kg canister
110 μm [150 mesh], white 20 kg bucket
125 μm [115 mesh], pink 5 kg canister
125 μm [115 mesh], pink 20 kg bucket
250 μm [60 mesh], white 5 kg canister
250 μm [60 mesh], white 20 kg bucket
50 μm [400-200 mesh] 5 kg canister
50 μm [400-200 mesh] 12.5 kg canister
100 μm [170-100 mesh] 5 kg canister
silver 0,4mm [0,0158 inch]
gold 0,65mm [0,0256 inch]
green 0,8mm [0,0315 inch]
blue 1,0mm [0,0394 inch]
red 1,2mm [0,0473 inch]
brown 1,4mm [0,0552 inch]
bronze 2,0mm [0,0788 inch]
light red 1,5x3,5mm [0,0591x0,1379 inch]
- 4 -
17
18
13
15
11
