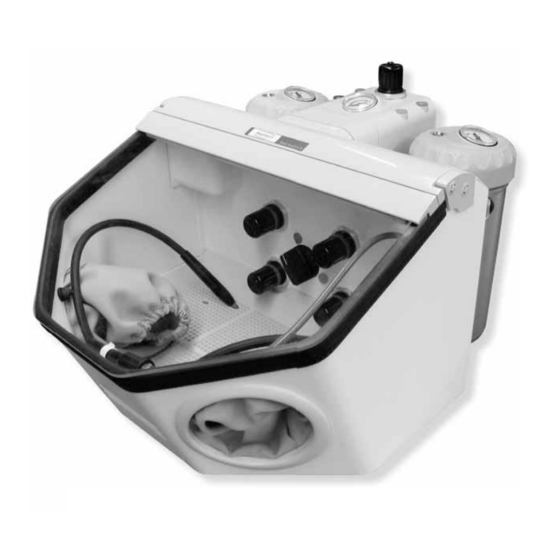

Renfert basic quattro Instruction Manual

Renfert basic quattro Instruction Manual

Hide thumbs Also See for basic quattro:

Advertisement

Quick Links

Areas of Caution
Never operate a sandblaster without a suitable dust extractor or suitable personal protective clothing as
this can be detrimental to your health. The type of dust extractor must relate to the type of dust
produced by your sandblasting work. It is imperative to adhere to your trade association regulations
(ZH 1/487).
Improper use can risk the danger of damage to eyes and skin. Never blast towards your eyes or onto
unprotected skin.
Before operating, check that the tank lid is correctly fitted. An incorrectly sealed lid can work loose with
a force similar to an explosion. There is thus a risk of harm from flying components and from the sudden
escape of abrasive.
Always disconnect the unit from the compressed air and electricity supplies before carrying out any
maintenance.
Never clean the tank or tank lid with cleaning fluids containing solvents! Solvents may cause a build-up
of microcracks in the acrylic therefore creating a risk of explosion.
As long as only the compressed air supply hose is connected, do not operate the foot-switch as the
hose will thrash around and quite possibly cause injury.
Before changing the fluorescent lamp make sure the lamp is unplugged.
Do not push or bend the lamp when exchanging (danger of breaking). If necessary wear gloves or use
a cloth for protection.
Troubleshooting Guide
The basic quattro is a high quality product from Renfert. Should the unit not function properly please
refer to the following guide:
basic quattro
No. 2944
Fault
No air and
no abrasive.
Air but no /
little sand.
Cause
• Nozzle on
handpiece
blocked.
• The hose connec-
tion to the foot
switch is bent.
• Switch in
wrong posi-
tion.
• Dosage
nozzle
(middle nozzle)
in tank
blocked.
Remedy
• Unsrew the nozzle from the
handpiece and blow through it.
• Activate the foot switch to
clear the jet hose without
nozzle.
• Check the hose and remedy
situation.
• Turn on until switch klicks into
place.
• Remove the tank lid.
• Seal the standpipe with isola-
ting tape or Cellotape.
• Replace lid.
• Seal the nozzle on the hand-
piece with finger and activate
foot switch several times.
• Open tank lid and remove the
tape from the standpipe.
Replace lid and commence
sandblasting.
Index

Advertisement

loading
Need help?

Need help?

Do you have a question about the basic quattro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Renfert basic quattro

  • Page 1 Do not push or bend the lamp when exchanging (danger of breaking). If necessary wear gloves or use a cloth for protection. Troubleshooting Guide The basic quattro is a high quality product from Renfert. Should the unit not function properly please refer to the following guide: Fault...
  • Page 2 Fault Cause Remedy • Filter combi- • Fit a new filter: nation in • Remove the air supply from mixing cham- the mixing chamber. ber blocked. • Unscrew the screw. • Remove the filter inserts. • Clear the hole in mixing cham- ber by pushing through a 1 mm piece of wire.
  • Page 3 To change the blasting hoses: The hoses wear out due to the abrasive. In case abrasive or air escapes from the hose, the blasting hose has to be exchanged immediately. To do this, the basic quattro should be disconnected from the com-pressed air supply. Then follow the steps as described in the manual enclosed to the hose kit (art.no.
