Summary of Contents for HAMPTON BAY RILEY KD HD20300

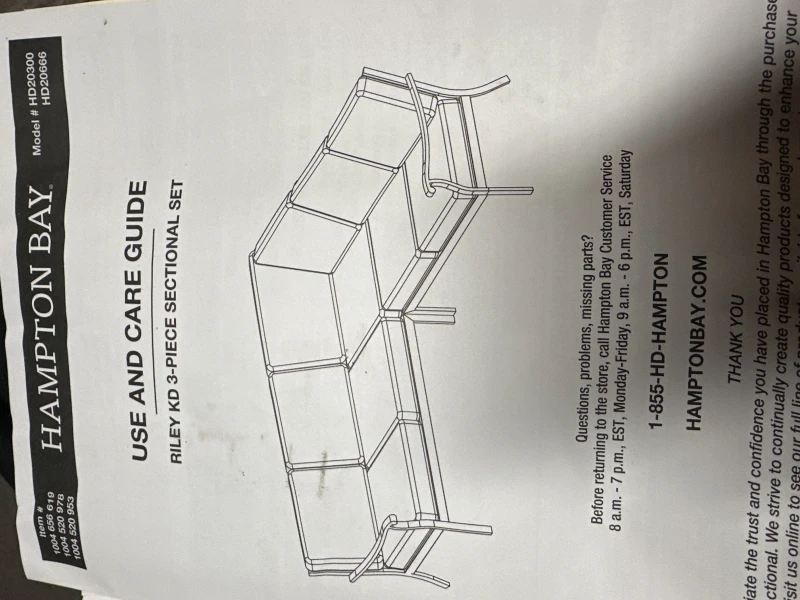

- Page 1 HD20666 USE AND CARE GUIDE RILEY KD 3-PIECE SECTIONAL SET Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents.............2 Care Instructions............2 Safety Information............2 Pre-Assembly..............3 Warranty..............2 Planning Assembly..............3 2 Year Frame / Fabric Limited Warranty.......2 Hardware Included..............3 What is Covered..............2 Package Contents..............4 What is Not Covered.............2 Assembly...............6 Important Safety Instructions SAVE THESE INSTRUCTIONS WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Assemble this product on a soft, non-abrasive surface to avoid scratching the finish. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt (M6 x 35 mm) Metal Washer ( Φ13 *1.0mm) Allen Wrench (M6) Plastic Bolt Cap (M6) Bolt (M6 x 55 mm) Metal Washer ( Φ13 *1.0mm) -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS LEFT ARM CHAIR RIGHT ARM CHAIR Part Description Quantity Left Arm Chair (Seat) Left Arm Chair (Back) Left Arm Chair (Arm) Right Arm Chair (Arm) Right Arm Chair (Seat) Right Arm Chair (Back) HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance... - Page 5 Pre-Assembly (continued) PACKAGE CONTENTS CORNER CHAIR Part Description Quantity Corner Chair (Right Back) Corner Chair (Right Seat) Corner Chair (Left Back) Seat Cushion Back Cushion Corner Chair Back Cushion (Right) Corner Chair Back Cushion (Left) HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
-
Page 6: Assembly
Assembly Left Chair Assembly Attach Left Chair Back B (leg on right side C) to Left Arm at two points with hardware as shown in Diagram 1. Attach Left Chair Seat A (leg on right side C) to Left Arm at two points and to Back at three points as shown in Diagram 2. Part Description Quantity... - Page 7 Assembly (continued) Right Chair Assembly Attach Right Chair Back F (leg on left side D) to Right Arm at two points with hardware as shown in Diagram 1 Attach Right Chair Seat D (leg on left side D) to Right Arm at two points and to Back at three points with hardware as shown in Diagram 2.
- Page 8 Assembly (continued) Corner Assembly Attach Left Corner Back to left side of seat at three points with hardware as shown in Diagram 1. Attach Right Corner Back to right side of seat at three points with hardware as shown in Diagram 2. Attach Left Corner Back to Right Corner Back at two points with hardware as shown in Diagram 3.
-
Page 9: Ee Bolt (M6 X 55 Mm)
Assembly (continued) Attaching the left arm chair to the corner chair Attach the left arm chair and the corner chair by using bolts (EE) with metal washers (FF) through the holes on the left side of the corner chair seat and the right side of the left arm chair seat, in the order of bolt (EE), metal washer (FF) corner chair left arm chair, metal washer (FF) and nut (GG). -
Page 10: Ff Metal Washer ( Φ13 *1.0Mm)
Assembly (continued) Attaching the right arm chair to the corner chair Attach the right arm chair and the corner chair by using bolts (EE) with metal washers (FF) through the holes on the right side of the corner chair seat and the left side of the right arm chair seat, in the order of bolt (EE), metal washer (FF) corner chair right arm chair, metal washer (FF) and nut (GG). - Page 11 Assembly (continued) Completing the assembly After finishing chair assembly, place back and seat cushions onto chair. Your furniture is now ready for use, so relax & enjoy. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
- Page 12 Retain this manual for future use. THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
