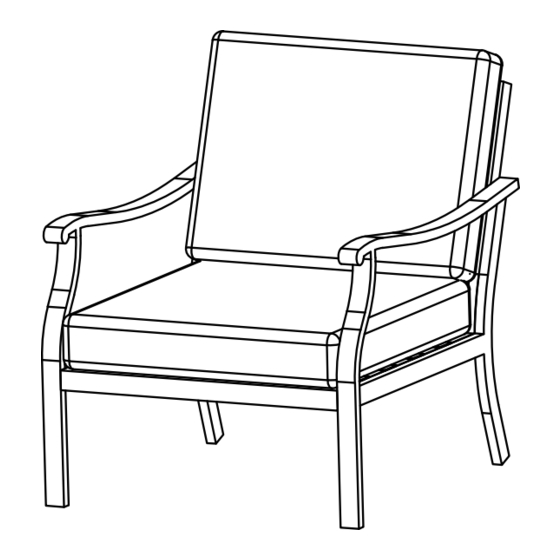

- Page 1 HD20710 USE AND CARE GUIDE RILEY KD 2-PACK LOUNGE CHAIR Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
- Page 2 Table of Contents Table of Contents.............2 Care Instructions............2 Safety Information............2 Pre-Assembly..............3 Warranty..............2 Planning Assembly..............3 2 Year Frame / Fabric Limited Warranty.......2 Hardware Included..............3 What is Covered..............2 Package Contents..............4 What is Not Covered.............2 Assembly...............5 Important Safety Instructions SAVE THESE INSTRUCTIONS WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
- Page 3 Pre-Assembly PLANNING ASSEMBLY Assemble this product on a soft, non-abrasive surface to avoid scratching the finish. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt (M6 x 35 mm) Metal Washer ( Φ13 *1.0mm) Allen Wrench (M6) Plastic Bolt Cap (M6) CAUTION: IT IS THE USER’S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND TIGHTENED PROPERLY AND...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS CHAIR FRAME CUSHIONS Part Description Quantity Right Armed Chair Left Armed Chair Back Seat Seat Cushion Back Cushion HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
- Page 5 Assembly Attach Right Arm to Back at two points and to Seat at three points with hardware as shown in Diagram 1. Attach Left Arm to Back at two points and to Seat at three points with hardware as shown in Diagram 2. Part Description Quantity...
- Page 6 Assembly (continued) After finishing chair assembly, place back and seat cushions onto chair. Your furniture is now ready for use, so relax & enjoy. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
- Page 7 Retain this manual for future use. THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
