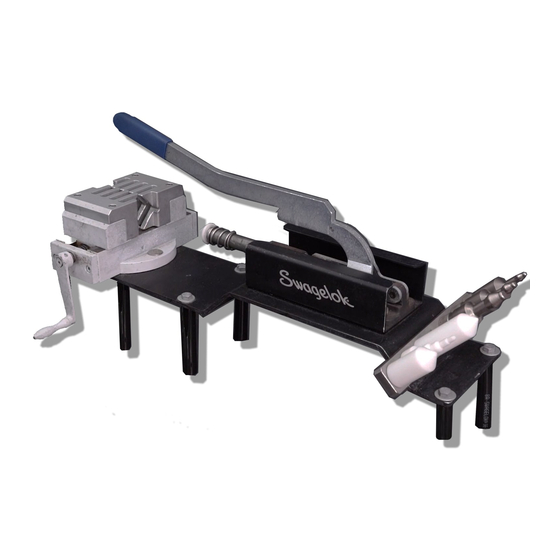

- Page 1 Push-On Tool User Manual Contents Push-On Tool Mandrels (3 short, 2 medium, 2 long) Lubricant Push-On Tool Components Jaws Pusher handle Mounting holes Pusher Mandrel Limiting spring Vise Vise handle...
- Page 2 Preparation Select the appropriate mandrel according to the table. Use six 3/8 in. bolts or a clamp to attach the tool to a Hose Type Nominal Hose Size, Recommended workbench. (Bolts and clamp are not provided). Mandrel Size 1/4, 3/8, 1/2 Long Rubber Medium...
- Page 3 1/2 inch (12.7 mm). 1/2 inch approx. (12.7 mm) For additional information, see the Swagelok Hose and Flexible Tubing catalog, MS-01-180.
- Page 4 Lower the pusher handle until the mandrel meets the end connection. Replaceable Component Ordering Number Push-On tool MS-SPOT Mandrel kit MS-SPOT-MKIT Jaws MS-SPOT-JAW-KIT Lubricant MS-TP-LUBE Swagelok — TM Swagelok Company © 2011-2020 Swagelok Company Translations available on August 2020, RevB www.swagelok.com. MS-CRD-0190...
