Swagelok Coning Tool Operating And Maintenance Instructions

Advertisement

Tool Case Contents

• Coning Tool
• ID Deburring Tool
• 1/4, 3/8, and 9/16 in. Collets
• 1/4, 3/8, and 9/16 in. Tool Bits
• 3/32 in. Allen Wrench
• Lubricant with MSDS

Operating Instructions

Refer to Fig. 1 during these instructions.
1. Turn the notched wheel against the gauge pin.
2. Completely insert tubing. Tighten the collet by turning
the collet handle.
3. Apply lubricant into lubricant hole as needed.
4. Turn the handle clockwise, moving the notched wheel
one notch for every three turns of the handle.
5. When the notched wheel is against the body the
coning operation is complete.
6. Loosen the notched wheel and remove tubing.
7. Inspect work. A proper cone has ends that are faced
and smooth, free of any scratches and leave-off marks.
See Fig. 2.
8. After every 15 to 20 coning operations, unscrew the
reservoir to empty it of lubricant and chips.
MS-CRD-CONING
Revision R1 08-04
Operating and Maintenance Instructions
Body
Lubricant hole
Collet nut
Collet
handle
Reservoir
Notched wheel

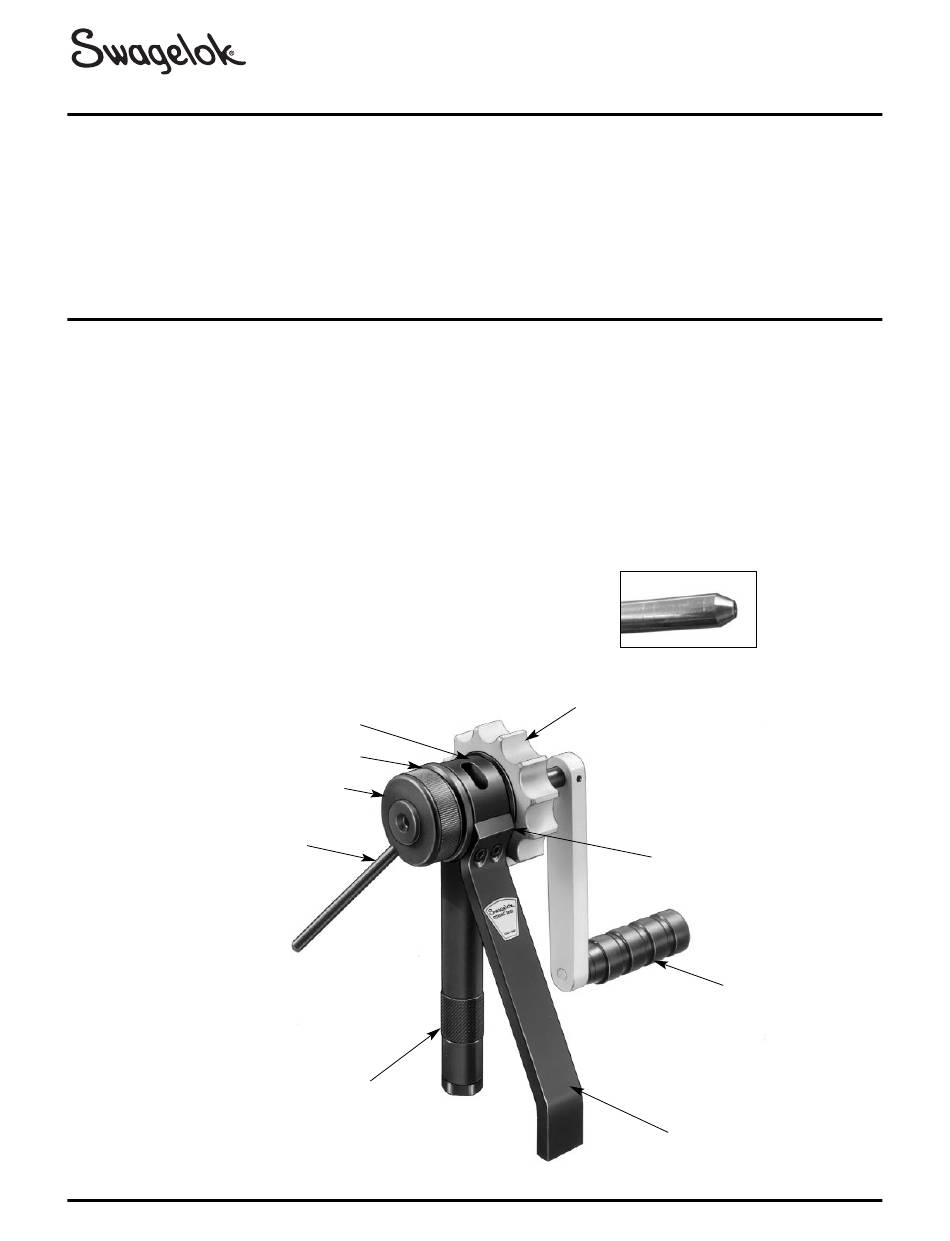

Fig. 1
Coning Tool
Fig. 2
Gauge pin
Handle
Vise support arm
www.swagelok.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coning Tool and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swagelok Coning Tool

  • Page 1 Coning Tool Operating and Maintenance Instructions Tool Case Contents • Coning Tool • ID Deburring Tool • 1/4, 3/8, and 9/16 in. Collets • 1/4, 3/8, and 9/16 in. Tool Bits • 3/32 in. Allen Wrench • Lubricant with MSDS Operating Instructions Refer to Fig.
  • Page 2 Tool bit Fig. 4 3. To re-sharpen tool bit, grind on top surface (side opposite the lock screw). See Fig. 5. Contact your local authorized Swagelok sales and service center for replacement bits. Fig. 5 4. Clean all parts before re-assembly.
