Five-roll straightener

Advertisement

These instructions contains information necessary for the
proper operation of the Swagelok
Model MS-TST12.
Read and understand these instructions before using the
five-roll straightener.

Overview

The five-roll straightener is designed for either hand-held
operation or it can be mounted to a spool stand for more
automated tube straightening. The five-roll straightener kit
accommodates both bare tubing and single-jacketed
tubing
accommodates tubing sizes ranging from 1/8 to
1/2 in. and 3 to 12 mm
weighs approximately 16.3 lb (7.4 kg)

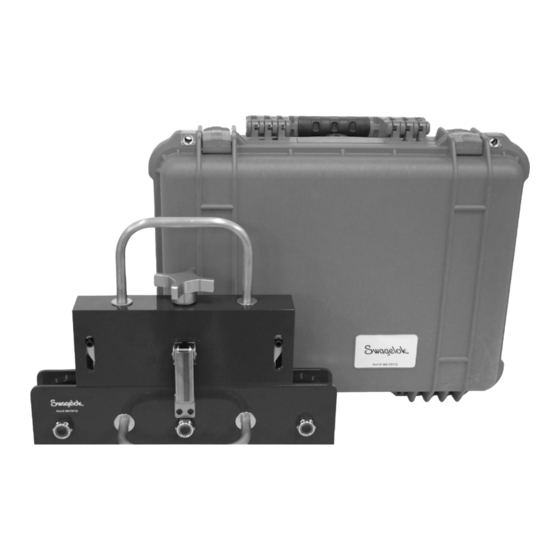

includes five-roll straightener tool and heavy-duty,
plastic storage case.

Operation

These instructions cover the hand-held operation of the
tube straightener.
1.
Straighten the beginning of the coil by hand.
MS-CRD-0147
Revision 0 05-10
®
Five-Roll Straightener,
Five-Roll Straightener
User Instructions
2.
Adjust the roller height by turning the adjusting knob
clockwise for smaller tubing and counter-clockwise
for larger tubing. Start feeding the tube through the
straightener.
3.
Pull / push the tube back and forth through the
straightener and adjust the roller height using the
adjusting knob so the tubing is coming out straight.
Loosen
Top View
Adjusting
knob
Tighten
Adjusting knob
www.swagelok.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-TST12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swagelok MS-TST12

  • Page 1 Five-Roll Straightener User Instructions These instructions contains information necessary for the Adjust the roller height by turning the adjusting knob proper operation of the Swagelok ® Five-Roll Straightener, clockwise for smaller tubing and counter-clockwise Model MS-TST12. for larger tubing. Start feeding the tube through the Read and understand these instructions before using the straightener.
  • Page 2 12 o’clock Initial pass at 12 o’clock Pass 4 Pass 2 9 o’clock 3 o’clock Pass 3 6 o’clock © 2010 Swagelok Company Swagelok—TM Swagelok Company Final pass at 9 o'clock Printed in U.S.A. May 2010, R0 MS-CRD-0147 Revision 0 05-10...
