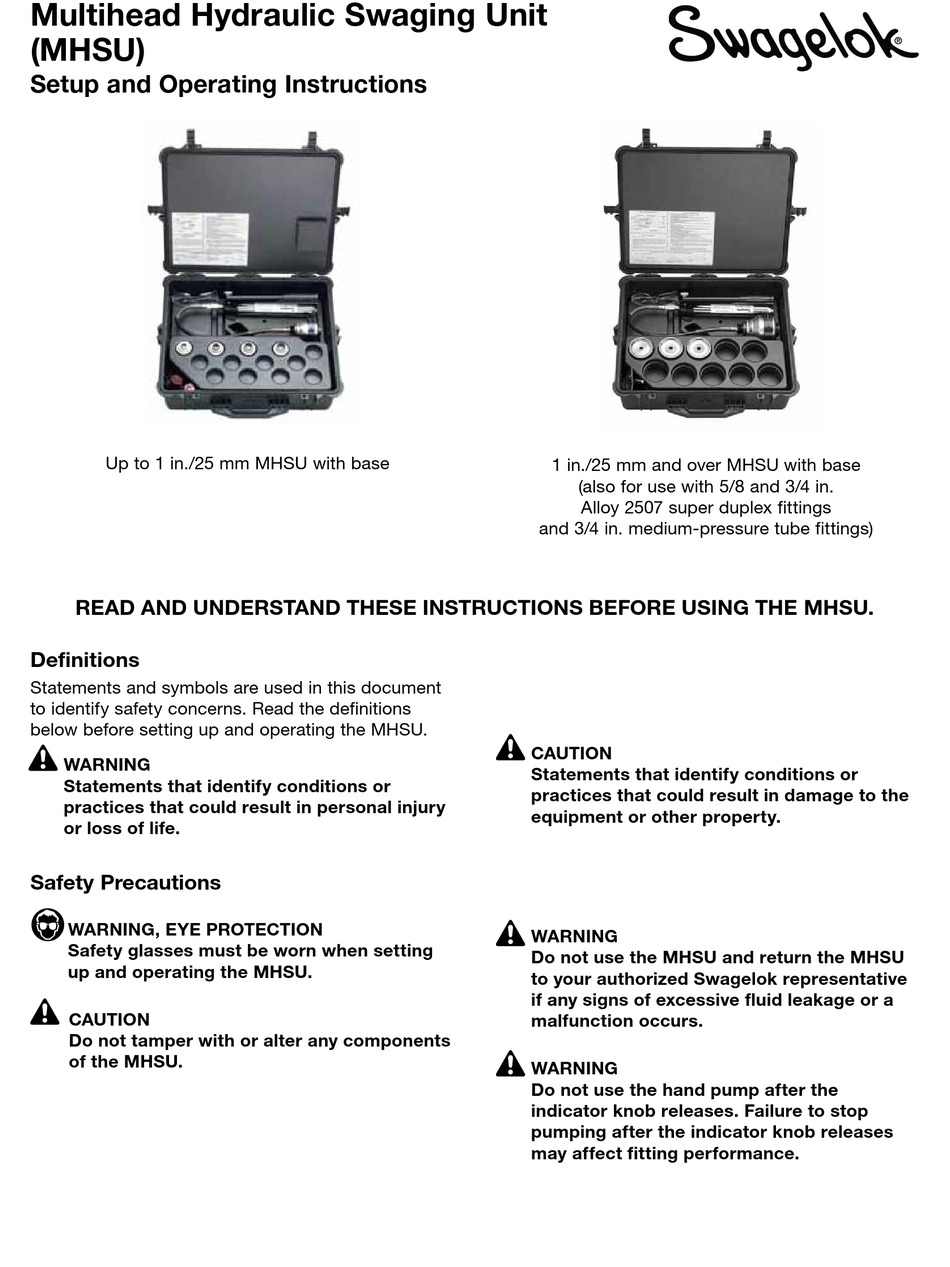

Swagelok MHSU Operating Instructions Manual

Multihead Hydraulic Swaging Unit
(MHSU)
Setup and Operating Instructions
Up to 1 in./25 mm MHSU with base
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE USING THE MHSU.
Definitions
Statements and symbols are used in this document
to identify safety concerns. Read the definitions
below before setting up and operating the MHSU.
WARNING
Statements that identify conditions or
practices that could result in personal injury
or loss of life.
Safety Precautions


W ARNING, EYE PROTECTION
Safety glasses must be worn when setting
up and operating the MHSU.

C AUTION
Do not tamper with or alter any components
of the MHSU.
1 in./25 mm and over MHSU with base
(also for use with 5/8 and 3/4 in.
Alloy 2507 super duplex fittings
and 3/4 in. medium-pressure tube fittings)
CAUTION
Statements that identify conditions or
practices that could result in damage to the
equipment or other property.
WARNING
Do not use the MHSU and return the MHSU
to your authorized Swagelok representative
if any signs of excessive fluid leakage or a
malfunction occurs.
WARNING
Do not use the hand pump after the
indicator knob releases. Failure to stop
pumping after the indicator knob releases
may affect fitting performance.
