Hd/sd sdi control probe
Hide thumbs Also See for Miranda DENSITE Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DESCRIPTION
The HCP-1801 is a probe for the quality control of HD SDI
(SMPTE 292 M) and SD SDI (SMPTE 259M-C) digital video
signals. The HCP-1801 probe integrates several advanced
features for monitoring both video and embedded audio
signals. It offers complete real-time measurement and
analysis of all relevant signal parameters as well as flexible
alarm thresholds and user-defined profiles. In addition, the
HCP-1801 probe functions as a distribution amplifier, with
its HD/SD SDI input and four reclocked outputs. Used in
conjunction with Miranda's iControl family of products, the
HCP-1801 allows users to see the signals they are
monitoring. The probe generates real-time video thumbnails
and audio level meters for transmission over IP networks.
As part of the Miranda Densité series, the probe can be
used along with a wide variety of interface and distribution
amplifiers, and allows users to benefit from extensive
flexibility and ease of use so unique to Miranda's Densité
platform.
Input/output
• Single input supports both SMPTE 259M-C digital video
signal (SD) with embedded 272M digital audio, and
SMPTE 292M digital video (HD)
• Four outputs
VBI signal extraction and analysis
• 24-bit digital audio disembedding
Remote control and status
• On card status Led
• Current & latch status for remote reporting

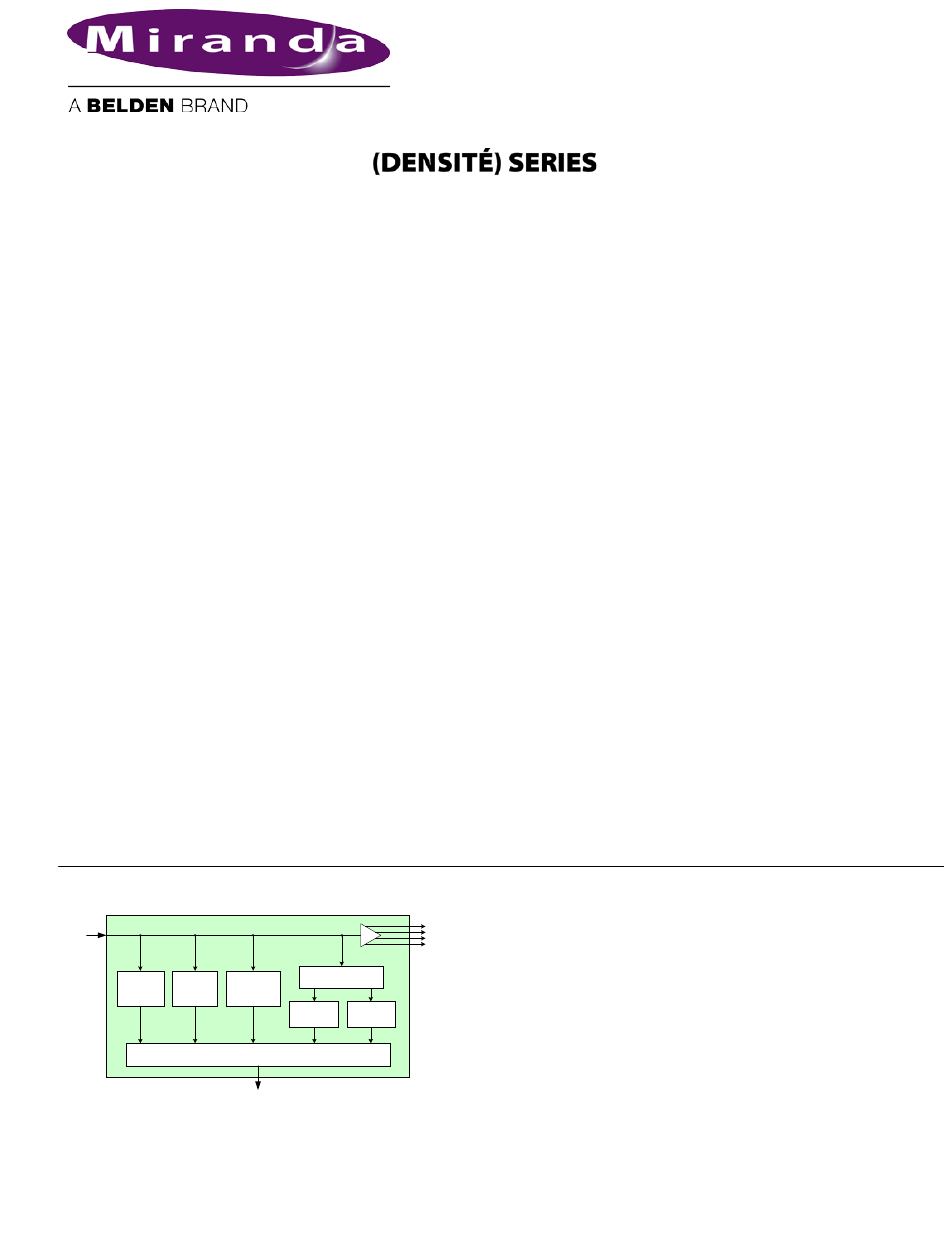

FUNCTIONAL BLOCK DIAGRAM
HD/SD
SDI IN
Video
VBI
Thumbnail
Measure
Extract
Micro-Controller
DATA OUT to ethernet interface in Densité frame
HCP-1801
DEMUX
Gen.
Audio
Audio
Measure
Levels
Monitoring of embedded audio
• Signal presence detection and format validation
• Presence control for each group
• Adjustable level, phase and mono signal alarms
• Selectable group, pair or individual channel monitoring
Transmission over IP for display
• Thumbnails with adjustable picture format, quality and
transmission rate
• Alarms and status
• VITC, Closed captioning, V-chip, WSS and XDS
• Audio level meters and phase meter
• Audio overload counter
• Video test pattern
Video standard and presence monitoring
• Video format detection
• Carrier detect
• Freeze detection (multi-zone)
• Black detection (multi-zone)
• Ancillary data detection and identification
• Luma min and max
• White max
• CC presence
• VITC presence
• VLI
•
WSS
•
Macro-block Detection (MBD) Option
SPECIFICATIONS
VIDEO INPUT
HD/SD
Signal:
HD SDI:
SDI OUT
SD SDI:
Cable length: HD
Return loss:
SERIAL DIGITAL OUTPUTS (4)
Signal:
Cable length: HD
Return loss:
Added jitter
HCP-1801
HCP-1801HD/SD SDI Control Probe
Guide to Installation and Operation
SMPTE 292M (1.485,1.485/1.001 Gbps)
SMPTE 259M-C (270Mbps)
110m. Belden 1694A at 1.485 Gbps
SD
250m. Belden 8281 at 270 Mbps
> 12 dB up to 1.5 GHz
SMPTE 292M (1.485,1.485/1.001 Gbps)
SMPTE 259M (270 Mbps)
(same format as input)
110m. Belden 1694A at 1.485 Gbps
SD
250m. Belden 8281 at 270 Mbps
> 12 dB up to 1.5 GHz
<0.2UI p-p (wideband)
M813-9900-111
February 2013
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Miranda DENSITE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Belden Miranda DENSITE Series

Summary of Contents for Belden Miranda DENSITE Series

  • Page 1 HD/SD Signal: HD SDI: SMPTE 292M (1.485,1.485/1.001 Gbps) SDI IN SDI OUT SD SDI: SMPTE 259M-C (270Mbps) Cable length: HD 110m. Belden 1694A at 1.485 Gbps DEMUX Video Thumbnail 250m. Belden 8281 at 270 Mbps Measure Extract Gen. Audio Audio Return loss: >...

  • Page 2: Installation

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation THUMBNAILS Picture size (525): 352x240; 176x120; 88x56 SPECIFICATIONS(cont’d) Picture size (625): 352x288; 176x144; 88x72 Picture size (720p): 408x240; 204x120; 102x60 PROCESSING PERFORMANCE Picture size (1080i): 384x270; 192x135; 96x67 Signal Path: 10 bits Processing Delay: <6 ns...
  • Page 3 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Serial Flashing Report Report Green Yellow  No input signal presence  Illegal format  White limit max  Luma min  Luma max  Multi-window Freeze detection  Multi-window Black detection ...

  • Page 4: Icontrol Interface

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation LUMA MIN ERROR Indicates an average minimum LEVEL MAX Indicates an average maximum luminance error of the input video level error in one or both channels signal LEVEL MIN Indicates an average minimum LUMA MAX ERROR Indicates an average maximum level error in one or both channels...
  • Page 5 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation (a) this icon shows whether this HCP-1801 is being • Current shows the status now. operated by remote control (green icon) or local • Latch shows the status as affected by latching. control (yellow icon).
  • Page 6 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Display Area Freeze Zones The display shows the current video thumbnail, overlaid with boxes showing the four zones in which the HCP-1801 can detect a video freeze. You can click on any box and drag its control points to resize and reposition it.
  • Page 7 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Comments: Type any desired text into this box Details…: click on this button to get information about the manufacturing process and panel version. Advanced…: Click on this button to get the Miranda Long ID of this HCP-1801.

  • Page 8: Section 1. On The Left, There Is A Tree Chart Of The Profiles

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation • To load it into the Current Profile, right-click on the Factory Profile icon, then right or left click on the Load in Current text that appears. The Profiles button at the bottom allows the user to export profiles to other HCP-1801 cards.

  • Page 9: Section 2. This Section Contains A List Of Parameters

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation When you click on one of these, you will change the The current selection is shown on the icon. To change it, contents of sections 2 and 3. click on the down arrow at the right of the box, and click on the desired option in the list that appears below the box.
  • Page 10 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation the previous 2 minutes, and only errors falling The HCP-1801 monitors the following parameters. They within that window are counted. are all identified by the path Topic-Parameter (Range: 1 min to 24 hours) In all cases except one (CC presence), all three conditions are defined: ◊...
  • Page 11 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 525 – Luma Max Exp. This measure verifies that the luma content of the video signal regularly traverses a nearly-white level. This level is set by the user with the threshold slider. Enable: check to enable this test Threshold: set the level (in mV) below which this condition will be flagged...
  • Page 12 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 525 – Black Detect whether selected portions of the video image are continuously black for a period of time. Four independent zones are set up and checked, each accessed from a tab. Note: these four zones are common between the Black and Freeze parameters, so they can be set up in either panel.
  • Page 13 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 525 – VLI Detect the presence of Video Line Index (VLI) data in the SDI video signal Enable: check to enable this test Extract: extract the aspect ratio value and display it in the text box below Aspect Ratio: The text box reports the detected aspect ratio.
  • Page 14 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 625 – White Max Check whether the luma content of the video signal is going higher than the specified threshold Enable: check to enable this test Threshold: set the level above which the video signal luma level will trigger an error message.
  • Page 15 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation zone by identifying it’s top left corner (Start line & pixel) and bottom right corner (Stop line & pixel). Note: you can also set the zone size and position by clicking the Freeze tab in the display area, and using your mouse to drag the outline of the zone Signal Quality: Select a quality level appropriate to the signal being monitored, over the range “Noisy”...
  • Page 16 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 625 – VLI Detect the presence of Video Line Index (VLI) data in the SDI video signal Enable: check to enable this test Extract: extract the aspect ratio value from the VLI and display it in the text box below Aspect Ratio: The text box reports the detected aspect ratio.
  • Page 17 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 625 – MBD Analyze the active picture to detect MPEG macro- block artifacts in the SDI video signal Enable: check to enable this test Duration: Set the time for which the block artifact index must be continuously above the threshold in order for this condition to be flagged as an error.
  • Page 18 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 1080i & 720p – Freeze Detect whether selected portions of the video image are static for a period of time. Four independent zones are set up and checked, each accessed from a tab.
  • Page 19 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation signal will be considered to be black. Duration, Occurrence and Interval: Set up the error detection window using the sliders. • See page 9 for definitions of these variables 1080i & 720p – CC Validity Detect the validity of Closed Caption (CC) data in the SDI video signal Enable: check to enable this test...
  • Page 20 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation 1080i & 720p – VITC Detect the presence of Vertical Interval Time Code (VITC) in the SDI data stream, and choose whether to extract it. Enable: check to enable this test Extract: extract the VITC and display it in the thumbnail.
  • Page 21 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation out directly from an MPEG decoder in SDI. Analog should be used when the signal has been decoded from analog to SDI after an MPEG decoder. Audio – Silence Check whether the instantaneous audio level remains below a low-level threshold (both channels checked separately) Enable Ch1 / Enable Ch2: check to enable this test...
  • Page 22 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Audio – Max Level Check whether the mean audio level remains above a high-level threshold (both channels checked separately) Enable Ch1 / Enable Ch2: check to enable this test Threshold: set the level (in dB) above which an Audio Max Level error will be flagged Duration, Occurrence and Interval: Set up the error detection window using the sliders.
  • Page 23 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Audio – Imbalance Detect stereo imbalance errors by comparing the average levels in the two channels (channels checked together) Enable Ch 1 & 2: check to enable this test Threshold: set the level (in dB) above which an audio imbalance error will be flagged Duration, Occurrence and Interval: Set up the error detection window using the sliders.
  • Page 24 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Refresh Rate – select the desired refresh rate from the pull-down box. The choices are: [Fast, 1 sec, 2 sec, …, 9 sec, 10 sec.] Streaming Priority Control – Click the Take control from Slot [##] checkbox to force the Densité...

  • Page 25: Alarm Configuration

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation individual meters off or on Note: only four meters can be active at once, so only four of these checkboxes can be selected. Speed – select the meter response from the pull- down list, either fast, medium or slow.
  • Page 26 HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation • If the Overall alarm contribution is selected as any level other than disabled, the GSM contribution is forced to follow the Overall Alarm. Levels associated with these alarms: The pulldown lists may contain some or all of the following options: The alarm makes no contribution (black icon) The alarm is of minor importance (yellow icon) The alarm is of major importance (orange icon)

  • Page 27: Electromagnetic Compatibility

    HCP-1801 HD/SD SDI Control Probe Guide to Installation and Operation Electromagnetic Compatibility This equipment has been tested for verification of compliance with FCC Part 15, Subpart B requirements for Class A digital devices. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
