Belden Miranda NV915 Quick Start Manual

NV915 Product Summary
Your Miranda shipment contains an NV915 system control-
ler, power cords, and this Quick Start guide. Depending on
you order options, the shipment might also include cables
and peripheral devices. See Figure 1.
An NV9000 router control system allows you to configure
and operate routers, control panels, and other connected
equipment. The NV9000 control system includes several
parts that work together:
NV915 system controller.
•
NV9000-SE Utilities configuration software.
•
PCs running configuration or control software.
•
Routers.
•
Control panels (physical or virtual).
•
Optionally, master control components.
•
Optionally, automation, UMD, and other subsystems.
•
The NV915 system controller's features include:
Two Ethernet ports, one for routers and panels, and the
•
other for configuration.
Two USB ports, a COM port and a monitor port.
•
Flash-based storage.
•
Support for up to 32 NV96xx control panels.
•
Support for up to 4 NVISION series routers.
•
Small size: 1RU, 9" deep.
•
NV9000-SE Utilities
NV9000-SE Utilities (NV9000-SE Utilities, for short) is the
"next generation configuration tool" to be used with NV9000
routing control systems.
You can use it, connected to the NV915 system controller, to
create and upload configurations. You can use it, detached
from the NV915, to create configuration files.
NV9000-SE Utilities is designed to model, as closely as possi-
ble, the user's tasks and facility structure. It leads the user
through the process of configuring a router control system.
NV9000-SE Utilities fits in the NV9000 scheme like this:
Video Ref.
“NVISION Network” Port
Router
Ethernet
Switch
Router
Router Control
Panel
Router
Figure 1. System Block Diagram
Product Number: QG0007-02 Revision: A0; Date: 4/25/13
NV915
“Config” Port
On
NV9000-SE
Client
Utilities
PC
QuickStart Guide
NV915 system controller
and Accessories

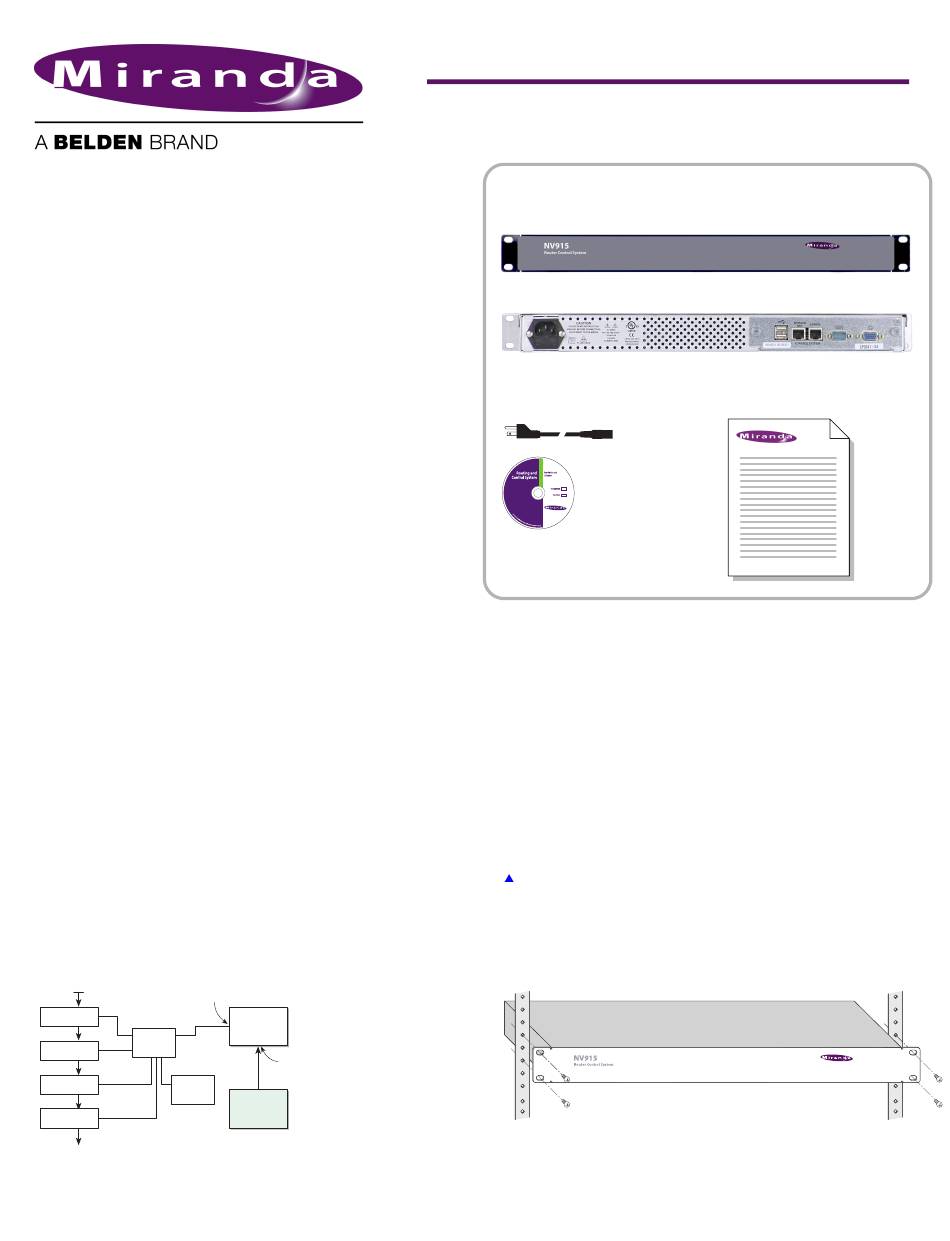

Figure 1. Package Contents

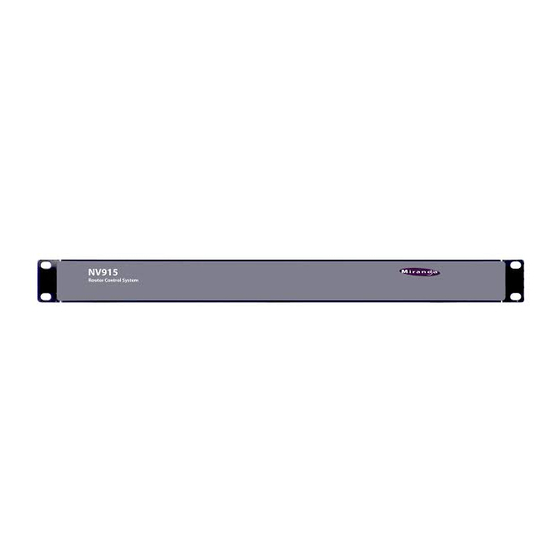

NV915(s)
(front view)
(rear view)
AC power cord(s)
1 software and
documentation disk
Installation
To prepare the NV915 system controller for use, you must take
these two steps:
Install the NV915 hardware.
•
Install the NV9000-SE Utilities software on a PC.
•
To run the NV9000-SE Utilities, you will need a PC that
supports Java 1.5 or later.
Installing the NV915
Perform the steps that follow to install the NV915.
Rack Mounting
Because the NV915 is small, you might not have enough space to
reach behind it to make connections. In that case, leave this step
until last.
Place the NV915 in the rack where you want it, aligning the
screw holes with holes in your rack frame. Secure the router
using your screws, nuts, and washers.
The mounting holes are spaced 1.25" (31mm) vertically and
allow approximately 1/8" (3mm) of play horizontally.
Quick-Start Guide
(this document)
1
