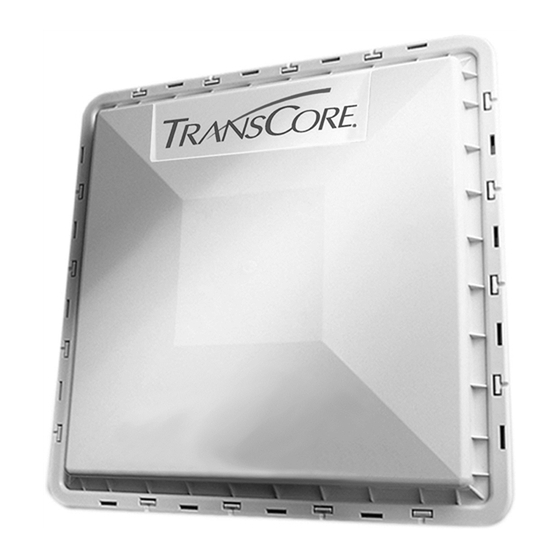

TransCore's Encompass 4 Reader System is a dual-protocol reader that reads
TransCore Super eGo® (SeGo), eGo, American Trucking Associations/International
Organization for Standardization (ATA/ISO), or Inter-Agency Group (IAG) tag protocols.
This guide provides site planning and testing, installing, and operating instructions.
This information is intended for use by authorized TransCore dealers, installers, and
service personnel.

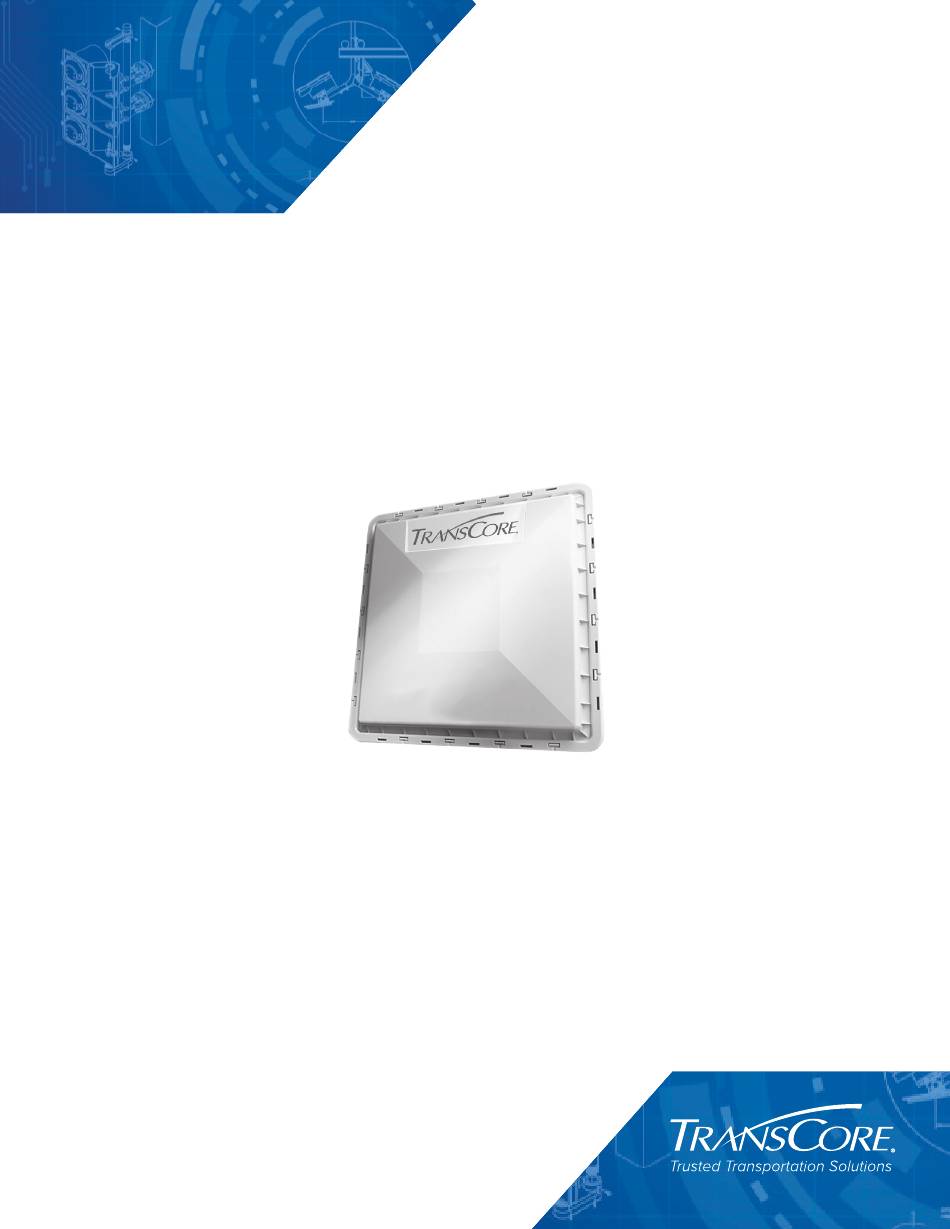

Encompass® 4
Reader System Guide
16-0114-001 Rev A 9/2020
Trusted Transportation Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Encompass 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TransCore Encompass 4

Summary of Contents for TransCore Encompass 4

  • Page 1 Encompass® 4 Reader System Guide 16-0114-001 Rev A 9/2020 TransCore’s Encompass 4 Reader System is a dual-protocol reader that reads TransCore Super eGo® (SeGo), eGo, American Trucking Associations/International Organization for Standardization (ATA/ISO), or Inter-Agency Group (IAG) tag protocols. This guide provides site planning and testing, installing, and operating instructions.
  • Page 2 Encompass 4 Reader System Guide © 2009-2020 TransCore, LP. All rights reserved. TRANSCORE, AMTECH, EGO, and ENCOMPASS are registered trademarks and are used under license. All other trademarks are the property of their respective owners. Contents are subject to change. Printed in the U.S.A.
  • Page 3 Unauthorized modification may void the equipment authorization from the FCC and will void the warranty. USE OF SHIELDED CABLES AND GROUNDING 47 CFR §15.27(A) NOTE: Shielded cables and earth grounding the unit is recommended for this equipment to comply with FCC regulations. TRANSCORE, LP TransCore Proprietary...
  • Page 4 Encompass 4 Reader System Guide AVERTISSEMENT À L’ATTENTION DES UTILISATEURS AUX ÉTATS-UNIS DÉCLARATION 47 CFR §90.351 (CODE DES RÈGLEMENTS FÉDÉRAUX) DE LA FEDERAL COMMUNICATIONS COMMISSION (FCC) SUR LES SERVICES DE LOCALISATION ET DE CONTRÔLE REMARQUE : L’utilisateur est tenu d’obtenir une licence d’utilisation sur site Partie 90 auprès de la Federal Communications Commission (FCC) afin de pouvoir utiliser ce dispositif RFID (radio-identification) aux États-Unis ou au Canada.
  • Page 5 Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage, et l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. TransCore Proprietary...
  • Page 6 Encompass 4 Reader System Guide RADIO FREQUENCY HEALTH LIMITS FOR ENCOMPASS 4 READER USING AN EXTERNAL ANTENNA IN FREQUENCY BAND OF 902.25 TO 903.75 AND 910.00 TO 921.50 MHZ Several agencies (OSHA, FCC, IC) have environmental guidelines regulating maximum permissible exposure (MPE) or “safe”...
  • Page 7 The MPE minimum distances are 18in (45cm) for the Controlled environment and 47in (120cm) for the General Public/Uncontrolled environment. TransCore Recommendation on MPE (Maximum Permissible Exposure) The calculated power densities and MPE distance for each of the agencies respective to the environment is shown below.
  • Page 8 (accès contrôlé) ou pour la population générale/le grand public (accès non contrôlé), TransCore présente les niveaux recommandés par chaque organisme dans ses recommandations sécuritaires détaillées dans la dernière section.
  • Page 9 (18 po) pour l’environnement professionnel/contrôlé et de 120 cm (47 po) pour le grand public/ environnement non contrôlé. Recommandations de TransCore sur les limites d’exposition maximale autorisée (normes MPE) Les densités de puissance et la distance MPE calculées par chaque organisme pour un environnement donné...
  • Page 10 Encompass 4 Reader System Guide Avec l’appareil installé et fonctionnant à la puissance de transmission maximale de 1,6W (32dBm), 0dB d’atténuation de transmission, et en utilisant le gain d’antenne maximal pour lequel l’appareil a reçu une certification, les recommandations pour chaque environnement d’exploitation sont les suivantes : L’antenne devrait être installée à...

  • Page 11: Table Of Contents

    Pre-installation Testing of the Encompass 4 Reader ....4-33 Mounting the Encompass 4 Reader ....... . 4-40 Mounting the Antenna.
  • Page 12 Encompass 4 Reader Repair........
  • Page 13 Appendix C Wiring Tables ........C–1 Cable Supplied with the Encompass 4 Reader ......C–1 Input/Output Cabling Assignments .
  • Page 14 Figure 29 Correct Orientation of Reader ......4-41 Figure 30 Back of the Encompass 4 Reader ......4-42...
  • Page 15 Figure 33  The Encompass 4 Reader Attached to the Pole Mount Bracket... 4-43 Figure 34 Front and Top Views of the Encompass 4 Reader Position....4-44 Figure 35 ...
  • Page 16 Table 34 Select RF Operating Frequency Commands ......7–122 Table 35 Example of Encompass 4 Reader Plaza Synchronization Bus Settings ..7–125 Table 36 Output Pulse Duration Commands.
  • Page 17 Table 41 Input Status Change Report Options ........7–131 Table 42 Encompass 4 Reader Configuration Label Fields ......8–133 Table 43 Encompass 4 Reader Default Configuration Settings .

  • Page 18: Chapter 1 Introduction

    Chapter 1 Introduction System Guide Organization TransCore offers the Encompass 4 Reader in two models: one with an integrated antenna and one that requires connection to an external antenna. In this system guide, information and instructions for both Encompass 4 Reader models are presented. Where separate instructions dictate, a section detailing one Encompass 4 Reader model is followed immediately with a section detailing the other reader model.

  • Page 19: Tags

    Licensing Requirements Users of the Encompass 4 Reader System in the United States must obtain a license from the FCC. In the United States, the authorized modulated frequency band for this product is 911.75 to 919.75 MHz and the authorized continuous wave frequency band is 902.25 to 903.75 MHz and 910.00 to 921.50 MHz.
  • Page 20 The FCC license may provide the user with protection and authorization to maintain the system should any other RFID product be used in the licensed area after the Encompass 4 equipment is installed. The user is responsible for filing the FCC license application before use. It can take up to two months before the application is granted.

  • Page 21: Chapter 2 Developing The Site Plan

    Inter-Agency Group (IAG) tags. Note: The Encompass 4 Reader can read ATA or ISO read-only tags in the presence of Intellitag- based tags, however, it is not recommended to read an Intellitag-based tag in the presence of an ATA or ISO read-only tag.

  • Page 22: Reader, Tag, And Antenna Alignment

    Chapter 2 Developing the Site Plan Reader, Tag, and Antenna Alignment The position of the Encompass 4 Reader, antenna, and placement of the tag on the vehicle must be compatible. Also, consider any existing tagged vehicles now using the facility to determine the optimal Encompass 4 Reader, antenna, and tag location and orientation at the site.

  • Page 23: Figure 2 Tag And Reader Orientation

    Encompass 4 Reader cannot reliably read the tags. Figure 3 illustrates possible installation locations of an Encompass 4 Reader in relation to a tag’s mounting location on a vehicle. If the tags are not in the recommended location, reliable optimum operation requires lower vehicle speeds. 2–6...

  • Page 24: Figure 3 Encompass 4 Reader Location Relative To Tag Position

    Figure 3 Encompass 4 Reader Location Relative to Tag Position If the Encompass 4 Reader is installed on a pole or wall to the left of the vehicle, optimal tag position is on the left side of the vehicle as illustrated in Figure 4.

  • Page 25: Figure 5 Typical Tag Positions For U.s. Passenger's Side Reader

    Encompass 4 Reader System Guide If an Encompass 4 Reader is installed on a pole or wall to the right of the vehicle, optimal tag position is on the right side of the vehicle as illustrated in Figure 5. Figure 5 Typical Tag Positions for U.S. Passenger’s Side Reader If the Encompass 4 Reader is installed in an overhead location, optimal tag position is in the top center of the windshield in the area behind the rear view mirror or on the vehicle’s front license plate or center...

  • Page 26: Antenna Selection

    Note: Metallized coatings on some vehicle windshields and windows shield the RF energy emitted by the Encompass 4 Reader and may cause tags to be misread. Many metallized windshields have areas that are not metallized in which the tag can be placed and reasonable results achieved. If there are no openings in the metallized coating in which to install an interior tag, install exterior- type tags on the exterior of the vehicle.

  • Page 27: Site Layout, Mounting Requirements, And Traffic Flow

    The Encompass 4 Reader Read Zone The Encompass 4 Reader must be able to read the tag data properly within a specified area, called the read zone, without reading other nearby tags or interfering with other Encompass 4 Readers at the site. The following are some of the factors that affect the size and shape of the read zone: •...

  • Page 28: Table 1 Examples Of Staggered Reader Frequencies

    Other sources of interference and reflection The Encompass 4 Reader must be positioned to allow the RF signal to travel to and return from the tags within the designated range and be placed in an area where it is not likely to be bumped out of alignment. If the antenna becomes misaligned or some nearby structure is added or removed, system operation can be seriously affected.

  • Page 29: Figure 7 Gate Application With Center Island

    Gate with Center Island Configuration Figure 7 illustrates a typical gate application with the Encompass 4 Reader units positioned on a center island to read tags mounted on the inside windshield on the driver’s side (United States). The readers are placed to allow time for the gate to open so the vehicle can roll through without stopping while not allowing room for an untagged vehicle to be between the vehicle being read and the gate.

  • Page 30: Figure 8 Parking Garage Application

    Figure 8 Parking Garage Application Overhead Reader Installation Configuration Another option for Encompass 4 Reader placement is to mount it overhead in each lane as illustrated in Figure 9. This illustration assumes that tags are mounted on the inside center windshield or center bumper of the vehicle.

  • Page 31: Figure 9 Overhead Installation

    RF signals being generated by the Encompass 4 Reader. Permanent structures include buildings, chain link fences, guard shacks, and gates. Transient factors include passing traffic and local weather conditions, such as rain or snow. Symptoms of reflection, refraction, and diffraction include reading tags that are out of the desired read zone or tags being read from another lane.

  • Page 32: Electrical And Communications Requirements

    Encompass 4 Reader and/or antenna. In some cases, changing the operating frequency of the Encompass 4 Reader may provide a simple solution. Readers in proximity should have at least a 2 MHz frequency separation. Refer to “Other Encompass 4 Readers in...

  • Page 33: Table 3 Power Supply Requirements

    Encompass 4 Reader System Guide Electrical Power A dedicated electrical power supply must be present at the site and available to the Encompass 4 Reader at all times. The power must be 16-20V AC or 16-28V DC. A step-down transformer is available (North America only) to convert a 120V AC duplex wall outlet with ground to 18V AC, as is a step-up transformer to convert a low-voltage 12V AC outlet to 18V AC.

  • Page 34: Table 4 Recommended Cable Length From Transformer To The Encompass 4 Reader

    The host computer system is 50 ft (15.2 m) or less from the Encompass 4 Reader. • The host computer system is more than 50 ft (15.2 m) from the Encompass 4 Reader and a pair of RF modems or limited distance modem/line drivers over copper wire are used for communications between the Encompass 4 Reader and the host.
  • Page 35 Input/Output Circuits To connect the Encompass 4 Reader to external equipment such as a treadle or traffic control light, install wires from these devices at the junction box. The Encompass 4 Reader input circuit is designed to connect to a dry contact closure.

  • Page 36: Table 6 Recommended Cables

    Chapter 2 Developing the Site Plan External Antenna Interface For sites using an Encompass 4 Reader with external antenna, the design must include an interface cable between the Encompass 4 Reader and the compatible antenna chosen for the site. The antenna interface is RF coaxial connector with female Type N plug.

  • Page 37: Chapter 3 Choosing, Installing, Removing Tags

    Compatible Tag Types The Encompass 4 Reader provides the capability to read the various TransCore eGo® Plus-type tags employing Super eGo (SeGo) protocol and other American National Standards Institute (ANSI) ANS INCITS 256-2001-compliant tags. Depending on options ordered, the Encompass 4 Reader can read eGo Plus, ATA-protocol, ISO-compliant tags, and Inter-Agency (IAG) tags.

  • Page 38: Windshield Sticker Tag General Installation Instructions

    (AVI) applications, including electronic toll collection, airport/ground transportation management, parking access, and security access. TransCore’s License Plate tags are designed to fit over a vehicle license plate and are typically mounted on the vehicle using existing license plate brackets and hardware.

  • Page 39: Figure 10 Wst Tag Location For Optimal Performance

    Encompass 4 Reader System Guide Choose a location for your windshield sticker tag Determine where you will position the windshield sticker tag. Figure 10 shows the zone where your tag should be located for optimal performance. Tags should be mounted with the long edge oriented horizontally as shown in Figure 10.

  • Page 40: Figure 11 Tag Location For Large Trucks

    4. Adhere the tag to the glass by rubbing your thumb up and down in a zigzag motion across the entire tag surface (Figure 13). Figure 13 Rub Tag to Bond Adhesive to Windshield 5. The tag is installed and ready for use. 3–23 TransCore Proprietary...

  • Page 41: Hard Case Tag General Installation Instructions

    Discard the used tag. Hard Case Tag General Installation Instructions TransCore’s eGo Plus hard case tags are designed for mounting to a vehicle’s interior windshield surface. They are constructed of highly durable, impact-resistant, molded plastic. Customers may choose among four different mounting options: 3M™...

  • Page 42: Figure 15 Remove Backing To Expose Adhesive

    2. Hold the tag so that the printed text or image is right side up and facing toward you. 3. Moisten the cups and stick the tag to the windshield. 4. Press the tag against the windshield until the tag is secure (approximately 10 seconds). 3–25 TransCore Proprietary...

  • Page 43: Installing Ego Plus Exterior-Mounted Tags

    This section describes general installation guidelines for TransCore’s eGo Plus Exterior-Mounted tags. Contact TransCore sales for installation instructions for specific tags. TransCore’s eGo Plus exterior-mounted tags are constucted from highly durable molded plastic. Designed for outdoor environments, these rugged tags are water and weather resistant. Beam-powered tags do not use batteries and require little to no maintenance after installation.

  • Page 44: Figure 17 Mounting Locations For The Lpt

    • Screwdriver (flat-blade or Phillips depending on your vehicle’s license plate mounting screws) • Optional TransCore Exterior Tag Accessory Kit (19077-01). This kit contains tamper-resistant mounting screws and wrench. Mounting the LPT to the Vehicle Remove the screws from the license plate area of your front bumper. If your vehicle does not have mounting screws you will need two self-tapping threaded screws.

  • Page 45: Figure 19 Upper Placement Over The Top Area Of The License Plate

    Encompass 4 Reader System Guide 4. Fasten the LPT to the bumper using the license plate mounting screws (Figure 19). Install the LPT over the top area of the vehicle’s license plate if your vehicle has a front license plate. If your state does not require a front license plate, install the LPT in the area where a license plate would normally be mounted.

  • Page 46: Figure 21 Spacer Positioned Behind Tag

    Tags can be mounted on any metal or non-metallic surface; composition of bumper does not matter. • Tags can be mounted to plastic bumpers using self-threading screws. • Metal bumpers should be pre-drilled; self-threading screws may be used. 3–29 TransCore Proprietary...
  • Page 47 Encompass 4 Reader System Guide Double-sided Tape You need the following materials to install the LPT with double-sided tape: • Rubbing alcohol, 50/50 isopropyl alcohol and water, or solvent/cleaner for metal • Sponge and dry cloth • LPT with the double-sided adhesive tape attached Clean and degrease the tag installation area of the vehicle bumper with solvent/cleaner.

  • Page 48: Figure 22 Guidelines For Exterior Tag Placement

    The tag may not be read if it is placed on the dashboard or held or taped against the interior windshield. Store the hang tag in the glovebox any time it is not in use. 3–31 TransCore Proprietary...

  • Page 49: Chapter 4 Installing The Encompass 4 Reader

    110V AC wall transformer or a 12V AC to 18V AC step-up transformer The Encompass 4 Reader is designed with an integrated patch antenna or with a RF cable connector for use with an external antenna. Unless noted in the text, “antenna” refers to an “external antenna.”...

  • Page 50: Pre-Installation Testing Of The Encompass 4 Reader

    Pre-installation Testing of the Encompass 4 Reader Before installing the Encompass 4 Reader permanently at the site, you should use an audible circuit tester (buzzer) to confirm that the Encompass 4 Reader has power and can read a tag presented in the tag read zone.

  • Page 51: Figure 24 Wiring For Audible Circuit Tester (Buzzer)

    The voltage needs to be discharged before connecting the antenna to the reader. To test the Encompass 4 Reader that uses an external antenna, connect the antenna and power supply as described in the appropriate section below, and then test as described in the section “Bench Testing the...

  • Page 52: Figure 25 Connect Rf N-Type Load Or Attenuator To Reader Cable End

    Chapter 4 Installing the Encompass 4 Reader • RF cable • N-type load (e.g., 50Ω) or RF attenuator (e.g., 20 dB) Discharging the Voltage Terminate the reader end of the RF cable with any N-type load or RF attenuator (Figure 25).

  • Page 53: Figure 27 Back Of Encompass 4 Reader Showing Antenna Connector

    To connect the Encompass 4 Reader to a low-voltage AC power supply Connect the Encompass 4 power wires from the cable to the transformer using the color coding as described in Table 8. To see the alternate wire (15-pair) assignments for connection to a low-voltage AC power supply, refer to “Table 51 AC Transformer Connections for Alternate Wire 15-Pair Cable”...

  • Page 54: Table 8 Ac Transformer Connections For Colored-Wire 13-Pair Cable

    If using an external antenna, connect the antenna before applying power to the Encompass 4 Reader to avoid damage to the reader. Connect the Encompass 4 Reader power wires from the cable to the low-voltage terminals using the connection designations shown in Table 9. To see the alternate wire (15-pair) assignments for connection to a low-voltage AC power supply, refer to “Table 52 Low Voltage DC Cable Connections for Alternate...

  • Page 55: Figure 28 Pin Assignments For Signal To Host Connectors

    4 Reader to the host through a multi-wire cable, which is a 13-pair pigtail. The connector for this cable is located on the back of the Encompass 4 Reader. Refer to the following sections to connect the appropriate communications wires from the cable to the PC.
  • Page 56 If you are using an external antenna, confirm that the antenna is connected to the Encompass 4 Reader. Caution To avoid damage to the Encompass 4 Reader, you must connect the antenna before applying power to the reader.

  • Page 57: Mounting The Encompass 4 Reader

    8. Pass the correct test tag for your reader application in front of the Encompass 4 Reader or antenna. The audible circuit tester should sound a tone when the tag is read. If no tone sounds, ensure that steps 1 through 5 were performed correctly and that you are using a compatible tag.

  • Page 58: Figure 29 Correct Orientation Of Reader

    Mounting the Encompass 4 Reader on a Round Pole The Encompass 4 Reader can be mounted on a round pole. The pole must be a minimum of 2 inches (5 cm) in diameter and should extend approximately 8 feet (2.4 m) above the pavement level. The pole must be installed according to local building codes.

  • Page 59: Figure 30 Back Of The Encompass 4 Reader

    Encompass 4 Reader System Guide Figure 30 Back of the Encompass 4 Reader Figure 31 Factory Mounted Bracket 4-42 TransCore Proprietary.

  • Page 60: Figure 32 Pole-Mount Bracket Assembly

    Encompass 4 Reader left or right, but not so slightly the straps slide down the pole. 4. Using the four Allen screws and washers, attach the Encompass 4 Reader to the pole mount bracket as shown in Figure 33. Tighten the screws slightly so that the Encompass 4 Reader can be adjusted up or down, but not so slightly the mounting assembly slips.

  • Page 61: Figure 34 Front And Top Views Of The Encompass 4 Reader Position

    Encompass 4 Reader System Guide Adjust the assembly by pointing the Encompass 4 Reader to the middle of the area where tags will be read, and tighten all screws and straps slightly. 5. Note: Adjust the Encompass 4 Reader to provide the most direct line of sight to the tags.

  • Page 62: Figure 35 Wall Mount Bracket Accessory (Part Number 54-1620-001)

    (Figure 35) in addition to the pole-mount bracket to provide additional horizontal aiming flexibility when attaching the Encompass 4 Reader to a pole with flat sides or to a wall or ceiling where other structures can interfere with accurately aiming the Encompass 4 Reader toward the tags.
  • Page 63 Encompass 4 Reader System Guide Required Materials You need the following materials to install the Encompass 4 Reader on a wall or flat surface. Ensure the use of high-quality, corrosion-resistant anchor hardware. • Anchor hardware suitable for the surface on which you mount the Encompass 4 Reader. Because the Encompass 4 Reader weighs only 9 1/2-lbs (4.3-kg), 0.25-in (0.6-cm) bolt hardware is adequate...

  • Page 64: Figure 37 Factory-Mounted Bracket Attached To Wall Mount Bracket

    6. Tighten lightly, since you will want to adjust the bracket later. This subassembly allows you to aim the Encompass 4 Reader left or right when all three brackets are assembled. Mount the pole-mount bracket to the wall, ceiling, or fixture using appropriate anchors as shown in Figure 38.

  • Page 65: Figure 39 Connecting The Encompass 4 Assembly To Pole Mount Bracket

    8. Mount the Encompass 4 Reader to the pole-mount bracket using Allen screws, as shown in Figure 39. Figure 39  Connecting the Encompass 4 Assembly to Pole Mount Bracket 9. Adjust the assembly by pointing the Encompass 4 Reader to the middle of the area where tags will be read and tighten all screws and straps slightly.

  • Page 66: Mounting The Antenna

    Mounting the Antenna If you are using the Encompass 4 Reader that requires an external antenna in permanent installations, the antenna should be positioned as closely as possible to the Encompass 4 Reader. Long cable runs increase system sensitivity to noise. See “Table 4 Recommended Cable Length from Transformer to the...

  • Page 67: Figure 41 Short Load To Earth Ground

    This grounding method can damage the center pin or the threads of the connector. TransCore strongly advises using adequate Earth Ground for this voltage discharge procedure in accordance with the National Electric Code for the locale where the Encompass 4 Reader is installed. Mounting the Antenna Curb-Side Some site designs, for example those with curb-side antennas, require that the antenna be mounted on a round pole.

  • Page 68: Figure 42 Front And Top Views Of The Curb-Side Antenna Position

    Chapter 4 Installing the Encompass 4 Reader Procedures Use the following guidelines to mount an antenna on a curb-side round pole. To mount the antenna to a curb-side pole Follow the manufacturer’s directions to attach the antenna assembly to the pole approximately 8 feet (2.4 m) above the pavement surface.
  • Page 69 Note: Determine the read zone before you tighten all screws and straps permanently. Refer to the section “Marking the Read Zone” on page 4-63. After mounting the antenna, you must connect it to the Encompass 4 Reader. Follow the procedures described previously in the section “Mounting the Antenna” on page 4-49.

  • Page 70: Figure 43 Encompass 4 Reader Installation With Overhead Antenna

    “Connecting the DC Power Supply” on page 4-37. After mounting the Encompass 4 Reader and antenna, if required, you must connect the reader to a dedicated 16 to 20V AC or 16 to 28V DC power supply. Caution To avoid damage to the Encompass 4 Reader, you must connect the antenna before applying power to the reader.

  • Page 71: Figure 44 Recommended Reader Cable Grounding

    Encompass 4 Reader System Guide Reader Cable Grounding Ensure that you connect the communications cable shield drain wire to Earth Ground and the yellow/black wires to Signal Ground (Figure 44). Figure 44  Recommended Reader Cable Grounding Caution Do not ground the input power supply.

  • Page 72: Connecting Communications

    4 Reader to the host through a multi-wire cable, which is a 13-pair pigtail. The connector for this cable is located on the back of the Encompass 4 Reader. Refer to the following sections to connect the appropriate communications wires from the cable to the terminal strip that is located inside the junction box.

  • Page 73: Table 11 Rs-232 Interface Signal Wiring For Colored-Wire 13-Pair Cable

    Encompass 4 Reader System Guide Connecting the Encompass 4 Reader Colored-Wire Pair Cable Table 11 shows the RS–232 colored wire (13-pair) assignments. To see the alternate wire (15-pair) assignments, refer to “Table 48 RS–232 Interface Signal Wiring for Alternate Wire 15-Pair Cable” on page C–1.

  • Page 74: Figure 45 Rs-232 Cable Extension Diagram

    Figure 45. Figure 45  RS-232 Cable Extension Diagram RS–422 Interface RS–422 interface signals are supplied by four wires from the Encompass 4 Reader communications cable. Your host must have an RS–422 interface with either an internal or external converter. Table 12 shows the RS–422 signals and their interface wires. To see the alternate wire (15-pair) assignments, refer to “Table 49 RS–422 Interface Signal Wiring for Alternate Wire 15-Pair Cable”...

  • Page 75: Table 13 Wiegand Interface Signal Wiring For Colored-Wire 13-Pair Cable

    Wiegand interface signals are supplied by three wires from the Encompass 4 Reader communications cable. The Encompass 4 Reader with RS–232 or RS–422 comes with the Wiegand option built in. The Wiegand interface can only be used by the reader to output valid Wiegand tag reads. All reader commands and responses are issued through the serial interface.

  • Page 76: Connecting Sense Input And Sense Output Circuits

    The Encompass 4 Reader has two sense input circuits and three sense output circuits available. The sense input circuits can be used to notify the Encompass 4 Reader of external events and are designed to be connected to a free-of-voltage dry contact. Sense output circuits are single-pole, double-throw relays that provide normally closed (NC) and normally open (NO) dry contacts.

  • Page 77: Figure 47 Sample Circuit Connections

    Encompass 4 Reader System Guide Figure 47  Sample Circuit Connections For Encompass 4 Readers that are used with IAG protocols, the NC sense output0 common is connected to the NO sense output0 common via a jumper providing a return for sense output0 NC.

  • Page 78: Table 14 Sense Input/Output Cabling 13-Pair Assignments

    Chapter 4 Installing the Encompass 4 Reader Sense Output Circuits The Encompass 4 Reader supports three sets of sense output signals. Two sets – sense output0 and sense output1 – provide NO or NC sense outputs. The third sense output set is dedicated for testing and set up of the reader.
  • Page 79 Encompass 4 Reader System Guide Table 14 Sense Input/Output Cabling 13-Pair Assignments Pair Color Signal Description Typical Function General- purpose sense input, not Blue Sense Input1 Sense Input1 used for detecting presence Blue/ Black Sense Input1 General- purpose Sense return; not sense input, not...

  • Page 80: Marking The Read Zone

    Marking the Read Zone The area where the Encompass 4 reads tags at the current RF range is called the read zone. The antenna pattern, or read zone, of the Encompass 4 Reader would look roughly like a pear-shaped balloon if you were able to see it.
  • Page 81 • Bits per second: 9600 baud • Data bits: 8 • Parity: none • Stop bits: 1 • Flow control: none 4. Cycle the power on the Encompass 4 Reader and ensure that the sign-on message displays. 4-64 TransCore Proprietary.

  • Page 82: Figure 49 Sample Read Zone Marking Pattern

    6. Stand directly in front of and about 5 feet (1.5 m) away from the Encompass 4 Reader or antenna (Figure 49). Hold the stick or the piece of glass so that the tag is positioned at a height and angle consistent with a tag installed on a vehicle.
  • Page 83 Standing at the farthest point of the pattern, walk toward the Encompass 4 Reader or antenna and listen for a continuous sound from the audible tester. If the sound is not continuous, it could indicate a weak or “patchy”...

  • Page 84: Chapter 5 General Software Information

    All Encompass 4 Reader commands are preceded by the start-of-message character (#). The end-of- message sequence expected from the host is a carriage return (CR). The Encompass 4 Reader terminates messages with a return and a line-feed (CR/LF). For example, the command #01 Switch To Command Mode is typed as follows: #01<ENTER>...

  • Page 85: Command Response Conventions

    In this example, PWRB is the four-character identifier for power fail bit, and the 0 or 1 is the value. All spaces shown in the response are actual spaces sent from the Encompass 4 Reader. In this example, one space is between the letter B and the number.

  • Page 86: Operating Parameters

    Exiting from download mode re-executes startup. If the new software has been loaded without errors, the Encompass 4 Reader comes up in data mode. If a flash checksum error is detected, the Encompass 4 Reader reenters download mode and transmits a sign-on message with a boot version of 0.00x and without a serial number.

  • Page 87: Startup

    If the failure message version number equals 0.00 and no serial number exists, the flash memory checksum has failed, and the Encompass 4 Reader is operating out of boot ROM. In this case, the Encompass 4 Reader automatically enters download mode and waits for a new program to be loaded into the flash memory.

  • Page 88: Chapter 6 Communications Protocols

    Software (XON/XOFF) flow control is optionally supported. Be careful in the use of XON/XOFF since noise-induced characters may be interpreted by the Encompass 4 Reader as the XOFF character, which would suspend reader output without information reaching the host computer. For more information see "Software Flow Control"...

  • Page 89: Basic Protocol

    Encompass 4 Reader System Guide Basic Protocol With basic protocol, messages sent to and from the Encompass 4 Reader and the host are transmitted without error checking. For each host transmission, the Encompass 4 Reader returns a Done or Error message to the host.

  • Page 90: Data Inquiry Protocol

    The selection of data inquiry protocol affects data mode operation. As the Encompass 4 Reader acquires tags, it buffers them but does not transmit them. Instead, the host must poll the Encompass 4 Reader for each tag by sending an ASCII CRTL-E character (hexadecimal 05). The Encompass 4 Reader transmits one message (tag ID or report data) for each CTRL-E it receives until the buffer is empty.
  • Page 91 Reader is in the process of retransmitting the previous message. ECP Host ACK/NAK Response With ECP, the host computer responds to all data message transmissions from the Encompass 4 Reader using the following acknowledgment or negative acknowledgment response format. <som><seq><ack/nak><crc><eom>...
  • Page 92 Host Transmission The host computer initiates synchronous communications between the Encompass 4 Reader and the host. The host begins a sequence by issuing a command; the Encompass 4 Reader responds accordingly. The data inquiry protocol format is as follows: <CTRL-E>...
  • Page 93 Encompass 4 Reader System Guide next command, the Encompass 4 Reader will not service the new command; it will retransmit its previous message. A command/message sequence is not complete until the host updates its sequence number. Command code, a string that contains from two to four ASCII hex characters <cmd>...
  • Page 94 000 to 118. In this example, XXX sets the RF frequency to 903 MHz. <crc> CRC value for the message End-of-message character <eom> Command has been invoked by the Encompass 4 Reader Done 6–77 TransCore Proprietary...
  • Page 95 As noted, the message initiator, such as the Encompass 4 Reader in data mode and the host computer in command mode, starts a timeout counter at the time a message is transmitted. If the timeout expires 6–78...
  • Page 96 NAK had been received and retransmits the data. Wrong Sequence Number If the Encompass 4 Reader receives the wrong sequence number in an ACK message, it responds as if a NAK had been received, and it retransmits the data.

  • Page 97: Ecp Reliability

    Asynchronous Message/Command Message Collision If the Encompass 4 Reader transmits asynchronous data at the same time that the host sends a command, the Encompass 4 Reader gives priority to receiving the command. It processes the command and sends a message before it retransmits the asynchronous data.

  • Page 98: Crc Calculation

    ASCII hex characters and is appended to messages transmitted by the Encompass 4 Reader. The Encompass 4 Reader accepts four ASCII < ` > characters (60 hex) as a wild card CRC value in lieu of a valid four-character CRC value to facilitate testing and diagnostic checkout.
  • Page 99 Encompass 4 Reader System Guide Example 2 shows an example of UPDCRC that does not require a lookup table. #define BITS_PER_CHAR unsigned short updcrc (unsigned short ch, unsigned short crc) register short counter = BITS_PER_ CHAR; register short temp = crc;...
  • Page 100 (ch = 0; ch != MAX_CHAR; ch++) { workval = ch << BITS_CHAR; for (bit = BITS_CHAR; bit != 0; bit- { carry = (workval & SIGN_BIT); workval <<= 1; if (carry) workval ^= POLY; crctab[ch] = workval; 6–83 TransCore Proprietary...

  • Page 101: Manually Disabling Ecp For Maintenance

    When the acknowledgment is not received, the message is sent again. Additional messages are also buffered. Often the first indication that the Encompass 4 Reader software is in an ECP “loop” is when the user/technician sees a recurring display of the same message repeated over and over again on the monitor.
  • Page 102 Chapter 6 Communications Protocols Reader transmission on power-up: #0 Model …. SN <crc><eom> #0@````<eom> Manually enter: Reader transmission #2 Copyright 2008 TransCore <crc><eom> #2@````<eom> Manually enter: #101‘‘‘‘<eom> Manually enter: this puts reader into command mode Reader response: #1Done<crc><eom> #3610‘‘‘‘<eom> this puts reader into basic protocol, disabling ECP...

  • Page 103: Chapter 7 Commands

    Data Mode The Encompass 4 Reader is in the data mode upon power-up. While in the data mode, the Encompass 4 Reader sends all communications as data messages, such as tag IDs and reports, to the host computer. Reports provide information on input status changes (input0 and input1), a presence without tag report, and buffer overflow information.
  • Page 104 38400 baud, 8 data bits, 1 stop bit, no parity, software flow control (XON/XOFF), basic protocol. While in download mode, the Encompass 4 Reader turns RF off, does not process tags, and does not echo host commands. 7–87...

  • Page 105: Command List

    Encompass 4 Reader System Guide Command List Reader commands are divided into groups based on primary function. The following sections provide information about each command in command number order. Refer to “Download Mode” on page 7–87 for listings of commands in numerical and alphabetical order.

  • Page 106: Table 17 Select Baud Rate Commands

    Chapter 7 Commands Command Group 1 – Communications Port Control Group 1 commands configure the parameters used by the Encompass 4 Reader to communicate with a host computer or terminal. These commands set baud rate, stop bits, parity, and end-of-line delay.

  • Page 107: Table 19 Select Parity Commands

    Command Group 2 – Real-Time Clock Group 2 commands control the real-time clock which maintains the Encompass 4 internal time and date. This time and date can be appended to IDs, error messages, and sensor input reports. An internal battery supports the clock, so time and date are preserved if main power is lost.
  • Page 108 Auxiliary information such as reader number, antenna number (or manual entry code), number of times the previous tag was read, and sensor input status can be appended to the ID using the Group 3 commands. See command “524 Display Appended Information Status” on page 7–104. 7–91 TransCore Proprietary...

  • Page 109: Table 20 Append Time And Date Commands

    Encompass 4 Reader System Guide 30N Append Time and Date Selection Command #30N selects the option of appending the time and date to transmitted IDs, error messages, presence without tag reports, and input status change reports. The factory default setting is time and date appended (Command #302).
  • Page 110 Note: This functionality was added to the Encompass® 2 Reader to handle a special unique customer requirement and is retained in the Encompass 4 Reader for full backward compatibility. Command #321 selects the option to append an additional predefined 8 bytes of data to be read from an eGo®...

  • Page 111: Table 22 Unique Id Code Criteria

    Command Group 4 – ID Filtering Group 4 commands set criteria for filtering (buffering or discarding) ID codes. These commands are useful for eliminating duplicate ID codes and selecting the type of tags read by the Encompass 4 Reader. 40 Transmit All ID Codes See also “530 Display RF0 Filter Status”...

  • Page 112: Table 23 Select Valid Code Commands And Frames

    Command #440 causes the ID filtering process set by Select Unique ID Code Criteria (#410N) to restart. It is used in conjunction with the Variable Timeout #44N commands. This command provides a method to end all uniqueness timers. 7–95 TransCore Proprietary...
  • Page 113 Encompass 4 Reader System Guide 44N Set Uniqueness Timeout “440 Reset Uniqueness” on page 7–95. Places a time limit on the uniqueness criterion set. Refer to “410N Select Unique ID Code Criteria (Anti- passback Feature)” on page 7–81. The parameter N sets the number of minutes on the timeout clock.
  • Page 114 If there is only one tag expected in the vehicles of the target population, multi-tag sort should be disabled. 455 Disable Multi-tag Sort (Factory Default) Command #455 is a default set in the factory to disable the multi-tag sort function. Reader response: Done 7–97 TransCore Proprietary...
  • Page 115 Encompass 4 Reader System Guide 456 Enable eGo Plus Tag Initialization During Multi-tag Sort (Factory Default) Command #456 enables the reader to send the eGo Plus Tag initialize command as part of the multi-tag sort function. When the reader sends the eGo Plus Tag initialize command, all tags in the RF field reenter the sort process.
  • Page 116 This command should be used in conjunction with “648NN Set Synchronization Output Delay Time” on page 7–123 “648NN Set Synchronization Output Delay Time” on page 7–123. 488 Disable eATA Command #488 disables the reader from reading factory-programmed eATA data from tags. 7–99 TransCore Proprietary...

  • Page 117: Table 24 Alternate Group Select

    Encompass 4 Reader System Guide 489 Enable eATA Command #489 enables the reader to read factory-programmed eATA data from eGo Plus or eGo tags. This option must be enabled to obtain Wiegand data from eGo Plus or eGo tags. 490 Disable Third Alternate Group Select (Factory Default) Command #490 is a default set in the factory to disable the third alternate group select function.
  • Page 118 Reader response: Done 496 Disable Alternate Group Select (Factory Default) Command #496 disables the alternate group select function that allows the reader to distinguish tags meeting specific criteria pre-programmed into the tags. Reader response: Done 7–101 TransCore Proprietary...
  • Page 119 Encompass 4 Reader System Guide 497 Enable Alternate Group Select Command #497 enables the alternate group select function that allows the reader to distinguish tags meeting specific criteria pre-programmed into the tags. Reader response: Done Command Group 5 – Reader Status Group 5 commands provide status reports on the parameters and operation of the reader.
  • Page 120 Reader message: PWRB P<0 to 1>R0 where No power failure detected Power failure detected Not applicable to Encompass 4 Reader 521 Display Reader ID Number Command #521 displays the reader ID that is sent in the auxiliary data field. Reader message:...
  • Page 121 Reader message: IDAP T<0> D<0> X<0 to 1> where Time not appended Time appended (not valid for the Encompass 4 Reader) Date not appended Date appended (not valid for the Encompass 4 Reader) Auxiliary information not appended (factory default) Auxiliary information appended One space is required between each value.
  • Page 122 Command #67N. Reader response: C<0 to 1> O<0 to 3> I<0 to 3> D<0 to F> Host controls outputs Predefined output mode Both outputs off Output0 on Output1 on Both outputs on 7–105 TransCore Proprietary...

  • Page 123: Table 25 Open/Closed Conditions For Output Status

    Encompass 4 Reader System Guide Both inputs false Input0 true Input1 true Both inputs true 4 ms output pulse duration 8 ms output pulse duration 12 ms output pulse duration 16 ms output pulse duration 20 ms output pulse duration...

  • Page 124: Table 26 Open/Closed Conditions For Output Status (Iag Applications)

    RFST C<0 to 1> O<0 to 1> T<1 to 3> Fxxx Rxx Gxx Axx Ixx where RF controlled by host (#6400, #6401) RF controlled by presence sensor on input0, the red/green pair (factory default) (#641) RF off (#6400) RF on (#6401) Uniqueness timeout of two minutes (#441) 7–107 TransCore Proprietary...
  • Page 125 Encompass 4 Reader System Guide Uniqueness timeout of 15 seconds (#442) Uniqueness timeout of 30 seconds (#443) Fxxx RF output frequency, xxx = 000 to 118 hexadecimal offset in 250 kHz from 860 MHz. If an invalid frequency value is stored (corrupted NVRAM), then xxx = “XXX” to indicate an error in the frequency setting (#647xxx or #642NN).
  • Page 126 Valid ID Code Criteria” on page 7–95). Reader message: RF0S U<0 to 4> V<0 to 3> where One ID separation (factory default) (#4100) Two ID separations (#4101) Three ID separations (#4102) Four ID separations (#4103) Transmit all ID Codes (#40) 7–109 TransCore Proprietary...
  • Page 127 Encompass 4 Reader System Guide Valid ID code criteria of one acquisition (#4200) Valid ID code criteria of two acquisitions (#4201) Valid ID code criteria of three acquisitions (#4202) Valid ID code criteria of four acquisitions (#4203) For example, if factory default settings are assigned, the reader message is RF0S U0 V0 which means separation of one ID for uniqueness filtering and a valid ID code criteria of one acquisition.
  • Page 128 Command #540 displays the flash memory checksum. Reader message: PCKS I0000 Exxxx where 0000 Not applicable to the Encompass 4 Reader xxxx Represents the four-byte ASCII representation of the flash memory checksum 543 Display Boot Checksum Command #543 displays the boot ROM checksum.
  • Page 129 Encompass 4 Reader System Guide Command #549 queries the reader for the user-programmable GSE filter data programmed in the reader using command #697. The response data is formatted similar to the data in the configuration command. For example, if the command string shown in command #697 (see “697 Set User-Programmable Group...

  • Page 130: Table 28 Display Operating Status Mode

    Command #60NN sets the reader ID that will be sent in the auxiliary data field (command #311). Uppercase or lowercase characters are allowed for NN; for example, hex digits A though F or a through f where NN = 00 to FF (hex for 0 to 255, factory default = 00). 7–113 TransCore Proprietary...
  • Page 131 Encompass 4 Reader System Guide Reader response: Done 610 Select Basic Communication Protocol (Factory Default) “525 Display Communications Protocol Status” on page 7–105. Command #610 enables the basic communications protocol. Refer to “Basic Protocol” on page 6–72 more information. Reader response:...

  • Page 132: Table 29 Flow Control Commands

    CTS line is no longer asserted. It resumes transmission when this line is asserted again. Note: TransCore recommends that XON/XOFF flow control be disabled while using the ECP. 6170 Disable Echo Mode Command #6170 disables the reader’s echo of received host commands.

  • Page 133: Table 30 Output Control Commands

    Encompass 4 Reader System Guide the command, but only transmits its response. The reader never echoes while in ECP or download mode operation. Reader response: Done 6171 Enable Echo Mode (Factory Default) Command #6171 enables the reader to echo received host commands. Command #6170 disables echo mode.

  • Page 134: Table 31 Rf Control Commands

    Note: This command does not reset any other configuration parameters. Reader response: Model E4 Series Ver X.XX SNSSSSSS Copyright 2008 TransCore where X.XX Version number SSSSSS Serial number of the unit, skipping the first and fourth character printed on the reader product label.

  • Page 135: Table 32 Rf Frequency Commands

    Encompass 4 Reader System Guide 642NN Select RF Operating Frequency Caution The authorized bands in the U.S. for CW frequency (i.e., ATA only) is 902.25 to 903.75 MHz and 910.00 to 921.50. The authorized frequency band for modulated frequency is 911.75 to 921.75 MHz.
  • Page 136 912.5 64216 64217 913.5 64218 64219 914.5 915 (factory 6421A default) 6421B 915.5 6421C 6421D 916.5 6421E 6421F 917.5 64220 64221 918.5 64222 64223 919.5 64224 64225 920.5 64226 64227 921.5 64228 64229 922.5 6422A 6422B 923.5 7–119 TransCore Proprietary...
  • Page 137 Encompass 4 Reader System Guide Table 32  RF Frequency Commands Approved for Approved for Command RF Frequency (MHz) Use in the U.S. Use in the U.S. (ATA only) (modulated) 6422C 6422D 924.5 6422E 6422F 925.5 64230 64231 926.5 64232 64233 927.5...

  • Page 138: Table 33 Rf Attenuation Command Variables

    RAM (NVRAM). This value is not altered by power-down. If the NVRAM becomes corrupted, the correct operating frequency cannot be guaranteed. In this circumstance, the RF section shuts down and the reader sends an Error06 message to the host. Until 7–121 TransCore Proprietary...

  • Page 139: Table 34 Select Rf Operating Frequency Commands

    Encompass 4 Reader System Guide the frequency is reset using command #647NNN, the unit displays the same error message every time it is powered up or if an attempt is made to enable the RF by host or by external sensor.
  • Page 140 Command #582 displays the synchronization output time. The synchronization bus is wired by connecting all of the readers’ “V” (RS–485 synchronization minus) pins together and all of the readers’ “Z” (RS–485 synchronization plus) pins together. 7–123 TransCore Proprietary...

  • Page 141: Figure 50 Synchronization Bus Wiring

    TransCore recommends that the reader numbering follow a logical sequence. Using this command, more than 1 reader on the bus can have the same value, but TransCore recommends using all 10 slots before reusing them. Command #582 displays the Synchronization Hold Off Time.

  • Page 142: Table 35 Example Of Encompass 4 Reader Plaza Synchronization Bus Settings

    Chapter 7 Commands Table 35 Example of Encompass 4 Reader Plaza Synchronization Bus Settings Set Synchronization Output Delay Set Synchronization Hold-Off Time Reader Lane Time (#648NN) (#649NN) #64814 = 20 ms synchronization time #64901 = 1 ms hold off #64816 = 22 ms synchronization time...

  • Page 143: Table 36 Output Pulse Duration Commands

    Encompass 4 Reader System Guide Table 36 Output Pulse Duration Commands Command Duration (ms) 228 (factory default) Additional IDs may be acquired during the selected output pulse duration; however, the timing restarts upon each successive ID acquisition. This command should be used with discretion. For example, when the tag acquisition interval is short compared to the selected pulse duration, distinct pulses may not be generated.

  • Page 144: Table 37 Presence Without Tag Report Commands

    Wiegand ports. Uppercase or lowercase characters are allowed for N; for example, hex digits A through F or a through f. The commands and corresponding timeouts are shown in Table 39. 7–127 TransCore Proprietary...

  • Page 145: Table 39 Timeout Period Values

    Encompass 4 Reader System Guide Table 39  Timeout Period Values Command Timeout (ms) 6930 0 (always expired) 6931 6932 6933 6934 6935 6936 6937 6938 6939 693A 693B 693C 693D 693E 693F Infinite (never expires, factory default) Reader response: Done or Error The reader returns an Error message if a valid hexadecimal digit is not substituted for N in command #693N.

  • Page 146: Table 40 Input Inversion Options

    The hardware configuration string is assigned according to the following format: 696S...S where the hardware configuration string that may contain as many as 20 uppercase or S...S lowercase ASCII alphanumeric characters. Note: Once assigned, configuration information is preserved during power-down and the loading of default parameters. 7–129 TransCore Proprietary...
  • Page 147 Encompass 4 Reader System Guide Reader response: Done 697 Set User-Programmable Group Select Equals (GSE) Filter Refer to “549 Display User-Programmable Group Select Equals (GSE) Filter Data” on page 7–111. Command #697 assigns the user-programmable GSE filter. The command string is assigned according to the following format:...

  • Page 148: Table 41 Input Status Change Report Options

    Enabling this function is helpful in some sites where there may not be much tag activity, and the user wants an automatic way to ensure the communication channel with the reader is still intact. With this function enabled, the host system will get a message from the reader at least every three minutes. 7–131 TransCore Proprietary...
  • Page 149 Encompass 4 Reader System Guide Reader response: Done 844 Disable Retransmit (Factory Default) The function causes tag data to be retransmitted after the retransmit time as defined by “46NN Set Wiegand Retransmit Interval” on page 7–98, if the tag is in the read zone at that time or afterward. The function is implemented by resetting the tag ID uniqueness filter once the Wiegand retransmit interval time is expired.

  • Page 150: Chapter 8 Configuring The Encompass 4 Reader

    9600 baud, 8 data bits, no parity, 1 stop bit, and no flow control. General Configuration Labeling Each Encompass 4 Reader and its shipping carton are labeled to indicate the unit’s ordering configuration. Table 42 contains explanations of the Encompass 4 Reader label fields.

  • Page 151: Table 43 Encompass 4 Reader Default Configuration Settings

    Encompass 4 Reader System Guide As an example, a label reading 10-4002-004 indicates that this 915-MHz Encompass 4 Reader is – configured with an integrated antenna, RS 232 and Wiegand communications, and reads SeGo and IAG protocol tags. Default Operating Parameter Settings Table 43...

  • Page 152: Configuring Parameters With Terminal Emulation Software

    Automatic periodic RF status report a Local laws apply. The authorized frequency band for the TransCore Encompass 4 Reader in the United States is 911.75 MHz to 919.75 MHz. Contact TransCore if your application requires a frequency outside of this range.
  • Page 153 Upon startup, the Encompass 4 Reader transmits a sign-on message or a boot ROM failure message. The sign-on message appears as follows: Model [software version] SNYYYYYY [Copyright notice] where YYYYYY is the serial number assigned to the Encompass 4 Reader skipping the fourth character printed on the reader product label. 8–136 TransCore Proprietary.

  • Page 154: Table 44 Command Sequence To Verify Communications

    If the failure message version number equals 0.00 E and no serial number exists, the flash memory checksum has failed, and the Encompass 4 Reader is operating out of boot ROM. In this case, the Encompass 4 Reader automatically enters download mode and waits for a new program to be loaded into the flash memory.
  • Page 155 • • 2. Pass one test tag in front of the unit. If the Encompass 4 Reader reads the tag, the terminal emulation application displays the tag information on the screen. If the tag ID is not displayed, perform the following actions: •...

  • Page 156: Configuring Encompass 4 Parameters

    “Verifying Communications” on page 8–136. Note: If you are using Wiegand mode, you must connect the PC or laptop to the Encompass 4 Reader – – using the RS 232 or RS 422 interface before attempting to send commands to the reader.

  • Page 157: Table 45 Id Separation Commands

    IDs. Press ENTER. Reports The Encompass 4 Reader can be configured to transmit presence without tag reports and input status change reports. A presence without tag report is transmitted in data mode only, and only if the system has a presence detector.
  • Page 158 U.S. is 902.25 to 903.75 MHz and 910.00 to 921.50 MHz and the authorized modulated frequency band for the Encompass 4 Reader in the U.S. is 911.75 to 919.75 MHz. The RF for each Encompass 4 Reader at the site must be set according to the frequency specified in the FCC site license.

  • Page 159: Figure 51 Rf On By Sense Input (641 Factory Default)

    Connecting a vehicle detector to the sense input0 circuit • The host sending software commands to the Encompass 4 Reader As a factory default, the Encompass 4 Reader is configured to control the RF power with a vehicle detector. Figure 51 illustrates the methods of controlling RF sense output.
  • Page 160 #621 Predefined Output Control. The devices are not asserted when tags are acquired in the transmit all or buffer all ID mode or when the Encompass 4 Reader is operating in Wiegand mode. The sense output pulse duration is variable (command #67N).
  • Page 161 While under host control, the sense outputs are not automatically asserted when a valid tag is read. The host must issue command #621 Predefined Output Mode to return to the pre-defined mode. Serial Port Communications – The Encompass 4 Reader supports one communications port, which can be ordered as either RS – – –...
  • Page 162 It resumes transmitting when this line is asserted. If flow control is not needed, the reader should be configured for no flow control (#6140 Disable Flow Control). Note: TransCore recommends that XON/XOFF flow control be disabled while using the error correcting protocol.
  • Page 163 Fine-Tuning the Read Zone by Lowering Output Power You can make the read zone smaller by adjusting the Encompass 4 Reader RF power output from a maximum of 2 watts to a minimum of 200 milliwatts using command #644NN Set RF Attenuation.
  • Page 164 Ensure that the Encompass 4 Reader is in data mode. 2. With the Encompass 4 Reader running, place one tag behind your back while you hold another tag in the new read zone. If a valid read, the data from the tag held in the read zone displays on the PC screen.
  • Page 165 Encompass 4 Reader System Guide 3. Enter command #64318 or #64518 to decrease the range sensitivity seven increments below the maximum (default). Press ENTER. Note: In the command #643NN or #645NN, NN can be any hexadecimal value from 00 to 1F.

  • Page 166: Chapter 9 Troubleshooting And Maintenance

    TransCore. Error Messages The Encompass 4 Reader transmits an error message if a command received from the host is not a recognized command or if information supplied with the command is not correct. The reader sends this message to diagnostic commands if the reader fails the specified test.

  • Page 167: Troubleshooting

    ErrorRF3 warning messages then return the reader to the factory. Troubleshooting You can use the following table for troubleshooting. Should problems continue, contact TransCore for return and replacement procedures. If you contact Technical Support, use the symptom number in Table 47 to reference the problem that you are having with the Encompass 4 Reader.

  • Page 168: Table 47 Symptoms And Remedies

    Check all your wiring connections and antenna connections (if using external antenna), and ensure that your buzz box is functioning. The wires from the Encompass 4 Reader are grouped in pairs. You could find more than one red wire, more than When performing a quick one black wire, and so on.
  • Page 169 Table 47 Symptoms and Remedies Symptom Symptom Remedy Number Ensure that the Encompass 4 Reader is powered on and Nothing happens when is in predefined output mode. (#621) the test tag is passed in front of the Encompass Verify that the reader is set to RF ON (#6401).

  • Page 170: Encompass 4 Reader Repair

    4-58. Ensure the to the Wiegand interface. tags are properly programmed with Wiegand data. a Use this number to reference the problem you are having with the Encompass 4 Reader if you contact Transcore for Technical Support. Encompass 4 Reader Repair The Encompass 4 Reader is designed for whole-unit replacement and is manufactured with surface- mounted components.

  • Page 171: Appendix A Glossary

    9600 baud = 9600 bits per second boot checksum BCKS buffer control mode bits per second a binary character; for example, one 8-bit ASCII character byte command communications comm A–1 TransCore Proprietary...
  • Page 172 A registered trademark of TCP IP, Ltd. proprietary name for ANS INCITS 256-2001 and ISO 18000-6B eGo Plus compliant TransCore tag products. Super eGo is a superset of the eGo protocol. A registered trademark of TCP IP, Ltd. proprietary name for ANS INCITS 256-2001 compliant TransCore Encompass reader products.
  • Page 173 16 numbering system that uses the characters 0 though 9 and A hexadecimal through F to represent the digits 0 through 16 device, generally a computer, that is connected to the Encompass 4 host Reader through the communications port...
  • Page 174 Encompass 4 Reader System Guide method of operation mode milliseconds negative acknowledgment (data not valid) non-volatile memory. To save user parameter changes to NVRAM, you NVRAM must send command #00 before powering down the reader. used to refer to a tag ID that is not passed on to the tag buffer...
  • Page 175 XON and XOFF are signals to turn a transmitter on or off. The actual signal for XON is the same bit configuration as the ASCII Ctrl-Q keyboard combination (11 hexadecimal). The XOFF signal is the Ctrl-S character (13 hexadecimal). A–5 TransCore Proprietary...

  • Page 176: Appendix B Technical Specifications

    Physical Attributes Size 15.5 x 15.5 x 3.25 in (39.4 x 39.4 x 8.25 cm) Weight 9.5 lb (4.3 kg) Reading range depends on reader or external antenna configuration, tag type, tag read mode, and operating environment B–1 TransCore Proprietary...
  • Page 177 58-1620-007: Connector with 45 ft (13.7 m) cable Wall Mount Bracket Allows adjustment in all planes when used to install the Encompass 4 Reader on a flat surface. Include the part number 54-1620-001 when ordering. Transformer A Class C transformer is available to allow 110V AC to 18V AC conversion.

  • Page 178: Appendix C Wiring Tables

    Cable Supplied with the Encompass 4 Reader The Encompass 4 Reader is delivered with a multi-wire cable (ordered as a separate accessory), which is a 13-pair pigtail. An alternate 15-pair pigtail may be substituted. The 13-pair pigtail is a colored-wire pair cable, with different colors denoting the individual pairs, one pair of which is red/black.

  • Page 179: Table 49 Rs-422 Interface Signal Wiring For Alternate Wire 15-Pair Cable

    Encompass 4 Reader System Guide RS–422 Interface Table 49 shows the RS–422 assignments for alternate wire (15-pair) cable. To see the wire assignments for the 13-pair cable, refer to “Table 12 RS–422 Interface Signal Wiring for Colored-Wire 13-Pair Cable” on page 4-57.

  • Page 180: Input/Output Cabling Assignments

    To see the wire assignments for the 13-pair cable, refer to “Table 8 AC Transformer Connections for Colored-Wire 13-Pair Cable” on page 4-37. Table 51  AC Transformer Connections for Alternate Wire 15-Pair Cable Alternate Wire Cable Signal from Encompass 4 Connect to Transformer Reader Terminal Strip Pairing...

  • Page 181: Table 53 Sense Input/Output Cabling Assignments For Alternate Wire 15-Pair Cable

    Encompass 4 Reader System Guide Table 53 Sense Input/Output Cabling Assignments for Alternate Wire 15-Pair Cable Alternate Wire Cable Signal Description Typical Function Pairing Color Parking/access control Black WGND0 Wiegand data0 applications Pair 10 Parking/access control WGND1 Wiegand data1 applications Tag lock sense...
  • Page 182 RS–232 and Wiegand communications) **Use this synchronization pin designation if installing an Encompass 4 Reader that reads IAG protocol tags. The part numbers for these readers are as follows: 10-4002-004; 10-4002-010; 10-4002-019; 10-4004-004; 10-4004-010; 10-4004-019; 10-4012-004; 10-4012-010; 10-4012-019; 10-4014-004; 10-4014-010; 10-4014-019 C–5...

  • Page 183: Table 54 All Cabling Assignments For Colored-Wire Pair Cable Or Alternate Wire Cable

    Encompass 4 Reader System Guide Summary Table Table 54 shows all assignments for both colored-wire pair (13-pair) and alternate wire (15-pair) cables. Table 54 All Cabling Assignments for Colored-Wire Pair Cable or Alternate Wire Cable Alternate Wire Colored-Wire Pair Cable Cable Signal Description...
  • Page 184 Sense output0 Sense Switched sense (tag detect), Black Black Output0_ output to control common gate Brown/ terminal Pair 6 Black Sense output0, Switched sense Sense Brown normally open output to control Output0_NO terminal gate C–7 TransCore Proprietary...
  • Page 185 Encompass 4 Reader System Guide Table 54 All Cabling Assignments for Colored-Wire Pair Cable or Alternate Wire Cable Alternate Wire Colored-Wire Pair Cable Cable Signal Description Typical Function Pair Color Pair Color Switched sense Sense output0 Sense output for any (tag detect...
  • Page 186 232 and Wiegand communications) **Use this synchronization pin designation if installing an Encompass 4 Reader that reads IAG protocol tags. The part numbers for these readers are as follows: 10-4002-004; 10-4002-010; 10-4002-019; 10-4004-004; 10-4004-010; 10-4004-019; 10-4012-004; 10-4012-010; 10-4012-019; 10-4014-004; 10-4014-010; 10-4014-019 C–9...

  • Page 187: Appendix D Command Quick Reference

    Table 57 lists the same commands by command name. Factory Default Settings Note: Table 55 lists the factory default settings for the Encompass 4 Reader. Table 55 Encompass 4 Reader Default Configuration Settings Parameter Setting Command Switch to data mode Data...
  • Page 188 Encompass 4 Reader System Guide Table 55 Encompass 4 Reader Default Configuration Settings Parameter Setting Command Wiegand transmit mode 1 second 4601 Third alternate group select Disabled Fourth alternate group select Disabled Fifth alternate group select Disabled Alternate group select Disabled Set reader ID number...

  • Page 189: Numerical Command List

    Only the command-related data portion of the reader message is shown. Refer to “Chapter 7 Commands” on page 7–86 for the complete syntax of commands and messages. Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message Switch to data mode (default)
  • Page 190 Encompass 4 Reader System Guide Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message Auxiliary information appended Done Disable EAC page append (default) Done Enable EAC page append Done Transmit all IDs Done 410N Select unique ID code criteria...
  • Page 191 Appendix D Command Quick Reference Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message 4601 Set Wiegand retransmit interval to 1 second (default) Done Disable ATA Done Done if tag protocol Enable ATA supported/Error if tag protocol is unsupported...
  • Page 192 Encompass 4 Reader System Guide Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message Display power fail bit PWRB P <0 to 1> R0 Display reader ID number RDID xx MAIN B<2 to 7> S<0 Display comm port parameters to 1>...
  • Page 193 Appendix D Command Quick Reference Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message 60NN Set reader ID number NN = 00 to FF Done 6000 Set reader ID number to 00 (default) Done Select basic protocol (default)
  • Page 194 Encompass 4 Reader System Guide Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message 644NN Set RF attenuation NN = 00 to 0A Done 64400 Set RF attenuation to 0 dB (full power) (default) Done 645NN Set eGo or eGo Plus operating range...
  • Page 195 Appendix D Command Quick Reference Table 56 Encompass 4 Reader Commands Listed Numerically Number Command Name Reader Message Set user-programmable group select equals (GSE) filter Done Select Input Status Change Report Option Done Disable status change reports (default) Done Report change on input0...

  • Page 196: Alphabetical Command List

    Only the command-related data portion of the reader message is shown. Refer to “Chapter 7 Commands” on page 7–86 for the complete syntax of commands and messages. Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Append Auxiliary Information Selection...
  • Page 197 Appendix D Command Quick Reference Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Disable SeGo Done Disable status change reports (default) Done Disable synchronization hold-off time (default) 64900 Done Disable synchronization output delay (default) 64800 Done Disable tag translation mode (default)
  • Page 198 Encompass 4 Reader System Guide Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message RF0S U<0 to 4> V<0 to Display RF0 filter status 3> SYNC T<00 to FF> H<00 Display synchronization values to 0A> ATA:<E, D> eGo:<I, F, D>...
  • Page 199 Appendix D Command Quick Reference Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Done if tag protocol Enable IAG supported/Error if tag protocol is unsupported Enable input inversion 6941 Done Enable multi-tag sort Done Enable presence without tag reports...
  • Page 200 Encompass 4 Reader System Guide Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Select 2 valid ID codes 4201 Done Select 3 valid ID codes 4202 Done Select 4 valid ID codes 4203 Done Select basic protocol (default)
  • Page 201 Appendix D Command Quick Reference Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Set ATA operating range to longest range (default) 6431F Done Set baud rate = 1200 baud 1002 Done Set baud rate = 19.2 K baud...
  • Page 202 Encompass 4 Reader System Guide Table 57 Encompass 4 Reader Commands Listed Alphabetically Command Name Number Reader Message Set uniqueness timeout to 2 minutes (default) Done Set uniqueness timeout to 30 seconds Done Set user-programmable group select equals (GSE) Done filter Set Wiegand retransmit interval...

  • Page 203: Appendix E Compatible Tag Information

    This appendix gives helpful information about the tags that are compatible with the Encompass® 4 Reader. Tag Configurations Table 58 lists the TransCore Super eGo® (SeGo) protocol tags that are compatible with the Encompass 4 Reader. Table 58 Compatible TransCore Tags Mounting Supported...

  • Page 204: Table 59 Legacy Tags

    Plus Micro Mini Interior Sticker tag Full Beam Sego/ATA Windshield windshield Sticker Tag lists Table 59 most legacy tag models that are compatible with the Encompass 4 Reader. Table 59 Legacy Tags Mounting Supported Model No Description Frame Power Type Protocols AT5100 Toll...
  • Page 205 Access control Half License ATA/Wiegand battery Plate 10-year Exterior, AT5510 Transportation 915/2450 Full battery metal 10-year Exterior, AT5544 Toll 915/2450 Full battery non-metal 10-year Exterior, AT5545 Toll 915/2450 Full battery metal 5-year Interior AT5547 Toll Full battery windshield E–3 TransCore Proprietary...

  • Page 206: Tag Data Formats

    If desired, in place of 40 six-bit ASCII characters, the AT5707 can support up to 34 seven-bit ASCII characters. Tag Data Formats Tags are programmed at the TransCore factory with the tag model number, date of manufacture, and data format. Contact TransCore for special order entry procedures for the format that applies to your system. The following four tag data formats can be used: •...
