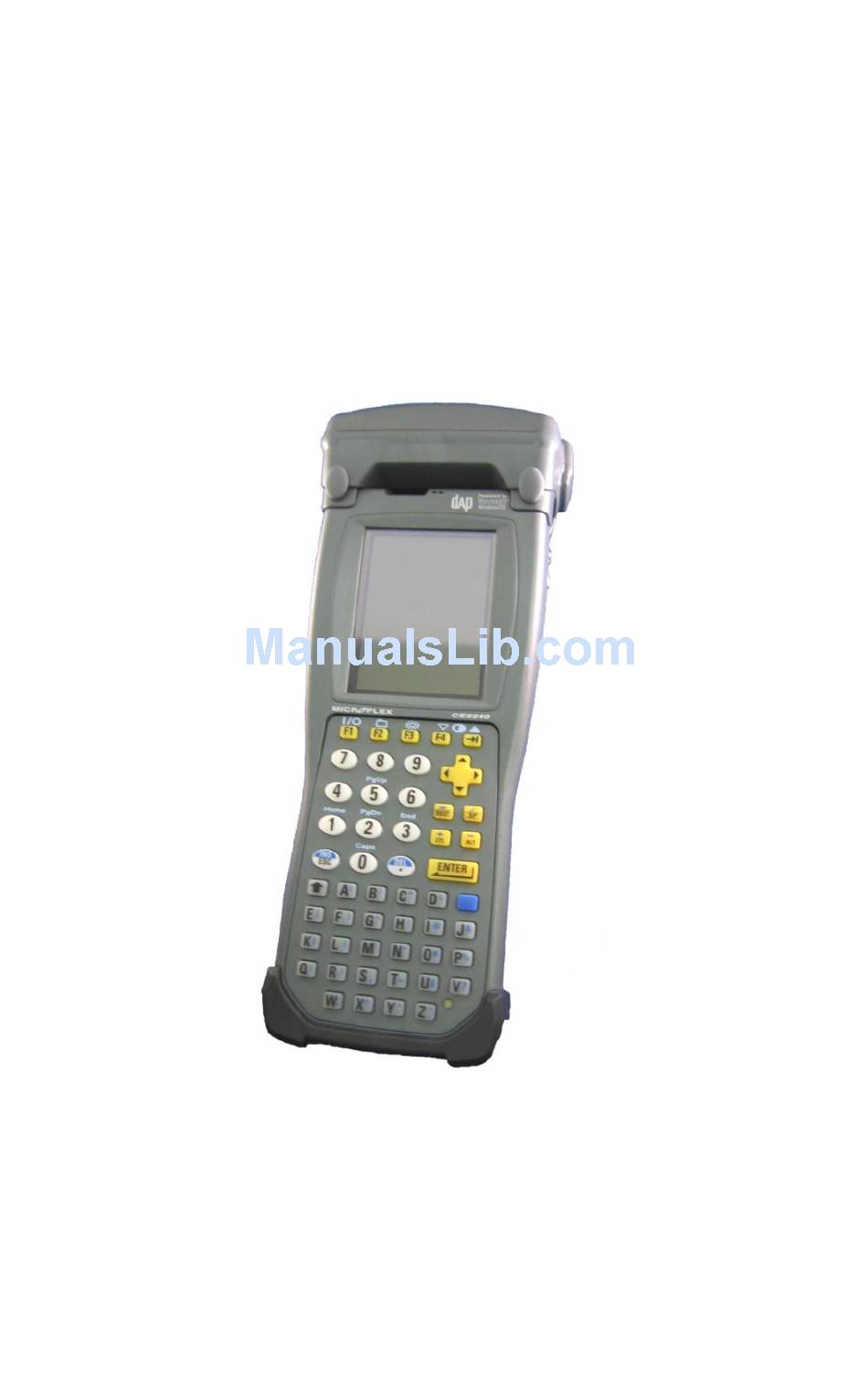

- Page 1 ® Encompass 1d Handheld Reader Quick Start Guide TransCore November 2009 412137 Driving inefficiencies out of surface transportation through innovative solutions...
-
Page 2: Table Of Contents
(SAR) limits for the user’s hand. The TransCore RFID End Cap Reader has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Introduction
ATA, Wiegand, and CALTRANS Title 21 tags; and read from or write to eGo Plus tags and TransCore Intellitag 2000 (Allegro) tags, Handheld Reader Setup Instructions To set up the basic Encompass 1d Handheld Reader, you will need the following items: TransCore Encompass 1d Handheld Reader... -
Page 4: Charging The Encompass 1D Handheld Reader
Charging the Encompass 1d Handheld Reader Before you can use the Encompass 1d Handheld Reader, you must charge its battery. The charging process takes approximately 5 hours. There are two ways to charge the battery: Plug the modular charger directly into the Encompass 1d Handheld... -
Page 5: Battery Status Light-Emitting Diode Indicator
Charging disabled by the application program. No Light Power from the charger not detected. TransCore recommends that you charge the Encompass 1d reader after each shift. 2. Power up the office cradle by plugging the round connector of the modular charger into the office cradle (Figure 3). -
Page 6: Using Your Encompass 1D Handheld Reader
Using Your Encompass 1d Handheld Reader Before reading tags, check the Encompass 1d battery capacity by checking the Battery Status LED indicator (Figure 2). 5. Press the F1 key for 2 seconds (Figure 5). -
Page 7: Figure 6. Startup Menu
6. Once the Welcome screen displays, click on the Start button in the lower left corner and select Programs > TagReaderDemo. You can also create a shortcut to the TagReaderDemo as shown in Figure 6 and Figure 7. Figure 6. Startup Menu... -
Page 8: Reading Tags
Figure 7. TagReaderDemo in Programs Reading Tags 7. Tap the Tag/Reader Demo icon or select TagReader Demo from the Start menu. 8. Aim the handheld reader at the tag and press any non- function key. Do not press yellow function keys to read tags. These are F1 to F4 keys, arrow keys, ALT, CTL, BKSP, SP, and so on. -
Page 9: Figure 8. Sample Display Of Ata Tag Read
Figure 8 shows an example of an ATA tag read. Figure 8. Sample Display of ATA Tag Read Figure 9 shows a half-frame Wiegand tag read. Figure 9. Sample Display of Half-Frame Wiegand Tag Read... -
Page 10: Figure 10. Sample Display Of An Ego Or Ego Plus Tag Read
Figure 10 shows an example of an eGo or eGo Plus tag read. Figure 10. Sample Display of an eGo or eGo Plus Tag Read Figure 11 shows an example of an IT2000 (Allegro) tag read. Figure 11. Sample Display of an IT2000 (Allegro) Tag Read... -
Page 11: Resetting Your Ce5000B-Series Mobile Computer
5 seconds to reset the CE5000B computer. Encompass 1d Handheld Reader Specifications Specifications for the Encompass 1d Handheld Reader are printed on the back side of the Encompass 1d Handheld Reader Product Profile (TransCore document number 600006). The Encompass 1d Handheld Reader product profile can be found at www.transcore.com. - Page 12 8600 Jefferson Street NE Albuquerque, NM 87113 ©2009 TC License, Ltd. All rights reserved. TRANSCORE, EGO, and ENCOMPASS are registered trademarks of TC License, Ltd., and are used under license. All other trademarks listed are the property of their respective owners.
