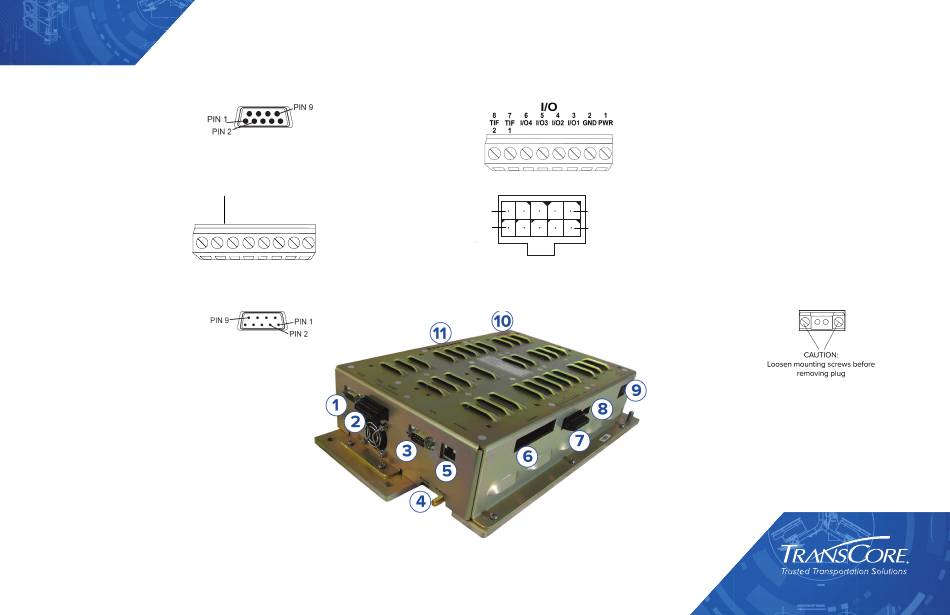

Encompass® 6 Multiprotocol Reader Quick Reference Card
1
ANTENNA MULTIPLEXING/CHECK TAG PORT
Recommended Data Cable:
9-pin ribbon cable
Recommended Check Tag Antenna Cable:
50-ohm coaxial cable (≤3 dB loss in
cable)
2
TDM/COM1 PORT
Recommended COM1 Port Data Cable:
TDM
20 AWG cable
8
-
Recommended TDM Cable:
Belden 89182 (outdoor-rated)
Recommended TDM Cable:
Belden 8132 (not outdoor-rated)
Mating connector:
TransCore P/N 33357-01
3
COM2 PORT
Recommended Cable:
20 AWG cable
4
ANTENNA PORT
Recommended Cable:
50-ohm coaxial cable
Recommended Antenna:
AA3152 Universal Toll Antenna
NOTE: Use the RF MONO port for single-antenna installation
CAUTION: Tighten antenna SMA connector to 10 in/lb only.
Do not cross-thread the connector when tightening.
5
ETHERNET PORT
Recommended Data Cable:
Belden 7929A Paired Category 5e (outdoor-rated)
Maximum Length:
330 feet (100 m)
Encompass jack is RJ-45
6
DIAGNOSTIC TEST PORT
Used for factory diagnostic testing only
7
EXTERNAL DIGITAL INPUT/OUTPUT PORT
Data Cable:
20 AWG wire
Mating Connector:
TransCore P/N 33357-01
DB9 Socket
8
GPS TIMING PORT
Data Cable:
20 AWG wire
COM1
7 6 5 4 3 2 1
Antenna Cable:
+
GND CTS RTS DTR RXD TXD
50-ohm coaxial cable
≤12 dB @1.575 GHz
DB9 Plug
9
Input Supply Voltages:
19V DC to 30V DC or 19V AC to 27V AC RMS @47 to 63 Hz
Input Power
DC or AC: 40 watts maximum
In-rush Current
8 amps (A) maximum, ≤25 milliseconds (ms)
Transformer:
(TransCore P/N 76-6000-001) 110V AC or 220V AC input,
24V AC output
Power Cable:
12-22 AWG cable
PIN 1 PIN 5
Mating Connector:
PIN 6 PIN 10
TransCore P/N 33356-01 (1 each ) and P/N 33358-01 (2 each)
POWER REQUIREMENTS
:
:
CAUTION: Wire gauge depends on wire resistance
versus overall wire length with respect to the Encompass
6 reader's specified voltage range and power rating.
(See Page 2 for AC power supply wiring.)
10
Power LEDs
See Page 2 for descriptions.
11
FAULT/OPERATIONAL LEDs
See Page 2 for descriptions.
Page 1
