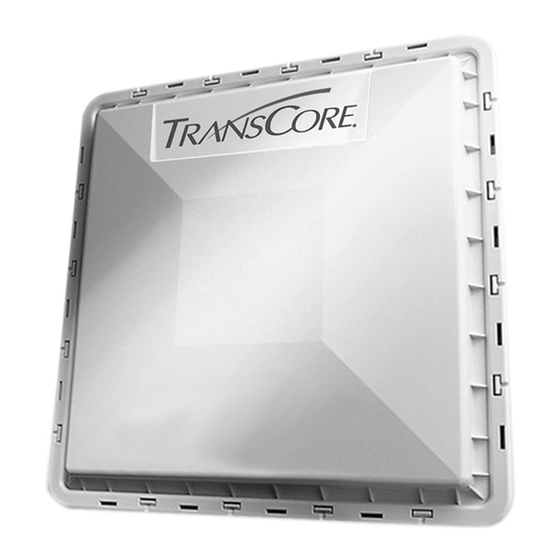

Page 1 Encompass 4 Reader System Guide ® TransCore 8600 Jefferson Street NE Albuquerque, New Mexico 87113 September 2016 P/N 412066-012...
Page 2 Information in this document is subject to change and does not represent a commitment on the part of  TransCore LP. © 2009-2016 TransCore LP. All rights reserved. TRANSCORE, AMTECH, EGO, and ENCOMPASS are registered trademarks and are used under license. All other trademarks listed are the property of their respective owners.
Page 3 47 CFR §15.21 CAUTION: This equipment may not be modified, altered, or changed in any way without permission from TransCore, LP. Unauthorized modification may void the equipment authorization from the FCC and will void the TransCore warranty. USE OF SHIELDED CABLES IS REQUIRED 47 CFR §15.27(a)
Page 4 Encompass 4 Reader System Guide AVERTISSEMENT À L’ATTENTION DES UTILISATEURS AUX ÉTATS-UNIS DÉCLARATION 47 CFR §90.351 (CODE DES RÈGLEMENTS FÉDÉRAUX) DE LA FEDERAL COMMUNICATIONS COMMISSION (FCC) SUR LES SERVICES DE LOCALISATION ET DE CONTRÔLE REMARQUE : L’utilisateur est tenu d’obtenir une licence d’utilisation sur site Partie 90 auprès de la Federal Communications Commission (FCC) afin de pouvoir utiliser ce dispositif RFID (radio- identification) aux États-Unis ou au Canada.
Page 5 Encompass 4 Reader System Guide WARNING TO USERS IN CANADA INDUSTRY CANADA (IC) INDUSTRY CANADA’S RADIO STANDARD SPECIFICATIONS (RSS- 137) LOCATION AND MONITORING SERVICE IN THE BAND 902-928 MHZ SECTION 2.1 NOTE: The user is required to obtain a license from Industry Canada (IC), to operate this radio frequency iden- tification (RFID) device in Canada.
Page 6 Occupational (Controlled) and General Population/ Public (Uncontrolled), the recommended levels for each of the agencies are presented in the next sections with TransCore’s recommendations for safety in the last section. OSHA (Occupational Safety and Health Administration) OSHA (an agency of The United States of America) legislates in the Code of Federal Regulations (CFR) Title 29 Part 1910 Subpart G 1910.97 titled “Nonionizing radiation”, a...
Page 7 The MPE minimum distances are 18in (45cm) for the Controlled environment and 47in (120cm) for the General Public/Uncontrolled environment. TransCore Recommendation on MPE (Maximum Permissible Exposure) The calculated power densities and MPE distance for each of the agencies respective to the environment is shown below.
Page 8 Encompass 4 Reader System Guide With the equipment installed and running at the maximum transmit power of 2.0W (33dBm), 0 dB transmit attenuation, using the highest gain antenna that the equipment is certified for, the recommendation for each of the operation environments is as follows: The antenna should be installed at least 47in (120cm) from the General Population/ Public i.e.
Page 9 (accès contrôlé) ou pour la population générale/le grand public (accès non contrôlé), TransCore présente les niveaux recommandés par chaque organisme dans ses recommandations sécuritaires détaillées dans la dernière section.
Page 10 45 cm (18 po) pour l’environnement professionnel/contrôlé et de 120 cm (47 po) pour le grand public/environnement non contrôlé. Recommandations de TransCore sur les limites d’exposition maximale autorisée (normes MPE) Les densités de puissance et la distance MPE calculées par chaque organisme pour un environnement donné...
Page 11 Encompass 4 Reader System Guide xi Avec l’appareil installé et fonctionnant à la puissance de transmission maximale de 2,0 W (33 dBm), 0 dB d’atténuation de transmission, et en utilisant le gain d’antenne maximal pour lequel l’appareil a reçu une certification, les recommandations pour chaque environnement d’exploitation sont les suivantes :...
Page 12 Encompass 4 Reader System Guide...
Page 13 Updated TransCore Technical Support phone number -010 04/12 Added 35- and 45-foot connector cable harness information to Table 2-2. Revised Table 2-3 Power Requirements to match material presented by TransCore Technical Support in Web seminar. Updated Table 2-4 to show additional connector cable harnesses xiii...
Page 14 Encompass 4 Reader System Guide -011 12/13 Added two cable extension notes on pages 2-19, 2-20. Added notes and diagrams on page 4-29, 4-31. Added info about E4 Sense Output description in Chapter 4. -012 9/16 Update Health and Safety Information...
Page 15 ........2-12 The Encompass 4 Reader Read Zone ....... . 2-12 Other Encompass 4 Readers in the Area .
Page 16 TransCore’s eGo Plus Tags ........
Page 17 Materials Supplied by TransCore ........
Page 18 ........4-15 Mounting the Encompass 4 Reader on a Round Pole ....4-15...
Page 19 Encompass 4 Reader System Guide 5 General Software Information Command Entry Conventions ........5-3 Command Response Conventions .
Page 20 Encompass 4 Reader System Guide Asynchronous Message/Command Message Collision 6-15 Host-Addressed Failure Conditions ........6-15...
Page 21 Encompass 4 Reader System Guide 451 Enable Wiegand Mode 7-13 452 Disable Tag Translation Mode (Factory Default) 7-13 453 Enable Tag Translation Mode 7-13 454 Disable Multi-tag Sort (Factory Default) 7-14 455 Enable Multi-tag Sort 7-14 456 Enable eGo Plus Tag Initialization During Multi-tag Sort (Factory Default) 7-14...
Page 22 830 Disable Automatic Periodic RF Status Report (Factory Default) 7-50 831 Enable Automatic Periodic RF Status Report 7-50 8 Configuring the Encompass 4 Reader Configuring the Reader ..........8-3...
Page 23 ........8-10 Configuring Encompass 4 Parameters ....... . 8-12 Appended Tag Data .
Page 24 Communications Interfaces ......... . C-3 Cable Supplied with the Encompass 4 Reader .
Page 25 Encompass 4 Reader System Guide Figure 1-1 Encompass 4 Reader System Front and Side Views ..... . . 1-6 Figure 2-1 Tag and Reader Orientation ......... . 2-5 Figure 2-2 Encompass 4 Reader Location Relative to Tag Position .
Page 26 Figure 8-7 Second Successful Tag Read ........8-12 Figure 8-8 Encompass 4 Reader RF Control Options .......8-16...
Page 27 Table 3-1 Tags Read by the Encompass 4 Reader ....... .
Page 28 Table C-14 All Cabling Assignments for Colored-Wire Pair Cable or Alternate Wire Cable..14 Table D-1 Encompass 4 Reader Default Configuration Settings ......3 Table D-2 Encompass 4 Reader Commands Listed Numerically .
Page 29 Introduction...
Page 30 Encompass 4 Reader System Guide...
Page 31: Purpose
System Guide Organization Note: TransCore offers the Encompass 4 Reader in two models: one with an inte- grated antenna and one that requires connection to an external antenna. In this system guide, information and instructions for both Encompass 4 Reader models are pre- sented.
Page 32 • Chapter 3, “Choosing, Installing, and Removing Tags,” contains information on compatible tag models and provides procedures for installing tags onto, and removing tags from, vehicles that use the facility where the Encompass 4 Reader System is installed. • Chapter 4, “Installing the Encompass 4 Reader System,” lists the materials needed and provides procedures to install the Encompass 4 Reader System.
Page 33: Typographical Conventions
This procedure might cause harm to the equipment and/or the user. System Description The Encompass 4 Reader System is a dual-protocol reader supporting the low-cost, high-performance SeGo radio frequency identification (RFID) technology. SeGo tech- nology provides the capability to read miniature RFID tags in a myriad of options including rugged, durable, or thin flexible forms such as the eGo Plus Sticker Tag.
Page 34: Reader
(also called a tag decoder), a radio frequency (RF) trans- mitter/receiver (called the RF module), and a patch antenna. A second version of the Encompass 4 Reader is designed to be used with a high-per- formance external antenna. These Encompass 4 Reader System components are con- tained in a highly reliable, compact, and easy-to-install environmentally-sealed package.
Page 35: Licensing Requirements
RFID product be used in the licensed area after the Encompass 4 equipment is installed. Users of the Encompass 4 Reader System in the United States must obtain a license from the FCC. In the United States, the authorized modulated frequency band for this product is 911.75 to 919.75 MHz and the authorized continuous wave frequency band...
Page 36 Encompass 4 Reader System Guide...
Page 37 Developing the Site Plan...
Page 38 Encompass 4 Reader System Guide...
Page 39: Overview
Overview Note: In this section, unless specifically stated, " E ncompass 4 Reader" applies both to the Encompass 4 Reader with integrated antenna and Encompass 4 Reader with external antenna. Developing a site plan provides the foundation for the site’s system design and estab- lishes the following system configuration parameters: •...
Page 40: Reader And Tag Alignment
Reader and Tag Alignment The position of the Encompass 4 Reader and placement of the tag on the vehicle must be compatible. Also, consider any existing tagged vehicles now using the facility to determine the optimal Encompass 4 Reader location and orientation at the site.
Page 41: Polarization
Developing the Site Plan Polarization The polarization of the tag must be aligned in the same direction as the Encompass 4 Reader, as shown in Figure 2-1. Note: Matching the tag and antenna polarization is critical to obtain optimal system performance.
Page 42: Unobstructed Line Of Sight
Encompass 4 Reader, the tag is directly facing the reader and the line of sight is clear between the Encompass 4 Reader and the tag. If a fence or barrier is between the tag and the reader, the Encompass 4 Reader cannot reli- ably read the tags.
Page 43: Figure 2-3 Typical Tag Positions For U.s. Driver's Side Reader
Developing the Site Plan If the Encompass 4 Reader is installed on a pole or wall to the left of the vehicle, opti- mal tag position is on the left side of the vehicle as illustrated in Figure 2-3. Figure 2-3 Typical Tag Positions for U.S. Driver’s Side Reader...
Page 44: Antenna Selection
Encompass 4 Reader System Guide If the Encompass 4 Reader is installed in an overhead location, optimal tag position is in the top center of the windshield in the area behind the rear view mirror or on the vehicle’s front license plate or center bumper as illustrated in Figure 2-5.
Page 45: Aa3101 Yagi (With Radome)
Developing the Site Plan • Relatively symmetrical reading range • Antenna profile not a major consideration AA3101 Yagi (with radome) Appropriate for installations with the following requirements and conditions: • 902 to 928 MHz operation • Exposure to harsh environments •...
Page 46: Aa3153 Toll Antenna
Polarization of the tag and the Encompass 4 Reader antenna must be aligned hori- zontally. • The installed tag must be in a direct, unobstructed line of sight to the Encompass 4 Reader antenna. • Tags designed to be mounted in a vehicle windshield must be mounted in the vehi- cle’s windshield, and tags designed to be mounted on the exterior surface of the...
Page 47 Developing the Site Plan performance. 2-11...
Page 48: Unobstructed Line Of Sight
Existing signal interference at the site The Encompass 4 Reader Read Zone The Encompass 4 Reader must be able to read the tag data properly within a specified area, called the read zone, without reading other nearby tags or interfering with other Encompass 4 Readers at the site.
Page 49: Other Encompass 4 Readers In The Area
• Other sources of interference and reflection The Encompass 4 Reader must be positioned to allow the RF signal to travel to and return from the tags within the designated range and be placed in an area where it is not likely to be bumped out of alignment.
Page 50: Gate With Center Island Configuration
Gate with Center Island Configuration Figure 2-6 illustrates a typical gate application with the Encompass 4 Reader units positioned on a center island to read tags mounted on the inside windshield on the driver’s side (United States). The readers are placed to allow time for the gate to open so the vehicle can roll through without stopping while not allowing room for an untagged vehicle to be between the vehicle being read and the gate.
Page 51: Parking Garage With Ticket Island Configuration
Figure 2-7 Parking Garage Application Overhead Reader Installation Configuration Another option for Encompass 4 Reader placement is to mount it overhead in each lane as illustrated in Figure 2-8. This illustration assumes that tags are mounted on the inside center windshield or center bumper of the vehicle.
Page 52: Lane Configurations For Encompass 4 Readers Using An External Antenna
Any of these factors can alter or degrade system performance. When designing your site plan, you must consider permanent structures and transient factors in the vicinity that may affect RF signals being generated by the Encompass 4 Reader. Permanent structures include buildings, chain link fences, guard shacks, and gates.
Page 53: Existing Interference
RF signal. Interference may degrade both reader and tag performance. Existing interference at the site may be shielded, removed, or positioned further from the Encompass 4 Reader and/or antenna. In some cases, changing the operating frequency of the Encompass 4 Reader may provide a simple solution.
Page 54: Electrical Power
A dedicated electrical power supply must be present at the site and available to the Encompass 4 Reader at all times. The power must be 16-20V AC or 16-28V DC. A step-down transformer is available (North America only) to convert a 120V AC duplex wall outlet with ground to 18V AC, as is a step-up transformer to convert a low-voltage 12V AC outlet to 18V AC.
Page 55: Host Communications
23 ft (P/N 58-1620-007) a. Use two pair (two conductors for power and two for return). TransCore cable is 22 AWG. b. Direct current resistance (DCR) information is from the Belden catalog. c. Based on a 1.0V drop at 1200 mA (RF ON) with 15% margin.
Page 56 Encompass 4 Reader System Guide Table 2-5 Communications Interfaces and Conductor Requirements Number of Interface Conductors Wiegand 2-20...
Page 57: Rs–232 Interface
232 interface if one or more of the following conditions apply to your site: • The host computer system is 50 ft (15.2 m) or less from the Encompass 4 Reader. • The host computer system is more than 50 ft (15.2 m) from the Encompass 4...
Page 58: Input/Output Circuits
Input/Output Circuits To connect the Encompass 4 Reader to external equipment such as a treadle or traffic control light, install wires from these devices at the junction box. The Encompass 4 Reader input circuit is designed to connect to a dry contact closure.
Page 59 Developing the Site Plan Table 2-6 Reader to Antenna Cable Performance (continued) 915MHz Overall Cable Type a Medium Diameter (in.) Loss b Loss c – LDF6 1.125 – LDF7 1.625 a. Suffixes 50, 50A, and 50B indicate 50-ohm cables available from the  Andrew Corporation.
Page 60 Encompass 4 Reader System Guide 2-24...
Page 61 Choosing, Installing, and Removing Tags...
Page 62 Encompass 4 Reader System Guide...
Page 63: Compatible Tag Types
American National Standards Institute (ANSI) ANS INCITS 256-2001-compliant tags with Intellitag technology. Depending on options ordered, the Encompass 4 Reader can read eGo Plus and eGo tags as well as TransCore IT2000 (in optional ATA/ISO mode), ATA-protocol, ISO-compliant tags, and Inter-Agency (IAG) tags. It can also read tags formatted to a wide range of industry-standard proprietary formats, includ- ing SIA Wiegand 26-bit standard format.
Page 64: Transcore's Ego Plus Tags
Encompass 4 Reader System Guide TransCore’s eGo Plus Tags TransCore’s eGo Plus tags are offered to complete your Encompass 4 Reader System. Table 3-2 lists some of the features of the TransCore eGo Plus tags. Table 3-2 eGo Plus Tag Features...
Page 65: Ego Plus Security Sticker Tag
Choosing, Installing, and Removing Tags Figure 3-1 eGo Plus Windshield Sticker Tag eGo Plus Security Sticker Tag The Encompass 4 Reader reads the eGo Plus Security Sticker Tag (Figure 3-2) config- ured to support SeGo mode. Figure 3-2 eGo Plus Security Sticker Tag...
Page 66: Transcore's Ego Tags
Encompass 4 Reader System Guide Figure 3-3 eGo Plus License Plate Tag TransCore’s eGo Tags TransCore’s various eGo tags are offered to complete your Encompass 4 Reader Sys- tem. Table 3-3 lists some of the features of the TransCore eGo tags.
Page 67: Ego License Plate Tag
Choosing, Installing, and Removing Tags Figure 3-4 eGo Windshield Sticker Tag eGo License Plate Tag The eGo LPT (Figure 3-5) is a water-resistant tag used in applications requiring an exterior-mounted tag. Figure 3-5 eGo License Plate Tag Installing eGo Plus Sticker Tags eGo Plus Sticker Tags are designed to be attached by a semi-permanent adhesive to the interior surface of nonmetallic windshields 0.190 to 0.230 inches (4.82 to 5.84 mm) in thickness.
Page 68: Required Materials
Clean, dry cloth • eGo Plus Sticker Tag Positioning eGo Plus Sticker Tags TransCore designed the eGo Plus Sticker Tag to be installed on the upper center or upper corner portion of the windshield. Figure 3-6, Figure 3-7, Figure 3-8 illus- trate possible upper center tag placement locations.
Page 69: Large Truck With No Inside Mirror
Choosing, Installing, and Removing Tags Figure 3-7 eGo Plus Sticker Tag Placement Large Truck with No Inside Mirror Choose this option for a large truck that uses exterior mirrors only (Figure 3-8). Figure 3-8 eGo Plus Sticker Tag Placement in Large Truck eGo Plus Sticker Tag Installation Procedures Caution Confirm that the outside temperature is above 50°F (10°C).
Page 70: Removing Ego Plus Sticker Tags
Encompass 4 Reader System Guide Caution Ensure that the tag is correctly located before touching it to the glass. Once the sticker tag is applied to the glass, it cannot be moved without damage to the tag. Holding the sticker tag by its edges...
Page 71: Installing Ego Plus Security Sticker Tags
Choosing, Installing, and Removing Tags Installing eGo Plus Security Sticker Tags An eGo Plus Security Sticker Tag is located in the same area on the windshield as the eGo Plus Sticker Tags. See “Positioning eGo Plus Sticker Tags” on page 3-8 for this information.
Page 72: Removing Ego Plus Security Sticker Tags
Encompass 4 Reader System Guide Figure 3-11 Applying eGo Plus Security Sticker Tag to Windshield Press the security sticker tag firmly against the glass. Gently rub over the entire tag surface removing as much air from underneath the tag (Figure 3-12).
Page 73: Installing Ego Plus License Plate Tags
Installing eGo Plus License Plate Tags Metallized coatings on some vehicle windshields and windows absorb the RF energy emitted by the Encompass 4 Reader, thus causing tags to be misread. You must use exterior LPTs on vehicles with metallized coatings on their windshields and windows.
Page 74: Figure 3-13 Correct Mounting Location For Lpt
Encompass 4 Reader System Guide Figure 3-13 Correct Mounting Location for LPT Position the LPT so that it is within 18 inches (46 cm) of the center of the front bumper as shown by the shaded area in Figure 3-13. If your vehicle’s license plate mounting area is more than 18 inches (46 cm) from the center, you may need to select an alternate location to mount the tag.
Page 75: Installing Ego Windshield Sticker Tags
However, many of these metallized wind- shields have areas that are not metallized. On a vehicle without open areas in its met- allized windshield, you might need to install an Encompass 4 Reader-compatible LPT on the vehicle. See the section “Installing eGo Plus License Plate Tags”...
Page 76: Required Materials
• Clean, dry cloth • eGo WST Positioning eGo Windshield Sticker Tags TransCore designed the eGo WST to be installed on the upper center or upper corner portion of the windshield. Figure 3-16, Figure 3-17, Figure 3-18 illustrate possible upper center tag placement locations. If the upper portion of the windshield is...
Page 77: Mirror Post Attached To Headliner
Choosing, Installing, and Removing Tags Figure 3-17 eGo Windshield Sticker Tag Placement Option B Mirror Post Attached to Headliner Choose placement Option C if the mirror post is attached to the headliner as shown in Figure 3-18. If the upper portion of the windshield is tinted with an aftermarket conductive tint, place the tag two inches (5 cm) below the tinted area.
Page 78: Removing Ego Windshield Sticker Tags
Encompass 4 Reader System Guide Thoroughly clean the interior surface of the windshield behind and around the rearview mirror where the tag will be located. Dry the tag location area thoroughly using a clean, dry cloth. Remove the paper backing from the tag to expose the adhesive.
Page 79: Required Materials
See “Reader and Tag Alignment” on page 2-4. Tags should be mounted consistently in all vehicles using a particular Encompass 4 Reader facility. Interior Driver’s or Passenger’s Side TransCore designed interior ATA-protocol tags for installation inside the vehicle, typ- ically on the driver’s side of the windshield.
Page 80: Ata Interior Tag Installation Procedures
Encompass 4 Reader System Guide Figure 3-20 Upper Center Interior Windshield Tag Location ATA Interior Tag Installation Procedures Perform the following steps to install interior tags: Clean the tag installation area on the interior surface of the windshield with rubbing alcohol.
Page 81: Removing Interior Ata Tags
Installing ATA License Plate Tags Metallized coatings on some vehicle windshields and windows absorb the RF energy emitted by the Encompass 4 Reader, thus causing tags to be misread. Use exterior LPTs on vehicles with metallized coatings on windshields and windows.
Page 82: Positioning Ata License Plate Tags
Encompass 4 Reader System Guide Positioning ATA License Plate Tags The orientation of the tag is important. The tag must be mounted so that the holes on the tag base plate are on the bottom edge. See Figure 3-22. Figure 3-22 Proper Tag Orientation When positioning the tag, observe the following guidelines: •...
Page 83: Figure 3-23 Correct Exterior Tag Placement
Choosing, Installing, and Removing Tags Figure 3-23 Correct Exterior Tag Placement Line up the holes in the tag as follows: • If mounting the tag to a license plate or license plate bracket, line up the holes in the tag to the upper holes of the license plate or license plate bracket.
Page 84: Figure 3-24 Upper Placement In License Plate Area
Encompass 4 Reader System Guide Figure 3-24 Upper Placement In License Plate Area Make sure the area within 45 degrees of the center of the tag is free of obstructions. See Figure 3-25. Figure 3-25 Obstruction-Free Area Make sure that no material overhangs the tag. If overhang is more than ½ inch (1.27 cm), insert spacers or washers directly behind the tag so that the tag is clear...
Page 85: Types Of Bumpers
Choosing, Installing, and Removing Tags Figure 3-26 Spacer Positioned Behind Tag Tighten the bolts and nuts with a screwdriver and wrench to secure the tag to the vehicle. Types of Bumpers When mounting tags directly to a bumper, consider the following factors: •...
Page 86: Installation Procedures Using Tape
3-27. Figure 3-27 Exterior Tag with Double-Sided Tape Position the tag over the installation area, making sure that the tag and Encompass 4 Reader are horizontally polarized. Press the tag firmly against the bumper. Installation Procedures Using Blind Rivets To install an exterior tag using blind rivets through the tag’s installation...
Page 87 Installing the Encompass 4 Reader...
Page 88 Encompass 4 Reader System Guide...
Page 89: Installation Process
Ensure that you have received all parts before beginning your pre-installation Encom- The Encompass 4 Reader is designed with an integrated patch antenna or with a RF cable connector for use with an external antenna. Unless noted in the text, “antenna”...
Page 90: Installation Accessory Options
Note: The Encompass 4 Reader may be ordered with a multwire cable harness (part number 58-1620-001 or 58-1620-002 in Table 4-1) as a separate accessory. One end has a waterproof connector for the Encompass 4 Reader, and the other end has 13 pairs of color-coded wires.
Page 91: Pre-Installation Testing Of The Encompass 4 Reader
Pre-installation Testing of the Encompass 4 Reader Before installing the Encompass 4 Reader permanently at the site, you should use an audible circuit tester to confirm that the Encompass 4 Reader has power and can read a tag presented in the tag read zone.
Page 92: Discharging Voltage From The External Antenna
The voltage needs to be discharged before connecting the antenna to the reader. To test the Encompass 4 Reader that uses an external antenna, connect the antenna and power supply as described in the appropriate section below, and then test as described in the section “Bench Testing the Encompass 4 Reader Before Installation”...
Page 93: Figure 4-2 Connect Rf N-Type Load Or Attenuator To Reader Cable End
Installing the Encompass 4 Reader Terminate the reader end of the RF cable with any N-type load or RF attenuator (Figure 4-2). Figure 4-2 Connect RF N-type Load or Attenuator to Reader Cable End Connect the RF cable to the antenna (see item 1 in Figure 4-3).
Page 94 Caution TransCore does not recommend using a screwdriver or other tool to short the RF cable center conductor to the outer ground of the cable. This grounding method can damage the center pin or the threads of the connector.
Page 95: Connecting The External Antenna
Connecting the AC Power Supply Caution If you are using an external antenna, to avoid damage to the Encompass 4 Reader, you must connect the antenna before applying power to the reader. To connect the Encompass 4 Reader to a low-voltage AC power supply...
Page 96: Connecting The Dc Power Supply
Encompass 4 Reader communications and customer interface signals are supplied from the Encompass 4 Reader to the host through a multiwire cable, which is a 13-pair pigtail. The connector for this cable is located on the back of the Encompass 4 Reader.
Page 97: Connecting For Bench Testing With Rs–232 Interface
232 Interface – – 232 interface signals are supplied by three or five wires from the Encompass 4 communications cable. The pin assignments for the signal to the host male DB9 and DB25 connectors are shown in boldface in Figure 4-5.
Page 98: Table 4-4 Rs–232 Interface Signal Wiring For Colored-Wire Pair Cable
Encompass 4 Reader System Guide Connecting the Encompass 4 Reader Colored-Wire Pair Cable – Table 4-4 shows the RS 232 colored wire assignments. – Table 4-4 RS 232 Interface Signal Wiring for Colored-Wire Pair Cable Colored-Wire Pair Cable Connect Connect...
Page 99: Bench Testing The Encompass 4 Reader Before Installation
The eGo and eGo Plus sticker tags have a reduced read range when not attached to glass. To test that the Encompass 4 Reader has power and can read a tag pre- sented in the read zone...
Page 100: Table 4-5 Commands For Bench Testing
Returns Encompass 4 Reader to data mode. Pass the correct test tag for your reader application in front of the Encompass 4 Reader or antenna. The audible circuit tester should sound a tone when the tag is read. If no tone sounds, ensure that steps 1, through 5 were performed correctly and that you are using a compatible tag.
Page 101: Mounting The Encompass 4 Reader
8 feet (2.4 m) above the pavement level. The pole must be installed according to local building codes. Required Materials To Be Supplied by Customer You need the following materials to mount the Encompass 4 Reader on a round pole: • A 5/32-inch Allen wrench to assemble and adjust the mounting brackets •...
Page 102: Figure 4-6 Back Of The Encompass 4 Reader (Reader Shown Has Integrated Antenna)
Encompass 4 Reader System Guide Factory-mounted bracket Figure 4-6 Back of the Encompass 4 Reader (reader shown has integrated antenna) Figure 4-7 Factory-Mounted Bracket Figure 4-8 Pole-Mount Bracket Assembly 4-16...
Page 103: Figure 4-9 The Encompass 4 Reader Attached To The Pole Mount Bracket
Figure 4-9. Tighten the screws slightly so that the Encompass 4 Reader can be adjusted up or down, but not so slightly the mounting assembly slips. Figure 4-9 The Encompass 4 Reader Attached to the Pole Mount Bracket Adjust the assembly by pointing the Encompass 4 Reader to the middle of the area where tags will be read, and tighten all screws and straps slightly.
Page 104: Figure 4-10 Front And Top Views Of The Encompass 4 Reader Position
ATA-type tags. Actual dimensions vary as lane geometry and tag style varies from site to site. Adjust the Encompass 4 Reader matching site and tag mounting positions to provide the most direct line of sight to the tags.
Page 105: Mounting The Encompass 4 Reader To A Wall Or Flat Surface
4-11) in addition to the pole-mount bracket to provide additional horizontal aiming flexibility when attaching the Encompass 4 Reader to a pole with flat sides or to a wall or ceiling where other structures can interfere with accurately aiming the Encompass 4 Reader toward the tags.
Page 106: Figure 4-12 Wall Mount Bracket Attached To The Encompass 4 Reader
Encompass 4 Reader System Guide Using the 5/32-inch Allen wrench, remove the factory-mounted bracket attached to the back of the Encompass 4 Reader. Remove all four Allen screws and lock washers from the bracket and set aside. Unpack the wall-mount bracket accessory kit.
Page 107: Figure 4-13 Factory-Mounted Bracket Attached To Wall Mount Bracket
Figure 4-13 Factory-Mounted Bracket Attached to Wall Mount Bracket Tighten lightly, since you will want to adjust the bracket later. This subassembly allows you to aim the Encompass 4 Reader left or right when all three brackets are assembled. Mount the pole-mount bracket to the wall, ceiling, or fixture using appropriate...
Page 108: Figure 4-15 Connecting The Encompass 4 Assembly To Pole Mount Bracket
10. Adjust the assembly by pointing the Encompass 4 Reader to the middle of the area where tags will be read and tighten all screws and straps slightly. Note: Adjust the Encompass 4 Reader to provide the most direct line of sight to the tags.
Page 109: Mounting The Antenna
Installing the Encompass 4 Reader Mounting the Antenna If you are using the Encompass 4 Reader that requires an external antenna in perma- nent installations, the antenna should be positioned as close as possible to the Encom- pass 4 Reader. Long cable runs increase system sensitivity to noise. See...
Page 110: Figure 4-16 Connect Rf N-Type Load Or Attenuator To Reader Cable End
Encompass 4 Reader System Guide Terminate the reader end of the RF cable with any N-type load or RF attenuator (Figure 4-16). Figure 4-16 Connect RF N-type Load or Attenuator to Reader Cable End Connect the RF cable to the antenna (see item 1 in Figure 4-17).
Page 111: Mounting The Antenna Curb-Side
Note: Determine the read zone before you tighten all screws and straps permanently. Refer to the section “Marking the Read Zone” on page 4-38. After mounting the antenna, you must connect it to the Encompass 4 Reader. Follow the procedures described previously in the section “Connecting the External Antenna” on page 4-9.
Page 112: Figure 4-18 Front And Top Views Of The Curb-Side Antenna Position
Encompass 4 Reader System Guide Caution To avoid damage to the Encompass 4 Reader, you must connect the antenna before applying power to the reader. Figure 4-18 Front and Top Views of the Curb-Side Antenna Position Note: The dimensions in...
Page 113: Mounting The Antenna Overhead
Figure 4-19 illustrates an overhead-mounted antenna with approximate measurements for the read zone. Figure 4-19 Encompass 4 Reader Installation with Overhead Antenna Note: Determine the read zone before you tighten all screws and straps permanently. Refer to the section “Marking the Read Zone” on page 4-38.
Page 114: Connecting The Power Supply
Encompass 4 Reader System Guide After mounting the antenna, you must connect it to the Encompass 4 Reader. Follow the procedures described previously in the section “Connecting the External Antenna” on page 4-9. Connecting the Power Supply To connect the Encompass 4 Reader to a low-voltage AC power supply follow the procedures described previously in the section “Connecting the AC Power Supply”...
Page 115: Connecting Communications
Encompass 4 Reader communications and customer interface signals are supplied from the Encompass 4 Reader to the host through a multiwire cable, which is a 13-pair pigtail. The connector for this cable is located on the back of the Encompass 4 Reader.
Page 116 Encompass 4 Reader System Guide DB9 and DB25 connectors are shown in boldface in Figure 4-5. 4-30...
Page 117: Table 4-6 Rs–232 Interface Signal Wiring For Colored-Wire Pair Cable
Installing the Encompass 4 Reader Connecting the Encompass 4 Reader Colored-Wire Pair Cable – Table 4-6 shows the RS 232 colored wire assignments. – Table 4-6 RS 232 Interface Signal Wiring for Colored-Wire Pair Cable Colored-Wire Pair Cable Connect Connect...
Page 118: Rs–422 Interface
Figure 4-21 RS-232 Cable Extension Diagram 422 Interface – – 422 interface signals are supplied by four wires from the Encompass 4 Reader – communications cable. Your host must have an RS 422 interface with either an inter- nal or external converter.
Page 119: Wiegand Interface
) from the red and black wire pair to the host – transmit ( ) signal. – Wiegand Interface Wiegand interface signals are supplied by three wires from the Encompass 4 Reader – – communications cable. The Encompass 4 Reader with RS 232 or RS 422 comes with the Wiegand option built in.
Page 120: Connecting Sense Input And Sense Output Circuits
The Encompass 4 Reader has two sense input circuits and three sense output circuits available. The sense input circuits can be used to notify the Encompass 4 Reader of external events and are designed to be connected to a free-of-voltage dry contact.
Page 121: Figure 4-23 Sample Circuit Connections
0 ms, which indicates that no delay occurs in closing the circuit when a vehi- cle is present. Sense input1 allows the Encompass 4 Reader to monitor the status of a peripheral device. The host computer can then check the status by polling the Encompass 4 Reader.
Page 122: Sense Output Circuits
Encompass 4 Reader System Guide Figure 4-24 Sample Circuit Connections for IAG Installations Sense Output Circuits – The Encompass 4 Reader supports three sets of sense output signals. Two sets sense – output0 and sense output1 provide NO or NC sense outputs. The third sense output set is dedicated for testing and set up of the reader.
Page 123: Table 4-9 Sense Input/Output Cabling Assignments
Installing the Encompass 4 Reader Using Table 4-9 as a guide to the functions of each of the wire signals, connect the remaining wires to the appropriate terminal blocks on the terminal strip in the junction box. Table 4-9 Sense Input/Output Cabling Assignments...
Page 124: Marking The Read Zone
After connecting the wires in the communications cable, ground all drain wires from the communications cable to the chassis ground in the NEMA enclosure. Marking the Read Zone The area where the Encompass 4 reads tags at the current RF range is called the read 4-38...
Page 125: Required Materials
When installing the Encompass 4 Reader, you should first mark the unit’s read zone using the RF range set at the factory-default maximum. You can later adjust the read zone using the tech- niques discussed in “Fine-Tuning and Verifying the Read Zone”...
Page 126 Figure 4-25) from the Encompass 4 Reader or antenna. Hold the stick or the piece of glass so that the tag is positioned at a height and angle consistent with a tag installed on a vehicle. The test tag should cause the audible tester to sound.
Page 127: Figure 4-25 Sample Read Zone Marking Pattern
Figure 4-25 Sample Read Zone Marking Pattern 15. Standing at the farthest point of the pattern, walk toward the Encompass 4 Reader or antenna and listen for a continuous sound from the audible tester. If the sound is not continuous, it could indicate a weak or “patchy”...
Page 128 Encompass 4 Reader System Guide 4-42...
Page 129 General Software Information...
Page 130 Encompass 4 Reader System Guide...
Page 131: Command Entry Conventions
All Encompass 4 Reader commands are preceded by the start-of-message character (#). The end-of-message sequence expected from the host is a carriage return (CR). The Encompass 4 Reader terminates messages with a return and a line-feed (CR/LF). For example, the command #01 Switch To Command Mode is typed as follows: #01<ENTER>...
Page 132: Command Response Conventions
Command Response Conventions Like the Encompass 4 Reader commands, responses are preceded by the # character. Many Encompass 4 Reader commands respond with #Done or #Error indicating the command was or was not recognized and completed. Other commands respond with a four-character identifier followed by one or more values.
Page 133: Download Procedures
• Exiting from download mode re-executes startup. If the new software has been loaded without errors, the Encompass 4 Reader comes up in data mode. If a flash checksum error is detected, the Encompass 4 Reader reenters download mode and transmits a sign-on message with a boot version of 0.00x and without a serial...
Page 134: Startup
Encompass 4 Reader System Guide If TransCore releases a new version of the Encompass 4 Reader software or if the Encompass 4 Reader seems not to be working properly, you may need to download the software to the Encompass 4 Reader. Contact technical support or your TransCore Encompass 4 Reader sales representative.
Page 135: Tag/Message Buffer
General Software Information Tag/Message Buffer In basic communication protocol, the Encompass 4 Reader does not provide tag mem- ory storage beyond the quantity required for uniqueness checking. This feature allows adequate buffering of tag data under normal operating conditions. The Encompass 4 Reader cannot operate as a stand-alone component.
Page 136 Encompass 4 Reader System Guide...
Page 137 Communications Protocols...
Page 138 Encompass 4 Reader System Guide...
Page 139: Introduction
(from the host) or an Error message from the Encompass 4 Reader. Software (XON/XOFF) flow control is optionally supported. Be careful in the use of...
Page 140: Basic Protocol
Parity is required to achieve the most reliable communications. If parity is enabled, both the Encompass 4 Reader and the host must issue a message if any received char- acter has a parity error. However, the message must not be transmitted before receipt of the eom character.
Page 141: Data Inquiry Protocol
As the Encompass 4 Reader acquires tags, it buffers them but does not transmit them. Instead, the host must poll the Encompass 4 Reader for each tag by sending a CTRL-E character (hex 5 digit). The Encompass 4 Reader transmits one message (tag ID or report data) for each CTRL-E it receives until the buffer is empty.
Page 142: Ecp Host Ack/Nak Response
If the host receives a <som> character in the middle of a data message, the message in progress is aborted. The assumption is that an <eom> was lost and the Encompass 4 Reader is in the process of retransmitting the previous message.
Page 143: Switch To Command Mode Request
#612FF Disable Error Correcting Protocol Timeout. If the timeout delay expires before the Encompass 4 Reader receives an ACK or NAK message from the host, a logical NAK condition will be declared. If the Encompass 4 Reader receives a NAK or timeout, the reader retransmits the data message.
Page 144: Host Transmission
<som><seq><cmd>[<data>]<crc><eom> where ASCII Control E (hex 5 digit). When in data inquiry mode, each <CTRL-E> transmission of a CTRL-E by the host causes the Encompass 4 Reader to transmit one tag ID. Start-of-message (ASCII # character) <som> Sequence number (ASCII hex digit) that represents an odd <seq>...
Page 145: Reader Command Response
Communications Protocols End-of-message character (ASCII CR) <eom> Reader Command Response The basic protocol format is <som><resp><eom> The ECP format is <som><seq><resp><crc><eom>...
Page 146: Sample Messages
Start-of-message (ASCII # character) <som> Echo of sequence number received in host command message <seq> Response string. The Encompass 4 Reader returns Done, <resp> Error, or another ASCII string depending on the host transmission. This string can be up to 72 characters long.
Page 147: Host Command Transmissions
Done Reader response #7Done<crc><eom> or #7Error<eom> For some commands, the Encompass 4 Reader responds with data that relates to the command, such as T0F 0, to indicate Wiegand mode enabled for a #532 Display Wie- gand Mode Status command. 6-11...
Page 148: Timing And Synchronization
The ECP is largely independent of baud rate. The timeout delays previously described are a function of baud rate. The Encompass 4 Reader supports an ECP timeout, which applies equally to both transmit and receive. The receiver’s minimum timeout delay equals the time to transmit/receive the longest anticipated message at the current baud rate setting.
Page 149: Reader-Addressed Failure Conditions
The host computer switches its communications parameters immediately after the transaction is complete. As noted, the message initiator, such as the Encompass 4 Reader in data mode and the host computer in command mode, starts a timeout counter at the time a message is transmitted.
Page 150 Encompass 4 Reader System Guide If the Encompass 4 Reader receives an illegal command, it returns its standard Error message. 6-14...
Page 151: Transmission Timeout
Asynchronous Message/Command Message Collision If the Encompass 4 Reader transmits asynchronous data at the same time that the host sends a command, the Encompass 4 Reader gives priority to receiving the command. It processes the command and sends a message before it retransmits the asynchronous data.
Page 152: Ecp Reliability
Encompass 4 Reader. The Encompass 4 Reader accepts four ASCII < ` > characters (60 hex) as a wild card CRC value in lieu of a valid four-character CRC value to facilitate testing and diag- nostic checkout.
Page 153 Communications Protocols Example 2 shows an example of UPDCRC that does not require a lookup table. #define BITS_PER_CHAR 8 unsigned short updcrc (unsigned short ch, unsigned short crc) { register short counter = BITS_PER_CHAR; register short temp = crc; while (--counter >= 0) if (temp &...
Page 154 Encompass 4 Reader System Guide 0x1080, 0x00a1, 0x30c2, 0x20e3, 0x5004, 0x4025, 0x7046, 0x6067, 0x83b9, 0x9398, 0xa3fb, 0xb3da, 0xc33d, 0xd31c, 0xe37f, 0xf35e, 0x02b1, 0x1290, 0x22f3, 0x32d2, 0x4235, 0x5214, 0x6277, 0x7256, 0xb5ea, 0xa5cb, 0x95a8, 0x8589, 0xf56e, 0xe54f, 0xd52c, 0xc50d, 0x34e2, 0x24c3, 0x14a0,...
Page 155: Manually Disabling Ecp For Maintenance
Additional messages are also buffered. Often the first indication that the Encompass 4 Reader software is in an ECP “loop” is when the user/technician sees a recurring display of the same message repeated over and over again on the monitor.
Page 156 Encompass 4 Reader System Guide power to the reader. Reader transmission on power-up: #0 Model …. SN <crc><eom> Manually enter: #0@````<eom> Reader transmission #2 Copyright 2008 TransCore <crc><eom> Manually enter: #2@````<eom> Manually enter: #101‘‘‘‘<eom> this puts reader into command mode Reader response: #1Done<crc><eom>...
Page 157 Commands...
Page 158 Encompass 4 Reader System Guide...
Page 159: Operating Modes
Data Mode The Encompass 4 Reader is in the data mode upon power-up. While in the data mode, the Encompass 4 Reader sends all communications as data messages, such as tag IDs and reports, to the host computer. Reports provide information on input status changes (input0 and input1), a presence without tag report, and buffer overflow information.
Page 160: Command Mode
Note: The Encompass 4 Reader transmits ID codes to the host computer when the Encompass 4 Reader is in data mode. If the Encompass 4 Reader remains in the com- mand mode with tags passing through the read zone, all tag IDs are not reported.
Page 161: Command List
Commands tags, and does not echo host commands. Command List Reader commands are divided into groups based on primary function. The following sections provide information about each command in command number order. Refer to Appendix for listings of commands in numerical and alphabetical order. In the following text, the symbols <...
Page 162: N Select Baud Rate
Encompass 4 Reader System Guide Group 1 Group 1 commands configure the parameters used by the Encompass 4 Reader to communicate with a host computer or terminal. These commands set baud rate, stop bits, parity, and end-of-line delay. 100N Select Baud Rate Command #100N selects the reader baud rate.
Page 163: N Select Parity
Done Command Group 2 Group 2 commands control the real-time clock which maintains the Encompass 4 internal time and date. This time and date can be appended to IDs, error messages, and sensor input reports. An internal battery supports the clock, so time and date are preserved if main power is lost.
Page 164: Set Date
Encompass 4 Reader System Guide 21 Set Date Command #21 sets the date. Enter the date in the proper format: two-digit decimal entries with no spaces between characters and using forward slashes “/” as delimiters. The entry format is as follows:...
Page 165: N Append Auxiliary Information Selection
Commands Command #30N selects the option of appending the time and date to transmitted IDs, error messages, presence without tag reports, and input status change reports. The factory default setting is time and date appended (command #302). The reader returns an message if its tag buffer contains data.
Page 166: Disable Eac Page Append (Factory Default)
#321 Enable EAC Page Append Note: Note: This functionality was added to the Encompass® 2 Reader to handle a special unique customer requirement, and is retained in the Encompass 4 Reader for full backward compatibility. Command #321 selects the option to append an additional predefined 8 bytes of data to be read from an eGo®...
Page 167: Id Filtering — Command Group 4
Group 4 commands set criteria for filtering (buffering or discarding) ID codes. These commands are useful for eliminating duplicate ID codes and selecting the type of tags read by the Encompass 4 Reader. 40 Transmit All ID Codes Command #40 instructs the reader to transmit all IDs without regard for uniqueness.
Page 168: N Select Valid Id Code Criteria
Encompass 4 Reader System Guide first three and the first four items, respectively. Note: A new ID can fail the filter test and not be transmitted; however, it remains stored in the comparison register. The uniqueness test’s time limit is set by Command #441. If an ID is buffered, it will...
Page 169: Disable Wiegand Mode (Factory Default)
Commands factory setting #441 2 minutes ( #442 15 seconds #443 30 seconds Entering these commands effectively expires the timeout clock, which erases all cur- rent IDs in the comparison register. In effect, the first ID that is acquired after the clock expires always appears to be new and is stored.
Page 170: Disable Multi-Tag Sort (Factory Default)
Encompass 4 Reader System Guide Command #453 enables the translation of tags in AAR and ATA formats. Specific data fields, such as owner ID and car number, will be extracted from these tags, translated according to AAR or ATA standards, and converted to ASCII. Tags that are not programmed in AAR or ATA format will be directly converted to ASCII.
Page 171: Disable Second Alternate Group Select (Factory Default)
Commands 458 Disable Second Alternate Group Select (Factory Default) Command #458 is a default set in the factory to disable the second alternate group select function. Reader response: Done 459 Enable Second Alternate Group Select Command #459 enables the second alternate group select function that allows the reader to distinguish tags meeting specific criteria pre-programmed into the tags.
Page 172: Nn Set Wiegand Retransmit Interval
Encompass 4 Reader System Guide 46NN Set Wiegand Retransmit Interval Command #46NN sets the time delay to control the reader retransmission of Wiegand data of a tag remaining in the read zone where NN is a hexadecimal code from 01 to Note: The actual value of the Wiegand retransmit interval may vary depending on the operative tag read mode and the type of tag in the read field.
Page 173: Enable Eata
Commands Command #488 disables the reader from reading factory-programmed eATA data from tags. 489 Enable eATA Command #489 enables the reader to read factory-programmed eATA data from eGo Plus or eGo tags. This option must be enabled to obtain Wiegand data from eGo Plus or eGo tags.
Page 174: Enable Fifth Alternate Group Select
Encompass 4 Reader System Guide Command #494 is a default set in the factory to disable the fifth alternate group select function. Reader response: Done 495 Enable Fifth Alternate Group Select Command #495 enables the fifth alternate group select function that allows the reader to distinguish tags meeting specific criteria pre-programmed into the tags.
Page 175: Display Hardware Configuration Information
Reader message: PWRB P<0 to 1>R0 where No power failure detected Power failure detected Not applicable to Encompass 4 Reader 521 Display Reader ID Number Command #521 displays the reader ID that is sent in the auxiliary data field. Reader message:...
Page 176: Display Communications Port Parameters
Encompass 4 Reader System Guide where xx = 01 to FF (hexadecimal) 522 Display Communications Port Parameters Command #522 displays the selected communications port parameters, including the baud rate (#100N), the number of stop bits (#101N), the parity scheme (#102N), and the end-of-line delay.
Page 177: Display Communications Protocol Status
Reader message: IDAP T<0> D<0> X<0 to 1> where Time not appended Time appended (not valid for the Encompass 4 Reader) Date not appended Date appended (not valid for the Encompass 4 Reader) Auxiliary information not appended (factory default) Auxiliary information appended One space is required between each value.
Page 178: Display I/O Status
Encompass 4 Reader System Guide For example, if factory default settings are assigned, the reader message is: ECPS P0 TFE X1 S0 which means basic protocol enabled, an ECP timeout of 254 (12,700 ms, 12.7 sec), software flow control enabled, and start of message character is #.
Page 179: Table 7-8 Open/Closed Conditions For Output Status
Commands 24 ms output pulse duration 32 ms output pulse duration 40 ms output pulse duration 48 ms output pulse duration 60 ms output pulse duration 76 ms output pulse duration 152 ms output pulse duration 228 ms output pulse duration (factory default) 300 ms output pulse duration 376 ms output pulse duration 752 ms output pulse duration...
Page 180: Display Rf Status
Encompass 4 Reader System Guide displays for readers in IAG applications. Table 7-9 Open/Closed Conditions for Output Status (IAG Applications) Output0 Wire Pair Output1 Wire Pair Output Orange White Status Jumper to Jumper to Brown/Black Green/Black Black of Black of...
Page 181: Display Presence Input Status
Commands RF controlled by host RF controlled by presence sensor on input0, the red/green pair (factory default) RF off RF on Uniqueness timeout of two minutes Uniqueness timeout of 15 seconds Uniqueness timeout of 30 seconds RF output frequency, xxx = 000 to 118 hexadecimal offset in 250 Fxxx kHz from 860 MHz.
Page 182 Encompass 4 Reader System Guide Select RF Control Algorithm). If presence without tag reports is enabled (#6901 Enable Presence without Tag Reports), the reader transmits a report if a presence is detected without the subsequent acquisition of a valid tag.
Page 183: Display Rf0 Filter Status
Commands 752 ms RF timeout infinite, never expires (factory default) input inversion disabled (factory default) input inversion enabled For example, if factory default settings are assigned, the reader message is PRST P0 D0 A2 TF I0 which means that presence without tag reports is disabled, minimum presence true period is 0, RF off control on timeout or presence false, infinite RF timeout, and input inversion disabled.
Page 184: Display Wiegand Mode Status
Encompass 4 Reader System Guide 532 Display Wiegand Mode Status Command #532 displays the Wiegand mode status as either enabled or disabled. Reader message: TOF <0 to 1> where Wiegand mode disabled Wiegand mode enabled 533 Display Wiegand Retransmit Interval Command #533 displays the Wiegand retransmit interval.
Page 185: Display Flash Checksum
540 Display Flash Checksum Command #540 displays the flash memory checksum. Reader message: PCKS I0000 Exxxx where Not applicable to the Encompass 4 Reader 0000 Represents the four-byte ASCII representation of the flash xxxx memory checksum 543 Display Boot Checksum Command #543 displays the boot ROM checksum.
Page 186: Display Tag Protocols
Encompass 4 Reader System Guide SSTC E<0 to 1>M<0 to 3> where Input status change reports disabled (factory default) Input status change reports enabled Reporting disabled (factory default) Changes on input0 reported Changes on input1 reported Changes on either input reported...
Page 187: Reader Control Functions — Command Group 6
Commands viate interference issues in dense populations of Interagency Group (IAG) readers. The values are set with commands #648NN and #649NN. Reader Response: SYNC T<00 to FF> H<00 to 0A> Where T is the number of milliseconds (ms) before the reader sends a synchronization pulse to all other readers on the RS–485 bus and H is the number of milliseconds that the reader holds off starting IAG tag protocol once it receives the synchronization pulse.
Page 188: Enable Data Inquiry Protocol
Encompass 4 Reader System Guide LF is transmitted. If the host does not acknowledge the message within the specified interval, the reader times out and retransmits the message. The receive timeout is initiated upon receipt of the start-of-message character (#). If the end-of-message character (CR) is not received within the specified interval, the reader discards the partially received message and resets its receiver.
Page 189: Disable Echo Mode
CTS line is no longer asserted. It resumes transmission when this line is asserted again. Note: TransCore recommends that XON/XOFF flow control be disabled while using the ECP. 6170 Disable Echo Mode Command #6170 disables the reader’s echo of received host commands.
Page 190: Select Predefined Output Control (Factory Default)
Encompass 4 Reader System Guide Table 7-12 Output Control Commands (continued) Command Output Control Option 6203 Turn on both output ports Reader response: Done 621 Select Predefined Output Control (Factory Default) Command #621 configures the reader for predefined output mode. In this mode, both output lines –...
Page 191: Select Rf-By-Input Control (Factory Default)
Commands Command #6400 disables RF-by-input control command #641 Select RF-by-Input Control. Reader response: Done 641 Select RF-by-Input Control (Factory Default) Command #641 configures the reader for RF-by-input control. The reader automati- cally turns on RF when it detects a presence through sense0. The reader turns off RF according to the selected RF control algorithm (#692N Select RF Control Algorithm).
Page 192 Encompass 4 Reader System Guide Table 7-14 RF Frequency Commands (continued) Approved for Approved for Command RF Frequency (MHz) Use in the U.S. Use in the U.S. (ATA only) (modulated) 64201 902.5 64202 64203 903.5 64204 64205 904.5 64206 64207 905.5...
Page 193 Commands Table 7-14 RF Frequency Commands (continued) Approved for Approved for Command RF Frequency (MHz) Use in the U.S. Use in the U.S. (ATA only) (modulated) 6421C 6421D 916.5 6421E 6421F 917.5 64220 64221 918.5 64222 64223 919.5 64224 64225 920.5 64226 64227...
Page 194: Nn Select Ata Operating Range (Distance)
Encompass 4 Reader System Guide 643NN Select ATA Operating Range (Distance) Command #643NN selects the read range for ATA tags where NN is a hexadecimal value from 00 to 1F; the range increases with increasing NN value. The range can be adjusted for 32 discrete values where 00 is the shortest range and 1F is the longest range.
Page 195: Xx Set Iag Rf Attenuation
Commands range can be adjusted for 32 discrete values where 00 is the shortest range and 1F is the longest range. The default range value is 1F. Reader response: Done 646XX Set IAG RF Attenuation Command #646XX sets the IAG attenuation control for the output RF power where XX is a hexidecimal value from 00 to 0F.
Page 196: Nn Set Synchronization Output Delay Time
Encompass 4 Reader System Guide Table 7-16 Select RF Operating Frequency Commands (continued) Command RF Frequency (MHz) 6470EA 918.50 6470EB 918.75 6470EC 919.00 6470ED 919.25 6470EE 919.50 6470EF 919.75 657113 928.75 647114 929.00 647115 929.25 647116 929.50 647117 929.75 647118 930.00...
Page 197: Nn Set Synchronization Hold Off Time
#64901 and #6490A entered for the feature to work. As with the #648NN command, the reader’s physical location on the bus is not critical, but TransCore rec- ommends that the reader numbering follow a logical sequence. Using this command,...
Page 198: Reset Power Fail Bit
Encompass 4 Reader System Guide more than 1 reader on the bus can have the same value, but TransCore recommends using all 10 slots before reusing them. Command #582 displays the Synchronization Hold Off Time. Table 7-17 lists an example of a plaza having five Encompass 4 Readers in lanes where multiple readers identifying the same tag would present a system problem.
Page 199: Table 7-18 Output Pulse Duration Commands
Commands Command #67N sets the output pulse duration for the command #621 Predefined Output Control. This command specifies the length of time that output line(s) will be asserted upon receipt of a valid and unique tag ID. The factory default setting is 228 ms.
Page 200: N Select Presence Without Tag Report Option
Encompass 4 Reader System Guide 690N Select Presence Without Tag Report Option Command #690N enables or disables the presence without tag report option. If the presence without tag reporting option is enabled using command #6901, input reports are transmitted when a tag presence is detected without the subsequent acqui- sition of a valid tag.
Page 201: N Select Rf Control Algorithm
Commands Table 7-19 Presence Without Tag Report Commands Command Report Option 6900 Disable presence without tag reports (factory default) 6901 Enable presence without tag reports Reader response: Done Refer to “Basic Protocol and ECP Format” on page 6-5 for message format informa- tion.
Page 202: N Select Input Inversion Option
Encompass 4 Reader System Guide rithm may be used in Wiegand mode to ensure that the tag data is transmitted once and only once per presence on both serial and Wiegand ports. Uppercase or lowercase characters are allowed for N; for example, hex digits A through F or a through f.
Page 203: S...s Set Serial Number
Commands presence with an open circuit. In this instance, command #6941 can enable input inversion so that an open circuit input indicates a presence. The values for N represent the two inversion options as shown in Table 7-22. Table 7-22 Input Inversion Options Command Option 6940...
Page 204 Encompass 4 Reader System Guide Reader response: Done 7-48...
Page 205: Set User-Programmable Group Select Equals (Gse) Filter
Commands 697 Set User-Programmable Group Select Equals (GSE) Filter Command #697 assigns the user-programmable GSE filter. The command string is assigned according to the following format: 697 MM AA DDDDDDDDDDDDDDDD where MM = The tag uses this mask to determine which of the eight Comparison Data bytes are to be compared for the Group Select filter.
Page 206: Auxiliary Reader Control — Command Group 8
Encompass 4 Reader System Guide Auxiliary Reader Control — Command Group 8 Group 8 commands provide control of reader functions, such as the sense input lines. 82N Select Input Status Change Report Option Command #82N selects the input lines to be monitored to report any change in input status.
Page 207 Configuring the Encompass 4 Reader...
Page 208 Encompass 4 Reader System Guide...
Page 209: Configuring The Reader
Terminal settings should be initially set at 9600 baud, 8 data bits, no parity, 1 stop bit, and no flow control. General Configuration Labeling Each Encompass 4 Reader and its shipping carton are labeled to indicate the unit’s general configuration. Table 8-1 contains explanations of the Encompass 4 Reader label fields.
Page 210: Default Operating Parameter Settings
Note: The dual-protocol Encompass 4 Reader internal timing varies depending on the operative tag read mode and the type of tag in the read field. Table 8-2 Encompass 4 Reader Default Configuration Settings...
Page 211: Configuring Parameters With Terminal Emulation Software
Local laws apply. The authorized frequency band for the TransCore Encompass 4 Reader in the United States is 911.75 MHz to 919.75 MHz. Contact TransCore if your application requires a frequency outside of this range. Configuring Parameters with Terminal Emulation Software...
Page 212: Starting The Terminal Emulation Software
Encompass 4 Reader System Guide section “Connecting the Encompass 4 Reader to the PC” on page 4-29. Then, enter the appropriate configuration commands through the terminal emulation software on your Chapter 7, ”Commands” for a detailed description of all available configuration commands.
Page 213: Figure 8-2 Phone Number Dialog Box
Configuring the Encompass 4 Reader Figure 8-2 Phone Number Dialog Box From the Connect using pull-down list, choose the Com 1 option (or whichever com port on the PC to which the RS-232 cable is attached) and click OK. The application displays the COM1 Properties dialog box as shown in ...
Page 214: Verifying Communications
Figure 8-4. Figure 8-4 Hyper Terminal Main Screen Verifying Communications You must verify that the Encompass 4 Reader and the PC or laptop are communicat- ing. To verify communications Start the terminal emulation application as described previously in “Starting the Terminal Emulation Software”...
Page 215: Figure 8-5 Sign-On Message
Configuring the Encompass 4 Reader puter to which the Encompass 4 Reader will be connected after testing and configura- tion are completed. Cycle the power on the Encompass 4 Reader. Upon startup, the Encompass 4 Reader transmits a sign-on message, displayed on...
Page 216: Verifying Tag Read Capability
“Serial Port Communications” on page 8-18. Repeat the procedures in “Verifying Communications” on page 8-8. If you still cannot verify the Encompass 4 Reader and PC communications, use the information in “Technical Support” on page 9-7 to contact TransCore. Verifying Tag Read Capability After verifying communications between the Encompass 4 Reader and the PC, verify the capability to read tags.
Page 217: Figure 8-6 Successful Tag Read
• • #6401 • • Pass one test tag in front of the unit. If the Encompass 4 Reader reads the tag, the terminal emulation application displays the tag information on the screen as shown in Figure 8-6. Successful Tag Read...
Page 218: Configuring Encompass 4 Parameters
Encompass 4 Reader and the host computer. Configuring Encompass 4 Parameters Follow the procedures in this section to configure Encompass 4 parameters using a PC, laptop, or terminal emulator. The PC or laptop must be connected to and commu-...
Page 219: Appended Tag Data
IDs. Press ENTER. Reports The Encompass 4 Reader can be configured to transmit presence without tag reports and input status change reports. A presence without tag report is transmitted in data mode only, and only if the system has a presence detector. This report is sent if a pres- ence is detected without the detection of a valid tag ID.
Page 220: Reset Reader
Encompass 4 Reader System Guide in data mode only. Input status change reporting is disabled by default. See sections “560 Request Sensor Status Change” on page 7-29 “82N Select Input Status Change Report Option” on page 7-50. Also refer to Chapter 6, ”Communications Pro-...
Page 221: Radio Frequency
Encompass 4 Reader in the U.S. is 911.75 to 919.75 MHz. The RF for each Encompass 4 Reader at the site must be set according to the frequency specified in the FCC site license. Only trained, authorized installa- tion and maintenance personnel are permitted by FCC to set the RF.
Page 222: Vehicle Detector Controlling Rf Transmission
Figure 8-8 Encompass 4 Reader RF Control Options Vehicle Detector Controlling RF Transmission The vehicle detector can be a loop detector, an infrared sensor, or an ultrasonic detec- tor that is connected to sense input0 to turn on the Encompass 4 Reader RF transmit- ter. In Figure 8-8, Option A shows a vehicle detector controlling the RF transmitter.
Page 223: Sense Inputs
#621 Predefined Output Con- trol. The devices are not asserted when tags are acquired in the transmit all or buffer all ID mode or when the Encompass 4 Reader is operating in Wiegand mode. The sense output pulse duration is variable (command #67N).
Page 224: Serial Port Communications
The host must issue command #621 Predefined Output Mode to return to the pre- defined mode. Serial Port Communications The Encompass 4 Reader supports one communications port, which can be ordered as – – –...
Page 225: Communications Protocol
(#6140 Disable Flow Control). Note: TransCore recommends that XON/XOFF flow control be disabled while using the error correcting protocol. Use the following procedure to set flow control parameters using the terminal emula- tion program.
Page 226: Physically Orienting The Encompass 4 Reader
Final adjustments must be made with tags properly mounted on a variety of vehicles. Physically Orienting the Encompass 4 Reader You can manually adjust the location of the read zone by loosening the Encompass 4 Reader mounting brackets and pointing the reader in the desired direction. The unit should be aligned to point directly at the tag as it enters the desired read zone.
Page 227: Fine-Tuning The Read Zone By Adjusting Sensitivity Range
Ensure that the Encompass 4 Reader is in data mode. With the Encompass 4 Reader running, place one tag behind your back while you hold another tag in the new read zone. If a valid read, the data from the tag held in the read zone displays on the PC screen.
Page 228 Ensure that the Encompass 4 Reader is in data mode. With the Encompass 4 Reader running, place one tag behind your back while you hold another tag in the new read zone. If a valid read, the data from the tag held in the read zone displays on the PC screen.
Page 229 Troubleshooting and Maintenance...
Page 230 Encompass 4 Reader System Guide...
Page 231: Error Messages
TransCore. Error Messages The Encompass 4 Reader transmits an error message if a command received from the host is not a recognized command or if information supplied with the command is not correct. The reader sends this message to diagnostic commands if the reader fails the specified test.
Page 232: Troubleshooting
Troubleshooting You can use the following table for troubleshooting. Should problems continue, con- tact TransCore for return and replacement procedures. If you contact Technical Sup- port, use the symptom number in Table 9-2 to reference the problem that you are having with the Encompass 4 Reader.
Page 233 The relay is actuated when a tag is in the read zone. comes from the Encompass 4 Reader. Nothing happens when the Ensure that the Encompass 4 Reader is powered on and is in test tag is passed in front of predefined output mode. (#621) the Encompass 4 Reader or Verify that the reader is set to RF ON (#6401).
Page 234 422 mode. Refer the Wiegand interface. “Wiegand Interface” on page 4-33. Ensure the tags are properly programmed with Wiegand data. Use this number to reference the problem you are having with the Encompass 4 Reader if you contact Transcore for Technical Support.
Page 235: Encompass 4 Reader Repair
Send faxes to (214) 461-6445 ATTN: TransCore Marketing. Find a Problem with the Encompass 4 Reader or Have Suggestions? Call (214) 461-6443 and ask for the TransCore Encompass 4 Reader product manager. Send faxes to (214) 461-6445 ATTN: Encompass 4 Reader product manager.
Page 236 Encompass 4 Reader System Guide...
Page 237 Glossary...
Page 238 Encompass 4 Reader System Guide...
Page 239 Glossary Appendix A Glossary Association of American Railroads alternating current acknowledge (data valid) ANSI American National Standards Institute antenna passive device that converts RF energy into magnetic energy (RF signal) ASCII American Standard Code for Information Interchange ASIC application-specific integrated circuit American Trucking Association auxiliary AWG (American Wire Gauge) is a U.S.
Page 240 ECPS error correcting protocol status proprietary name for ANS INCITS 256-2001 compliant TransCore tag products. A registered trademark of TCP IP, Ltd. eGo Plus proprietary name for ANS INCITS 256-2001 and ISO 18000-6B compliant TransCore tag products. Super eGo is a superset of the eGo protocol. A registered trademark of TCP IP, Ltd.
Page 241 16 numbering system that uses the characters 0 though 9 and A through F to resent the digits 0 through 16 host device, generally a computer, that is connected to the Encompass 4 Reader through the communications port I/O or IO circuits input/output circuits identification;...
Page 242 Encompass 4 Reader System Guide megahertz mode method of operation milliseconds negative acknowledgment (data not valid) NVRAM non-volatile memory. To save user parameter changes to NVRAM, you must send command #00 before powering down the reader. passback used to refer to a tag ID that is not passed on to the tag buffer...
Page 243 Glossary read-only memory real-time clock request-to-send SeGo Super eGo (SeGo) is a superset of the eGo protocol serial number start of message SSTC input status change reporting options small self-contained device acting as an identifying transponder timeout delay tag translation volts version (software) Wiegand...
Page 244 Encompass 4 Reader System Guide asynchronous serial connection. XON and XOFF are signals to turn a transmitter on or off. The actual signal for XON is the same bit configuration as the ASCII Ctrl-Q key- board combination (11 hexadecimal). The XOFF signal is the Ctrl-S character (13...
Page 245 Technical Specifications...
Page 246 Encompass 4 Reader System Guide...
Page 247: Technical Specifications
Technical Specifications Appendix B Technical Specifications Reader Specifications Communications Frequency Selection 860 to 930 MHz capable Reading Range Read performance varies depending on tag, reader, and external antenna (if required) config- uration and environment. Optimum read range ® using the eGo Plus Sticker Tag is 24.3 ft (7.4 Typical read range should be 12 to 17 ft (3.7 to 5.2 m).
Page 248: Environmental Parameters
58-1620-007: Connector with 45 ft (13.7 m) cable Wall Mount Bracket Allows adjustment in all planes when used to install the Encompass 4 Reader on a flat surface. Include the part number 54-1620-001 when ordering. Transformer A Class C transformer is available to allow 110V AC to 18V AC conversion.
Page 249 Wiring Tables...
Page 250 Encompass 4 Reader System Guide...
Page 251: Communications Interfaces
This appendix contains tables that show the wiring connections used to ® test and install the Encompass 4 Reader. Communications Interfaces Table C-1 lists the interfaces available with the Encompass 4 Reader. Table C-1 Communications Interfaces and Conductor Requirements Number of Interface Conductors –...
Page 252: Cable Supplied With The Encompass 4 Reader
C-1, supported pin assignments are boldface. Cable Supplied with the Encompass 4 Reader The Encompass 4 Reader is delivered with a multiwire cable (ordered as a separate accessory), which is a 13-pair pigtail. An alternate 15-pair pigtail may be substituted.
Page 253: Rs–232 Interface
– Table C-3 RS 232 Interface Signal Wiring for Alternate Wire Cable Alternate Wire Cable Connect Connect Signal from Wire to Wire to Encompass 4 Reader Host DB9 Host DB25 Pairing Color TxD — Encompass Black Pin 2 Pin 3...
Page 254: Rs–422 Interface
Encompass 4 Reader System Guide – Table C-3 RS 232 Interface Signal Wiring for Alternate Wire Cable (continued) Optional for hardware handshaking RTS — Encompass Black Pin 8 Pin 5 4 Reader output Pair 11 CTS — Encompass Pin 7...
Page 255: Wiegand Interface
Wiegand Interface Table C-6 shows the Wiegand assignments for colored-wire pair (13-pair) cable. Table C-6 Wiegand Interface Signal Wiring for Colored-Wire Pair Cable Colored-Wire Pair Cable Connect to Signal from Encompass 4 Wire Pair Signal from Reader from Host Color Used...
Page 256 Encompass 4 Reader System Guide Table C-8 AC Transformer Connections for Colored-Wire Pair Cable (continued) Main power input Brown/ L1 Orange 16-20V AC Brown/Red and Orange/Red Main power return Red/Red L2 16-20V AC...
Page 257: Low-Voltage Dc Power
Table C-10 Low Voltage DC Cable Connections for Colored-Wire Pair Cable Colored-Wire Pair Cable Signal from Wire Pair Encompass Connection Use from 4 Reader Color Used Encompass 4 Reader Main power input Brown and 16 to 28V DC + terminal Brown/Red Orange and Orange/Red...
Page 258: Input/Output Cabling Assignments
Encompass 4 Reader System Guide Input/Output Cabling Assignments Table C-12 shows the sense input/output assignments for colored-wire pair (13-pair) cable. Table C-12 Sense Input/Output Cabling Assignments for Colored-Wire Pair Cable Pair Color Signal Description Typical Function Blue/ Blue WGND0 Wiegand data0...
Page 259 (used with RS 232 and Wiegand communications) **Use this synchronization pin designation if installing an Encompass 4 Reader that reads IAG protocol tags. The part numbers for these readers are as follows: 10-4002-004; 10-4002-010; 10-4002-019; 10-4004-004; 10-4004-010; 10-4004-019; 10-4012-004; 10-4012-010; 10-4012-019; 10-4014-004; 10-4014-010; 10-4014-019...
Page 260: Table C-13 Sense Input/Output Cabling Assignments For Alternate Wire Cable
Encompass 4 Reader System Guide Table C-13 shows the sense input/output assignments for alternate wire (15-pair) cable. Table C-13 Sense Input/Output Cabling Assignments for Alternate Wire Cable Alternate Wire Cable Signal Description Typical Function Pairing Color Pair 10 Black WGND0...
Page 261 232 and Wiegand communications) **Use this synchronization pin designation if installing an Encompass 4 Reader that reads IAG protocol tags. The part numbers for these readers are as follows: 10-4002-004; 10-4002-010; 10-4002-019; 10-4004-004; 10-4004-010; 10-4004-019; 10-4012-004; 10-4012-010; 10-4012-019; 10-4014-004; 10-4014-010; 10-4014-019...
Page 262: Summary Table
Encompass 4 Reader System Guide Summary Table Table C-14 shows all assignments for both colored-wire pair (13-pair) and alternate wire (15-pair) cables. Table C-14 All Cabling Assignments for Colored-Wire Pair Cable or Alternate Wire Cable Colored-Wire Pair Alternate Wire Cable...
Page 263 (light, gate, buzzer, etc.) – Black Black Sync_485_N 485 bus Used to connect negative Encompass 4 Orange Pair 7 Readers with IAG /Black capability on a synchronization bus Orange Sense Sense output0, Switched sense Output0_NC...
Page 264 (used with RS and Wiegand communications) **Use this synchronization pin designation if installing an Encompass 4 Reader that reads IAG protocol tags. The part numbers for these readers are as follows: 10-4002-004; 10-4002-010; 10-4002-019; 10-4004-004; 10-4004-010; 10-4004-019; 10-4012-004; 10-4012-010; 10-4012-019; 10-4014-004; 10-4014-010; 10-4014-019...
Page 265 Command Quick Reference...
Page 266 Encompass 4 Reader System Guide...
Page 267: Table D-1 Encompass 4 Reader Default Configuration Settings
Table D-3 on page D-17 lists the same commands by command name. Factory Default Settings Note: Table D-1 lists the factory default settings for the Encompass 4 Reader. Table D-1 Encompass 4 Reader Default Configuration Settings Parameter Setting Command Operating mode...
Page 268 Encompass 4 Reader System Guide Table D-1 Encompass 4 Reader Default Configuration Settings (continued) Parameter Setting Command Uniqueness timeout 2 minutes Wiegand mode Disabled Tag translation mode Disabled Multi-tag sort Disabled eGo or eGo Plus Tag initialization Enabled during multi-tag sort...
Page 269: Table D-2 Encompass 4 Reader Commands Listed Numerically
Command Quick Reference Table D-1 Encompass 4 Reader Default Configuration Settings (continued) Parameter Setting Command RF timeout Never true 693F Input inversion Disabled 6940 Input status change reports Disabled Automatic periodic RF status Disabled report Numerical Command List The following conventions are used in...
Page 270 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Set time Done Set date Done Display time and date Time and date No time and date appended Done Time and date appended...
Page 271 Command Quick Reference Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Enable multi-tag sort Done Enable eGo or eGo Plus Tag Done initialization during multi-tag sort Disable eGo or eGo Plus Tag Done initialization during multi-tag sort...
Page 272 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Enable third alternate group Done select Disable fourth alternate group Done select Enable fourth alternate group Done select Disable fifth alternate group...
Page 273 Command Quick Reference Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message MAIN Bx Sx Px D0  Display comm port parameters B2 = 1200 B3 = 2400 B4 = 4800 B5 = 9600 B6 = 19.2...
Page 274 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Display I/O status IOST Cx Ox Ix Dx C0 = host controls outputs C1 = predefined output mode O0 = both outputs off...
Page 275 Command Quick Reference Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Display RF status RFST Cx Ox Tx Fxxx Rxx Gxx Axx Ixx C0 = RF controlled by host C1 = RF-by-presence sensor O0 = RF off...
Page 276 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message Display presence input status PRST Px D0 Ax Tx Ix P0 = disable presence w/o tag reports P1 = enable presence w/o tag reports...
Page 277 Command Quick Reference Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message  Display tag translation mode TT <0 to 1> status 0 = tag translation mode disabled 1 = tag translation mode enabled Display echo status ECHO x...
Page 278 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message 612NN Set ECP timeout Done NN = 01–FE (1–255) timeout = 50 ms * NN (if NN = FF, timeout is disabled) 612FE Set ECP timeout = 12.7 sec...
Page 279 Command Quick Reference Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message 645NN Set eGo or eGo Plus operating Done range NN = 00 (shortest) to 1F (longest) 6451F Set eGo or eGo Plus operating...
Page 280 Encompass 4 Reader System Guide Table D-2 Encompass 4 Reader Commands Listed Numerically (continued) Number Command Name Reader Message 693N Set RF timeout N = 0–F Done (always expired, 4,8,12,20,24, 32,48,60,92,152, 300,452, 600,752, infinite) 693F Set RF timeout to infinite...
Page 281: Table D-3 Encompass 4 Reader Commands Listed Alphabetically
Only the command-related data portion of the reader message is shown. Refer to Chapter 7, “Commands for the complete syntax of commands and messages. Table D-3 Encompass 4 Reader Commands Listed Alphabetically Command Name Code Reader Message All IDs transmit...
Page 282 Encompass 4 Reader System Guide Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message ATA operating range set 643NN Done NN = 00 (shortest) to 1F (longest) ATA operating range set to 6431F Done longest range...
Page 283 Command Quick Reference Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message ECPS Px Txx Xx S0  Comm protocol display P0 = basic P1 = ECP P2 = data inquiry Txx = ECP timeout...
Page 284 Encompass 4 Reader System Guide Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message eGo Plus operating range set 645NN Done NN = 00 (shortest) to 1F (longest) eGo or eGo Plus operating 6451F Done...
Page 285 Command Quick Reference Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message I/O status display IOST Cx Ox Ix Dx C0 = host controls outputs C1 = predefined output mode O0 = both outputs off...
Page 286 Encompass 4 Reader System Guide Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message Input0 change report Done Input1 change report Done Input status change reports Done disable Multi-tag sort disable Done Multi-tag sort enable...
Page 287 Command Quick Reference Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message Presence input status display PRST Px D0 Ax Tx Ix P0 = disable presence w/o tag reports P1 = enable presence w/o tag reports...
Page 288 Encompass 4 Reader System Guide Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message Set RF attenuation to 0 dB (full 64400 Done power) RF off on timeout 6920 Done RF off on timeout/no presence...
Page 289 Command Quick Reference Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message RF timeout set N = 0 to F 693N Done (always expired, 4,8,12,20,24,32, 48,60,92,152,300,452,600,752 ms, infinite) RF timeout set to infinite 693F Done RF transceiver FPGA version RF FPGA VER = XX.XX...
Page 290 Encompass 4 Reader System Guide Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message Synchronization output delay 64800 Done time disable Synchronization output delay time 648NN Done set NN = 01 to FF, where 01 = 1 ms and FF = 255 ms.
Page 291 Command Quick Reference Table D-3 Encompass 4 Reader Commands Listed Alphabetically (continued) Command Name Code Reader Message User-programmable group se- Done lect equals (GSE) filter set MM AA DDDDDDDDDDDDDDDD where MM = determines which of the eight comparison data bytes are...
Page 292 Encompass 4 Reader System Guide D-28...
Page 293 Compatible Tag Information...
Page 294 Encompass 4 Reader System Guide...
Page 295: Table E-1 Sego Protocol Tags
26 to 54 multi-layer registration Beam lamination, (EVR), parking, tamper security access detection eGo Plus Water- License Plate resistant, 26 to 54 exterior- mounted a. These fields apply to eATA-programmed tags only. Contact TransCore for information regarding tags programmed with these features.
Page 296: Table E-2 Ego Protocol Tags
Water- License Plate resistant, 26 to 54 exterior- mounted Table E-3 lists most ATA tag models that are compatible with the Encompass 4 Reader. Table E-3 ATA Protocol Tags Number Number of Tag Model Power of 6-Bit Number of...
Page 297 Compatible Tag Information Table E-3 ATA Protocol Tags (continued) Number Number of Tag Model Power of 6-Bit Number of Special TagType 128-Bit Number Source ASCII Wiegand Bits Features Frames Characters AT5110 Trans- Beam 915 MHz portation frequency, metal external install AT5112 Access Beam...
Page 298: Tag Data Formats
34 seven-bit ASCII characters. Tag Data Formats Tags are programmed at the TransCore factory with the tag model number, date of manufacture, and data format. Contact TransCore for special order entry procedures for the format that applies to your system. The following four tag data formats can be used: •...
Page 299 Compatible Tag Information • AAR/ISO — For requirements for this format, refer to ISO 10374 and the most recent version of Association of American Railroads Standard for Automatic Equipment Identification.
Page 300 Encompass 4 Reader System Guide...
Page 301 See audible circuit tester AA3100 Yagi AA3101 Yagi cable AA3110 Parapanel length AA3140 PCB Log Periodic power and communications AA3152 Universal Toll Antenna power extension AA3153 Toll Antenna cable length AC power cabling accessory kits ACK/NAK response center island alignment coaxial cable performance antenna and tag COM 1 properties dialog box...
Page 302 DC power communications port parameters Encompass 4 Reader to the PC communications protocol status power supply DSP board Actel version reader to PC echo status RS–232 interface flash checksum RS–422 interface...
Page 303 Wiegand mode input/output circuits Encompass 4 input/output module Encompass 4 Reader installation procedures back of blind rivets description eGo Plus LPT end-of-line delay eGo Plus Security Sticker Tag...
Page 304 Encompass 4 Reader System Guide procedures output pulse duration optional accessories output status required materials wall or ceiling installing tags parameters alternate mounting locations configuring installation procedures default operating eGo Plus Security Sticker Tag operating eGo Plus Sticker Tag parity...
Page 305 reader mode control commands eGo/eGo Plus operating range – reader status commands error correcting protocol – real-time clock commands error correcting protocol timeout receive timeout flow control option removing eGo Plus Security Sticker Tag input inversion option removing tags input status change report option eGo Plus Sticker Tag parity eGo Windshield Sticker Tag...
Page 306 Encompass 4 Reader System Guide choosing, installing, and removing timing and synchronization compatible traffic flow compatible types transmission formats, installing transmission timeout alternate mounting locations transmit all ID codes – required materials troubleshooting remedies ATA interior tags symptoms required materials...
