Patterson-Kelley P-K MACH CM300 Installation & Owner's Manual

Gas fired boiler
Table of Contents

Advertisement

P-K MACH
Model Number:
Serial Number:
Start-Up Date: ___________________________
Patterson-Kelley
155 Burson Street
East Stroudsburg, PA 18301
Telephone: 570.476.7261
Toll Free: 877.728.5351
Fax: 570.476.7247
www.pattersonkelley.com
The information in this manual is the property of Patterson-Kelley. The descriptions and specifications contained in this manual were in effect at the time
this manual was approved for publication. While Patterson-Kelley will continue to support earlier model boilers to within a reasonable time limit, we
reserve the right to discontinue models and replacement parts at any time or change specifications or design without notice and without incurring any

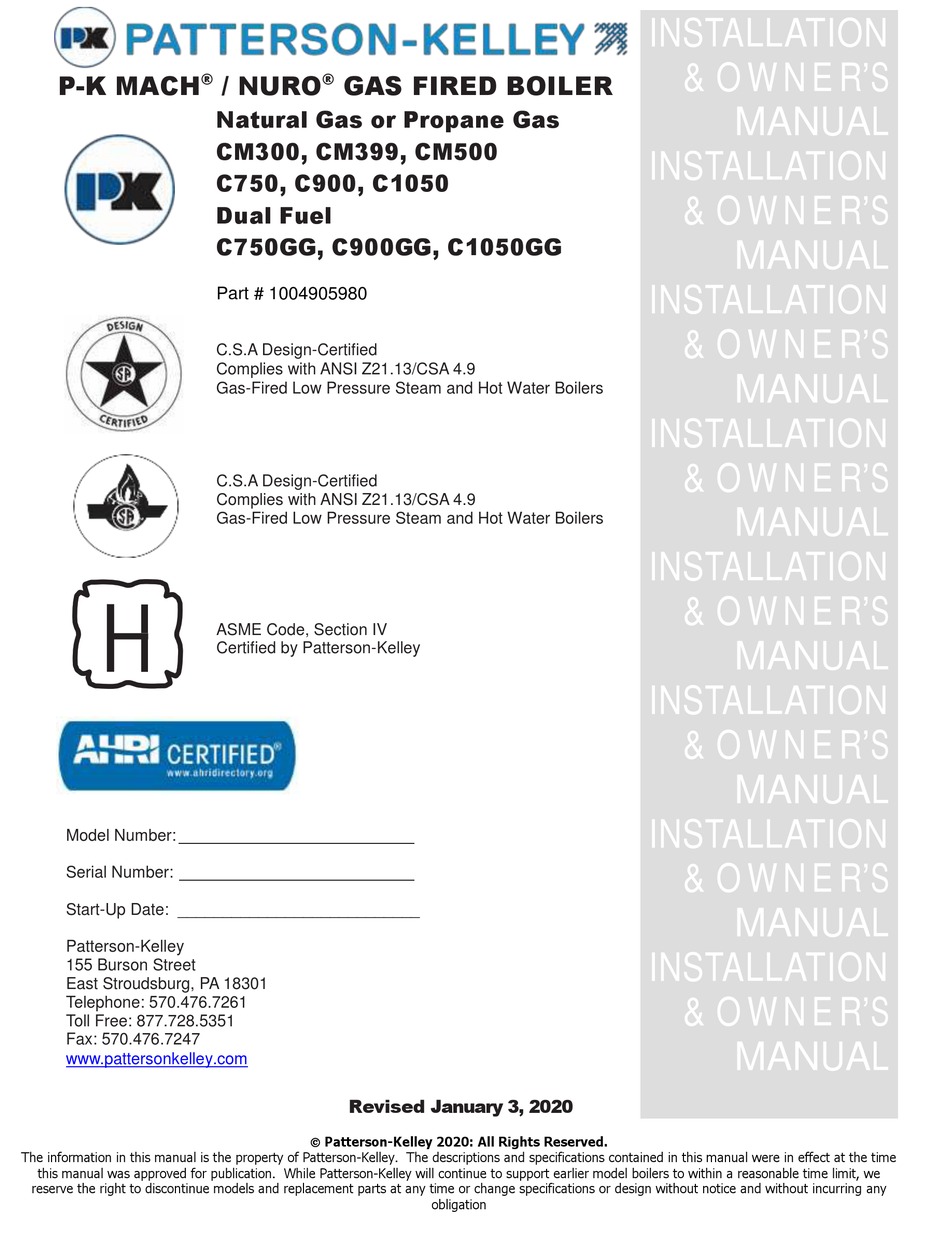

/ NURO
GAS FIRED BOILER
®
®
Natural Gas or Propane Gas
CM300, CM399, CM500
C750, C900, C1050
Dual Fuel
C750GG, C900GG, C1050GG
Part # 1004905980
C.S.A Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water Boilers
C.S.A Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water Boilers
ASME Code, Section IV
Certified by Patterson-Kelley
Revised January 3, 2020
 Patterson-Kelley 2020: All Rights Reserved.
obligation
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
INSTALLATION
& O W N E R'S
MANUAL
&

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-K MACH CM300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Patterson-Kelley P-K MACH CM300

  • Page 1  Patterson-Kelley 2020: All Rights Reserved. The information in this manual is the property of Patterson-Kelley. The descriptions and specifications contained in this manual were in effect at the time this manual was approved for publication. While Patterson-Kelley will continue to support earlier model boilers to within a reasonable time limit, we reserve the right to discontinue models and replacement parts at any time or change specifications or design without notice and without incurring any &...
  • Page 2 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351...
  • Page 3 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Safety & General OTICE Each safety device must be ® P-K MACH CM300, CM399, CM500, C750, C900, C1050 maintained and checked per the ® All P-K MACH CM300, CM399, CM500, C750, C900 and C1050 recommended schedule.
  • Page 4 If any of the provisions of this manual are not fully and completely understood, contact Patterson-Kelley Technical Service at 570.476.7261 or toll free at 877.728.5351. Hazard Warnings...
  • Page 5 CPVC, or other corrosion resistant piping for drainage. Collection and disposal must be in accordance with all applicable regulations. A condensate neutralization kit is available. Please contact your local Patterson-Kelley representative for more information. Burn, Fire and Explosion Hazards Burn, fire, and explosion hazards! Installation must be in strict conformance to all applicable codes and standards including NFPA 54, ANSI Z223.1 and CAN/CSA B.149.
  • Page 6: Table Of Contents

    3.5.13 Stainless Steel Venting ........................35 3.5.14 CPVC Vent System Installation ..................... 35  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page v...
  • Page 7 Weekly Preventative Maintenance..................... 60 6.1.3 Monthly Preventative Maintenance ....................61 6.1.4 Semi-Annually ............................ 61  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page vi...
  • Page 8 APPENDIX D - BEST PRACTICES FOR NEW & RETROFIT SYSTEMS ........... 97 APPENDIX E – INSTALLATION AND QUICK REFERENCE ............. 99  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 9: Introduction

    If you have any questions on the information contained within, Immediately call your gas or do not fully and completely understand the content, please supplier from a neighbor’s contact Patterson-Kelley Technical Service at 570.476.7261 or phone. Follow the gas toll free at 877.728.5351. supplier’s instructions.
  • Page 10: Purpose Of This Document

    If you have any questions on the information contained within, or do not fully and completely understand the content, please contact Patterson-Kelley Technical Service at 570.476.7261 or toll free at 877.728.5351.
  • Page 11: Site Preparation

    Insufficient clearance can restrict the service access, increasing the possibility of injury.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 3...
  • Page 12: Compliance With Codes

    (b) field installed gas cocks must be “T” handle type, (c) piping of condensate shall conform to the State Plumbing Code, and (d) refer to the Massachusetts Supplement for further details  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 13: Location Setup

    The boiler must be level within 0.25° in order to function properly. Failure to heed this warning could result in personal injury or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 14: Clearances (Cm300-Cm399-Cm500)

    ** Right-Side service access (“E” Dimension”) is needed to view the boiler’s runout/safety labels, as well as viewing the combustion flame.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 15: Clearances (C750-C900-C1050)

    * CSA minimum. Actual clearance depends upon venting requirements. **The critical service access for the MACH C750-C900-C1050 is on the left side (when viewed from the front). Patterson-Kelley recommends equal clearance between each boiler when there is insufficient access at the rear to allow for service and adjustment.
  • Page 16: Inlet Air And Exhaust Venting Considerations

    This may cause property damage, injury, or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 8...
  • Page 17: Category Ii/Iv Flue Gas Exhaust Vent Planning

    (Exhaust Only) 210 °F (gross) 9.0% 10.4% C750, C900, C1050 +0.01” to +0.4” W.C.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 9...
  • Page 18: Venting Materials For Flue/Exhaust Systems

    1738 or ULC-S636 (depending on the local requirements). Consult the local boiler codes for more information. * CPVC must be Schedule 80  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 10...
  • Page 19: Required Clearances

     Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 11...
  • Page 20 The connector should include an appropriate drain section (not provided).  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 21: Gas Piping Considerations

    The P-K MACH proper water conditions to remain efficient and function properly. For more information, please refer to Patterson-Kelley’s Water Quality Standards for Hydronic Boilers in Multi-Metal Systems in Appendix C – Water Quality Standards for Hydronic Boilers in Multi-Metal Systems as this applies to the warranty of the heat exchanger.
  • Page 22: Appliance Connections (Cm300-Cm399-Cm500)

    P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 3.2.1 Appliance Connections (CM300-CM399-CM500) All water connections should be in compliance with national, state and local code requirements. Adapters from Victaulic to NPT are available from Patterson-Kelley. 4” Exhaust Vent 5” Combustion...
  • Page 23: Appliance Connections (C750-C900-C1050)

    Gas Fired Boiler Technical Service 1.877.728.5351 3.2.2 Appliance Connections (C750-C900-C1050) All water connections should be in compliance with national, state and local code requirements. Adapters from Victaulic to NPT are available from Patterson-Kelley. Pressure Relief Valve Port 2” Victaulic ®...
  • Page 24: Electrical Connections

    CM300, CM399 & CM500 boilers require less than 5 Amps at full load. Patterson-Kelley recommends a minimum circuit capacity of 10 amperes dedicated for the boiler. An external electrical disconnect and overload protection (not supplied with the boiler) are required.
  • Page 25: Power Requirements (C750-C900-C1050)

    C750, C900 & C1050 boilers require less than 6 Amps at full load. Patterson-Kelley recommends a minimum circuit capacity of 10 amperes dedicated for the boiler. An external electrical disconnect and overload protection (not supplied with the boiler) are required.
  • Page 26: High Voltage (Tb2) Terminal Block

    This ground terminal is connected to the TB2 sheet metal and is not common with the boiler’s electrical service ground.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 27: Low Voltage (Tb1) Terminal Block

    2-wire 12kΩ NTC thermistor and should be installed on the North face of  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 28 North face of the building and shielded from direct sunlight exposure.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 29: Combustion Air

    3. Motorized louvers shall be interlocked with the appliance so that they are proven open prior to main burner ignition and operation.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 30: Air Inlet Requirements - Canada

    Paragraphs A through E do not apply. Canadian Minimum Area of Combustion and Ventilation Air Openings  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 31: P-K Mach ® Combustion Air Requirements

    For example, joints in PVC or CPVC piping must be cemented. For galvanized duct, wrap each joint and seam with adhesive aluminum tape or other sealant. Patterson-Kelley recommends installing a 1” x 1” or larger bird screen on the exterior termination. Ensure that the screen does not become blocked with snow, ice, insects etc.
  • Page 32: Motorized Combustion Air Dampers

    If the combustion air intake ductwork and the exhaust vent terminate on the same wall of NOTE: the building, they must utilize the same type of termination fitting. Patterson-Kelley recommends including a motorized combustion air damper in each NOTE: appliance’s air intake ductwork. Refer to Section 3.4.5...
  • Page 33  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 25...
  • Page 34: Flue Gas / Exhaust Venting

    Vertical vents are allowed to be terminated with a variety of ends, including plain straight pipe, elbow or vent tee. Horizontal vents must be terminated with an elbow or vent tee. Similarly, a bird screen with 1” x 1” openings is recommended for termination. Patterson-Kelley does not recommend using a vent rain cap of any type.
  • Page 35: Vent Termination

    This is illustrated in the diagram below. Additionally, the boiler vent shall terminate at least 3 ft. above a forced air inlet located within 10 ft.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 36: Cm300-Cm399-Cm500 Through-The-Roof Venting Configurations

    Note: Refer to Section 3.7.7 for information on condensate piping from boiler & exhaust vent piping.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 28...
  • Page 37: Cm300-Cm399-Cm500 Through-The-Wall Venting Configurations

    Note: Refer to Section 3.7.7 for information on condensate piping from boiler & exhaust vent piping.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 29...
  • Page 38: C750-C900-C1050 (All Models) Through-The-Roof Venting Configurations

    Note: Refer to Section 3.7.7 for information on condensate piping from boiler & exhaust vent piping.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 30...
  • Page 39: C750-C900-C1050 Through-The-Wall Venting Configurations

    Note: Refer to Section 3.7.7 for information on condensate piping from boiler & exhaust vent piping.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 31...
  • Page 40: C750T-C900T-C1050T Through-The-Wall Venting Configurations

    COMBUSTION AIR CONFIGURATIONS: • Horizontal Tee • Vertical Tee • Upward/Downward Elbow • Birdscreen  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 32...
  • Page 41: Venting For Multiple Boilers

    For combined breeching installations, please follow recommendations of a qualified venting engineer/manufacturer. Patterson-Kelley recommends that common venting systems be designed for a maximum continuous exhaust pressure of -0.04” W.C. when measured in the common vent. Locking inline dampers are recommended on the exhaust connection of each individual appliance in order to control the exhaust back pressure within the appliance and upstream of this damper.
  • Page 42: Category Ii Installations

    Harmful flue gases may leak into the room which can cause serious injury or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 43: Stainless Steel Venting

    Three feet of venting closest to the boiler must not be 5-1/2 enclosed • 6-1/2 The vent shall not be insulated  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 35...
  • Page 44: Removing An Existing Boiler

    Gas Code, ANSI Z223.1/NFPA 54 and/or CAN/CSA B149.1 Natural Gas and Propane Installation Code.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 36...
  • Page 45: Piping And External Connections

    Propane Gas Requirement Appliance Size (BTU/Hr) (CFH) (CFH) 300,000 399,000 500,000 750,000 900,000 1,050,000 1050  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 37...
  • Page 46: Natural Gas Piping

    If using soap and water or a similar leak test method, make sure to clean off all moisture from the gas pipe fittings prior to placing the appliance into service.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 47: Boiler Water Piping

    Adapters from Victaulic ® the EPDM Victaulic seals. NPT are available from Patterson-Kelley. All water piping must Isolating valves must be installed be installed such that no stresses are transmitted to the boiler. in both the inlet and outlet water The boiler shall not be used as a pipe anchor.
  • Page 48 The condensate is acidic (pH between 3.0 and 5.0) and may be corrosive to some building drain systems. A condensate neutralization system may be required and is available from Patterson-Kelley. If the condensate drainage system is exposed to freezing temperatures, it must be field heat traced. The boiler could generate up to one gallon of condensate per 100,000 BTU/Hr (see table below).
  • Page 49: Water Quality

    Verify system water quality is within specifications.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 41...
  • Page 50: Safety Checks

     Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 51: Gas Pressure Switch Tests

    Make sure to re-open the downstream gas cock (inside the boiler) after a successful test.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 52: Fuel/Air Adjustments

    Adjustments shall only be performed by service representatives specifically trained and certified to perform maintenance on the Patterson-Kelley MACH boiler. Verify proper operation after servicing. See rating plate for the minimum and maximum inlet gas pressure of the boiler. The supply pressure during main burner operation must be greater than the minimum indicated on the rating plate.
  • Page 53: Combustion Setup And Adjustment (Cm300-Cm399-Cm500)

    (or anywhere in-between). To prevent the boiler from cycling off prematurely during adjustment, ensure that any load devices (air handlers, control valves, radiators, etc.) are in operation and able to shed/dump the heat load created by the boiler. Recommended Combustion Settings for P-K MACH CM300-CM399-CM500 Boilers Nominal High Fire Setting...
  • Page 54 Following all gas valve adjustments, check for proper light-off and verify correct fuel/air mix and combustion quality throughout the entire firing range (from low fire to high fire).  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 55: Combustion Setup And Adjustment (C750-C900-C1050 All Models)

    2. Using a 3mm (7/64”) hex wrench, adjust the high fire screw, see the figure below. C750-C900-C1050 (All Models) Adjusting Screws for Low and High Fire  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 56: Checking Flame Signal

    Volts. Typical flame signals should read between 20-50V. If the flame signal is below 20V, the ignition electrode may need to be replaced.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 57: Initial Nuro Control Setup & Adjustment

    Screen then the Local Representative screen. This shows the name, address and phone number of the local Patterson-Kelley representative.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 58: Home Screen

    For more information on any parameter, please refer to the NURO Boiler Controller: Advanced User’s Guide; Part Number is 1004905979.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 50...
  • Page 59: Setup Wizard

    110-120 Single 10A Circuit 846,000 C1050 1,050,000 110-120 Single 10A Circuit 1019 987,000  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 51...
  • Page 60: Dual Fuel Boiler Operation

    Refer to Section 7.2.4 for model-specific wiring diagrams.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 52...
  • Page 61: P-K Mach C750Gg, C900Gg & C1050Gg

    CLOSED. If operating with Propane Gas, ensure the Natural Gas valve/cock is CLOSED. Failure to do so could result in equipment damage, injury, and/or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 62: Fuel Selector Switch Location

    CLOSED. If operating with Propane Gas, ensure the Natural Gas valve/cock is CLOSED. Failure to do so could result in equipment damage, injury, and/or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 63: P-K Mach C750T, C900T & C1050T

    The boiler must be level within 0.25° in order to function properly. Failure to heed this warning could result in personal injury or death.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 64: High Turndown C750T, C900T, & C1050T

    4.4.2 High Turndown C750T, C900T, & C1050T Must be level for appliance to function correctly  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 56...
  • Page 65: Operations

    (on/off) switch located in the upper left of the control panel sheet metal as shown below:  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 66: Nuro Touch Screen Interface And Control Panel

    ANSI Z21.13/CSA 4.9, latest edition. (See "Factory Firetest" label.).  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 67: Normal Lighting And Shut-Down Procedures

    The upper shut off valve is for Propane Gas and the lower valve for Natural Gas.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 68: Maintenance

     Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 60...
  • Page 69: Monthly Preventative Maintenance

    6. Take a sample of system fluid and verify the water quality is in compliance as defined in Appendix C – Water Quality Standards for Hydronic Boilers in Multi-Metal Systems.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 61...
  • Page 70: Cleaning The Burner & Combustion Chamber

    Patterson-Kelley recommends cleaning the burner and combustion chamber once annually: 6.2.1 MACH CM300-CM399-CM500 NOTE Spare parts and replacement parts can be ordered from Patterson-Kelley by calling toll free (877) 728-5351. Reach us by fax at (570) 476-7247. Required Replacement Parts...
  • Page 71 26. Reconnect the two wire plugs/leads to the blower. 27. Double check the tightness of all bolted joints.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 72: Mach C750-C900-C1050

    Gas Fired Boiler Technical Service 1.877.728.5351 6.2.2 MACH C750-C900-C1050 NOTE Spare parts and replacement parts can be ordered from Patterson-Kelley by calling toll free (877) 728-5351. Reach us by fax at (570) 476-7247. Required Replacement Parts & Recommended Tools* Part...
  • Page 73: After Repairs Or Maintenance

    % or CO % are out of range. NOTE Installation and service must be performed by a qualified installer or service agency that has been trained on the Patterson-Kelley boiler!  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved.
  • Page 74: Sequence Of Operations

    9. When the outlet water temperature is reduced by the load on the system, a heat request is generated. The operating sequence will recycle to Step 3.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 75: Troubleshooting

    An error related to the air switch does not necessarily mean that the air switch is defective.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 76: Flame Failure

    If no blockage is found, it may be necessary to replace the high exhaust back pressure switch.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 77: Parts/Technical Support

    Technical Service 1.877.728.5351 7 Parts/Technical Support Spare parts and replacement parts can be ordered from Use of Non-Factory Authorized Patterson-Kelley by calling toll free (877) 728-5351. Reach replacement parts are not us by fax at (570) 476-7247. recommended for this equipment.
  • Page 78: Terminal Block Assignments

    N1 for 110-120VAC, Single phase, 60Hz HOT L1 L1 for 110-120VAC, Single phase, 60Hz  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 70...
  • Page 79: Terminal Block Assignments - Low Voltage (Tb1) Terminal Block

    Contact Closure Enables Comfort Heat Operation Open Circuit Disables Comfort Heat Operation ENABLE / DISABLE  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 71...
  • Page 80: Wiring Diagrams

    Gas Fired Boiler Technical Service 1.877.728.5351 7.2 Wiring Diagrams 7.2.1 CM300 Wiring Diagram Patterson Kelley,  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 72...
  • Page 81 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Patterson Kelley, LLC  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 73...
  • Page 82: Cm399-Cm500 Wiring Diagram

    P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 7.2.2 CM399-CM500 Wiring Diagram Patterson Kelley,  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 74...
  • Page 83 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Patterson Kelley, LLC  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 75...
  • Page 84: C750-C900-C1050 Single Fuel Wiring Diagram

    Gas Fired Boiler Technical Service 1.877.728.5351 7.2.3 C750-C900-C1050 Single Fuel Wiring Diagram Patterson Kelley, LLC  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 76...
  • Page 85 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Patterson Kelley, LLC  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 77...
  • Page 86: C750, C900, And C1050 Dual Fuel Wiring Schematic (3

    7.2.4 C750, C900, and C1050 Dual Fuel Wiring Schematic (3 Pages) Patterson Kelley,  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 78...
  • Page 87 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Patterson Kelley, LLC  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 79...
  • Page 88: Boiler Parts Identification (Cm300-Cm399-Cm500)

    Cabinet Base Gas Train Heat Exchanger Front Door / NURO Touchscreen NURO Control Panel  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 80...
  • Page 89: Nuro Control Panel (Cm300-Cm399-Cm500)

    Manual Reset Hi Temp Limit High Exhaust Back Pressure Switch Low Voltage (TB1) Terminal Block SOLA Mainboard  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 81...
  • Page 90: Heat Exchanger Assembly (Cm300-Cm399-Cm500)

    Flue Elbow w/ Drain Port 5”x4” Flue Adapter P/T Gauge Coupling Supply/Outlet Coupling (1-1/2” LWCO Probe Victaulic)  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 82...
  • Page 91: Natural Or Propane Gas Train, Burner & Blower Assembly (Cm300-Cm399-Cm500)

    Blower Intake Hose/Coupling 1” Flexible Gas Hose Burner Hood Stainless Steel Mesh Burner  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 83...
  • Page 92: Boiler Parts Identification (C750-C900-C1050)

    NURO Control Panel Heat Exchanger Front Door / NURO Touchscreen Cabinet Base Burner/Blower/Gas Train  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 84...
  • Page 93: Nuro Control Panel (C750-C900-C1050)

    Air Pressure Switch Transformer XFMR2 (20VA) High Exhaust Back Pressure Sw. LWCO Circuit Board  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 85...
  • Page 94: Heat Exchanger Assembly (C750-C900-C1050)

    Fireside Inspection Covers Supply/Outlet Coupling (2” Vic.) Return/Inlet Temperature Sensor Coupling (2” Victaulic) Supply/Outlet Casting  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 86...
  • Page 95: Single Fuel Gas Train, Burner & Blower Assembly (C750-C900-C1050)

    Ionization Probe Internal (Downstream) Gas Cock Ignition Electrode (1” NPT-F) High Gas Pressure Switch  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 87...
  • Page 96: Single Fuel Gas Train, Burner & Blower Assembly High Turndown (C750T-C900T-C1050T)

    Air Intake Guard Ionization Probe Internal (Downstream) Gas Cock Ignition Electrode (1” NPT-F)  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 88...
  • Page 97: Dual Fuel Gas Train, Burner, & Blower Assembly (C750-C900-C1050)

    Ionization Probe Internal (Downstream) Gas Cock Ignition Electrode (1” NPT-F) High Gas Pressure Switch  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 89...
  • Page 98: K Mach Specific Limited Warranty

    Last Update 12/12/2016 Subject to the terms and conditions herein and the Terms and Conditions of Sale (as defined herein), Patterson-Kelley (“Seller”) warrants to the purchaser of the product (“Buyer”) that the heat exchanger and burner are free of defects in material and workmanship, when...
  • Page 99 Specific Limited Warranty, unless agreed to in writing by Seller.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 100: Boiler Fire-Test Report

    ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 9 Boiler Fire-Test Report  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 92...
  • Page 101 ® P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Dual Fuel Addendum  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 93...
  • Page 102: Appendix A - Maintenance Log

    Appendix A – Maintenance Log Hi Fire / Stack Date Action Low Fire Temp  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 94...
  • Page 103: Appendix B - Boiler Altitude Derate Schedule

    & 3.11.3. Tune the combustion for the same O and CO levels as discussed in Sections 3.11.2 & 3.11.3.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 95...
  • Page 104: Appendix C - Water Quality Standards For Hydronic Boilers In Multi-Metal Systems

    Treatment programs should also comply with the standard water quality guidelines listed above.  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx...
  • Page 105: Appendix D - Best Practices For New & Retrofit Systems

    6. Patterson-Kelley recommends installing an Automatic Air Vent on the Air Separator. In order for the Air Separator to continually purge the system of dissolved Oxygen, an Automatic Air Vent is preferred over a manual air vent.
  • Page 106 (blended) sample. 11. Within the first three months after startup, Patterson-Kelley recommends collecting a follow-up water sample from the hydronic system. This should be compared to the initial startup sample in order to determine any changes in pH, Alkalinity, conductivity, etc.
  • Page 107: Appendix E - Installation And Quick Reference

    W.C. NOTE Patterson-Kelley recommends installing an individual lock-up type gas regulator in the gas supply piping to each boiler. For installations where one master lock-up type gas pressure regulator will service multiple boilers, Patterson-Kelley recommends contacting the local regulator representative for application assistance specifying the appropriate lock-up type regulator and gas pipe sizing.
  • Page 108 P-K MACH Gas Fired Boiler Technical Service 1.877.728.5351 Boiler Connections (CM300-CM399-C500) All water connections should be in compliance with national, state and local code requirements. Adapters from Victaulic to NPT are available from Patterson-Kelley. 4” Exhaust Vent 5” Combustion Air Inlet...
  • Page 109 20 °F Minimum Flow Low Fire 6 GPM 7 GPM 9 GPM 20 °F  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 101...
  • Page 110 Gas Fired Boiler Technical Service 1.877.728.5351 Boiler Connections (C750-C900-C1050) All water connections should be in compliance with national, state and local code requirements. Adapters from Victaulic to NPT are available from Patterson-Kelley. Relief Valve Port 2” Victaulic ® Water Outlet (Supply to 1”...
  • Page 111 17 GPM 20 GPM 20/10* °F * For 10:1 Turndown Models Propylene Glycol Flow  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 103...
  • Page 112 12.6 ft 83.7 GPM 15.7 ft 100.4 GPM 15.5 ft 117.1 GPM 13.9 ft  Patterson-Kelley 2020 Revised: January 3, 2020 1004905980 P-K MACH CM300-CM500&C750-C1050 All Rights Reserved. Released: January 3, 2020 Installation and Owners Manual (Rev F Jan-2020).docx Page 104...

Table of Contents

Save PDF
