Fingerprint Employee Time Clock
User Guide (V1.0)
www.anviz.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A series and is the answer not in the manual?

Questions and answers

Related Manuals for Anviz A series

Summary of Contents for Anviz A series

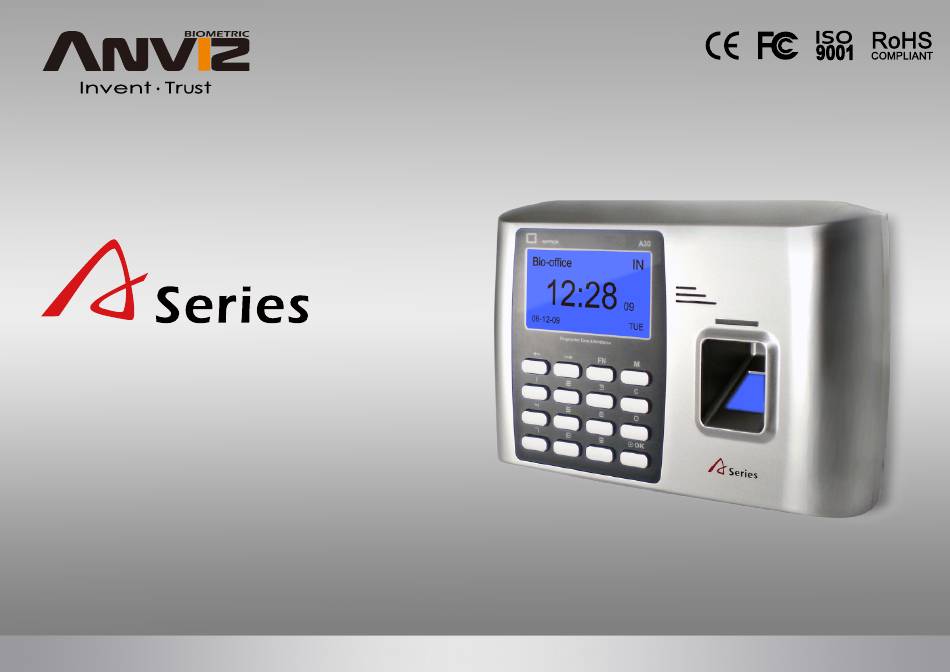

  • Page 1 Fingerprint Employee Time Clock User Guide (V1.0) www.anviz.co.uk...
  • Page 2 Feature USA TI 300MHz high speed processor USA BioNano core fingerprint algorithm of high speed and stability New generation fully sealed, waterproof and dustproof fingerprint sensor User name display and human voice prompt Realtime data transfer and WEB online tracking A20: Standard USB, USB pen drive A300: Standard USB, USB pen drive and TCP/IP Identification method: FP, ID+FP, ID+PW,...

  • Page 3: Table Of Contents

    Safety Precautions..............4 Glossary.................5 Illustration for placing fingerprint..........6 Packing List................7 Appearance................8 Content System Menu.................11 User--Enroll(Fingerprint)............14 User--Enroll(Password)............15 User--Enroll(Card)..............16 User--Delete................17 User--Verify Mode..............18 User--Admin Setup..............19 User--Admin Clear..............20 Setup--System................22 Setup--System--Net..............24 Setup--Log Setup..............25 Setup--Hardware Test............26 USB Flash--Record Backup...........28 USB Flash--User Backup/Recovery........29 System Info................30...

  • Page 4: Safety Precautions

    Safety Precautions Please read it carefully first of all; Don’t install the terminal under direct light, humid, dusty or dirty environments; Don’t install the terminal near the magnetic field; Don’t install the terminal near the heating device; Don’t sprinkle liquids (water, drink, chemical) on the terminal; Always keep the surface of the terminal clean;...

  • Page 5: Glossary

    Glossary 名词解释Interpretation for items and phrases Administrator It is a special user who has the authorizations of setting the terminal system settings and user information. The admin can add or delete the users, and the admin also can change the system settings of the terminal. 1:1 Identification If it is 1:1 identification mode, the user has to input the user ID firstly, then verify the fingerprint or enter the password to make identification.

  • Page 6: Illustration For Placing Fingerprint

    Illustration for placing fingerprint Correct method: Straighten finger and place it flatly on the sensor, and make the fingerprint maximally cover the sensor. Place finger in the center of the sensor. Place finger flatly and smoothly on the sensor. Incorrect method: Move finger before the Place finger away from Tilt sensor.

  • Page 7: Packing List

    Packing List A Series Fingerprint Empoyee Time Clock USB Cable (1.5 meters) USB Power Adapter Your Time Attendance Expert windows Windows 98 COMPACT Windows 2000 CD-ROM Windows XP Windows Vista Windows 7 Copyright Bio-office All rights reserved. http://cn.bio-office.com Software CD...

  • Page 8: Appearance

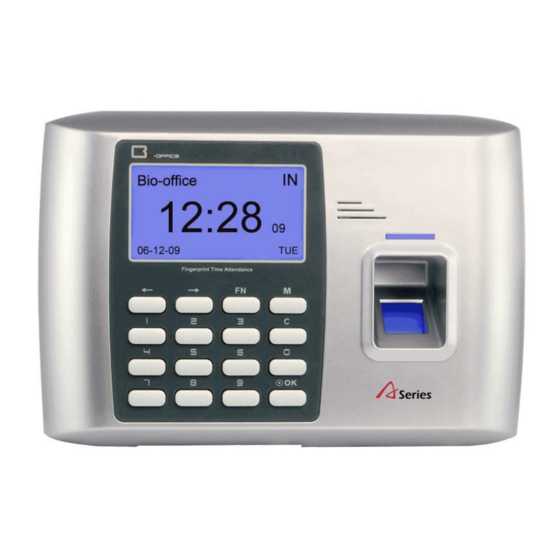

    Appearance Front State Key(Clock In)/Page Up State Key(Clock Out)/Page Down WorkCode Setup Key Fingerprint Sensor Menu Key Enter the System Management menu Speaker Operation with voice prompts Cancel Key Exit/Cancel the present operation Confirm/Power Key Confirm the present operation/Power On/Off key 0~9 Num.
  • Page 9 Appearance Back USB / 5 Volt Power Connection Network connection Flash Disk Port...
  • Page 10 Manage employees' information. Main functions: Register users, delete users, For Administrator——Basic Functions add/delete admin and so on.

  • Page 11: System Menu

    System Menu Please press [M] to enter system management menu under initial state. 09 : 00 Since anyone can enter the terminal's management menu under initial state by pressing [M], 10-11-17 we suggest you set the admin shortly after installation of the terminal. The method of registing admin is the same for common employees.
  • Page 12 System Menu Enroll Menu list: Delete User: Dev ID for example: [Enroll], [Delete], [Verify Mode], User Verify Mode Time IP Address [Admin Setup], [Admin Clear]. Admin Setup Language Admin Clear Subnet Mask Setup: [System], [Log Setup] and [Hardware Test]. System MAC Address [System] includes: system time, language, network...
  • Page 13 System Menu Press [C] to exit the system management menu. To ensure safety, the system management menu will automatically return to the default menu if no operations in a certain period.

  • Page 14: User--Enroll(Fingerprint)

    User--Enroll (Fingerprint) User ▼ Enter the system management menu. Select [User]-[Enroll]. Press [OK] Enroll to enter the enroll menu. Enter employee's ID and press [OK] to register Delete Verify Mode employee. Press [OUT/→] to select [FP 1] or [FP 2]. Press [OK] to start fingerprint enrollment. Press Enroll [OK] to save and return to the enroll menu.

  • Page 15: User--Enroll(Password)

    User--Enroll (Psssword) Enroll Enter [Menu], select [User] and press [OK] to [Enroll] interface. Input employee's ID and press [OK] to register employee. 008101 Esc-C Set-OK Press [OUT/→] to select [Password], and press [OK] to enroll. Input password(1 to 6 numbers) and press [OK] to confirm. Enroll Input password again,and press [OK] to confirm.

  • Page 16: User--Enroll(Card)

    User--Enroll (Card) Enter [Menu], select [User] and press [OK] to [Enroll] interface. Enroll Input employee's ID and press [OK] to register employee. 008101 Press [OUT/→] to select [Card], and press [OK] to enroll. Esc-C Set-OK Swipe the employee’s card, and the system will get card number and enter save interface. Press [OK] to save password.

  • Page 17: User--Delete

    User--Delete 名词解释Interpretation for items and phrases When employees resign, we need delete the employee’s information in User ▼ the terminal. Enter the management menu. Enroll Select [User]-[Delete] press [OK]. Delete  Verify Mode Enter the employee’s ID and press [OK], the system will prompt again whether to delete, press [OK] again to confirm delete the employee information.

  • Page 18: User--Verify Mode

    User--Verify Mode 名词解释Interpretation for items and phrases Enter the management menu. Select [User]-[Verify Mode] press [OK] to User ▼ Enroll enter the setting interface. Delete Verify Mode  Press [OUT/→] to select employee or press [OK] to input user ID. Press [OK] to enter setting interface.

  • Page 19: User--Admin Setup

    User--Admin Setup 名词解释Interpretation for items and phrases In the management interface, select [User]-[Admin Setup] press [OK]. Admin Setup Press [OK] to enter the admin user ID and press [OK] to confirm, the system will prompt Esc-C Add-OK whether to set user as admin. Press [OK] to confirm and press [C] to cancel. Admin Setup It asks for the admin verification before entering the system management menu if you set a admin in the terminal.

  • Page 20: User--Admin Clear

    User--Admin Clear 名词解释Interpretation for items and phrases In the management interface, select [User]-[Admin Clear] press [OK]. Admin Clear 008101 Press [OUT/→] to select the admin ID press [OK] to confirm. 008102  The admin ID will be showed on the LCD press [OK] to confirm. Esc-C Clr-OK The system prompt whether delete the admin.
  • Page 21 Set the terminal parameters, include: System Setting, Record Setting For Administrator---Advanced Functions Hardware Test and so on...

  • Page 22: Setup--System

    Setup--System In the management interface, select [Setup]-[System], then press [OK] to System ▼ enter the sub-menu.  Dev ID Time Dev ID Terminal’s serial number. Language Time Set system time, time format displays as "YY-MM-DD H:M". Time Select [Time], then press [OK]. 11-17-2011 12:06 Press [OK] to change the date and time one by one.
  • Page 23 Setup--System 名词解释Interpretation for items and phrases Volume Set the terminal voice volume. 0-[mute], 5-[Max]. System ▼ Select [Volume], then press [OK]. Press [IN/←] or [OUT/→] to set the volume value and press [OK] to confirm. Precision  Volume Press [C] to enter save interface and press [OK] to confirm. Auto Off Set the time duration from the last operation to the dormant state.

  • Page 24: Setup--System--Net

    Setup--System--Net ▼ Enter the system management menu, Select [Setup]-[System]-[Net]. IP Address Press [OK] to enter the sub-menu. Subnet Mask MAC Address This function main includes [IP Address], [Subnet Mask], [MAC Address] and [Gateway IP] settings. IP Address .168 .000 .218 Press [OUT/→] to select [IP Address] or [Subnet Mask] or [MAC Address] or [Gateway IP].

  • Page 25: Setup--Log Setup

    D100 D100 DESKTOP SERIES DESKTOP SERIES Setup--Log Setup In the management interface, select [Setup]-[Log Setup], then press [OK] to enter the sub-menu. Log Setup Log Alert The terminal will alarm when the memory capacity is less than the [Log Alert] Log Alert 1000 value.

  • Page 26: Setup--Hardware Test

    Setup--Hardware Test In the management interface, select [Setup]-[Hardware Test] and press Hardware Test ▼ Keypad [OK] to test Keypad, LCD, Voice, Sensor and Flash. Voice Keypad Test the keypad. Keypad Select [Keypad] and press [OK]. Current Key Press any key on the keypad. If LCD shows the same, the keypad is good. Esc-C Test the LCD.
  • Page 27 Select [Flash] and press [OK] . Cuntinue? Notice: This test will delete all the data in the flash memory and then check it. Esc-C Yes-OK Please backup the data before this operation. Step 2 Check... 100% Flash Flash OK! Esc-C Copyright 2010 ANVIZ Inc. Ⓒ...

  • Page 28: Usb Flash--Record Backup

    USB Flash--Record Backup 名词解释Interpretation for items and phrases USB Flash ▼ Conntected U disk to terminal, press [M] to enter the management menu, New Rec. Backup select [USB Flash] and press [OK]. All Rec. Backup User Backup New Rec. Backup New Rec.

  • Page 29: Usb Flash--User Backup/Recovery

    USB Flash--User Backup/Recovery USB Flash ▼ New Rec. Backup User Backup Download employee’s records saved in device to U pen drive. All Rec. Backup User Backup  Press [OUT/→] to select [User Backup], press [OK] to download the employee information. User Backup After backup process bar shows 100%, press [C] to exit and back to Backup…...

  • Page 30: System Info

    Press [OK] to view the number of users who registered a password. 2000 User 2000 50000 The time attendance logs. Maximum 50,000 records. System Info ▼ FirmVer User 1000 The firmware version. Password 15000 Press [C] back to the management interface. System Info ▲ b1.15.00 FirmVer Copyright 2010 ANVIZ Inc. Ⓒ...
  • Page 31 Technical support Anviz Biometric Tech. Co., Ltd. TEL: 0845 095 8072 EMAIL: support@anviz.co.uk WEBSITE : www.anviz.co.uk EMAIL: sales@anviz.co.uk...
