Summit SUM-603 Fitting Instructions

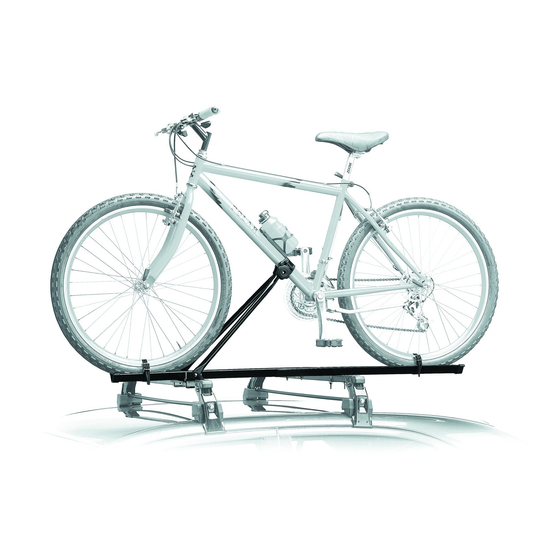

Top mount cycle carrier

TOPMOUNTCYCLECARRIER

INFOSHEET

SUM-603

Special adjustable clamp to fit around downtubes up to 60mm and

oval downtubes 60 x 100mm

25mm diameter minimum down tube size

Exceptionally strong clamp

Holds 1 bike, weighing 15kg maximumUniversal bike carrier for all

types and sizes of bicycles

FITTINGINSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the SUM-603 and is the answer not in the manual?

Page 1 TOPMOUNTCYCLECARRIER INFOSHEET SUM-603 Special adjustable clamp to fit around downtubes up to 60mm and oval downtubes 60 x 100mm 25mm diameter minimum down tube size Exceptionally strong clamp Holds 1 bike, weighing 15kg maximumUniversal bike carrier for all types and sizes of bicycles...
Page 2 FITTINGINSTRUCTIONS IMPORTANT READ FULLY BEFORE FITMENT AND SUM-603 KEEP INSTRUCTIONS FOR FUTURE REFERENCE INSTRUCTIONS FOR USE AND WARNING CONCERNING CYCLE RACK ON ROOF BARS GENERAL REMARKS 1) You must read this warning notice and the follow the assembly SAFE AND APPROPRIATE USE 1) Before assembling the bicycle rack, make sure the assembly instructions to the letter before using the bicycle rack.
Page 3 Attach pivot arm bracket to roof bars using u-bolt Attach other end of the cycle Join cycle carrier channels Attach cycle carrier pivot arm from and tighten as shown. carrier channel using u-bolt as together using screws as shown. underneath the track using screws as shown.
