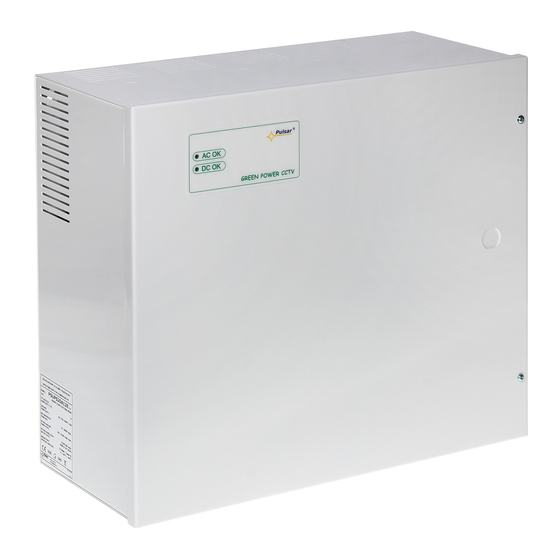

- Page 1 HPSBOC 20A12E v.1.0 HPSBOC 13,8V/20A/65Ah/OC Buffer switch mode power supply unit with technical outputs. EN** Edition: 3 from 01.03.2018 Supercedes edition: 2 from 01.06.2016...
-
Page 2: Table Of Contents
A micro switch indicates door opening (front cover). The power supply housing has space for additional modules (fuse blocks, voltage regulators and DC-DC converters). Optional power supply configurations are available at the website: www.pulsar.pl See chart 1... -
Page 3: Block Diagram
GREEN POWER plus www.pulsar.pl HPSBOC20A12E 1.2 Block diagram (fig.1). Fig.1. The block diagram of the PSU. 1.3 Description of the module’s components and connectors (tab.1, fig.2). Table 1. Elements of the module’s (see fig. 2). Element no. Description LED indicating presence of AC power... -
Page 4: Description Of Psu Components And Connectors
GREEN POWER plus www.pulsar.pl HPSBOC20A12E Fig. 2. The view of the PSU module. Table 2. Description of PSU components and connectors (fig.3). Element no. Description [Fig. 3] PSU module TAMPER, contact, sabotage protection (NC) Fig.3. The view of the PSU. - Page 5 GREEN POWER plus www.pulsar.pl HPSBOC20A12E Table 3. Electrical parameters PSU type A (EPS - External Power Source) 176÷264V AC 50Hz Mains supply Current up to 1,5A@230VAC max. Supply power 276W max. Efficiency Power factor PF >0,95 @230V AC 11V ÷ 13,8V DC – buffer operation Output voltage 9,5V ÷...
-
Page 6: Installation
GREEN POWER plus www.pulsar.pl HPSBOC20A12E Table 4. Mechanical parameters Dimensions W=400, H=350, D+D =173+8 [+/- 2mm] =405, H =355 [+/- 2mm] The dimensions of the battery 360x175x165mm (WxHxD) max compartment Fixation See figure 3 Net/gross weight 6,8kg / 7,2kg Enclosure... -
Page 7: Installation Procedure
GREEN POWER plus www.pulsar.pl HPSBOC20A12E Before installation, prepare a PSU load balance. 1. Output current 18A + 2A battery charge 2. Output current 16A + 4A battery charge 3. Output current 12A + 8A battery charge Total device current + battery: 20A max As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. - Page 8 GREEN POWER plus www.pulsar.pl HPSBOC20A12E 3.2 Technical outputs The PSU has indication outputs: EPS - absence of AC supply output: - OC type output that indicates AC power loss. Under normal status, with 230V AC supply, the output is connected to ground (L level –...
- Page 9 GREEN POWER plus www.pulsar.pl HPSBOC20A12E 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
- Page 10 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
