Power Switch S1-R
Radio linked with power consumption measurement
Specifications

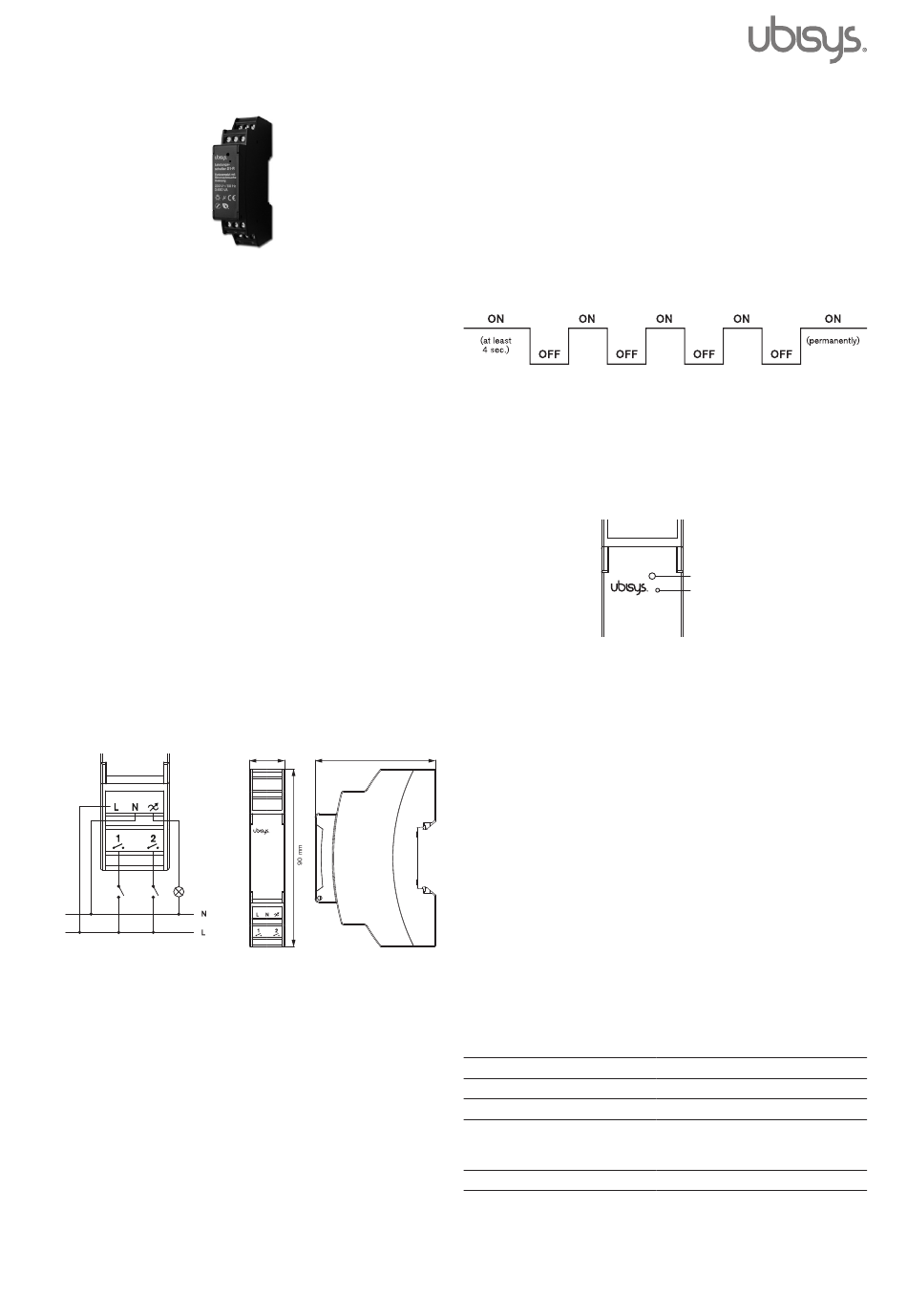

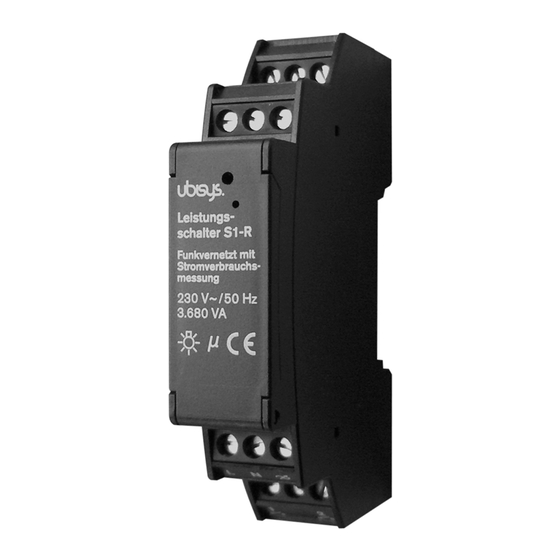

The power switch S1-R is a radio controlled universal switch actuator with
integrated power consumption measurement. In the current flush mount
version, it is compatible to standard switch boxes and fully integrates into the
rest of your smart home. It is not only suitable for new buildings, but also for
existing buildings, because retrofitting has, due to use of radio technology, no
special requirements to the electrical installation. The system can gradually
be extended by adding new components. The power switch S1-R offers
full functionality when combined with other components of the ubisys smart
home product line and allows for example:
Freely configurable assignments between control elements and consu-
mers
Scenes and group controlling
Time and event controlled actions
Continuous metering
Surveillance
Control via smartphone and tablet using the ubisys app, or as usual via
buttons or switches
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.
Installation
The power switch S1-R meets the requirements of DIN 43880 and is
designed for installation in fuseboxes, mounted on cap rails according to
Leistungs-
schalter S1-R
EN50022.
Funkvernetzt mit
Stromverbrauchs-
messung
Leads:
230 V~ /50 Hz
3.680 VA
(1 TE)
18 mm
60,5 mm
The power switch S1-R retains its switch position when disconnected from
power. The switch position is undefined by delivery; i. e. the switching output
can be conductively connected to the phase L!
During installation, the general risks of household voltage networks have to
be noted!
Zigbee Initial Commissioning (Brand New Device)
1.
Connect the unit to a power source (according to the connections).
2.
Open a Zigbee network: when using the ubisys gateway, tap Confi-
guration -> Basic Configuration -> Open for new devices in the
ubisys app (if you are using third-party gateways or apps, follow the
corresponding procedure).
3.
The Zigbee network is open and the device joins.
4.
The device appears in the component list: Configuration -> Basic
Configuration -> Components.
Jalousie-
steuerung J1-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~/ 50 Hz
Dimensions:
500 VA
(1 TE)
18 mm
60,5 mm
Factory Reset
Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence without having access to the
device itself (only to its power supply). The only requirement is a simple on/
off sequence in a 1-second rythm:
1.
The device has to be powered up for at least 4 seconds.
2.
Power off for a second.
3.
Power on for a second.
Repeat steps 2.-3. in the aforementioned 1-second rythm another 3 times,
and with the last sequence keep the device powered up (see illustration).
4.
The device will automatically reboot to the original factory settings.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly. * )
Only use the electrically isolated tool provided with the device to press the
button in the hole.
Button
LED
*) If the device has legacy firmware this feature might not be available. In this
Universal-
dimmer D1-R
case, keep the button pressed for one second, until the LED flashes three
Funkvernetzt mit
times and then blinks once every second. Then press the button four times
Stromverbrauchs-
messung
for less than a second, until the LED flashes five times, followed by a pause,
230 V~/50 Hz
then flashes five times again, followed by a pause, etc. In this state, keep the
500 VA
button pressed for more than a second until the LED starts flashing rapidly.
(1 TE)
18 mm
Configuration
Upon delivery the factory settings of power switch S1-R has switching input
assigned to the corresponding switching output. So it can initially be opera-
ted autonomously without a radio network. Input port 2 is not configured by
default.
For integration into the smart home radio network, the power switch S1-R
has to be configured first. Direct access to the power switch S1-R is not
necessary for configuration. That means that network configuration can also
be done after successful electrical installation. It is best to hold the 16 digit
serial number of the power switch S1-R in the construction plan during
installation. This allows you to allocate the device at a later point.
When connected to power, the power switch S1-R automatically logs into the
Zigbee network. After that it can be configured via the electrician's installati-
on software (ubisys Network Manager) or the ubisys smartphone app.
More information about adding and configuring ubisys smart home compon-
ents can be found in the ubisys Smart Home app manual.
Technical Information
Rated voltage
Max. switching power
Own consumption
Radio technology
Environment temperature
*) More information about radio technology can be found at www.ubisys.de.
Button
LED
(1 TE)
60,5 mm
18 mm
230 V ~, 50 Hz
3,680 VA
0.3 W
Zigbee 3.0 in 2.4 GHz ISM Band,
IEEE 802.15.4 channels 11-26, 0...5dBm
transmitting power *)
-20°C - +45°C
Page 1/2
Button
LED
60,5 mm
As per 04/2020
