Ubisys S2-R Quick Start Manual

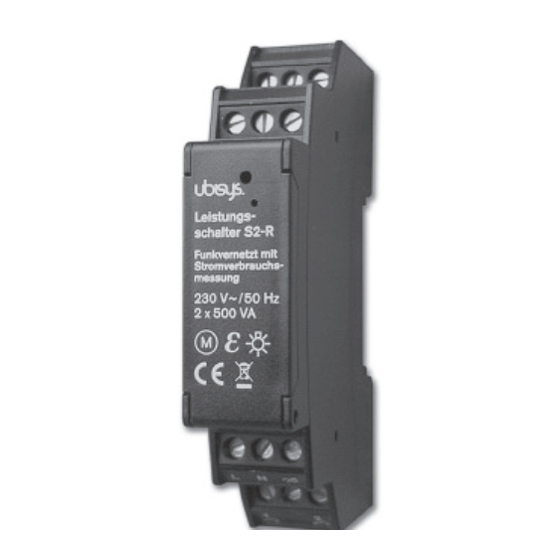

Power switch S2-R
Radio linked with power consumption measurement

Specifications

The power switch S2-R is a radio controlled universal switch actuator with
integrated power consumption measurement. In the current flush mount
version, it is compatible to standard switch boxes and fully integrates into the
rest of your smart home. It is not only suitable for new buildings, but also for
existing buildings, because retrofitting has, due to use of radio technology,
no special requirements to the electrical installation. For new buildings and
renovations, it helps reducing both planning and cabling costs. The system
can gradually be extended by adding new components. Determine scope and
timing at any time by yourself.
The power switch S2-R offers full functionality when combined with other
components of the ubisys smart home product line and allows for example:
•
Freely configurable assignments between control elements and consu-
mers
•
Scenes and group controlling
•
Time and event controlled actions
•
Continuous metering
•
Surveillance
•
Controlling via smart home display, smartphone app or, as usual, via
button or switch
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.

Installation

The power switch S2-R meets the requirements of DIN 43880 and is
designed for installation in fuseboxes, mounted on cap rails according to
EN50022.
Leads:
Leistungs- Leistungs-
schalter S2-R schalter S1-R
Funkvernetzt mit Funkvernetzt mit
Stromverbrauchs-
Stromverbrauchs-
messung messung
230 V~/50 Hz 230 V~/50 Hz
During installation, the general risks of household voltage networks have to 2 x 500 VA
3.680 VA
be noted!

Basic ZigBee Commissioning

The device joins an open ZigBee network when it is factory new and power
is applied.
Dimensions:
(1 TE)
18 mm 60,5 mm
Leistungs-
schalter S2-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~/50 Hz
2 x 500 VA
Jalousie-
steuerung J1-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~ / 50 Hz
500 VA

Factory Reset

Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence. This is equivalent to selecting
menu item #5, with the advantage that you need no access to the device
itself (only to its power supply).
1. Power the device for at least four seconds.
2. Interrupt the power supply for at least a second.
3. Reapply power for less than two seconds but more than half a second.
Notice that at the end of this cycle, the device is off and should remain off for
at least a second.
4. Repeat the previous step two more times, for a total of three short
power cycles.
5. Apply power to the device and leave it powered on. The device will now
factory reset and reboot.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly. * )
Only use the electrically isolated tool provided with the device to press the
button in the hole.
Leistungs-
schalter S2-R
Funkvernetzt mit
Stromverbrauchs-
messung
*) If the device has legacy firmware this feature might not be available. In this
230 V~ /50 Hz
case, keep the button pressed for one second, until the LED flashes three
2 x 500 VA
times and then blinks once every second. Then press the button four times
for less than a second, until the LED flashes five times, followed by a pause,
then flashes five times again, followed by a pause, etc. In this state, keep the
button pressed for more than a second until the LED starts flashing rapidly.

Configuration

Upon delivery the factory settings of power switch S2-R has switching inputs
1 and 2 assigned to the corresponding switching outputs. So it can initially
be operated autonomously without a radio network.
For integration into the smart home radio network, the spower switch S2-R
has to be configured first. Direct access to the power switch S2-R is not
(1 TE)
18 mm 60,5 mm
necessary for configuration. That means that network configuration can also
be done after successful electrical installation. It is best to hold the 16 digit
serial number of the power switch S2-R in the construction plan during
installation. This allows you to allocate the device at a later point.
When connected to power, the power switch S2-R automatically logs into the
ZigBee network. After that it can be configured via the electrician's installati-
Leistungs-
schalter S1-R
on software (ubisys Network Manager) or the ubisys smartphone app.
Funkvernetzt mit
Stromverbrauchs-
messung
More information about adding and configuring ubisys smart home compon-
230 V~ /50 Hz
3.680 VA
ents can be found in the ubisys Smart Home Installation manual.

Technical Information

Universal-
Rated voltage
dimmer D1-R
Funkvernetzt mit
Max. switching power
Stromverbrauchs-
messung
Own consumption
230 V~ /50 Hz
500 VA
Radio technology
Environment temperature
*) More information about radio technology can be found at www.ubisys.de.
Button
LED
Leistungs-
schalter S1-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~/50 Hz
3.680 VA
(1 TE)
18 mm 60,5 mm
Jalousie-
steuerung J1-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~ / 50 Hz
500 VA
230 V ~, 50 Hz
500 VA per output
0.3 W
ZigBee 3.0 in 2.4 GHz ISM Band,
IEEE 802.15.4 channels 11-26, 0...5dBm
transmitting power *)
-20°C - +45°C
Page 1/2 As per 02/2017
Button
LED
Jalo
ste
Fun
Stro
mes
230
500
(1 TE)
18 mm
Universal-
dimmer D1-R
Funkvernetzt mit
Stromverbrauchs-
messung
230 V~ / 50 Hz
500 VA
