Ubisys Power Switch S2 Quick Start Manual

Power Switch S2
Radio linked with power consumption measurement
Specifications

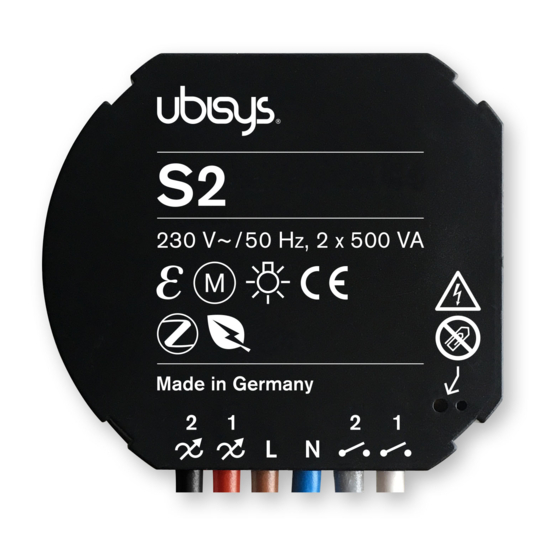

The power switch S2 is a radio controlled universal switch actuator with inte-
grated power consumption measurement. In the current flush mount version,
it is compatible to standard switch boxes and fully integrates into the rest of
your smart home. It is not only suitable for new buildings, but also for existing
buildings, because retrofitting has, due to use of radio technology, no special
requirements to the electrical installation. The system can gradually be exten-
ded by adding new components. The power switch S2 offers full functionality
when combined with other components of the ubisys smart home product
line and allows for example:
•
Freely configurable assignments between control elements and consu-
mers
•
Scenes and group controlling
Jalousiesteuerung J1
•
Time and event controlled actions
Funkvernetzt mit
•
Stromverbrauchsmessung
Continuous metering
•
230 V ~ / 50 Hz, 500 VA
Surveillance
•
Control via smartphone and tablet using the ubisys app, or as usual via
buttons or switches
2 2
1 1
More information about the features of the ubisys smart home product line
LED
can be found at www.ubisys.de.
Button
Installation
The power switch S2 is designed for installation in flush mounted sockets
according to DIN 49073. For installation behind a switch or power socket,
deep sockets are recommended.
Leistungsschalter S2
Funkvernetzt mit
Leads:
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
47 mm 17 mm
2 1 2 1
Bedieneinheit C4
Funkvernetzt
For installation of the power switch S2, the included clamps can be used.
During installation, the general risks of household voltage networks have to
AC 230 V ~ / 50 Hz
be noted!
4 3 2 1
Zigbee Initial Commissioning (Brand New Device)
1. Connect the unit to a power source (according to the connections).
2. Open a Zigbee network: when using the ubisys gateway, tap Confi-
guration -> Basic Configuration -> Open for new devices in the
ubisys app (if you are using third-party gateways or apps, follow the
corresponding procedure).
3. The Zigbee network is open and the device joins.
4. The device appears in the component list: Configuration -> Basic
Configuration -> Components.
Universaldimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 1
LED
Button
Dimensions:
Router R0
47 mm
90 - 270 V ~ , 50/60 Hz
(12 - 400 V=)
LED
2 1 2 1
Button
Factory Reset

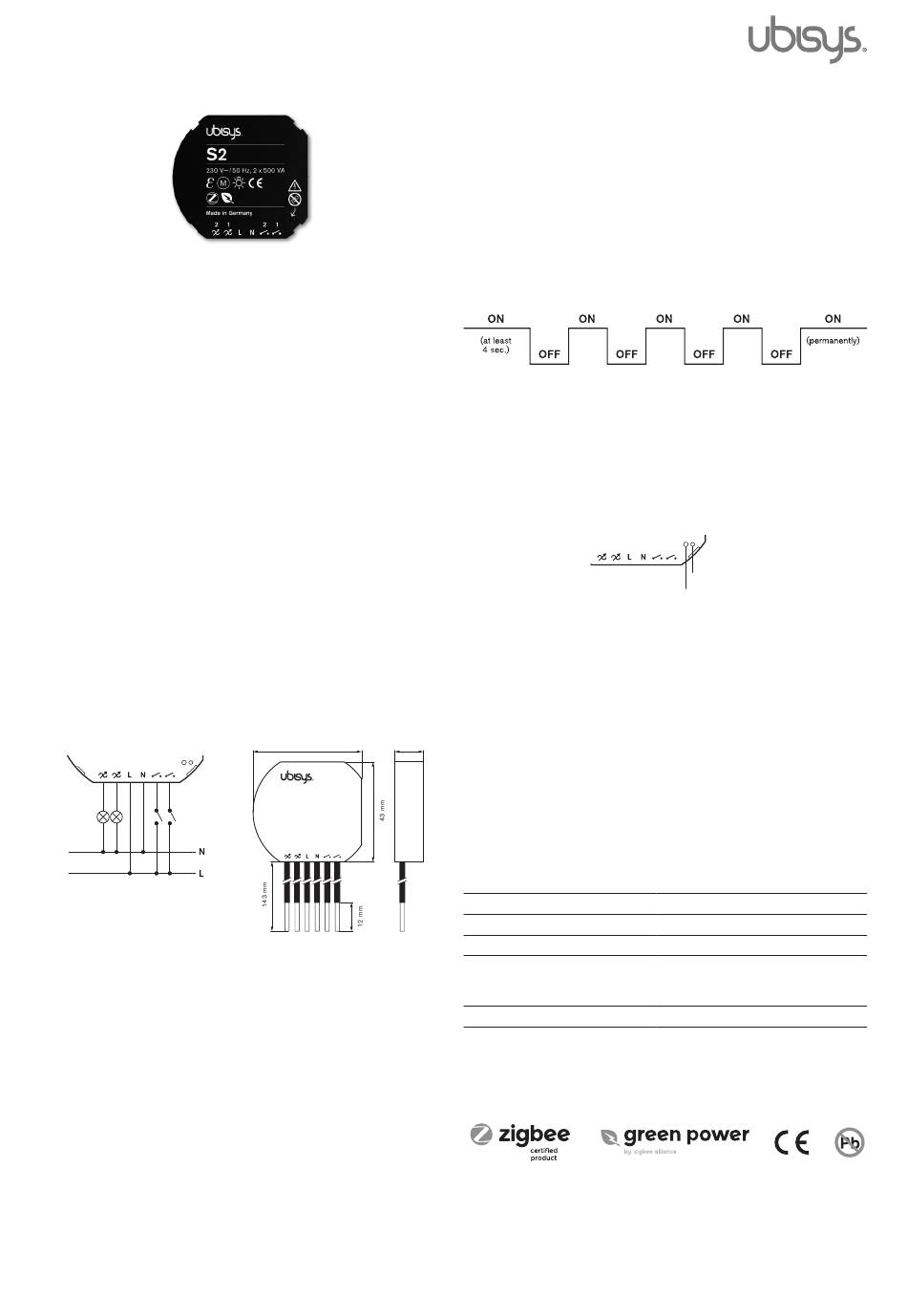

Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence without having access to the
device itself (only to its power supply). The only requirement is a simple on/
off sequence in a 1-second rythm:
1. The device has to be powered up for at least 4 seconds.
2. Power off for a second.
3. Power on for a second.
Repeat steps 2.-3. in the aforementioned 1-second rythm another 3 times,
and with the last sequence keep the device powered up (see illustration).
4. The device will automatically reboot to the original factory settings.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly.
Leistungsschalter S1
Only use the electrically isolated tool provided with the device to press the
Funkvernetzt mit
Stromverbrauchsmessung
button in the hole.
230 V ~ / 50 Hz, 3.680 VA
LED
Button
Configuration
Upon delivery the factory settings of power switch S2 has switching inputs 1
and 2 assigned to the corresponding switching outputs. So it can initially be
operated autonomously without a radio network.
For integration into the smart home radio network, the power switch S2 has
to be configured first. Direct access to the power switch S2 is not necessary
for configuration. That means that network configuration can also be done
after successful electrical installation. It is best to hold the 16 digit serial
Router R0
12 mm 47 mm
number of the power switch S2 in the construction plan during installation.
Funkvernetzt
This allows you to allocate the device at a later point.
When connected to power, the power switch S2 automatically logs into the
AC 230 V ~ / 50 Hz
Zigbee network. After that it can be configured via the electrician's installati-
on software (ubisys Network Manager) or the ubisys smartphone app.
More information about adding and configuring ubisys smart home compon-
ents can be found in the ubisys Smart Home app manual.
LED
2 2
1 1
Button
Technical Information
Rated voltage
Max. switching power
Own consumption
Radio technology
47 mm 12 mm
Environment temperature
*) More information about radio technology can be found at www.ubisys.de.
2
Certifications and Environmental Contribution
4 3 2 1
Leistungsschalter S2
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
2 1 2 1
LED
Button
Bedieneinheit C4
12 mm 47 mm
Funkvernetzt
AC 230 V ~ / 50 Hz
4 3 2 1
LED
2
Button
230 V ~, 50 Hz
500 VA per output
0.3 W
Zigbee 3.0 in 2.4 GHz ISM Band,
IEEE 802.15.4 channels 11-26, 0...5dBm
47 mm 12 mm
transmitting power *)
-20°C - +45°C
2
Page 1/2
12 mm 47 mm
1 4 3
47 mm 12 mm
Router R0
90 - 270 V ~ , 50/60 Hz
(12 - 400 V=)
2
As per 04/2020
