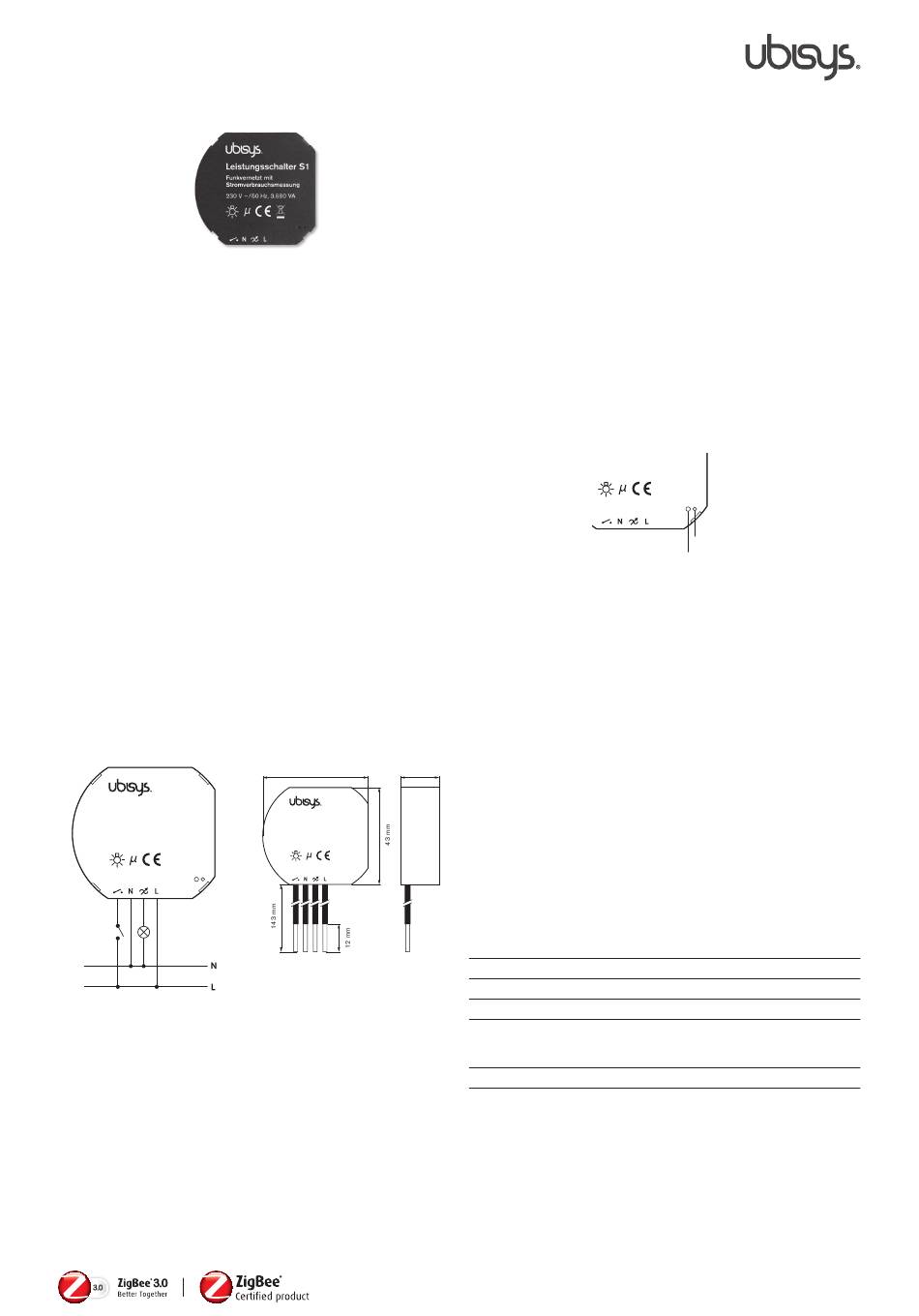

Power switch S1
Radio linked with power consumption measurement
Specifications

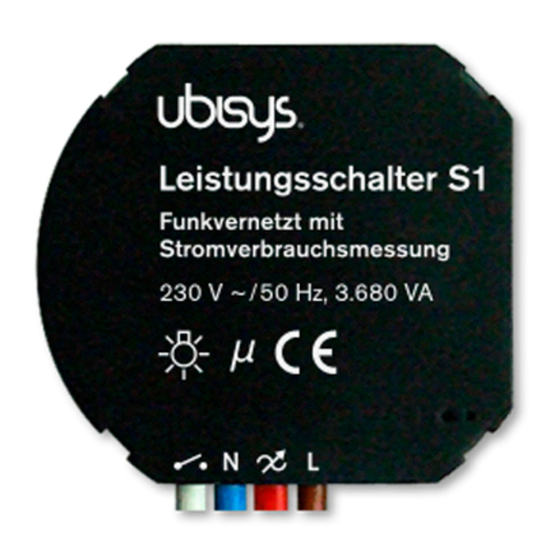

The power switch S1 is a radio controlled universal switch actuator with inte-
grated power consumption measurement. In the current flush mount version,
it is compatible to standard switch boxes and fully integrates into the rest of
your smart home. It is not only suitable for new buildings, but also for existing
buildings, because retrofitting has, due to use of radio technology, no special
requirements to the electrical installation. For new buildings and renovations,
it helps reducing both planning and cabling costs. The system can gradually
be extended by adding new components. Determine scope and timing at any
time by yourself.
The power switch S1 offers full functionality when combined with other com-
ponents of the ubisys smart home product line and allows for example:
Freely configurable assignments between control elements and consu-
mers
Scenes and group controlling
Time and event controlled actions
Continuous metering
Surveillance
Controlling via smart home display, smartphone app or, as usual, via
button or switch
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.
Installation
The power switch S1 is designed for installation in flush mounted sockets
according to DIN 49073. For installation behind a switch or power socket,
deep sockets are recommended.
Leads:
Leistungsschalter S1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 3.680 VA
2
1
For installation of the power switch S1, the included clamps can be used.
The power switch S1 retains its switch position when disconnected from
power. The switch position is undefined by delivery; i. e. the switching output
can be conductively connected to the phase L!
Router R0
During installation, the general risks of household voltage networks have to
Funkvernetzt
be noted!
AC 230 V ~ / 50 Hz
Basic ZigBee Commissioning
The device joins an open ZigBee network when it is factory new and power
is applied.
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2
2
1
1
LED
Button
Router R0
90 - 270 V ~ , 50/60 Hz
(12 - 400 V=)
Dimensions:
47 mm
17 mm
Leistungsschalter S2
Leistungsschalter S1
Funkvernetzt mit
Stromverbrauchsmessung
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
230 V ~ / 50 Hz, 3.680 VA
2
1
2
1
Bedieneinheit C4
Funkvernetzt
AC 230 V ~ / 50 Hz
4
3
2
1
Factory Reset
Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence. This is equivalent to selecting
menu item #5, with the advantage that you need no access to the device
itself (only to its power supply).
1.
Power the device for at least four seconds.
2.
Interrupt the power supply for at least a second.
3.
Reapply power for less than two seconds but more than half a second.
Notice that at the end of this cycle, the device is off and should remain off for
at least a second.
4.
Repeat the previous step two more times, for a total of three short
power cycles.
5.
Apply power to the device and leave it powered on. The device will now
factory reset and reboot.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly. * )
Only use the electrically isolated tool provided with the device to press the
button in the hole.
Universaldimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2
1
LED
Button
*) If the device has legacy firmware this feature might not be available. In this
case, keep the button pressed for one second, until the LED flashes three
times and then blinks once every second. Then press the button four times
for less than a second, until the LED flashes five times, followed by a pause,
then flashes five times again, followed by a pause, etc. In this state, keep the
button pressed for more than a second until the LED starts flashing rapidly.
Router R0
Configuration
Upon delivery the factory settings of power switch S1 has switching input as-
Funkvernetzt
signed to the corresponding switching output. So it can initially be operated
AC 230 V ~ / 50 Hz
autonomously without a radio network.
For integration into the smart home radio network, the power switch S1 has
47 mm
to be configured first. Direct access to the power switch S1 is not necessary
for configuration. That means that network configuration can also be done
LED
after successful electrical installation. It is best to hold the 16 digit serial
Button
number of the power switch S1 in the construction plan during installation.
Leistungsschalter S2
Funkvernetzt mit
This allows you to allocate the device at a later point.
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
When connected to power, the power switch S1 automatically logs into the
ZigBee network. After that it can be configured via the electrician's installati-
on software (ubisys Network Manager) or the ubisys smartphone app.
2
1
2
1
More information about adding and configuring ubisys smart home compon-
ents can be found in the ubisys Smart Home Installation manual.
Technical Information
Rated voltage
Max. switching power
Own consumption
Radio technology
Environment temperature
*) More information about radio technology can be found at www.ubisys.de.
Leistungsschalter S1
Leistungsschalter S2
Funkvernetzt mit
Funkvernetzt mit
Stromverbrauchsmessung
Stromverbrauchsmessung
230 V ~ / 50 Hz, 3.680 VA
230 V ~ / 50 Hz, 2 x 500 VA
LED
Button
Bedieneinheit C4
Funkvernetzt
AC 230 V ~ / 50 Hz
12 mm
47 mm
4
LED
Button
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2
2
1
1
230 V ~, 50 Hz
3,680 VA
47 mm
12 mm
0.3 W
ZigBee 3.0 in 2.4 GHz ISM Band,
IEEE 802.15.4 channels 11-26, 0...5dBm
Bedieneinheit C4
transmitting power *)
Funkvernetzt
AC 230 V ~ / 50 Hz
-20°C - +45°C
2
4
3
2
1
Page 1/2
2
1
2
1
LED
Button
12 mm
47 mm
3
2
1
LED
Button
Universald
Funkvernetzt
Stromverbrau
230 V ~ / 50 H
47 mm
12 mm
Router R0
Funkvernetzt
230 V ~ / 50 Hz
2
As per 02/2017
