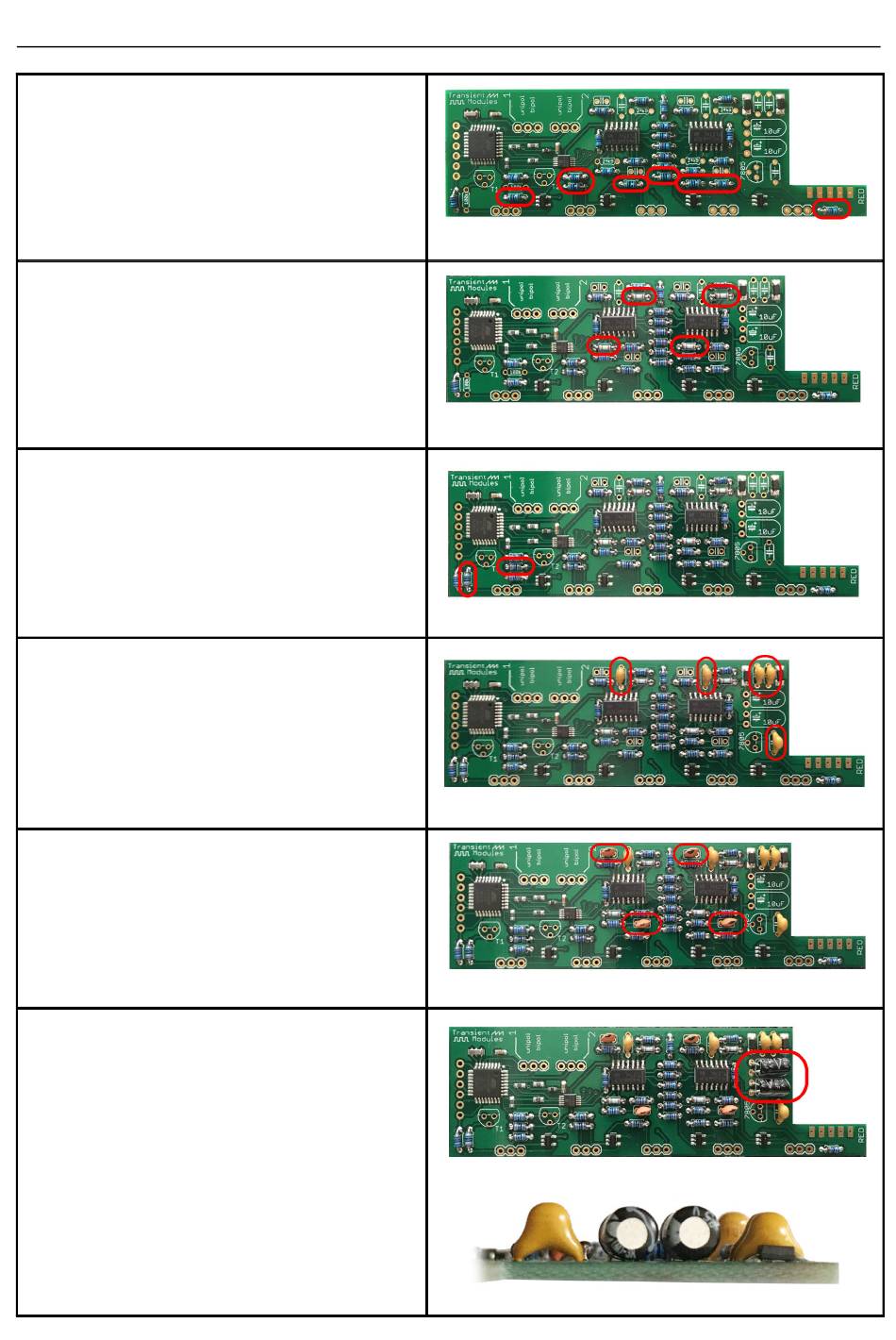

4. Solder the 8x 1K resistor.
Colour code: brown, black, black, brown, brown.
5. Solder the 4x 24K9 resistor.
Colour code: red, yellow, white, red, brown.
6. Solder the 2x 100K resistors.
Colour code: brown, black, black, orange, brown.
7. Solder the 5x 100nF capacitors,
labelled 104.
8. Solder the 4x 22pF capacitors,
labelled 221.
9. Bend the legs of the 2x 10uF
electrolytic capacitors as shown on the
picture and solder them.
NOTE! Orientation is vital. The long leg
should be positioned in the pad marked
with the + symbol.
