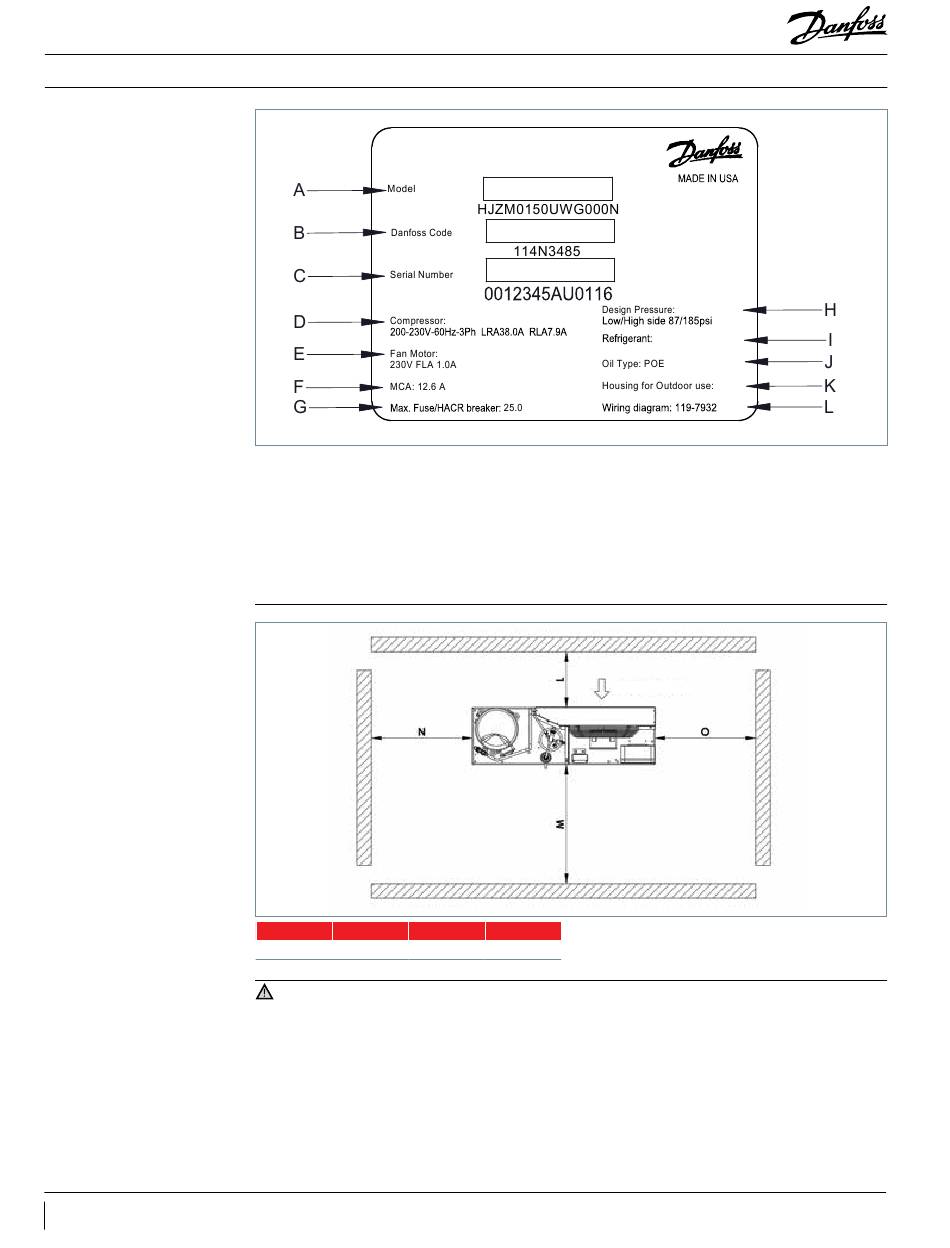

Label
Picture 1 : Minimum
mounting distances
IMPORTANT
2
BC251686497767en-US0801
Installation & Maintenance
A: Model and bar code
B: Unit code and bar code
C: Serial number and bar code
D: Compressor voltage & Locked rotor amps &
Rated load amps
E: Fan voltage & Full load amps
F: Min. Circuit Ampacity
L
M
12"
26"
1 - Installation and maintenance of the
condensing unit must be carried out by qualified
personnel only. Follow these instructions and best
practices on refrigeration engineering during
installation, commissioning, maintenance and
servicing tasks.
2 - The condensing unit must only be used for
its designed purposes and within its scope of
application.
G: Max. Fuse size
H: Design pressure
I: Refrigerant
J: Oil type
K: Outdoor housing
L: Wiring diagram
AIR FLOW
N
O
22"
22"
3 - Under all circumstances requirements must be
fulfilled.
4 - The condensing unit is delivered under
nitrogen gas pressure (14.5psi) and hence
it cannot be connected as it is; refer to the
"Installation" section for further details.
5 - The condensing unit must be handled with
caution in a vertical position (maximum offset
from the vertical: 15°).
R404A/R134a/R507/
R448A/R449A/R452A
