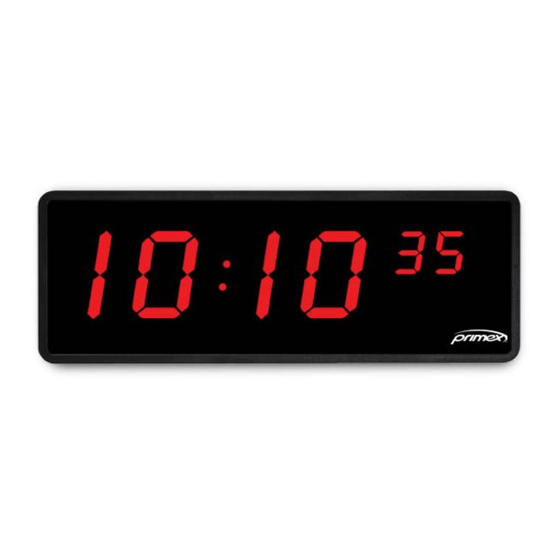

- Page 1 Digital Code Blue Timer Install Guide OneVue Sync Bluetooth Publication date July 20, 2020...
-
Page 2: Table Of Contents
Operate a Code Blue Timer ......................21 Code Blue Timer operation overview ..................21 Technical Support ......................... 23 Support through Primex Certified Sales and Service Partners ............23 Primex Technical Support ...................... 23 IMPORTANT SAFETY INSTRUCTIONS ....................24 REGULATORY APPROVALS ......................25 RADIO STANDARDS SPECIFICATION (RSS) .................. -
Page 3: Specifications: Sync Bluetooth™ Digital Clock/Timer
Specifications: Sync Bluetooth™ Digital Clock/Timer Device specifications AC power supply 120 VAC (100-240)/ 50–60 cycle, 10 ft. (3.0 m) cord with two-prong plug, UL/cUL listed Enclosure Enclosure: ABS plastic Junction box: UL listed (UL 50E 1st Ed; listing number E469550) Bluetooth®... - Page 4 A. Key-Hole Mount (2) B. AC power supply and power cord with 2-prong plug (AC model). Power cord strain relief assembly with supplied washer and screw. C. RJ45 port (PoE model) D. RJ11 port (elapsed timer and code blue timer model): connection to supplied Timer Switch Control E.
-
Page 5: Digital Clock/Timer 120 Vac Power, Weight, And Dimension Specifications
Digital Clock/Timer 120 VAC power, weight, and dimension specifications Digital Clocks/Timers are shipped from the factory with a power supply and power cord with a two-prong plug. The power plug may be removed and the cord cut to length for hardwired (pigtail) installation. Pigtail installation requires a 120V~ power line in a junction box installed by a licensed electrician. -
Page 6: Install And Operation Overview: Sync Bluetooth Digital Clocks & Timers
Install and operation overview: Sync Bluetooth Digital Clocks & Timers OneVue Sync Bluetooth devices are designed to provide ease of installation, requiring no end user configuration, simply take-out-of the box and install. The only operation dependency is its connection to an available Sync Bluetooth mesh network. -
Page 7: Post-Install Operation
In summary, from the time a clock or repeater device is first powered on at its install Location and connects to the mesh network, it receives and sets its time within 15 minutes. If a Bridge is in 8-hour deployment mode, a new device is added to your OneVue account within 30 minutes, and when not in 8-hour deployment mode it may take up to 24 hours to 7 days. -
Page 8: Install Digital Clock/Timer: Wall Mount With Tilt Bracket
Install Digital Clock/Timer: Wall mount with tilt bracket A Digital Clock/Timer can be wall mounted at a 4° or 18° angle with use of the supplied tilt bracket. Tilt bracket mounting dimensions • Dimension D: Clock screw hole spacing. • Dimension E: Distance to wall surface for 4° mounting bracket •... -
Page 9: Assemble And Mount To Tilt Bracket
Assemble and mount to tilt bracket NOTE Hardwired (pigtail) install: AC-powered clocks are supplied with a power cord with a two-prong plug. The two-prong plug may be removed for a hardwired (pigtail) installation. Hardwired installation requires a 120V~ power line in a junction box installed by a licensed electrician. Leave a minimum of 6 in. -
Page 10: Remove Digital Clock/Timer From Tilt Bracket
Remove digital clock/timer from tilt bracket • 2.5" model: From the top of the bracket using a screwdriver press each hook down to release the clock and pull out to unsnap bottom hinges. • 4” model: From the top of the bracket, insert a thin screwdriver into each notch and gently move the screwdriver sideways to unlock the clock, pull clock forward and up to unsnap, and lift out. -
Page 11: Digital Clock/Timer Wall Mount With Keyhole Installation
Digital Clock/Timer wall mount with keyhole installation A Digital Clock/Timer can be mounted directly to the surface of a wall by use of the clock keyhole mounts and the supplied screws and anchors. Mounting dimensions • Dimension D: Clock screw hole spacing. •... -
Page 12: Directly Mount A Clock/Timer To The Surface Of A Wall
Directly mount a clock/timer to the surface of a wall Most building codes prohibit the use of hardwired power connections for devices that can be removed without tools. A clock/timer mounted directly to a wall is required to have a standard power plug. •... -
Page 13: Digital Clock/Timer Dual-Sided Installation
Digital Clock/Timer dual-sided installation A dual-sided Digital Clock/Timer consists of two single-sided clocks/timers and a dual bracket kit. The kit includes a dual housing bracket, a flange that mounts to ceiling or wall, and the hardware necessary to complete the installation. Using the kit, you combine the two single-sided clocks to create a dual-sided clock. -
Page 14: Assemble And Mount A Dual-Sided Digital Clock/Timer
Assemble and mount a dual-sided digital clock/timer On the wall or ceiling, measure and drill holes with the correct spacing to mount the flange over the junction box. Attach the flange to the wall or ceiling using the toggle anchors and the longer machine screws provided. Wall-mount: if the mounting location is outside of the junction box, break off or cut openings in the flange to route power cords. -
Page 15: Remove From Dual Mount Bracket
Remove from dual mount bracket 2.5” model: From the top of the bracket, using a screwdriver press each hook down to release the clock. Then pull out to unsnap bottom hinges. 4” model: From the top of the bracket, insert a thin screwdriver into each notch and gently move the screwdriver sideways to unlock the clock, pull clock forward and up to unsnap, and lift out. -
Page 16: Digital Clock/Timer Flush Mount Installation
Digital Clock/Timer flush mount installation A flush mount model can be installed onto a new or existing wall surface. Supplied components Quantity Component Flush mount junction box Material: ABS plastic, color black, and UL Rated 94-V0 Bezel Material: ABS plastic, color black, and UL Rated 94-V0) #10 Phillips Flat Head Screw Drywall Anchor Dimension specifications... - Page 17 • Existing wall surface Cut a 14.4 in. (36.5 cm) wide x 5.8 in. (14.7 cm) high wall opening between two wall studs, as shown Figure 2, “Existing wall surface assembly illustration” [18]. Securely mount junction box to all studs using four common drywall screws (not supplied) at each of the corner locations.
- Page 18 Figure 1. New wall surface assembly illustration Figure 2. Existing wall surface assembly illustration Page 18...
-
Page 19: Timer Control Switch Installation
Timer Control Switch installation Elapsed Timers and Code Blue Timers include a three-button Timer Control Switch that controls end-user timer events. • InfoBoards can operate as an Elapsed Timer with both count up and count down options. The three-button Timer Control Switch allows a user to start, pause, stop, and reset the count events, and set an event to begin at a specific time increment. -
Page 20: Step 3: Mount Timer Control Switch To Junction Box
Step 3: Mount Timer Control Switch to junction box Timer Control Switch is required to be mounted to a single-gang junction box (not supplied). The junction box dimension is typically 2.25 in. x 2.75 in. x 4 in. (5.72 cm x 6.99 cm x 10.16 cm). Page 20... -
Page 21: Operate A Code Blue Timer
Operate a Code Blue Timer A Code Blue Timer is a multi-function device that can operate as a digital clock displaying synchronized time and a timer that integrates with an existing code blue system that triggers its code blue events. Code Blue Timer operation overview •... - Page 22 Pressing the button... Active Code Blue Event Mode Halted Mode DISPLAY (EXIT) Ignored Exits code blue mode and sets timer back to Holding down DISPLAY (EXIT) for a minimum of clock mode. four seconds will display the time of the last code blue event.
-
Page 23: Technical Support
Ensuring our customers experience excellent service is of utmost importance to Primex. Our network of Certified Sales and Service Partners offers technical support services for Primex products. If you have purchased Primex products or have a service agreement with a Primex Partner, they are your primary contact for all Technical Support inquires. -
Page 24: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLATION, OPERATION, OR MAINTENANCE OF PRODUCT. Some of the following information may not apply to your particular product model; however, as with any electronic product, precautions should be observed during installation, operation, and maintenance. •... -
Page 25: Regulatory Approvals
REGULATORY APPROVALS FCC Compliance Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Primex might cause harmful interference and void the FCC authorization to operate this product. FCC Radio Frequency Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 26 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
-
Page 27: Radio Standards Specification (Rss)
RADIO STANDARDS SPECIFICATION (RSS) This device complies with Industry Canada licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. -
Page 28: European Union Declaration Of Conformity And Restrictions
NOTE: Exposure to Radio Frequency Radiation To comply with RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. The technical documentation relevant to the above equipment will be held at Primex, Inc., 965 Wells Street, Lake Geneva, WI 53147. -
Page 29: Two Year Limited Warranty
Primex, Inc. warrants this product to be free from defects in materials and workmanship for a standard of two (2) years from the date of purchase. Primex, Inc. will at its sole option, repair or replace any components that fail in normal use.
