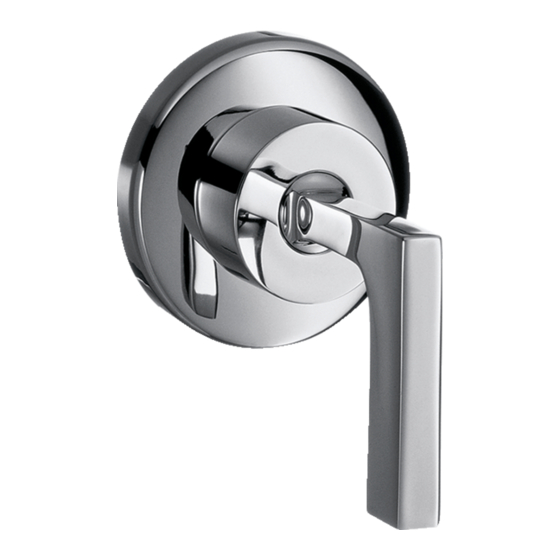

- Page 1 Installation Instructions / Warranty Volume Control Trim Citterio 39960XX1 Citterio 39965XX1 Rough-in Ref. No.: 13975181...
- Page 2 Installation Considerations These trim kits are for use with Hansgrohe volume control rough valve 13975181. Before installation, the rough valve must be installed, and the finished wall complete. the outside surface of the wall should fall between the minimum and maximum lines on the plaster shield. If the valve is roughed in too deep, install extension kit 96370000 before beginning installation of the trim kit.
- Page 3 Installation cut the plaster shield nearly flush to the finished wall surface 3/64“ Use silicone caulk to seal the wall around the plaster shield. Screw the threaded sleeve onto the valve body Cut the threaded sleeve so that it extends 3/4“ from the surface of the wall.
- Page 4 Cut the stem extension so that it extends 1 5/16“ from the surface of the finished wall. 1 5/16“ Screw on the handle to test the position of the lever / cross. If the position is not o. k. correct it.
- Page 5 Remove the handle. Put the small sleve in the next possible position. Screw on the handle again to test the position...
- Page 6 If the position is correct, go on with next step, otherwise correct the position again. Remove the handle Press the escutcheon over the volume control. Screw on the handle.
- Page 7 Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty.
- Page 8 Hansgrohe Consumer Warranty Hansgrohe products are manufactured and tested to the highest quality standards. Hansgrohe, Inc. warrants to the original consumer that its products will be free from defects of workmanship and materials for as long as the original consumer owns the home in which the products are installed. Accessories or parts of products manufactured by others are warranted only for the period and to the extent of the original manufacturer’s warranty.
