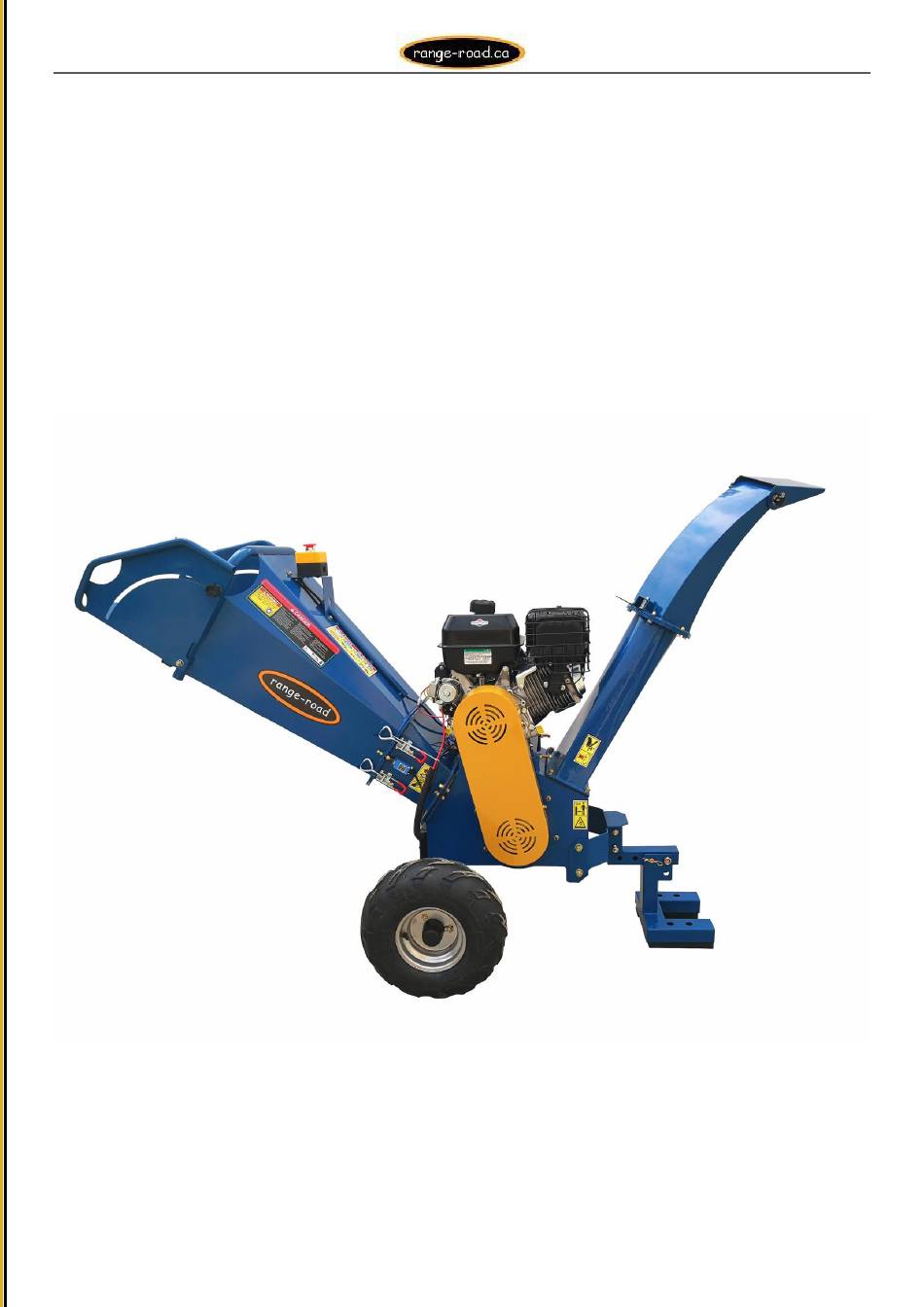

- Page 1 Range Road RR400 Series Wood Chipper Owners Manual...
- Page 2 It is potentially hazardous to fit or use any other parts except genuine parts from your dealer. RANGE ROAD ENTERPRISES LTD disclaims all liability for the consequences of such use, which in addition voids the machine warranty. DO NOT put any part of your body into the in-feed chute while the machine is running.
- Page 3 Do not pump fuel directly into engine at gas station. Static charge can build and ignite fuel. Use a safety approved fuel container to transfer gas to the engine. Wipe up fuel spills immediately. Range Road Enterprises Ltd Page 3 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 4 Poisonous fumes from engine can kill you. Do not operate indoors even if ventilated. For outdoor use only. Do not touch the muffler as you may get burned. Note: Any modification to wood chipper will void all warranty Range Road Enterprises Ltd Page 4 Box 944 Eckville AB T0M 0X0...
-
Page 5: Operation
RR400 Series Setting up the RR400 Series Wood Chipper For Instructions on how to properly setup your crated RR400 Series Wood Chipper please see the RR400 Series Wood Chipper Assembly Manual available on the Range Road website. Operation Proper Operation of the Firewood Processor 1. -
Page 6: Setting The Engine Speed
3) Turn the fuel lever to the OFF position. Fig.7 FIG 7 Setting the Engine Speed: Move the throttle lever to MAX for operating speed. Fig. 8 FIG 8 Range Road Enterprises Ltd Page 6 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 7 Do not reach or step across the engine while the Wood Chipper is running. This is very UNSAFE, doing so could cause personal injury, or even death. Range Road Enterprises Ltd Page 7 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
-
Page 8: Clearing A Jam
Stop the engine, turn the key to the off position AND push the emergency stop button. Use a wrench and turn the drum shaft, first clockwise and then counter clockwise until the jam is cleared. Clear the infeed chute. Range Road Enterprises Ltd Page 8 Box 944 Eckville AB T0M 0X0 www.range-road.ca... -
Page 9: Maintenance
Lubrication: The chipper drum bearings should be greased every 10 hours with a quality bearing grease. Bearing 1: behind bottom belt pulleys Bearing 2: on outside of body Range Road Enterprises Ltd Page 9 Box 944 Eckville AB T0M 0X0... - Page 10 Double check that upper and lower pulleys are still running true to each other Tighten 2-16mm jam nuts Tighten 4-16mm bolts holding engine mount plate to chipper body Replace belt cover and tighten 4-13mm bolts Range Road Enterprises Ltd Page 10 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
-
Page 11: Replacing Belts
Gently tilt and hold the engine and install the new belts and gently set the engine back down Range Road Enterprises Ltd Page 11 Box 944 Eckville AB T0M 0X0... - Page 12 Re-install the 2-13mm bolts in the inner belt cover, center the cover over the pulleys and tighten the bolts Re-install the 4-13mm bolts in the belt cover Range Road Enterprises Ltd Page 12 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
-
Page 13: Troubleshooting
-Green branches are much easier on the blades, dry wood wears the blades faster -see section on clearing a jam Belts need replaced See section on tensioning or replacing belts Range Road Enterprises Ltd Page 13 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 14 (tighten bolts, etc.) Check Knives Check Belts Check Tire Pressure Check engine components First time Change engine oil 10 Hours Replace Air Filter Range Road Enterprises Ltd Page 14 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
-
Page 15: Specifications
Note: Any modification to wood chipper will void all warranty Failure to do regular maintenance will void warranty Range Road Enterprises Ltd Page 15 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 16 (Honda, Lifan, Kohler, Princess Auto, Ducar, Etc.) The warranty begins on the date of sale and is warranted by Range Road Enterprises Ltd. to the original purchaser only. This Warranty does not cover items that have been damaged by accident, alteration, abuse or improper lubrication.
