Range Road EcoPro 200
Owner's Manual
Crated Unit Assembly Manual
Range Road Enterprises Ltd
Box 5 Site 9 RR1
Lacombe, AB T4L2N1
www.range-road.ca

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoPro 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Range Road EcoPro 200

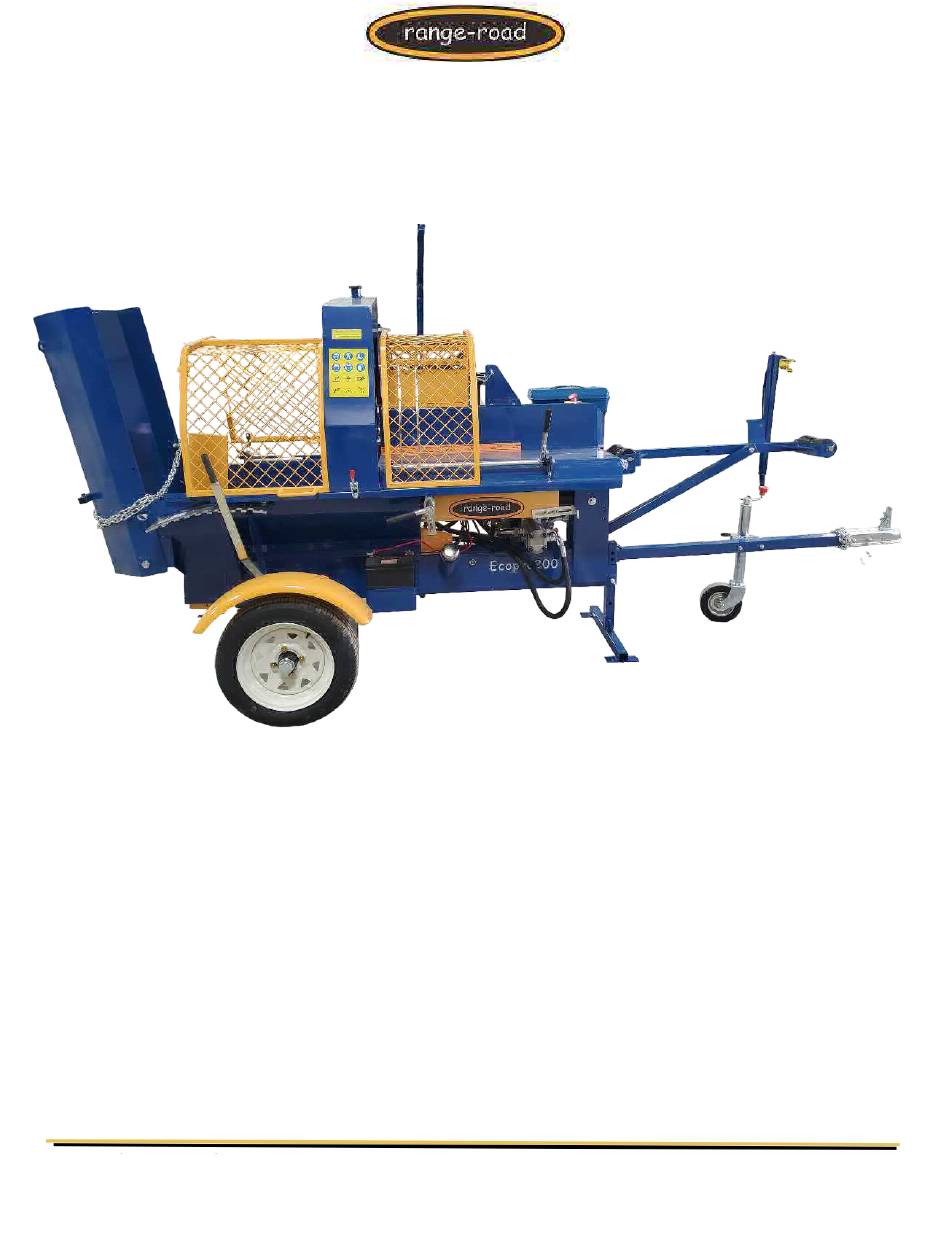

  • Page 1 Range Road EcoPro 200 Owner’s Manual Crated Unit Assembly Manual Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 2 DO NOT use the product until you have first contacted us to determine if it can or should be performed on the product. For technical questions please visit www.range-road.ca or www.range-road.com. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 3: General Safety Rules

    Watch what you are doing and use common sense when using the machine. Do not use while you are tired or under the influence of drugs, alcohol or medication. Inattention while operating Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 4  Store idle achine. When machine is not in use, store it in a secure place out of the reach of children. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 5: Important Safety Information

    Use only lubricants and fuel recommended in the engine manual or in the Specifications Chart of this manual. CARBON MONOXIDE HAZARD !!! Using an engine indoors CAN KILL YOU IN MINUTES. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 6 3. Wear ANSI-approved safety glasses, hearing protection, and NIOSH-approved dust mask/respirator under a full face shield during use. Wearing steel toe shoes is also recommended. 4. Wear heavy-duty work gloves when handling the blades. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1...
  • Page 7 6. Use only accessories that are recommended by Range Road for your model. Accessories that may be suitable for one piece of equipment may become hazardous when used on another piece of equipment.
  • Page 8: Service Precautions

     Wear approved safety goggles, heavy-duty gloves, and a dust mask/respirator during service.  Maintain all labels on the machine. These show important information. If unreadable, missing or damaged, contact Range Road for a replacement.  Have the equipment serviced by a qualified repair person using only OEM replacement parts.
  • Page 9 Read all of the safety precautions and warnings in this manual before setting up or using this product. TO PREVENT SERIOUS INJURY: The machine can be dangerous if assembled incorrectly. If you do not feel completely comfortable assembling it, please have a qualified technician assemble Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1...
  • Page 10 Undo 4 Nuts and bolts. 1 on each leg of top frame. Lift top of Metal crate off and move it out of the work area. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 11 Remove and Unwrap components. Lift Unit off of the crate, if using straps be careful not to bend or stress any components Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 12 Install the axle into the axle tube on the frame of the machine. Equal length on both sides. The holes for mounting the fenders up. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 13 Install cotter pin. The wheels can now be mounted, and the wheel nuts torqued at 75 ft/lbs. Top up tire pressures if needed to max. 44 PSI. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 14 Install dust caps. Install the draw bar and mount the tongue jack and tighten the bolts. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 15 Install the stand. Set down the machine on the floor. Find the sawdust chute. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 16 Mount the chute on the back side of the machine underneath the swivel plate with the saw motor. Install the small front cage. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 17 Take out those 2 nuts on the swivel plate on the back of the machine. Install the saw handle with those bolts. Install the saw handle extension. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 18 Make sure the valve underneath the swivel plate is all the way pushed in. If not use a different hole for the gas cylinder mount. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 19 Find this bracket and install. Install the infeed roller. Take out this cotter pin, bolt and roller. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 20 Installing the saw cage. Remove nut & bolt from safety cage pivot point and remove cotter pin from round bar on safety cage Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 21 Install cage and install cotter pin and bolt and nut. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 22 Set the saw guard beside the cage. Install all the bolts and mount the saw guard to the cage. Adjust the latch on the front sp the cage closes and can’t be opened. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 23 Find the manual engagement lever Install at the front of the machine. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 24 Place the end of the log holder spring in the hole of the log holder and tighten bolt. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 25 Install edge adjuster. Take out this bolt. Slide this part through the mount behind the axle. Install the bolt. Install the swivel bar. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 26 Install wedge adjustment plate. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 27 Install the positive and negative cable. Negative to the engine. Mount the red battery cable to the lower position of the solenoid on the engine. Install the battery cable to the battery. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
  • Page 28 D) Read the Equipment Operation section that follows 1. Start and operate the engine according to the provided engine manual. 2. Replacement engine operating instructions can be obtained from the engine manufacturer. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1...
  • Page 29: Maintenance Procedures

    4. Cover and store in dry, well-ventilated area out of reach of children. 5. For cold weather operation, store the equipment in a cool dry area to prevent condensation and premature wear. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1...
  • Page 30: Equipment Troubleshooting

    Note: Some parts are listed and shown for illustration purposed only, and are not available individually as replacement parts. WARRANTY One-year limited warranty For technical questions, please visit www.range-road.ca www.range-road.com Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe, AB T4L2N1 www.range-road.ca...
