Wood chipper belt tightening procedure
Hide thumbs Also See for RR403:

Advertisement

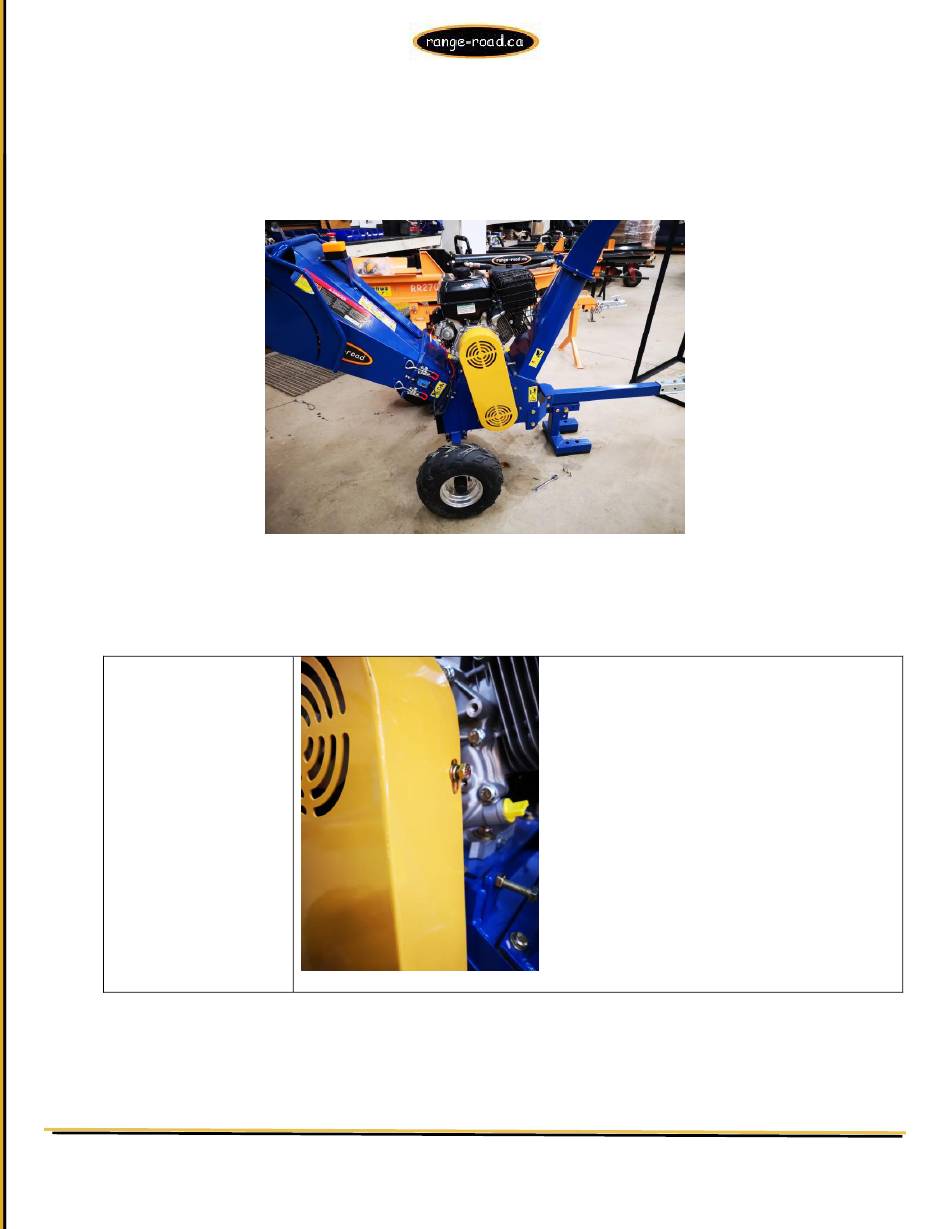

There are four 13MM
bolts holding on the belt
cover
Remove these bolts,
remove the cover and
set aside
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
RR403 Wood Chipper
RR403 Wood Chipper Belt Tightening Procedure
